Nissan Frontier. Manual - part 338





DLN-254

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: M226 ]

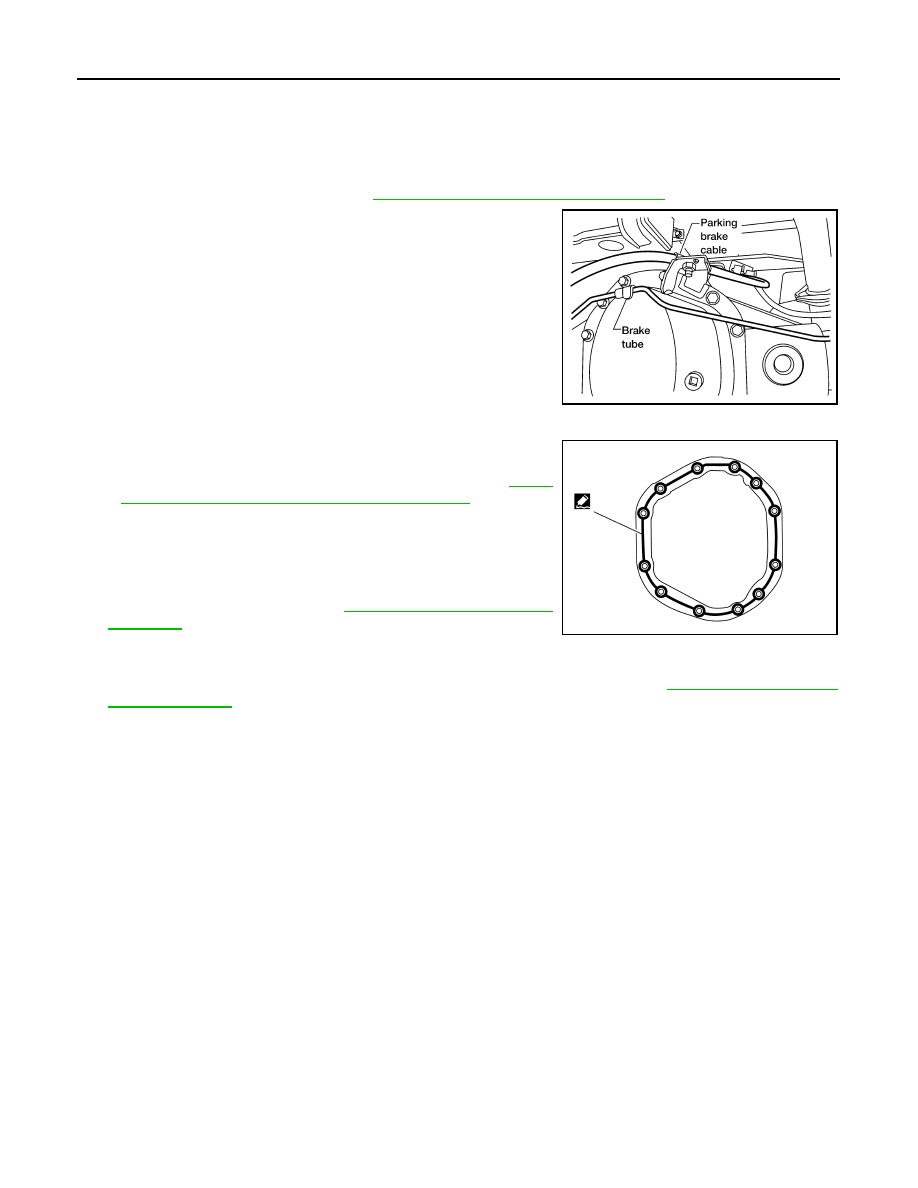

CARRIER COVER

CARRIER COVER

Removal and Installation

INFOID:0000000009479806

REMOVAL

1. Drain the differential gear oil. Refer to

DLN-251, "Changing Differential Gear Oil"

.

2. Disconnect the parking brake cable and brake tube from the car-

rier cover.

3. Remove the carrier cover bolts and separate the carrier cover

from the gear carrier using Tool.

CAUTION:

• Do not damage the mating surface.

• Do not insert flat-bladed screwdriver, this will damage the

mating surface.

INSTALLATION

1. Apply a bead of sealant to the mating surface of the carrier

cover as shown.

• Use Genuine Silicone RTV or equivalent. Refer to

GI-21,

"Recommended Chemical Products and Sealants"

.

CAUTION:

Remove any old sealant adhering to the mating surfaces.

Also remove any moisture, oil, or foreign material adhering

to the application and mating surfaces.

2. Install the carrier cover to the gear carrier. Tighten the bolts to

the specified torque. Refer to

DLN-256, "Disassembly and

Assembly"

.

3. Connect the parking brake cable and brake tube to the carrier

cover.

4. Fill the rear final drive assembly with recommended differential gear oil. Refer to

DLN-251, "Checking Dif-

ferential Gear Oil"

.

Tool number

: KV10111100 (J-37228)

LDIA0126E

PDIA1061E

REAR FINAL DRIVE ASSEMBLY

DLN-255

< UNIT REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: M226 ]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

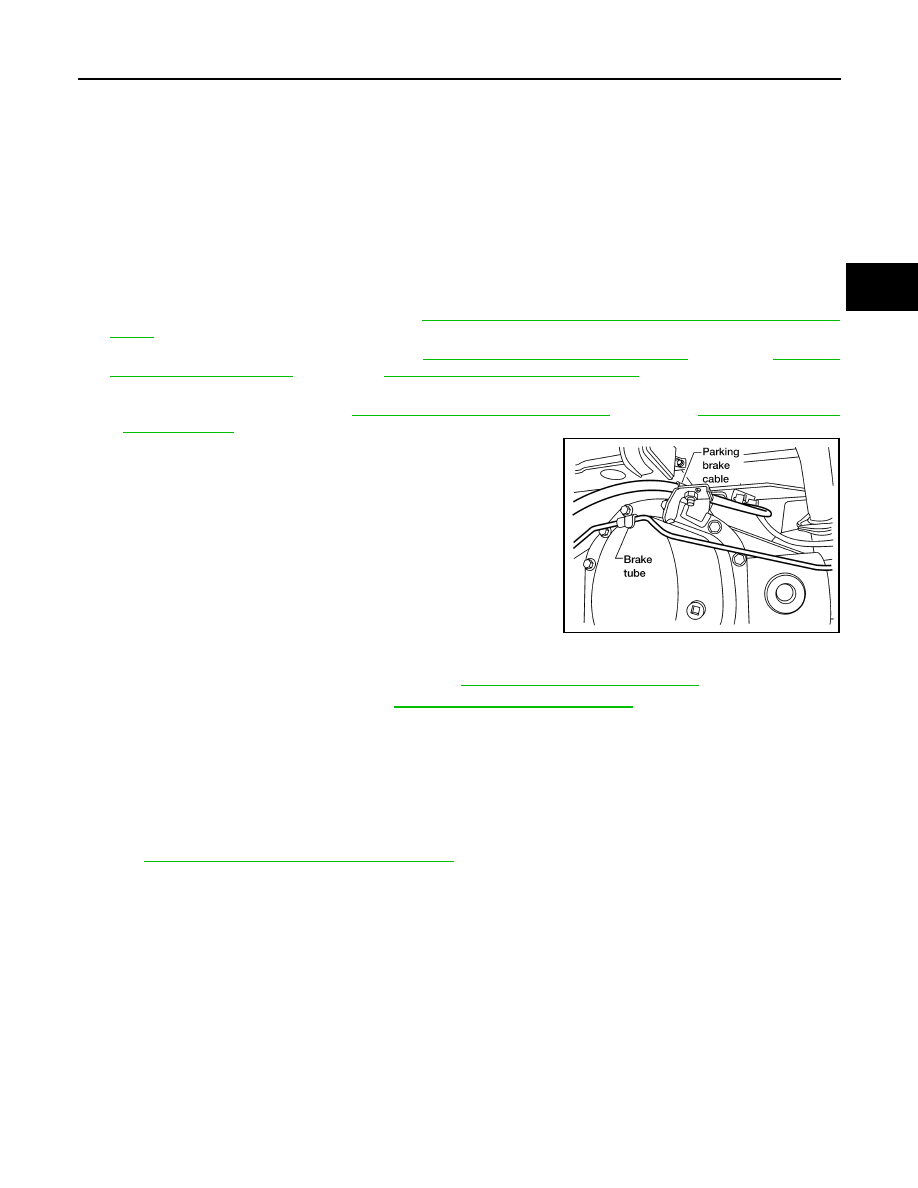

UNIT REMOVAL AND INSTALLATION

REAR FINAL DRIVE ASSEMBLY

Removal and Installation

INFOID:0000000009479807

REMOVAL

CAUTION:

• Do not damage spline, companion flange and front oil seal when removing propeller shaft.

• Before removing final drive assembly or rear axle assembly, disconnect wheel sensor harness con-

nector from the assembly and move it away from final drive/rear axle assembly area. Failure to do so

may result in sensor wires being damaged and sensor becoming inoperative.

1. Remove the rear disc brake rotors. Refer to

BR-40, "Removal and Installation of Brake Caliper and Disc

Rotor"

.

2. Remove the rear propeller shaft. Refer to

DLN-143, "Removal and Installation"

 (2S1330),

DLN-163,

"Removal and Installation"

 (3S1330) or

DLN-174, "Removal and Installation"

 (3S1330-2BJ100).

3. Disconnect the following components from the rear final drive assembly.

• Wheel sensor harness. Refer to

BRC-113, "Removal and Installation"

 (Type 1) or

BRC-234, "Removal

and Installation"

 (Type 2).

• Parking brake cable

• Brake hoses and tubes

4. Support rear final drive assembly using a suitable jack.
5. Remove rear shock absorber lower bolts. Refer to

RSU-8, "Removal and Installation"

.

6. Remove leaf spring U-bolt nuts. Refer to

RSU-9, "Removal and Installation"

.

7. Remove rear final drive assembly.

CAUTION:

Secure rear final drive assembly to the jack while removing it.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Check the rear final drive assembly differential gear oil and refill as necessary. Check for fluid leaks.

Refer to

DLN-251, "Checking Differential Gear Oil"

.

LDIA0126E

DLN-256

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: M226 ]

REAR FINAL DRIVE ASSEMBLY

UNIT DISASSEMBLY AND ASSEMBLY

REAR FINAL DRIVE ASSEMBLY

Disassembly and Assembly

INFOID:0000000009479808

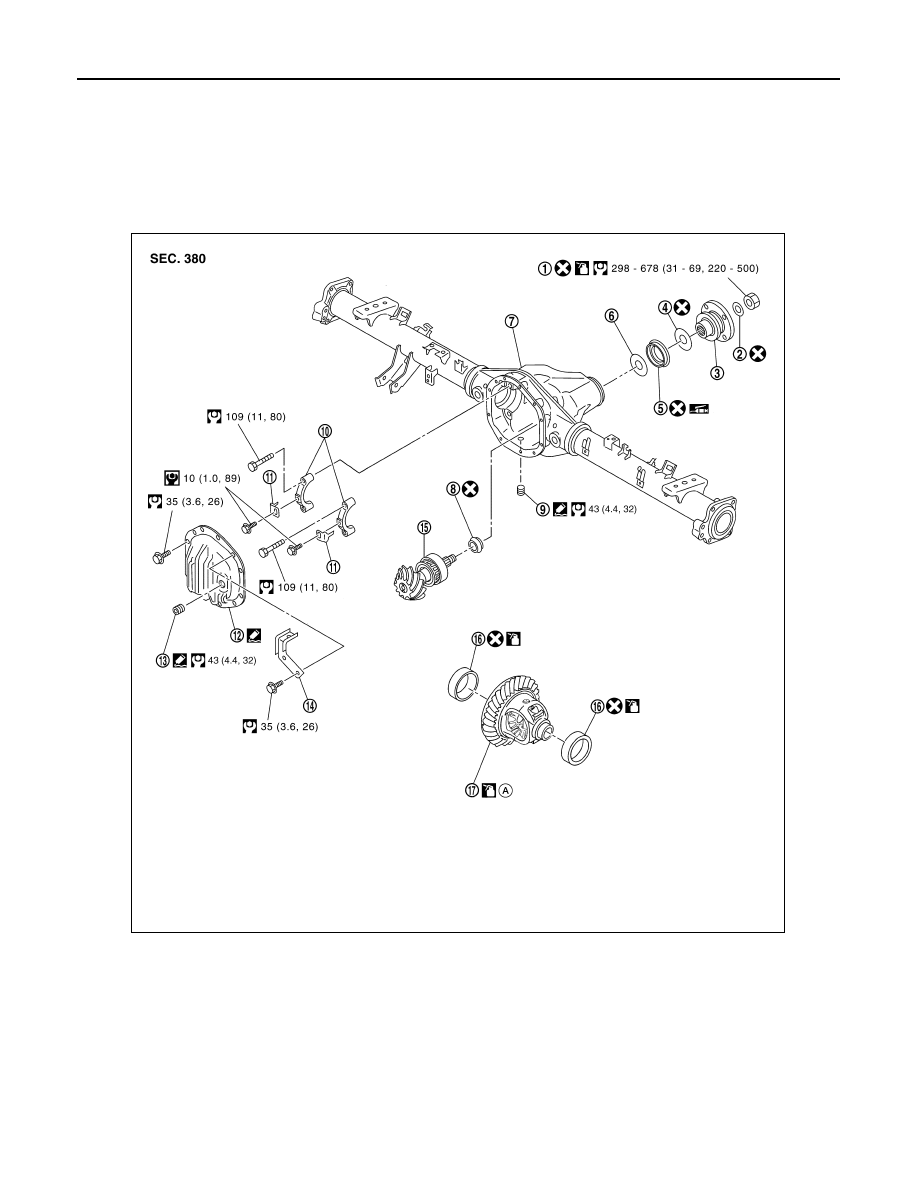

COMPONENTS

ASSEMBLY INSPECTION AND ADJUSTMENT

1.

Drive pinion lock nut

2.

Drive pinion lock nut washer

3.

Companion flange

4.

Oil seal/dust shield

5.

Front oil seal

6.

Drive pinion front bearing thrust washer
(non-serviceable)

7.

Gear carrier (non-serviceable)

8.

Collapsible spacer

9.

Drain plug (non-serviceable)

10. Side bearing cap (non-serviceable)

11. Adjuster lock plate (non-serviceable) 12. Carrier cover

13. Filler plug

14. Bracket

15. Drive pinion assembly (non-serviceable)

16. Side bearing outer race

17. Differential case assembly (non-ser-

viceable)

A.

Gear oil

AWDIA0666GB

REAR FINAL DRIVE ASSEMBLY

DLN-257

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: M226 ]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

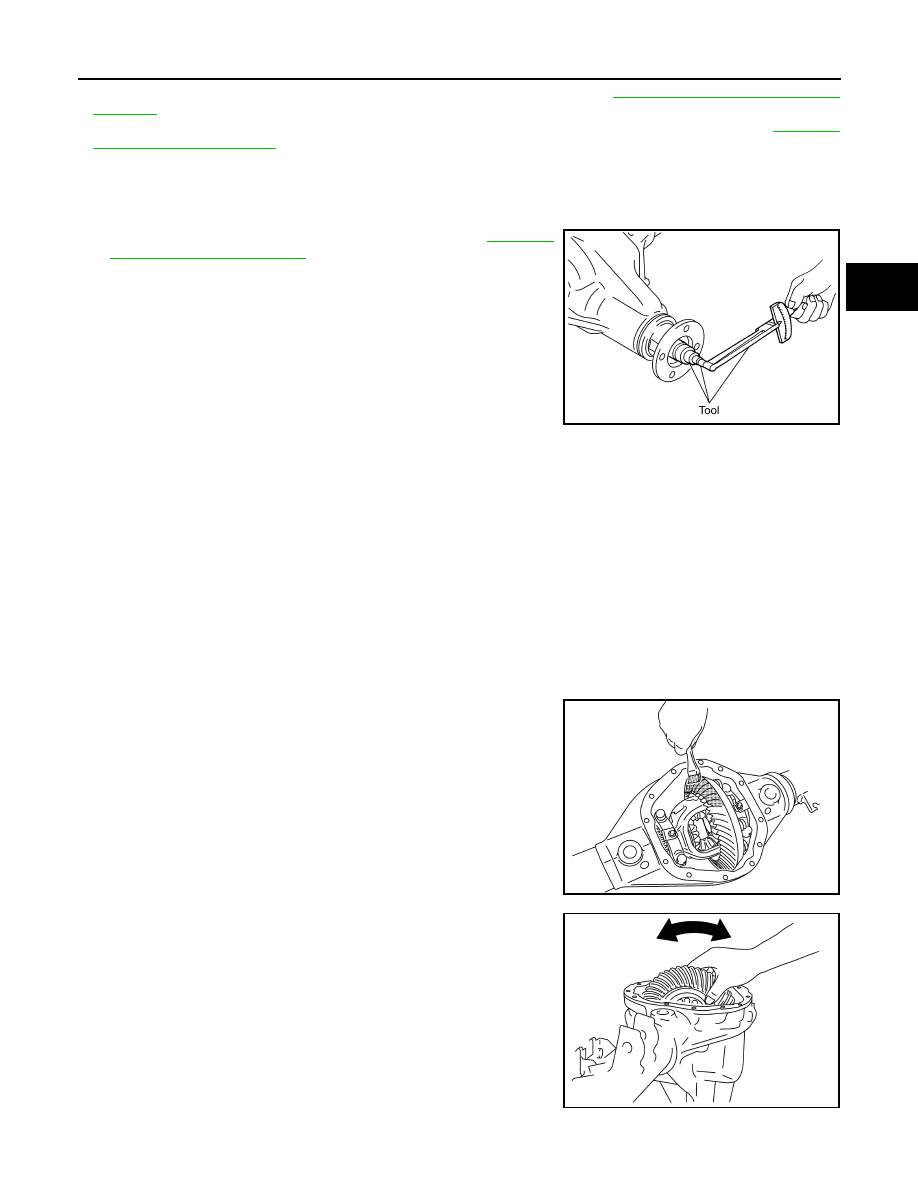

• Drain the differential gear oil before inspection and adjustment. Refer to

DLN-251, "Changing Differential

Gear Oil"

.

• Remove and install the carrier cover as necessary for inspection and adjustment. Refer to

DLN-254,

"Removal and Installation"

.

Total Preload Torque

1. Rotate the drive pinion back and forth 2 to 3 times to check for unusual noise and rotation malfunction.
2. Rotate the drive pinion at least 20 times to check for smooth operation of the bearings.
3. Measure total preload torque using Tool. Refer to

DLN-265,

"Inspection and Adjustment"

.

• If the measured value is out of the specification, check and

adjust each part. Adjust the drive pinion bearing preload

torque first, then adjust the side bearing preload torque.

NOTE:

Total preload torque = Drive pinion bearing preload torque +

Side bearing preload torque

Tooth Contact

Checking gear tooth contact pattern is necessary to verify correct relationship between drive gear and drive

pinion. Gears which are not positioned in proper arrangement may be noisy and/or have a short life. Check

gear tooth contact pattern to obtain the best contact for low noise and long life.
1. Thoroughly clean drive gear and drive pinion teeth.
2. Apply red lead to the drive gear.

• Apply red lead to both faces of three to four gears, at four loca-

tions evenly spaced on the drive gear.

3. Hold companion flange steady by hand and rotate drive gear in

both directions.

Tool number

: ST3127S000 (J-25765-A)

If the total preload torque is greater than specification

On drive pinion bearings

: Replace collapsible spacer.

On side bearings

: Loosen side bearing adjuster.

If the total preload torque is less than specification

On drive pinion bearings

: Tighten drive pinion lock nut.

On side bearings

: Tighten side bearing adjuster.

PDIA0309E

PDIA0321E

PDIA0322E
