FRONT DOOR LOCK

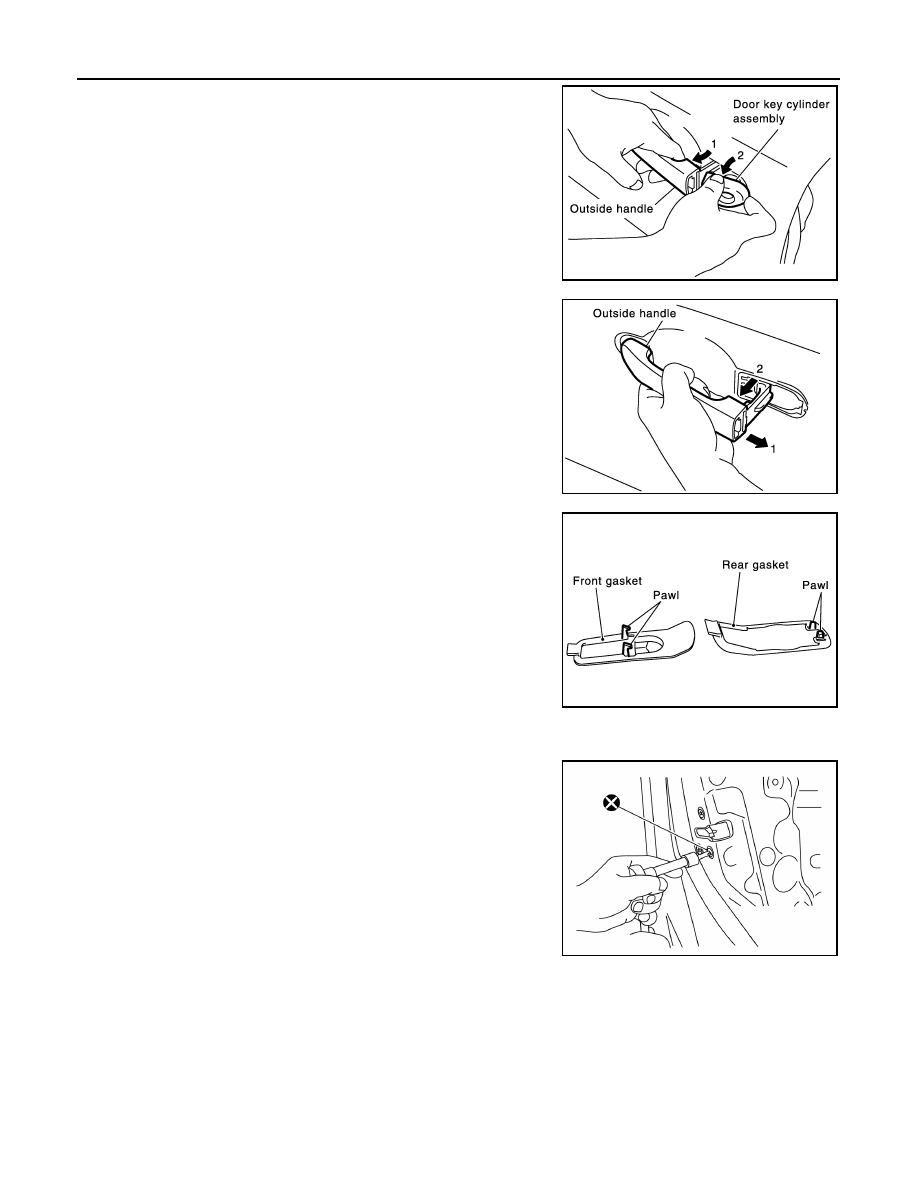

4. While pulling the outside handle (1), remove door key cylinder

assembly or escutcheon (2).

5. While pulling outside handle (2), slide toward rear of vehicle to

remove outside handle (1).

6. Remove the front gasket and rear gasket.

7. Remove the door lock assembly bolts (T30), remove the door lock assembly.

CAUTION:

Do not reuse door lock assembly bolts.

PIIA3554E

LIIA0532E

PIIA3557E

Door lock assembly bolts 5.8 N·m (0.59 kg-m, 51 in-lb)

AWKIA2018ZZ

FRONT DOOR LOCK

DLK-139

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

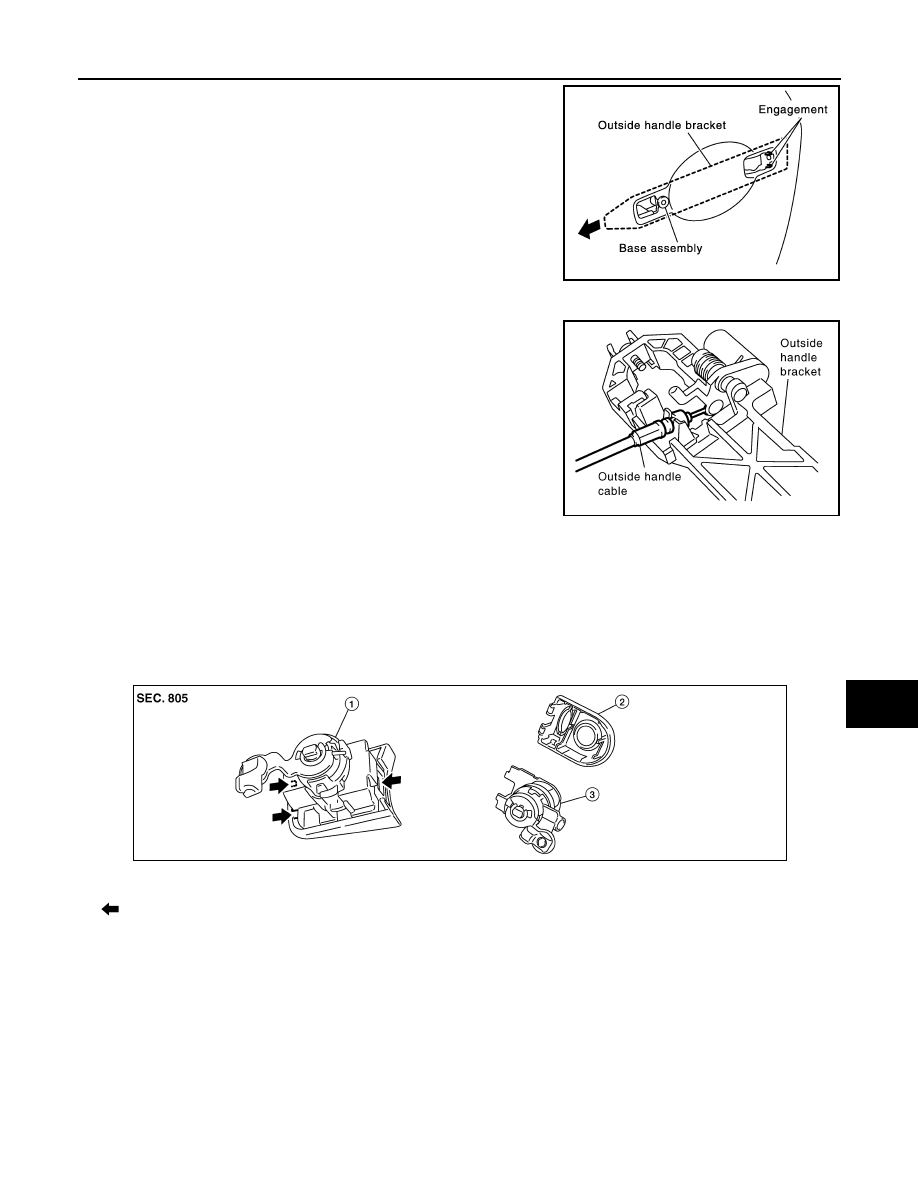

8. While pulling outside handle bracket, slide toward rear of vehicle

to remove outside handle bracket and door lock assembly.

9. Disconnect the door lock actuator connector.
10. Separate the outside handle cable connection from the outside

handle bracket.

INSTALLATION

Installation in the reverse order of removal.

CAUTION:

To install each rod, be sure to rotate the rod holder until a click is felt.

Disassembly and Assembly

INFOID:0000000009478960

DOOR KEY CYLINDER ASSEMBLY

Remove the key cylinder escutcheon pawl and remove the door key cylinder.

PIIA3558E

PIIA5059E

1.

Door key cylinder assembly

2.

Key cylinder escutcheon

3.

Door key cylinder

Pawl

WIIA1057E

DLK-140

< REMOVAL AND INSTALLATION >

REAR DOOR LOCK

REAR DOOR LOCK

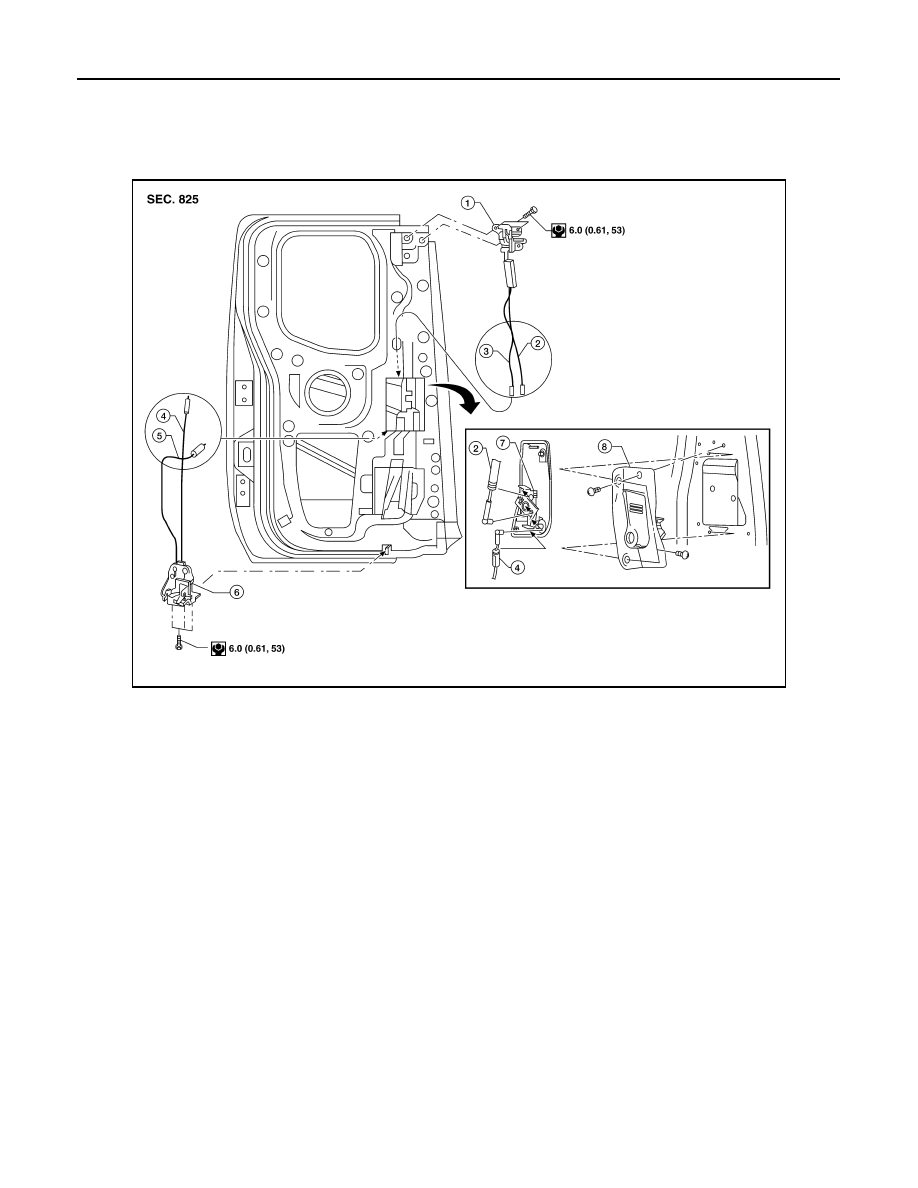

Component Structure

INFOID:0000000009478961

KING CAB

WIIA1064E

1.

Rear upper door latch

2.

Upper latch cable

3.

Rear door switch upper harness

4.

Lower latch cable

5.

Rear door switch lower harness

6.

Rear lower door latch

7.

Rear door lock assembly

8.

Rear door handle

REAR DOOR LOCK

DLK-141

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

CREW CAB

Removal and Installation

INFOID:0000000009478962

REMOVAL

1. Remove the rear door module assembly. Refer to

GW-20, "Rear Door Glass Regulator"

.

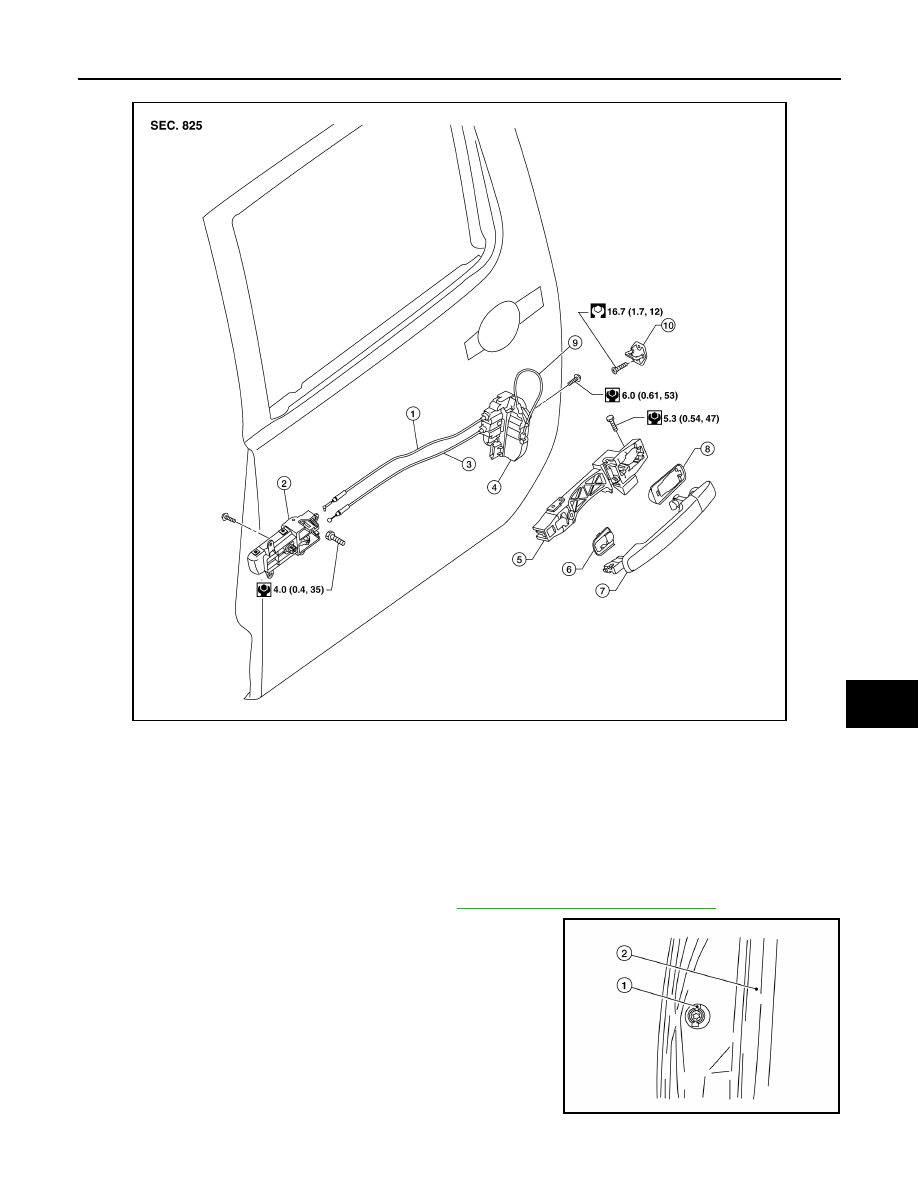

2. Remove the door side grommet and the bolt (1) from the grom-

met hole.

(2): Weatherstrip

AWKIA0678ZZ

1.

Lock knob cable

2.

Rear inside door handle assembly

3.

Inside handle cable

4.

Rear door lock assembly

5.

Outside handle bracket

6.

Front gasket

7.

Outside handle

8.

Rear gasket

9.

Outside handle cable

10. Rear door striker

Bolt

: 5.3 N·m (0.54 kg-m, 47 in-lb)

AWKIA2017ZZ
