Nissan Frontier. Manual - part 272

DLK-134

< REMOVAL AND INSTALLATION >

DOOR

2. Remove the upper striker covers and adjust the striker so that it

becomes parallel with the lock insertion direction.

Removal and Installation

INFOID:0000000009478957

KING CAB

Front Door

REMOVAL

CAUTION:

• When removing and installing the door assembly, support the door with a jack and shop cloth to pro-

tect the door and body.

• When removing and installing door assembly, be sure to carry out the fitting adjustment.

• Check the hinge rotating part for poor lubrication. If necessary, apply body grease.
1. Remove the front door glass and regulator assembly. Refer to

GW-16, "Front Door Glass Regulator"

.

2. Remove the door harness.

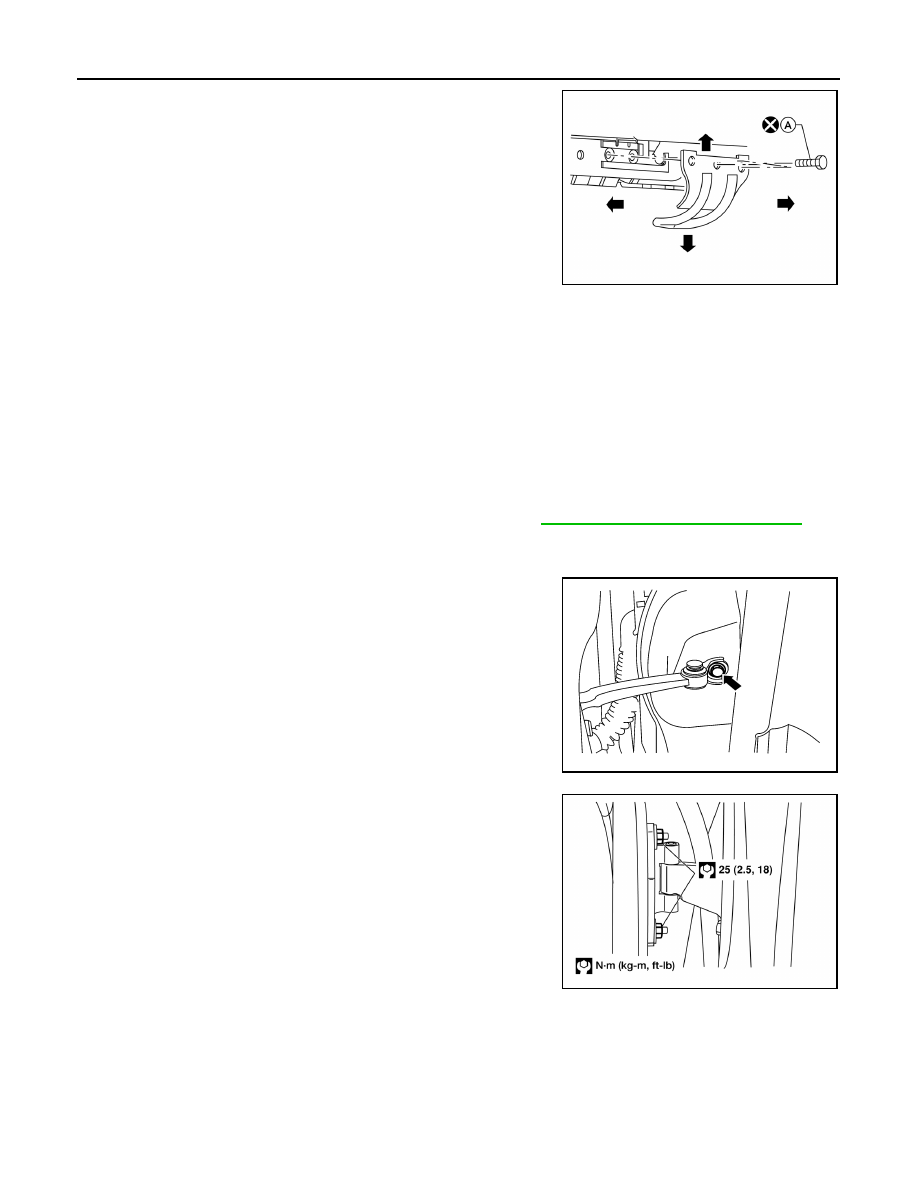

3. Remove the check link cover.
4. Remove the check link bolt from the hinge pillar.

5. Remove the door-side hinge nuts and bolts, and remove the

door assembly.

INSTALLATION

Installation is in the reverse order of removal.

Rear Door

REMOVAL

CAUTION:

Striker bolts

: 16.7 N·m (1.7 kg–m, 12 ft–lb)

AWKIA1807ZZ

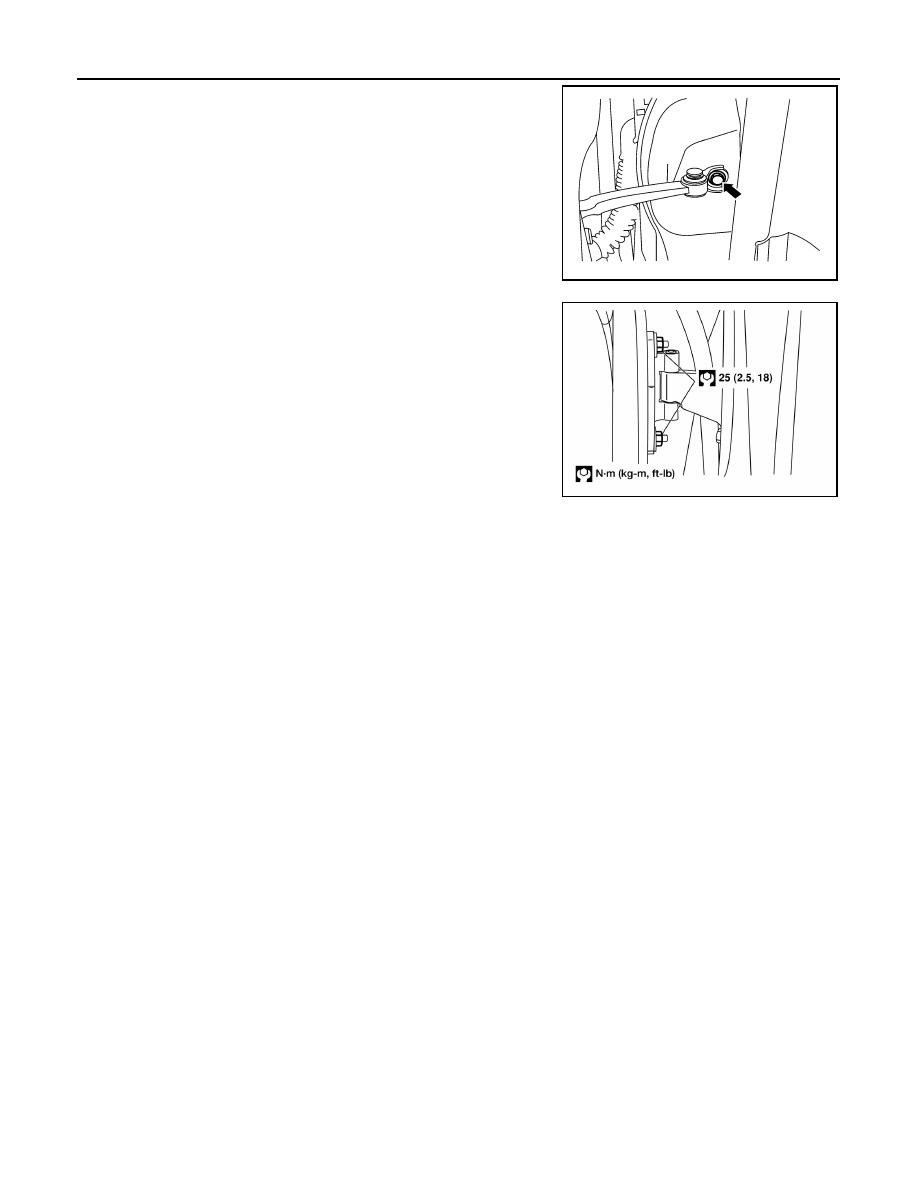

Check link bolt to
hinge pillar

: 14.7 N·m (1.5 kg-m, 11 ft-lb)

LIIA1967E

LIIA1504E

DOOR

DLK-135

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• When removing and installing the door assembly, support the door with a jack and shop cloth to pro-

tect the door and body.

• When removing and installing door assembly, be sure to carry out the fitting adjustment.

• Check the hinge rotating part for poor lubrication. If necessary, apply body grease.
1. Remove the door glass. Refer to

GW-20, "Rear Door Glass"

.

2. Remove the speaker.
3. Remove the door handles and latch assembly. Refer to

DLK-140, "Component Structure"

.

4. Remove the check link.
5. Remove the harness.
6. Remove the door assembly.

INSTALLATION

Installation is in the reverse order of removal.

CREW CAB

REMOVAL

CAUTION:

• When removing and installing the door assembly, support the door with a jack and shop cloth to pro-

tect the door and body.

• When removing and installing door assembly, be sure to carry out the fitting adjustment.

• Check the hinge rotating part for poor lubrication. If necessary, apply body grease.
1. Remove the inner seal.
2. Remove the door glass and regulator assembly. Refer to

GW-16, "Front Door Glass"

.

3. Remove the door harness.
4. Remove the check link cover.

Door hinge nuts

: 24.5 N·m (2.5 kg–m, 18 ft–lb)

Check link bolt to door : 6.1 N·m (0.62 kg–m, 54 in–lb)

LIIA1968E

DLK-136

< REMOVAL AND INSTALLATION >

DOOR

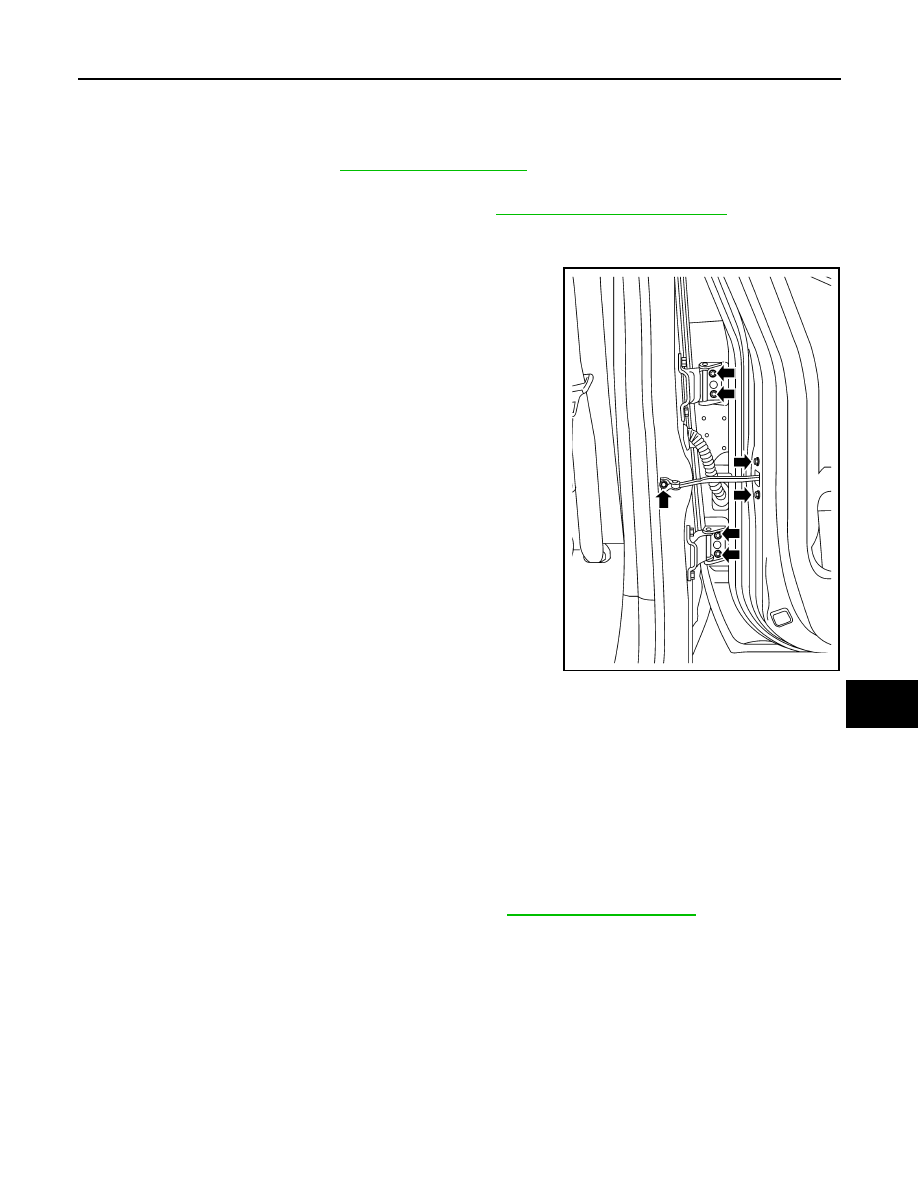

5. Remove the check link bolt from the hinge pillar.

6. Remove the door-side hinge nuts and bolts, and remove the

door assembly.

INSTALLATION

Installation is in the reverse order of removal.

Front door check link
bolt to hinge pillar

: 14.7 N·m (1.5 kg–m, 11 ft - lb)

Rear door check link
bolt to hinge pillar

: 14.7 N·m (1.5 kg–m, 11 ft - lb)

LIIA1967E

LIIA1504E

FRONT DOOR LOCK

DLK-137

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FRONT DOOR LOCK

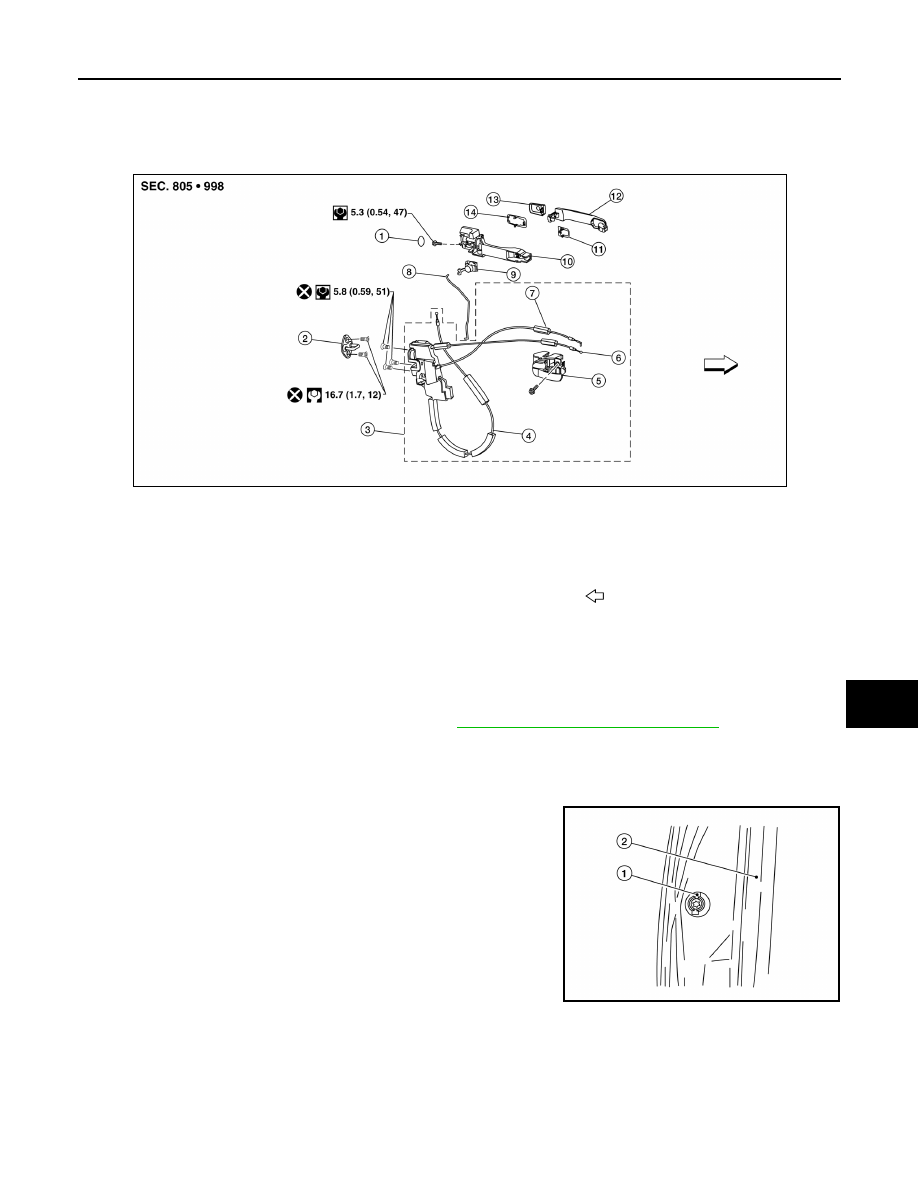

Component Structure

INFOID:0000000009478958

Removal and Installation

INFOID:0000000009478959

REMOVAL

1. Remove the front door window regulator. Refer to

GW-16, "Front Door Glass Regulator"

.

2. Remove door side grommet, and remove door key cylinder assembly (driver side) or outside handle

escutcheon (passenger side) bolts (1) from grommet hole.

(2): Weatherstrip

CAUTION:

Do not forcibly remove the bolts (T30).

3. Separate the key cylinder rod from the key cylinder assembly.

1.

Grommet

2.

Front door striker

3.

Door lock assembly

4.

Outside handle cable

5.

Inside handle assembly

6.

Inside handle cable

7.

Door lock cable

8.

Key cylinder rod (Driver side only)

9.

Door key cylinder

10. Outside handle bracket

11. Front gasket

12. Outside handle

13. Door key cylinder assembly (Driver

side) Outside handle escutcheon
(Passenger side)

14. Rear gasket

Front

AWKIA1793GB

Bolt

5.3 N·m (0.54 kg-m, 47 in-lb)

AWKIA2017ZZ
