Nissan Frontier. Manual - part 270





DLK-126

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009478950

The actual shape of the tools may differ from those illustrated here.

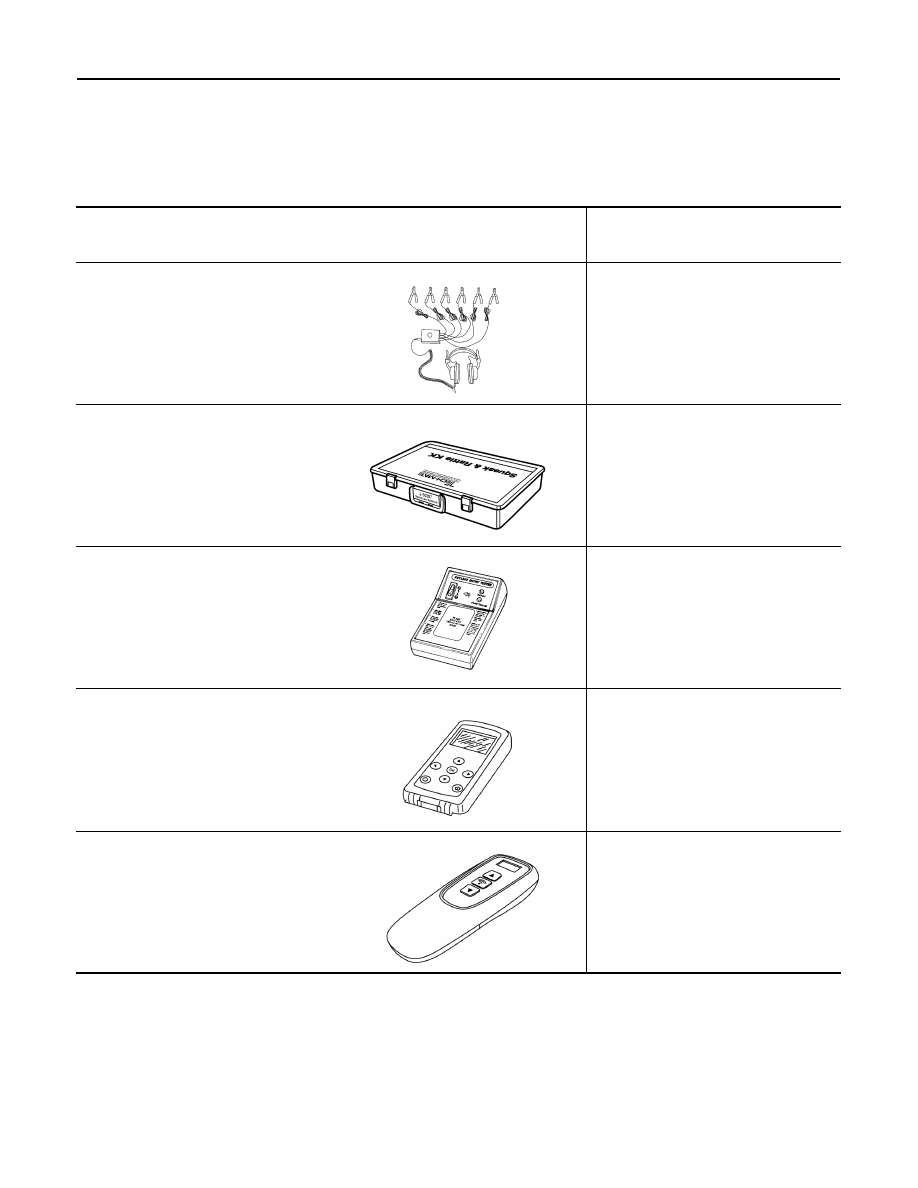

Commercial Service Tool

INFOID:0000000009478951

Tool number
(TechMech No.)
Tool name

Description

(J-39570)
Chassis Ear

Locating the noise

(J-50397)
NISSAN Squeak and Rattle Kit

Repairing the cause of noise

(J-43241)
Remote Keyless Entry Tester

Used to test key fobs

(J-50190)
Signal Tech II

• Activate and display TPMS transmitter

IDs

• Display tire pressure reported by the

TPMS transmitter

• Read TPMS DTCs
• Register TPMS transmitter IDs
• Test remote keyless entry keyfob rela-

tive signal strength

kv48105501
(J-45295-A)
Transmitter activation tool

• Activate TPMS transmitter IDs
• Compatible with future sensors
• Equipped with a display (KV48105501

only)

SIIA0993E

ALJIA1232ZZ

LEL946A

ALEIA0131ZZ

ALEIA0183ZZ

PREPARATION

DLK-127

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

(TechMate No.)
Tool name

Description

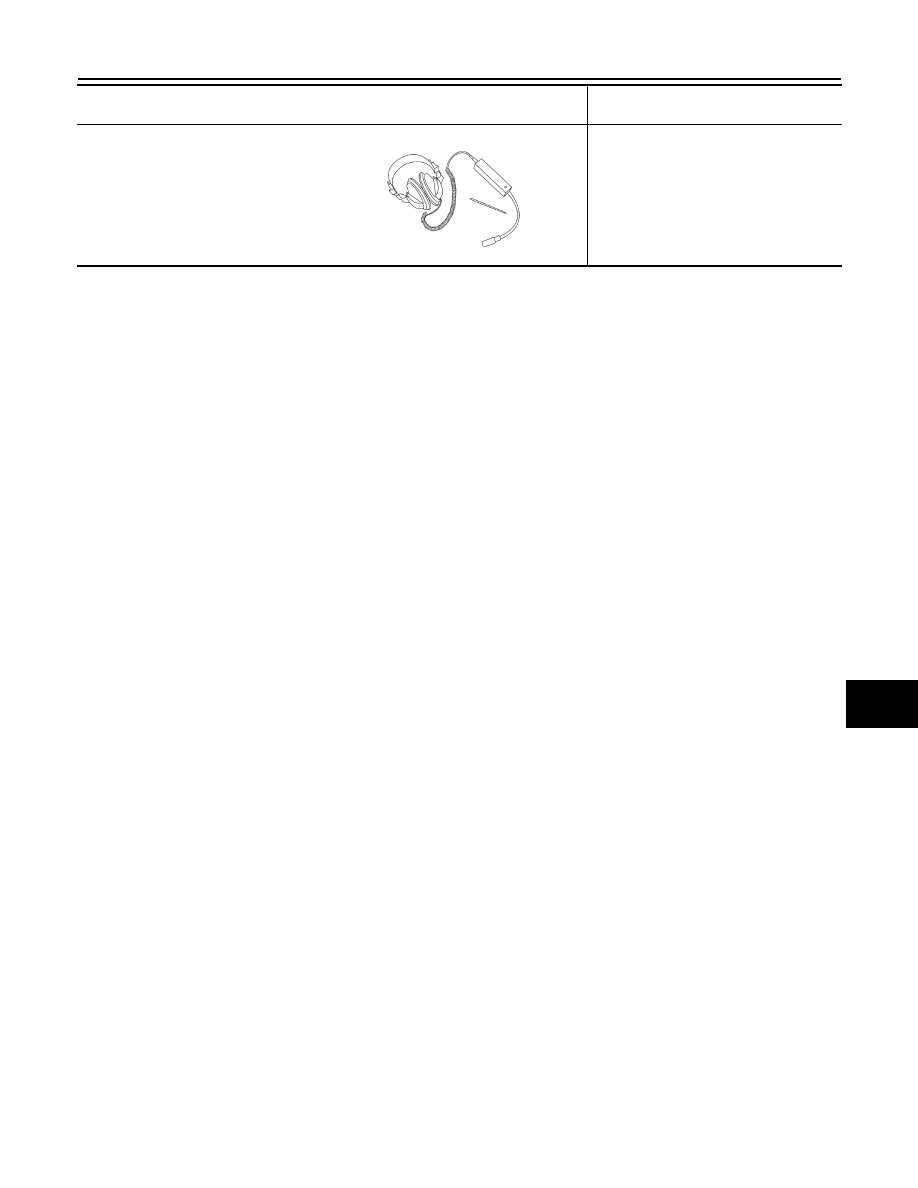

(J-39565)
Engine Ear

Locating the noise

SIIA0995E

DLK-128

< REMOVAL AND INSTALLATION >

HOOD

REMOVAL AND INSTALLATION

HOOD

Fitting Adjustment

INFOID:0000000009478952

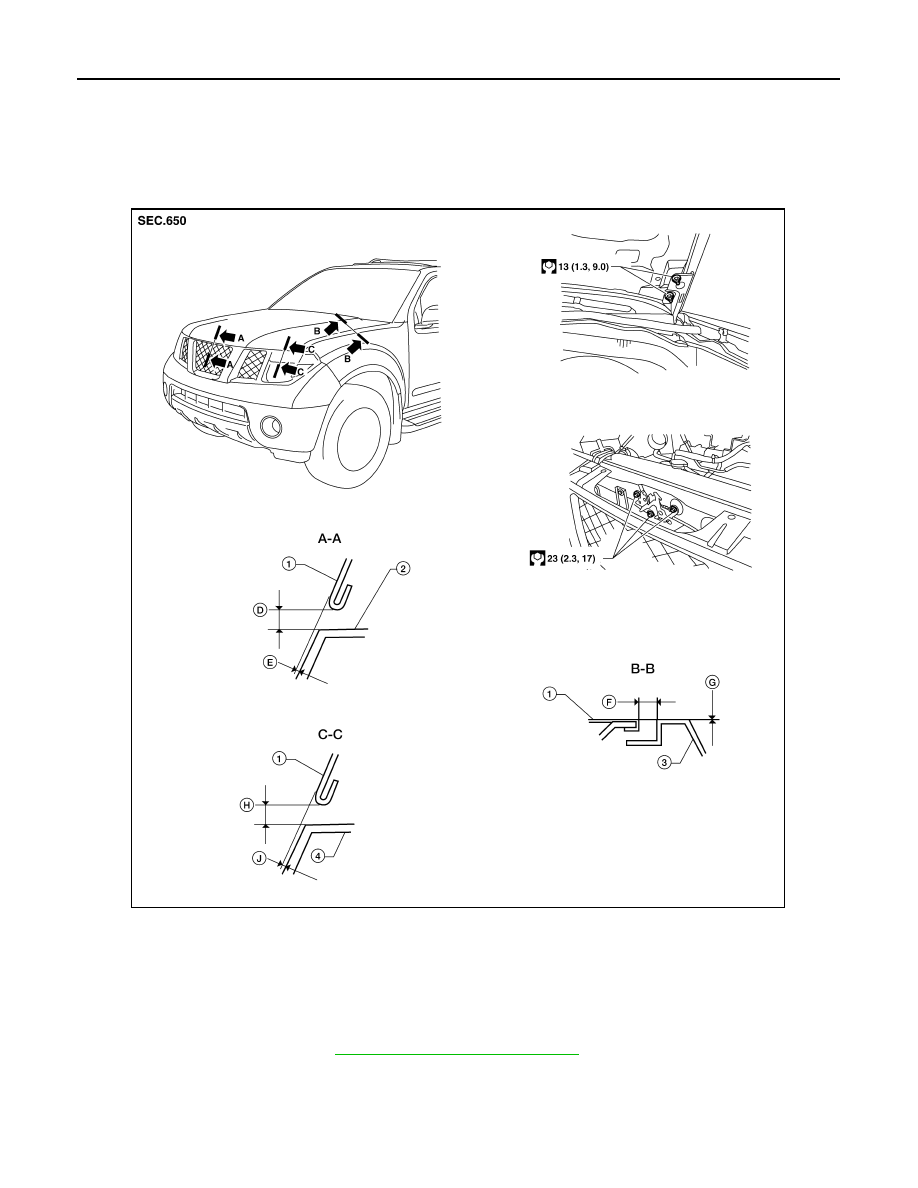

CLEARANCE AND SURFACE HEIGHT ADJUSTMENT

1. Remove the front grille. Refer to

EXT-23, "Removal and Installation"

.

2. Loosen the hood lock assembly and adjust the rubber bumpers until the surface height of the hood

becomes 1 mm (0.04 in) lower than the fender.

3. Engage the hood striker and temporarily tighten.
4. Check the lock and striker for looseness.

1.

Hood

2.

Front grille

3.

Front fender

4.

Headlamp assembly

D.

6.0 mm (0.24 in)

E.

0.7 mm (0.03 in)

F.

4.6 mm (0.18 in)

G.

0.0 mm (0.0 in)

H.

6.0 mm (0.24 in)

J.

0.7 mm (0.03 in)

AWKIA0543ZZ

HOOD

DLK-129

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

5. Tighten the bolts to specification.
6. Adjust the surface height of the hood according to the fitting standard dimension by rotating right and left

rubber bumpers.

7. Install the front grille. Refer to

EXT-23, "Removal and Installation"

.

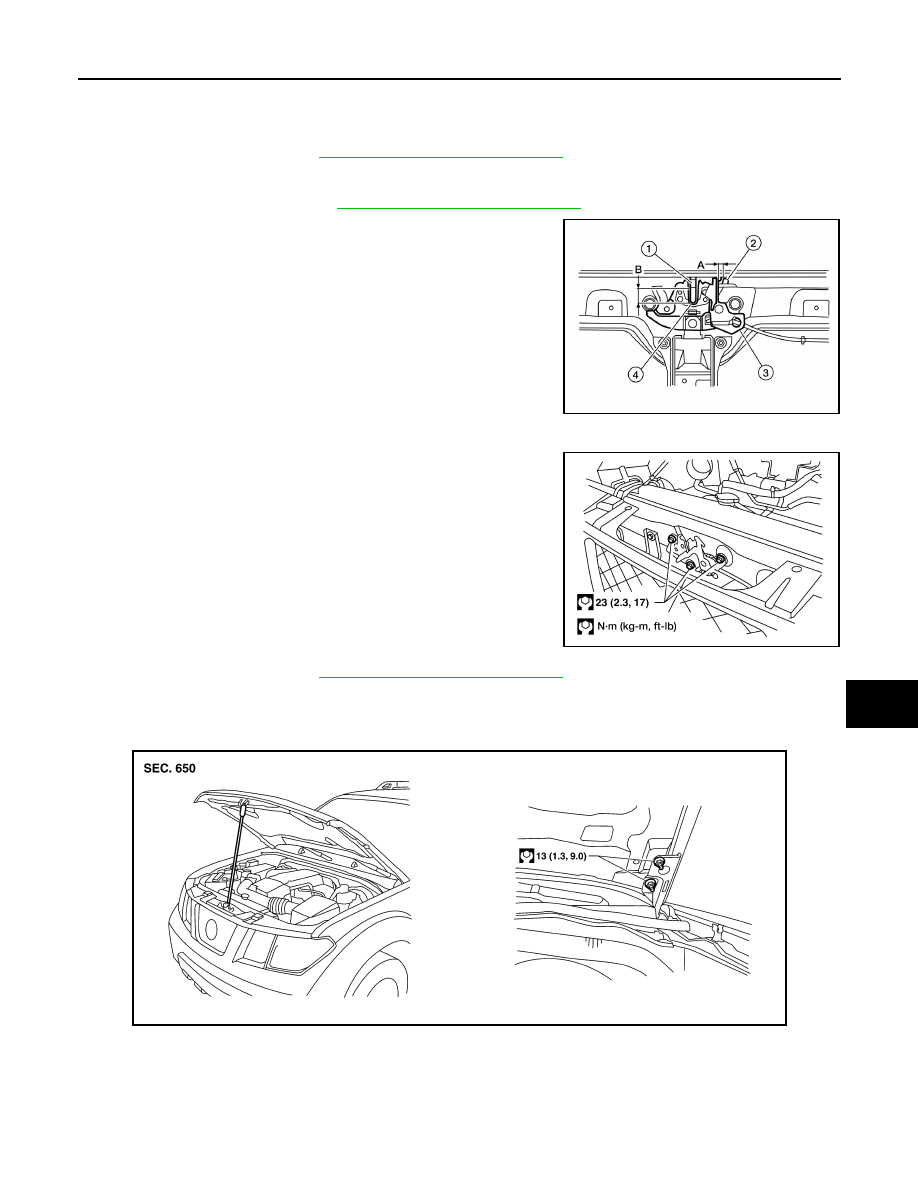

HOOD LOCK ADJUSTMENT

1. Remove the front grille. Refer to

EXT-23, "Removal and Installation"

.

2. Move the hood lock to the left or right so that striker (1) center is

vertically aligned with primary latch (4) center (when viewed

from vehicle front).

3. Make sure the secondary latch (3) is properly engaged with the

secondary striker (2) with hood's own weight by dropping it from

approximately 200 mm (7.87 in) height or by pressing it lightly

approximately 3 kg (29 N, 7 lb).

CAUTION:

Do not drop the hood from 300 mm (11.81 in) height or higher.

4. After adjusting hood lock, tighten the lock bolts to the specified

torque.

5. Install the front grille. Refer to

EXT-23, "Removal and Installation"

.

Removal and Installation of Hood Assembly

INFOID:0000000009478953

REMOVAL

1. Support the hood striker with suitable tool to prevent it from falling.
2. Remove the hinge nuts from the hood to remove the hood assembly.

CAUTION:

Operate with two workers, because of its heavy weight.

INSTALLATION

A

: More than 5.0 mm (0.197 in)

B

: 20 mm (0.79 in)

AWKIA1802ZZ

LIIA1701E

WIIA1055E
