Nissan Frontier. Manual - part 1322

WT-36

< WIRING DIAGRAM >

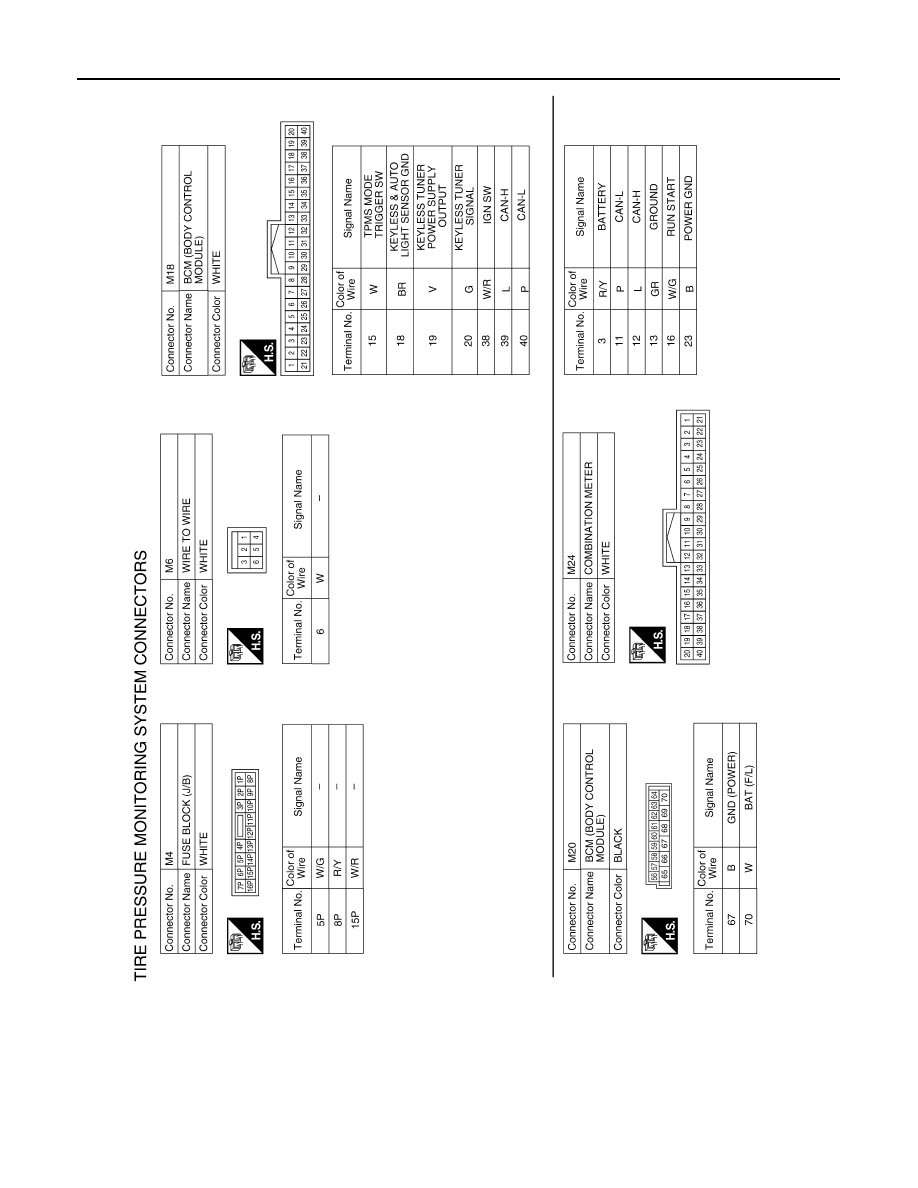

TIRE PRESSURE MONITORING SYSTEM

ABEIA0193GB

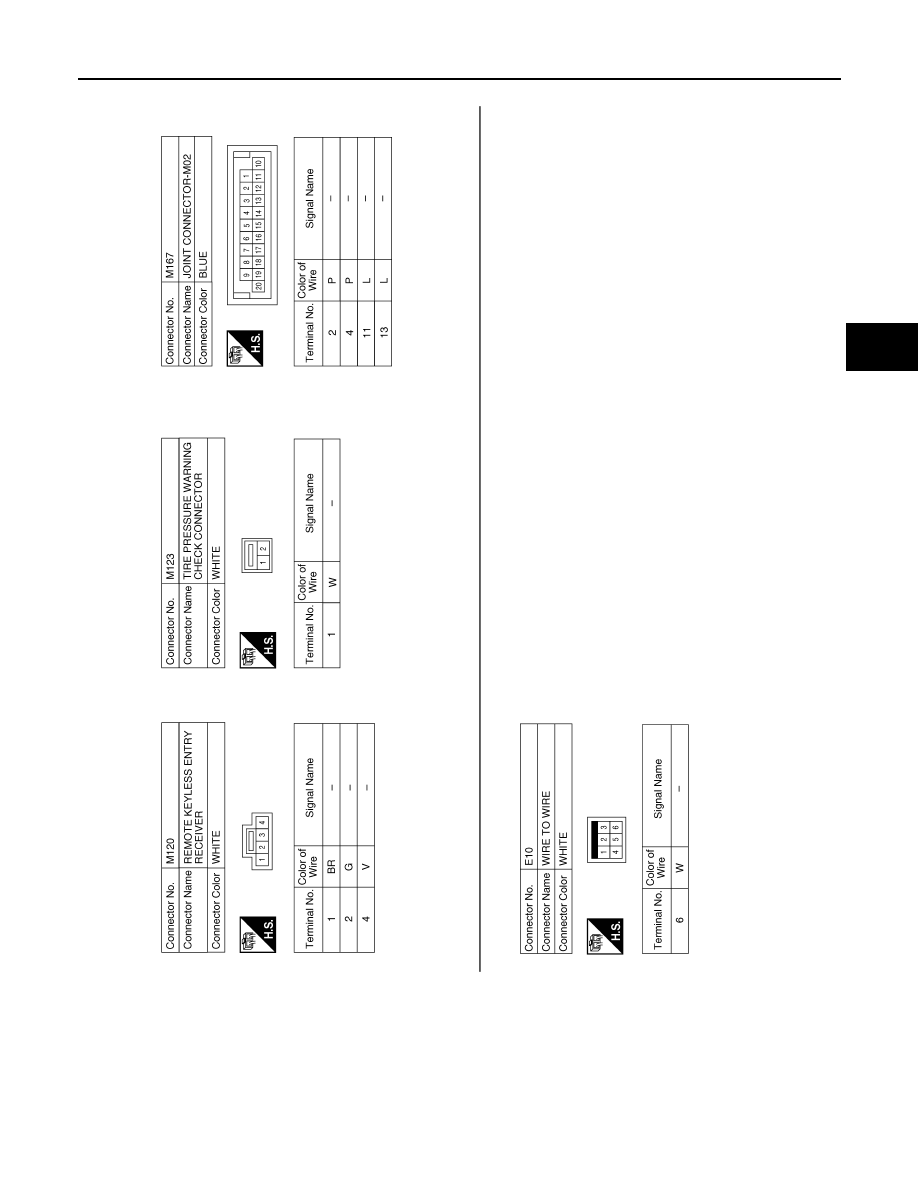

TIRE PRESSURE MONITORING SYSTEM

WT-37

< WIRING DIAGRAM >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

ABEIA0245GB

WT-38

< SYMPTOM DIAGNOSIS >

TPMS

SYMPTOM DIAGNOSIS

TPMS

Symptom Table

INFOID:0000000009480275

Symptom

Reference

Low tire pressure warning lamp does not come on when ignition switch is turned ON.

WT-39

Low tire pressure warning lamp stays on when ignition switch is turned ON.

WT-40

Low tire pressure warning lamp flashes when ignition switch is turned ON.

WT-41

Hazard warning lamps flash when ignition switch is turned ON.

WT-42

ID registration cannot be completed.

WT-43

NVH troubleshooting chart.

WT-44

LOW TIRE PRESSURE WARNING LAMP DOES NOT TURN ON

WT-39

< SYMPTOM DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

LOW TIRE PRESSURE WARNING LAMP DOES NOT TURN ON

Low Tire Pressure Warning Lamp Does Not Come On When Ignition Switch Is Turned
On

INFOID:0000000009480276

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

DIAGNOSTIC PROCEDURE

1.

SELF-DIAGNOSTIC RESULT CHECK

Using CONSULT, check display contents of BCM in SELF-DIAGNOSIS.
Is CAN COMM CIRCUIT displayed in the self-diagnosis display items?

YES

>>  Malfunction in CAN communication system. Refer to

LAN-14, "Trouble Diagnosis Flow Chart"

.

NO

>> GO TO 2

2.

CHECK COMBINATION METER

Check combination meter operation. Refer to

MWI-27, "CONSULT Function (METER/M&A)"

.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Replace combination meter. Refer to

MWI-90, "Removal and Installation"

.

3.

CHECK LOW TIRE PRESSURE WARNING LAMP

Disconnect BCM harness connector.
Does the low tire pressure warning lamp activate?

YES

>> Replace BCM. Refer to

BCS-49, "Removal and Installation"

.

NO

>> Check combination meter operation.
