VTL-10

< REMOVAL AND INSTALLATION >

INTAKE SENSOR

INTAKE SENSOR

Removal and Installation

INFOID:0000000009478812

REMOVAL

1. Remove the lower dash side finisher. Refer to

IP-14, "Exploded View"

.

2. Remove the assist grip handle. Refer to

INT-18, "Component"

.

3. Remove the front pillar upper finisher. Refer to

INT-19, "Removal and Installation"

.

4. Remove the upper glove box. Refer to

IP-23, "Removal and Installation"

.

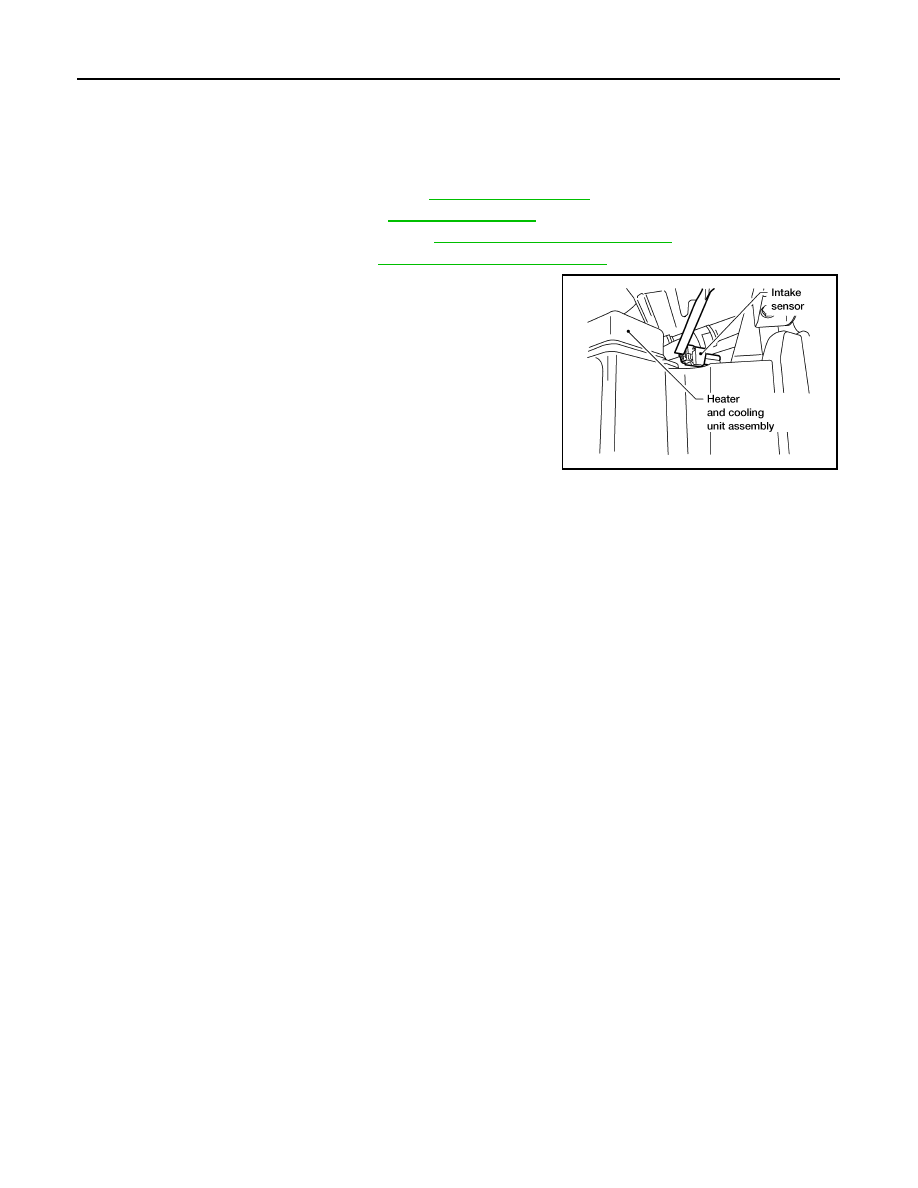

5. Disconnect the harness connector from intake sensor.

NOTE:

The intake sensor is located on the top of the heater and cooling

unit assembly next to the A/C evaporator cover.

6. Twist the intake sensor to remove the intake sensor from the

heater and cooling unit assembly.

INSTALLATION

Installation is in the reverse order of removal.

WJIA1415E

BLOWER MOTOR

VTL-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

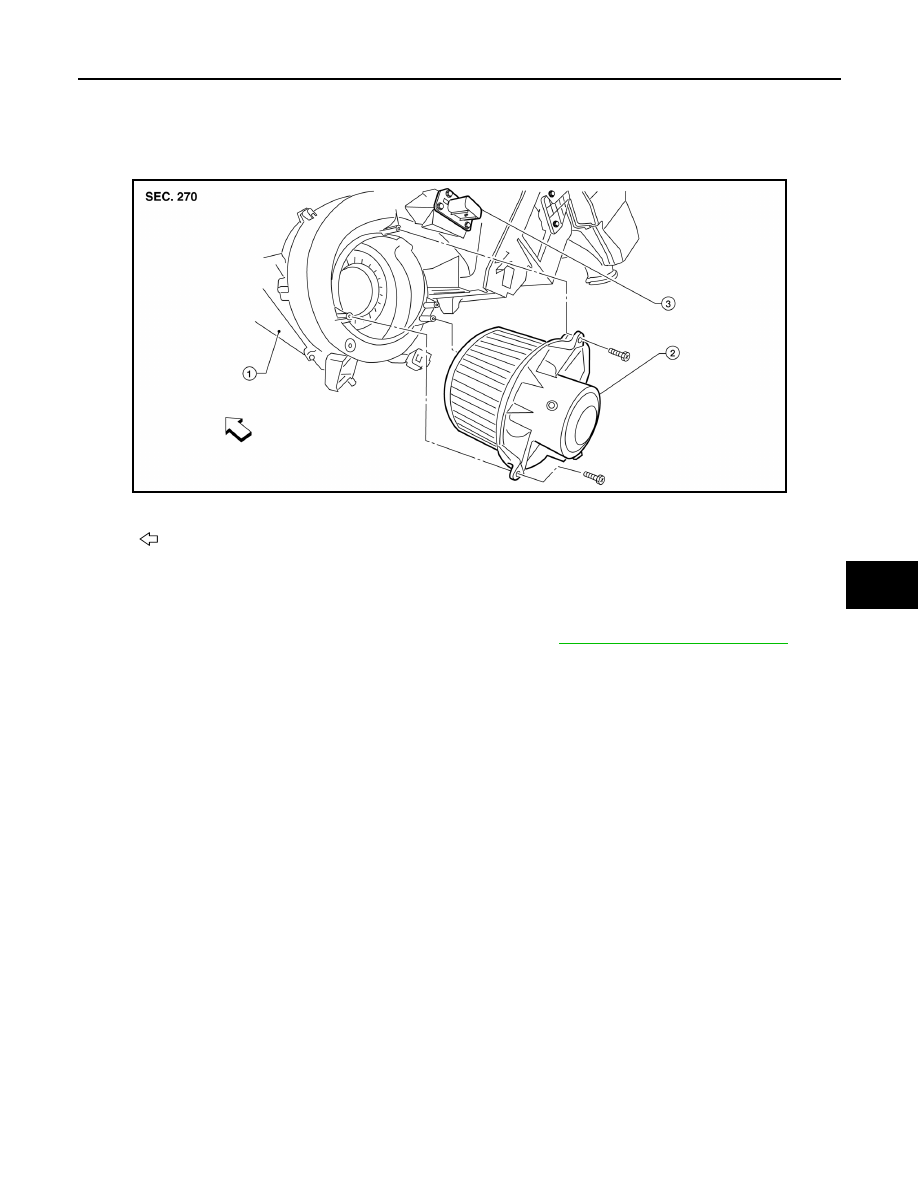

BLOWER MOTOR

Component

INFOID:0000000009478813

Blower Motor

Removal and Installation

INFOID:0000000009478814

REMOVAL

1. Remove the instrument lower panel RH and  glove box. Refer to

IP-24, "Removal and Installation"

.

2. Disconnect the harness connector from the blower motor.
3. Remove the three screws and the blower motor.
4. Remove the blower motor wheel.

INSTALLATION

Installation is in the reverse order of removal.

AWIIA1531ZZ

1.

Heater and cooling unit assembly

2. Blower motor

3.

Variable blower control/Blower motor resistor

Front

VTL-12

< REMOVAL AND INSTALLATION >

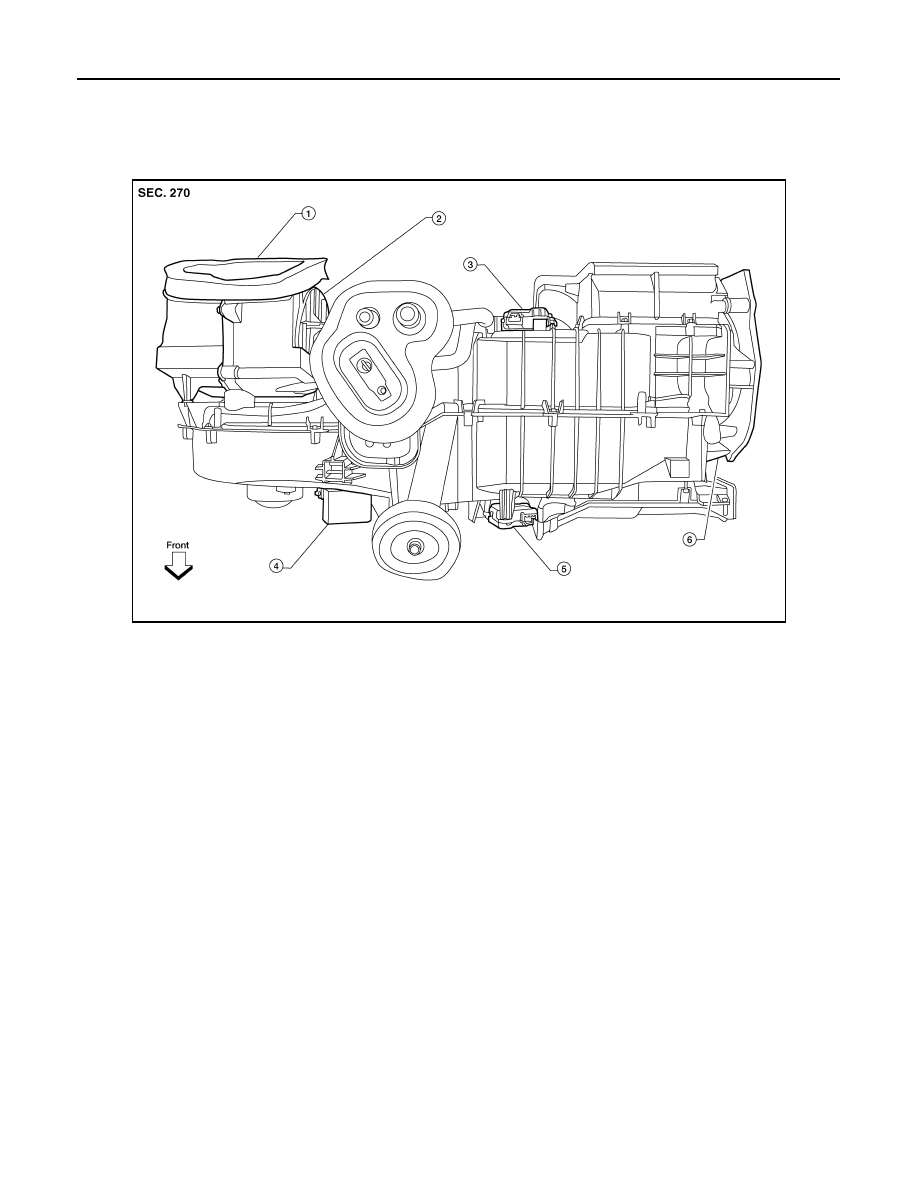

VARIABLE BLOWER CONTROL

VARIABLE BLOWER CONTROL

Removal and Installation

INFOID:0000000009478815

Variable Blower Control

REMOVAL

1. Disconnect the harness connector from the variable blower control.
2. Remove the two screws and the variable blower control.

INSTALLATION

Installation is in the reverse order of removal.

LBIA0415E

1.

Front heater and cooling unit assembly

2.

Intake door motor

3.

Air mix door motor (driver)

4.

Variable blower control

5.

Air mix door motor (passenger)

6.

Mode door motor

BLOWER MOTOR RESISTOR

VTL-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

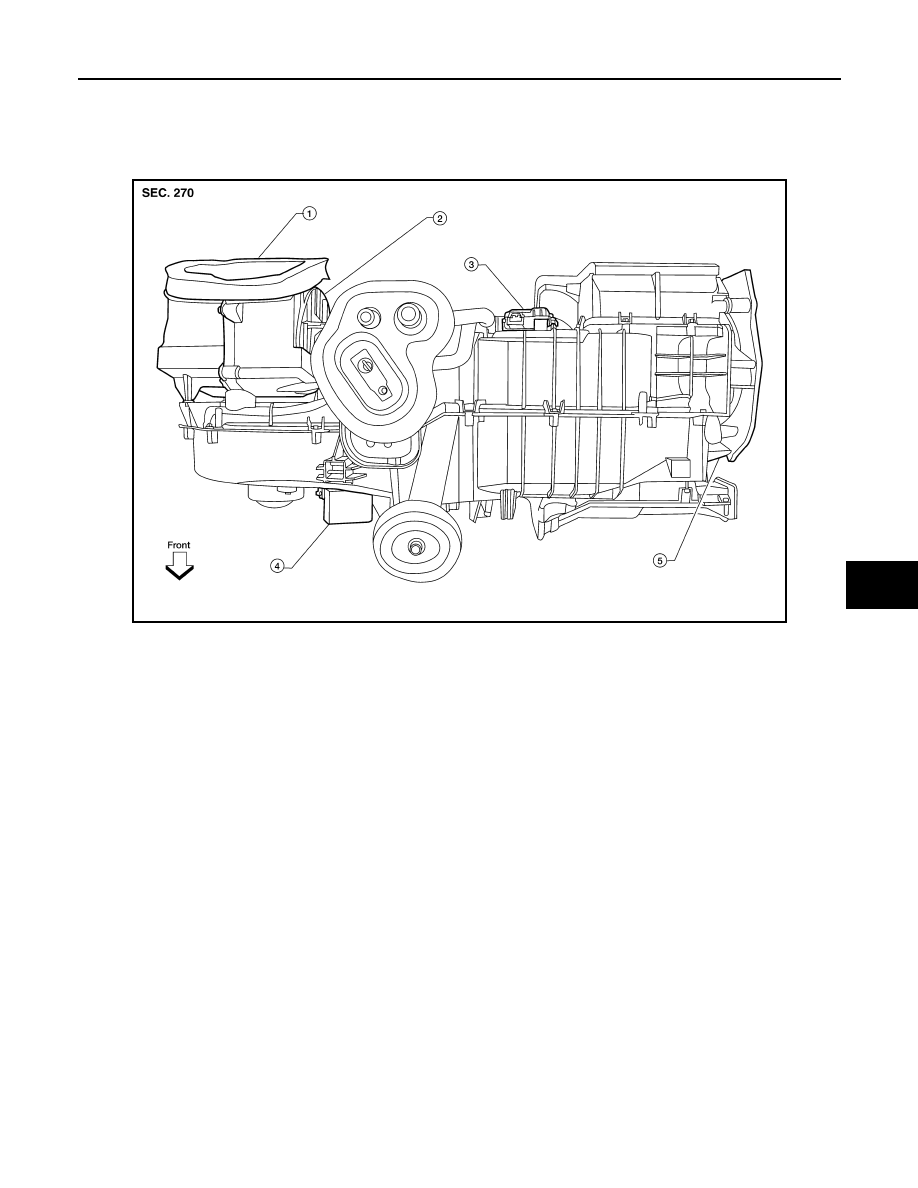

BLOWER MOTOR RESISTOR

Removal and Installation

INFOID:0000000009478816

Blower Motor Resistor

REMOVAL

1. Disconnect the harness connector from the blower motor resistor.
2. Remove the two screws and the blower motor resistor.

INSTALLATION

Installation is in the reverse order of removal.

WJIA1312E

1.

Heater and cooling unit assembly

2.

Intake door motor

3.

Air mix door motor

4.

Blower motor resistor

5.

Mode door motor
