Nissan Frontier. Manual - part 1296





VTL-6

< PERIODIC MAINTENANCE >

IN-CABIN MICROFILTER

PERIODIC MAINTENANCE

IN-CABIN MICROFILTER

Removal and Installation

INFOID:0000000009478808

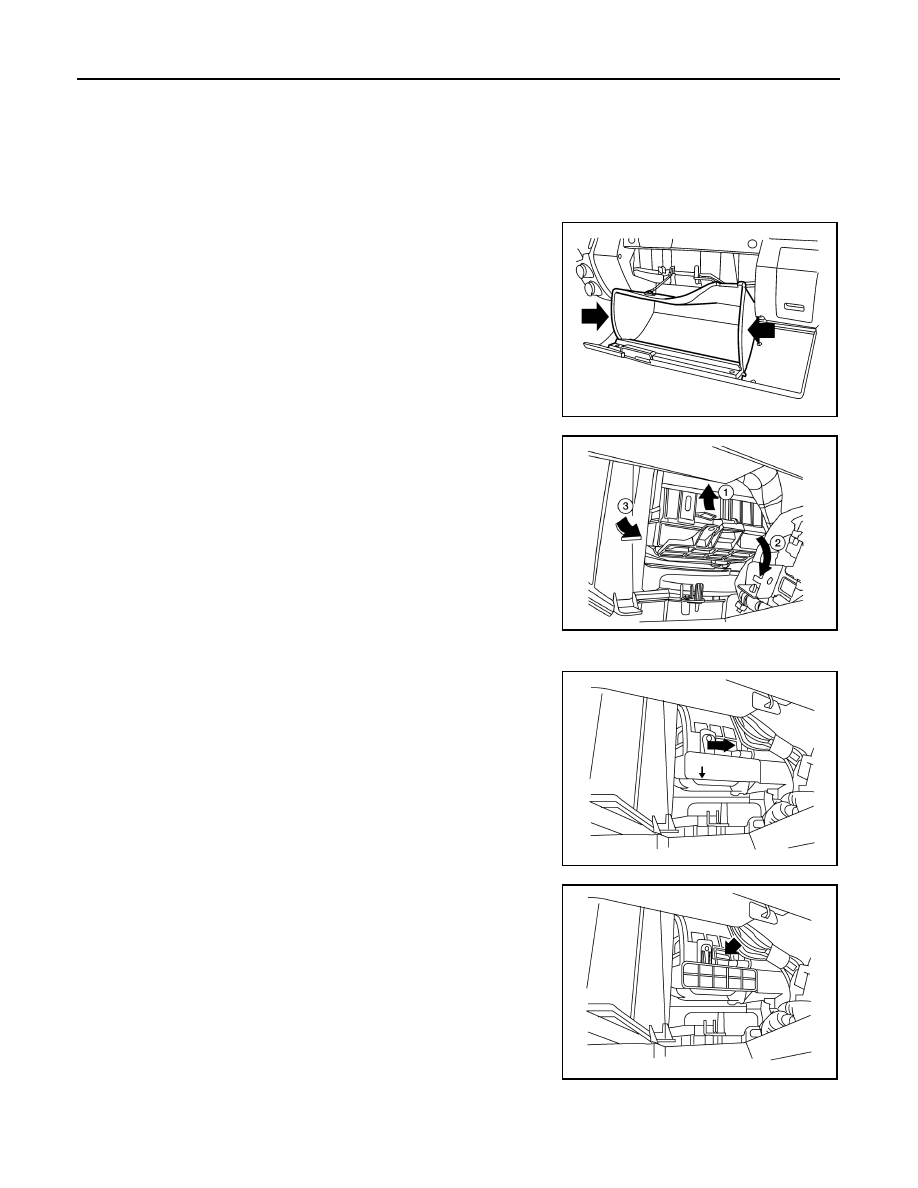

REPLACEMENT PROCEDURE

1. Open the lower glove box and press in on the sides so that it will

open completely allowing it to hang by the cord.

2. Gently lift up on the tab (1) then pull the in-cabin microfilter cover

down (2) to remove the cover (3).

CAUTION:

Use care when lifting up on the tab to avoid damaging it.

3. Remove the in-cabin microfilters from the heater and cooling unit housing.
4. Insert the first new in-cabin microfilter into the heater and cool-

ing unit housing and slide it over to the right. Insert the second

new in-cabin microfilter into the heater and cooling unit housing

as shown.

NOTE:

The in-cabin microfilters are marked with air flow arrows. The

end of the microfilter with the arrow should face the rear of the

vehicle. The arrows should point downward.

5. Install the in-cabin microfilter cover, make sure the tab is locked

in place as shown.

6. Close the lower glove box completely.

WLIA0023E

AWIIA1431ZZ

ALIIA0360ZZ

ALIIA0359ZZ

CONTROL UNIT

VTL-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

REMOVAL AND INSTALLATION

CONTROL UNIT

Removal and Installation

INFOID:0000000009478809

FRONT AIR CONTROL (MANUAL A/C)

Removal

1. Remove the shift selector finisher. Refer to

IP-29, "Exploded View"

.

2. Remove the cup holder.
3. Remove cluster lid C. Refer to

IP-19, "Removal and Installation"

.

4. Remove the four screws securing the front air control to cluster lid C.
5. Remove the front air control.

Installation

Installation is in the reverse order of removal.

A/C AUTO AMP. (AUTOMATIC A/C)

Removal

Remove the audio unit or AV control unit. Refer to

AV-146, "Removal and Installation"

 (DISPLAY AUDIO

WITHOUT AMPLIFIER),

AV-233, "Removal and Installation"

 (DISPLAY AUDIO WITH AMPLIFIER) or

AV-348,

"Removal and Installation"

 (NAVIGATION).

Installation

Installation is in the reverse order of removal.

VTL-8

< REMOVAL AND INSTALLATION >

IN-VEHICLE SENSOR

IN-VEHICLE SENSOR

Removal and Installation

INFOID:0000000009478810

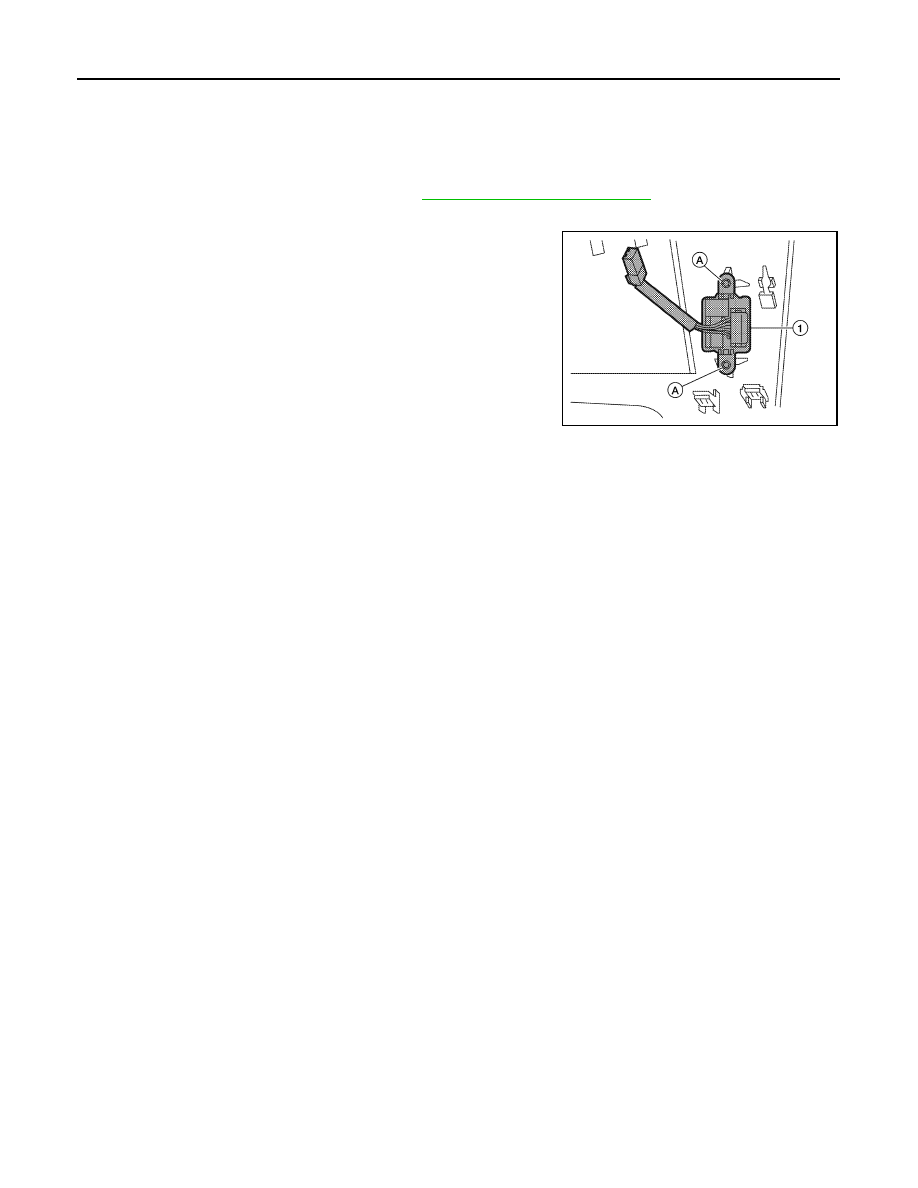

REMOVAL

1. Remove instrument lower panel LH. Refer to

IP-18, "Removal and Installation"

.

2. Disconnect the harness connector from in-vehicle sensor.
3. Remove the two screws (A) and the in-vehicle sensor (1).

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0060ZZ

OPTICAL SENSOR

VTL-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

OPTICAL SENSOR

Removal and Installation

INFOID:0000000009478811

REMOVAL

1. Insert a suitable tool between the optical sensor and the instrument panel, then lift the optical sensor

upward.

2. Disconnect the harness connector from the optical sensor and remove.

INSTALLATION

Installation is in the reverse order of removal.
