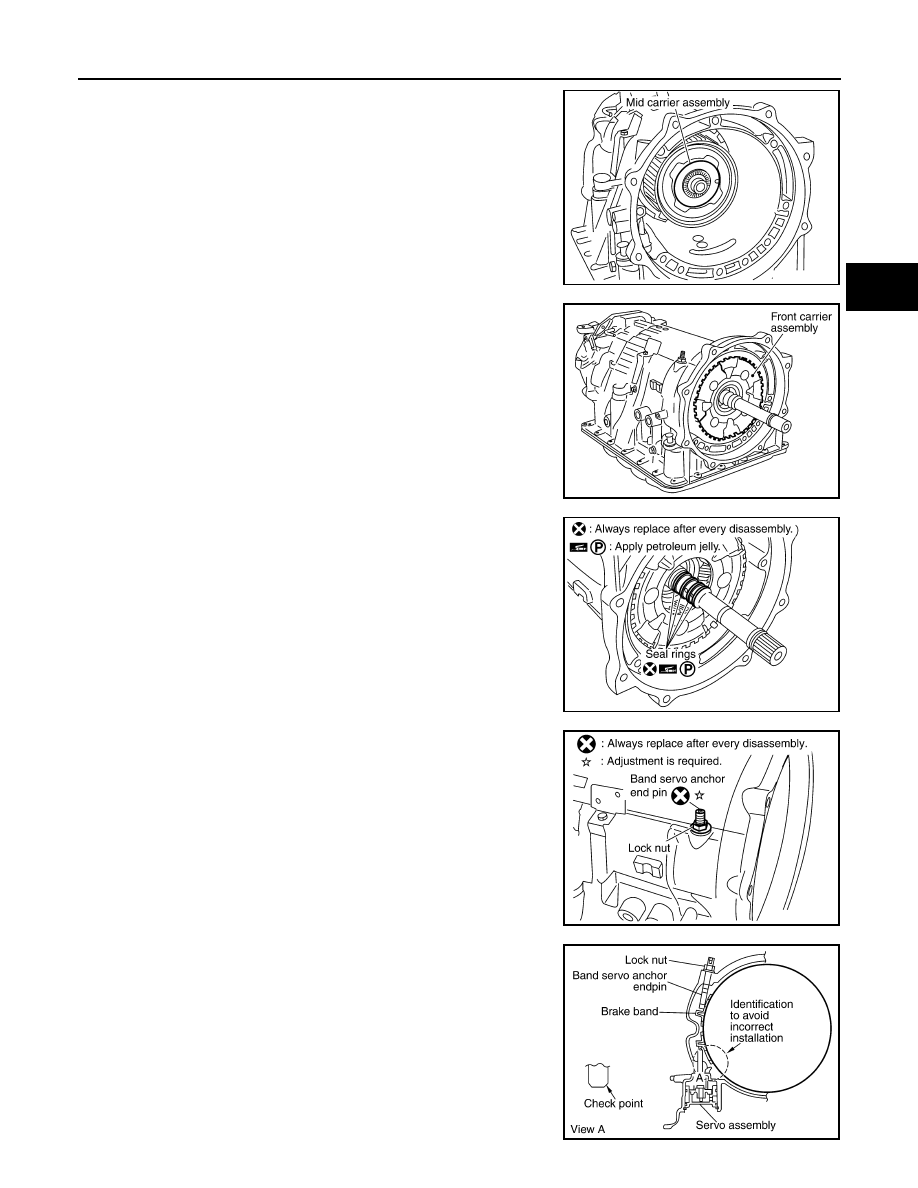

45. Install mid carrier assembly in rear carrier assembly.

46. Install front carrier assembly, input clutch assembly and rear

internal gear as a unit.

47. Install seal rings in input clutch assembly.

CAUTION:

• Do not reuse seal rings.

• Apply petroleum jelly to seal rings.

48. Install band servo anchor end pin and lock nut in transmission

case.

CAUTION:

Do not reuse band servo anchor end pin.

49. Install brake band in transmission case.

CAUTION:

Install it so that the identification to avoid incorrect installa-

tion faces the servo side.

SCIA5017E

SCIA5015E

SCIA2470E

SCIA6512E

SCIA5498E

TM-376

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

ASSEMBLY

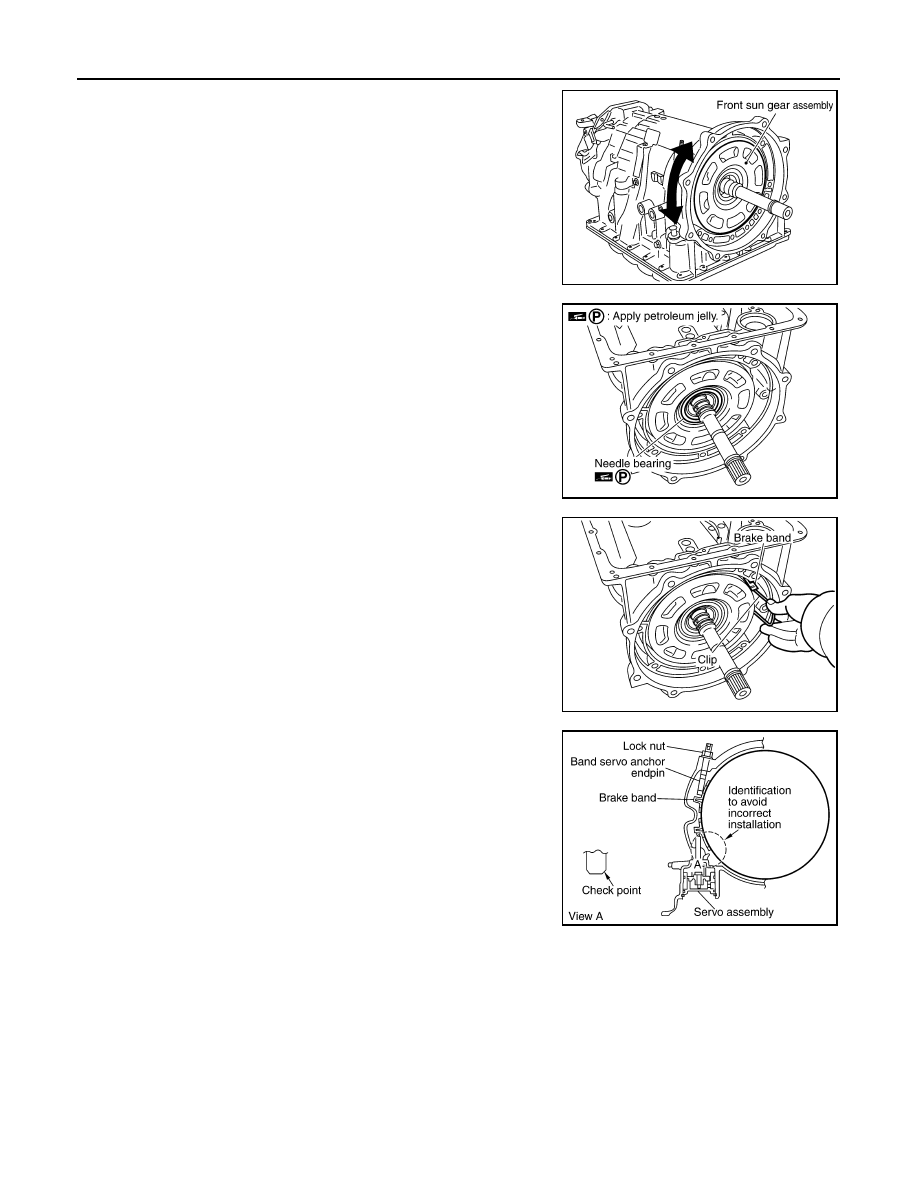

50. Install front sun gear to front carrier assembly.

CAUTION:

Apply ATF to front sun gear bearing and 3rd one-way clutch

end bearing.

51. Install needle bearing to front sun gear.

CAUTION:

Apply petroleum jelly to needle bearing.

52. Adjust brake band tilting using a clip so that brake band contacts

front sun gear drum evenly.

53. Adjust brake band.
a. Loosen lock nut.
b. Tighten band servo anchor end pin to specified torque.

c.

Back off band servo anchor end pin three turns.

d. Holding band servo anchor end pin, tighten lock nut to specified

torque.

Adjustment

INFOID:0000000009480705

TOTAL END PLAY

SCIA5014E

SCIA2808E

SCIA5033E

Anchor end pin

: 5.0 N·m (0.51 kg-m, 44 in-lb)

Lock nut

: 46 N·m (4.7 kg-m, 34 ft-lb)

SCIA5498E

ASSEMBLY

TM-377

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

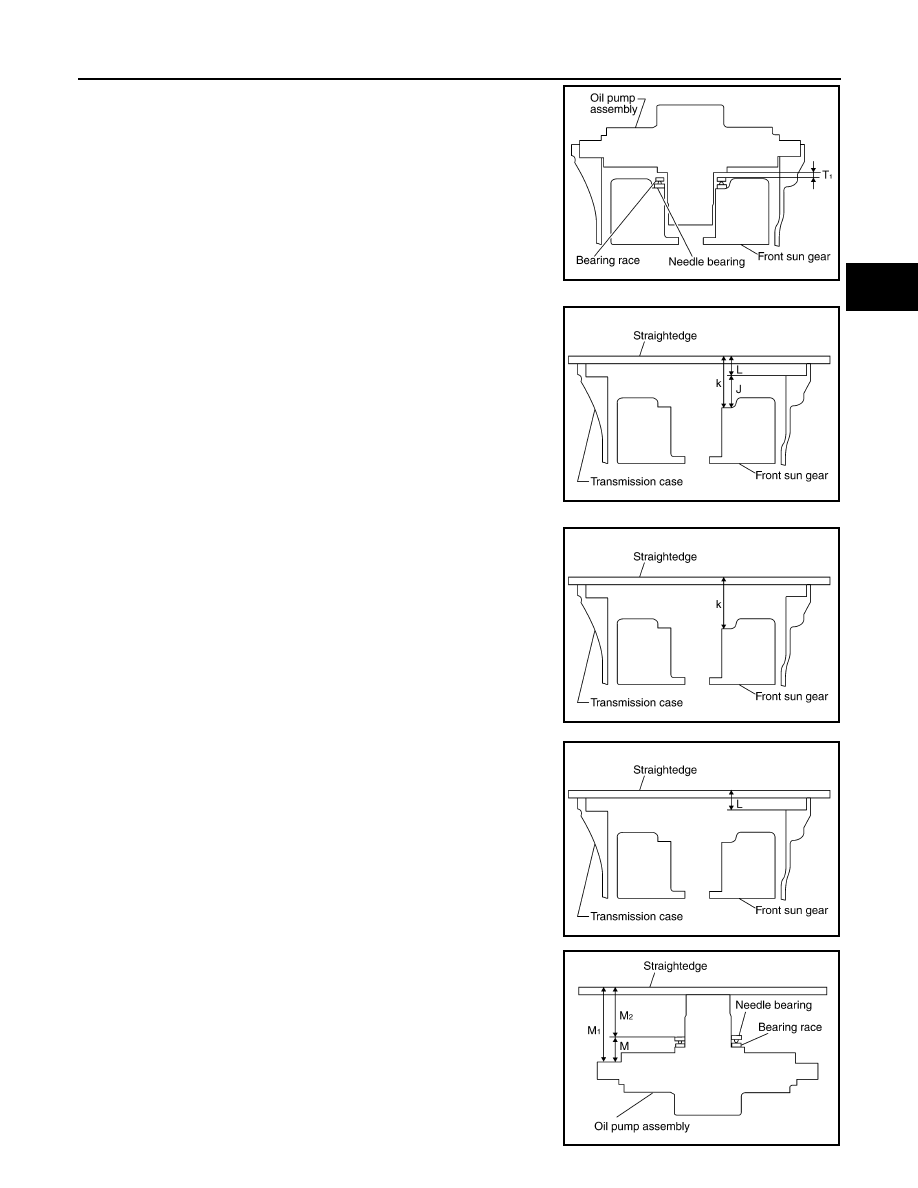

• Measure clearance between front sun gear and bearing race for oil

pump cover.

• Select proper thickness of bearing race so that end play is within

specifications.

1. Measure dimensions “K” and “L” and then calculate dimension

“J”.

a. Measure dimension “K”.

b. Measure dimension “L”.
c. Calculate dimension “J”.

2. Measure dimensions “M

1

” and “M

2

” and then calculate dimen-

sion “M”.

SCIA2810E

SCIA5350E

SCIA5351E

“J”: Distance between oil pump fitting surface of
transmission case and needle bearing mating surface
of front sun gear.

J = K – L

SCIA5352E

SCIA3125E

TM-378

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

ASSEMBLY

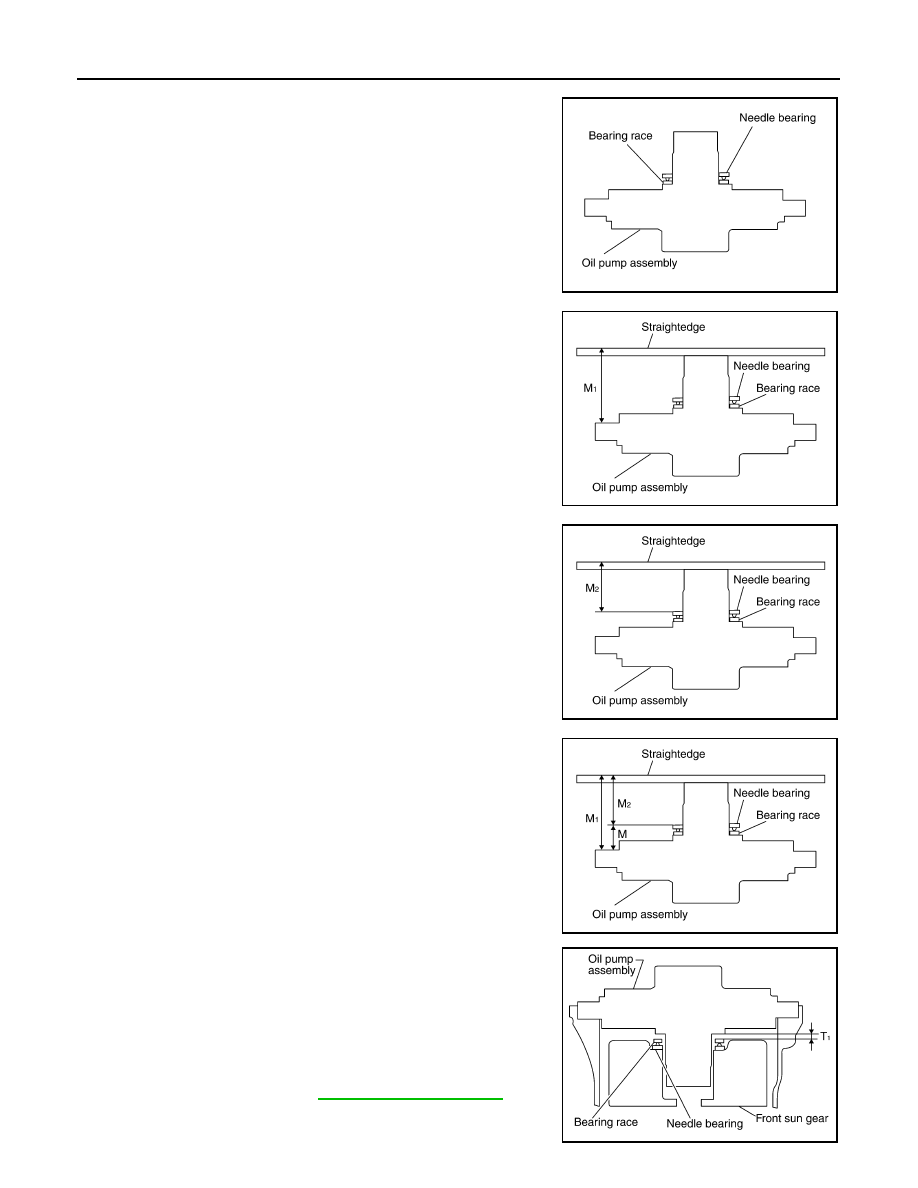

a. Place bearing race and needle bearing on oil pump assembly.

b. Measure dimension “M

1

”.

c.

Measure dimension “M

2

”.

d. Calculate dimension “M”.

3. Adjust total end play “T

1

”.

• Select proper thickness of bearing race so that total end play

is within specifications.

SCIA3124E

SCIA3126E

SCIA3127E

“M”: Distance between transmission case fitting sur-
face of oil pump and needle bearing on oil pump.

M = M

1

– M

2

SCIA3125E

T

1

 = J – M

Total end play “T

1

” : 0.25 - 0.55 mm (0.0098 - 0.0217 in)

Bearing races :Refer to

TM-388, "Total End Play"

.

SCIA2810E
