OVERHAUL

TM-323

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

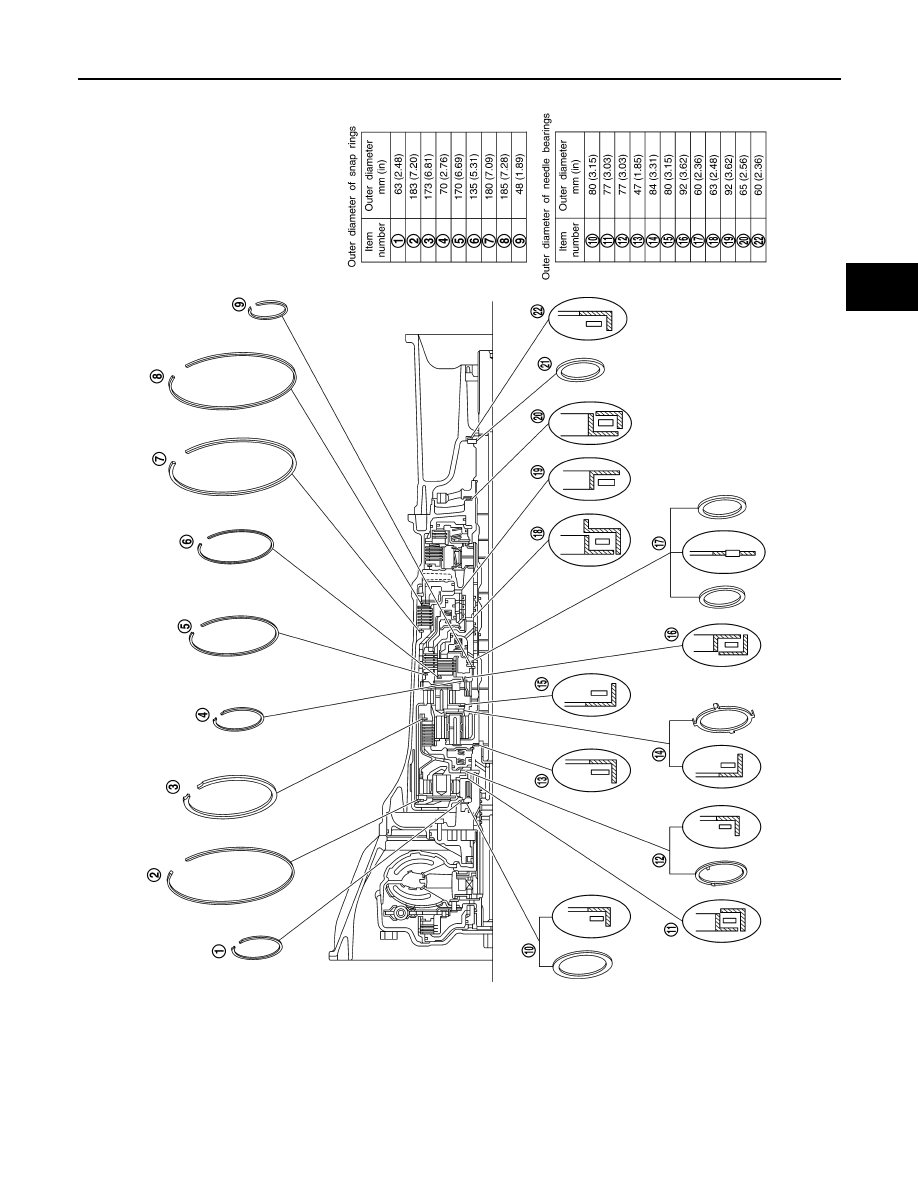

4WD Models

SCIA7020E

TM-324

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

DISASSEMBLY

DISASSEMBLY

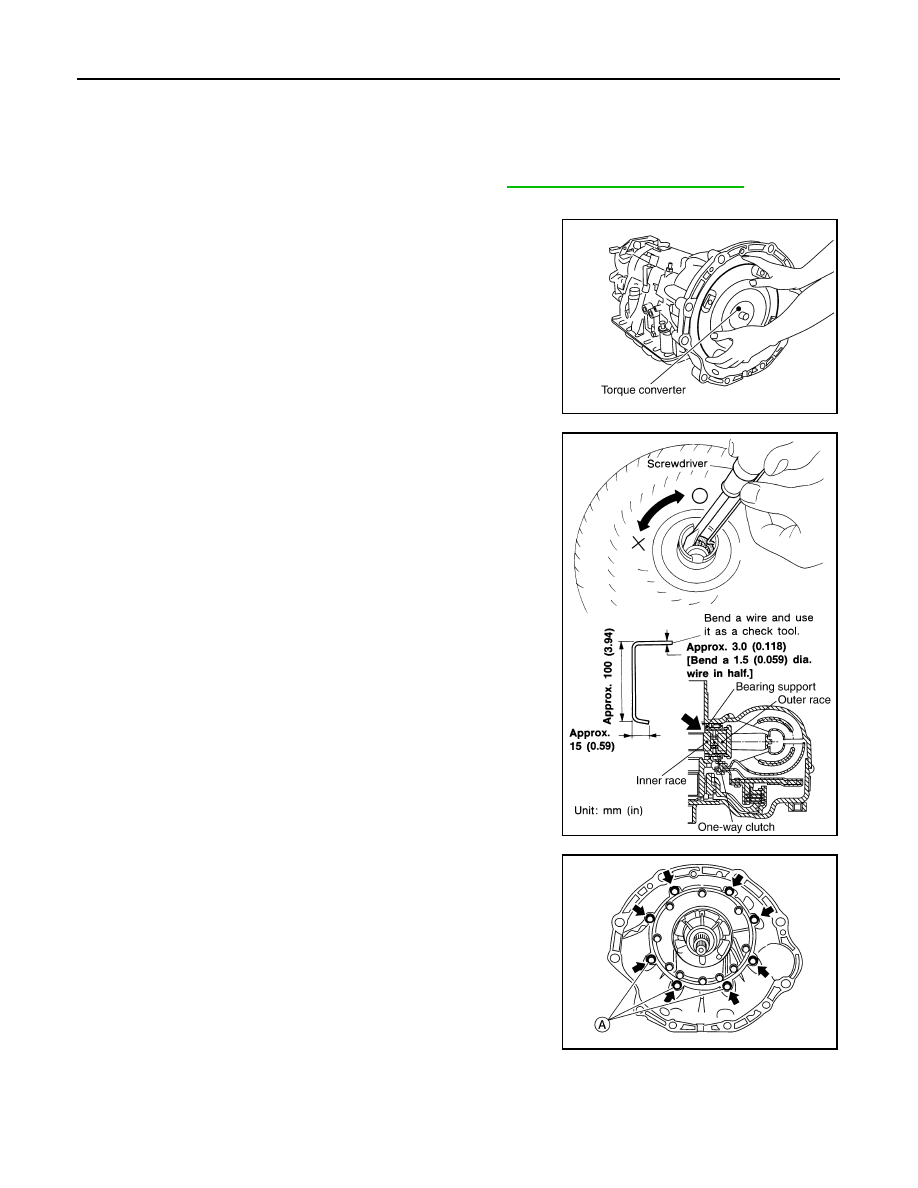

Disassembly

INFOID:0000000009480695

CAUTION:

Do not disassemble parts behind Drum Support. Refer to

TM-132, "Cross-Sectional View"

.

1. Drain A/T fluid through drain plug.
2. Remove torque converter by holding it firmly and turning while

pulling straight out.

3. Check torque converter one-way clutch using a check tool as

shown.

a. Insert a check tool into the groove of bearing support built into

one-way clutch outer race.

b. While holding bearing support with a check tool, rotate one-way

clutch spline using suitable tool.

c.

Make sure that inner race rotates clockwise only. If not, replace

torque converter assembly.

4. Remove bolts and converter housing from transmission case.

CAUTION:

Do not scratch converter housing.

• Self-sealing bolt (A)

SCIA5010E

SCIA3171E

WCIA0662E

DISASSEMBLY

TM-325

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

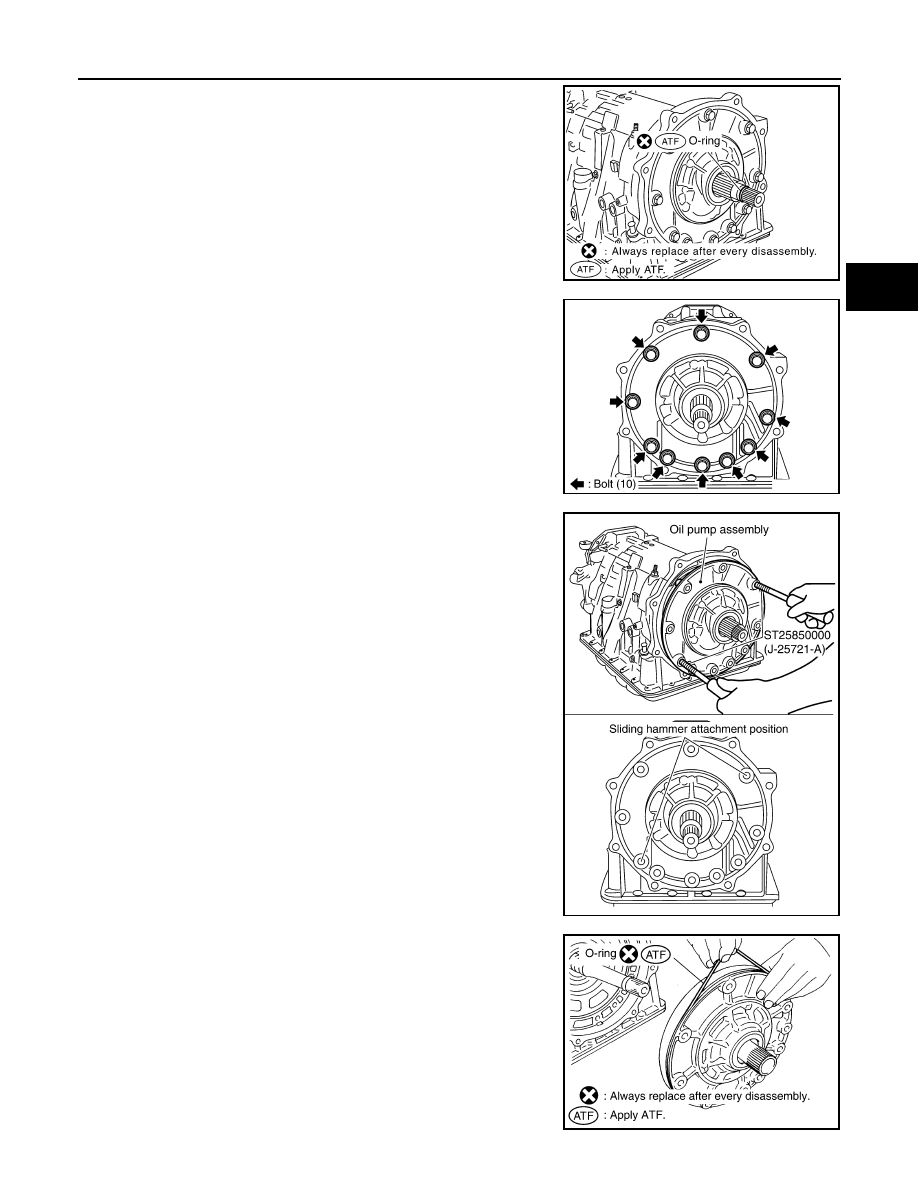

5. Remove O-ring from input clutch assembly.

CAUTION:

Do not reuse O-ring.

6. Remove oil pump assembly to transmission case bolts.

7. Remove the oil pump assembly evenly from the transmission

case using Tools.

CAUTION:

• Fully tighten the sliding hammer screws.

• Make sure that bearing race is installed to the oil pump

assembly edge surface.

8. Remove O-ring from oil pump assembly.

CAUTION:

Do not reuse O-ring.

SCIA5011E

SCIA2300E

Tool number

: ST25850000 (J-25721-A)

SCIA5474E

SCIA5172E

TM-326

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

DISASSEMBLY

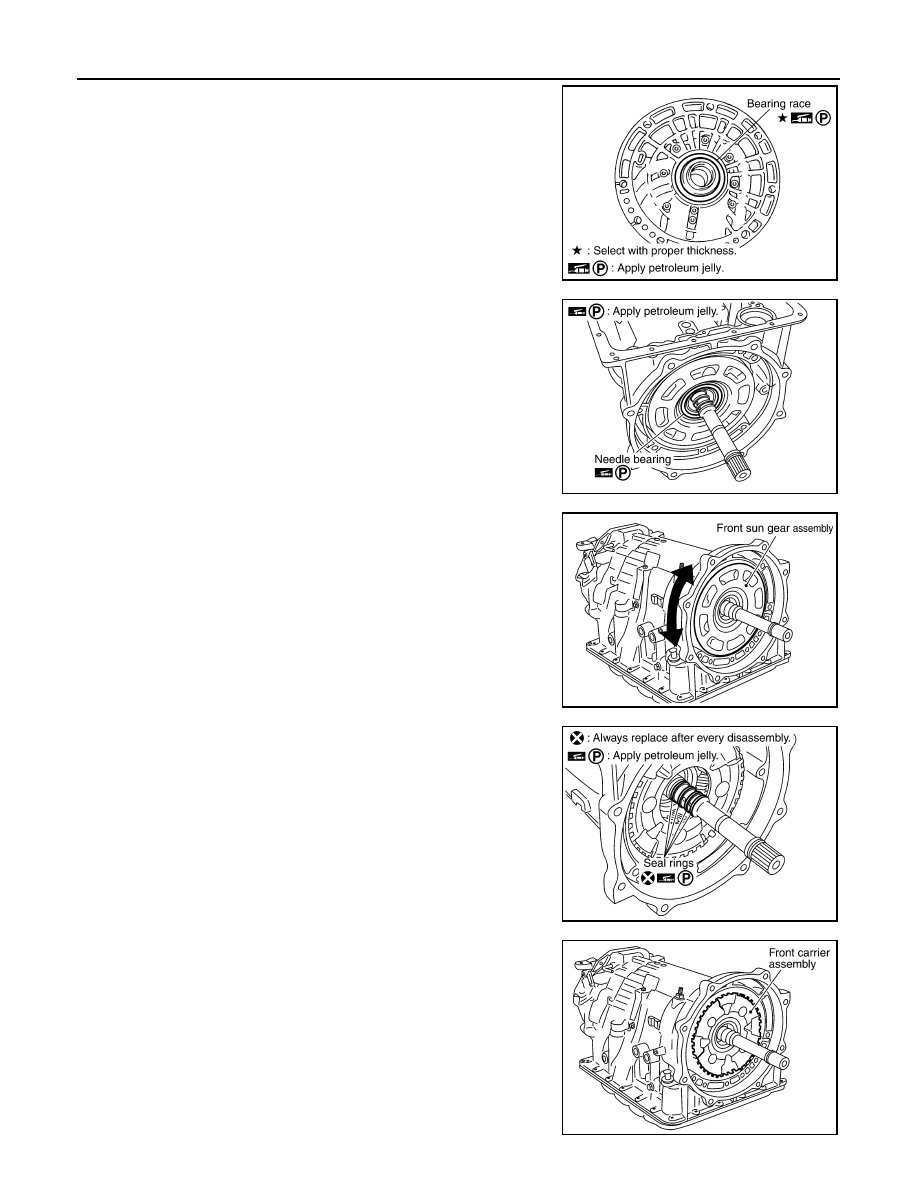

9. Remove bearing race from oil pump assembly.

10. Remove needle bearing from front sun gear.

11. Remove front sun gear assembly from front carrier assembly.

NOTE:

Remove front sun gear by rotating it left and right.

12. Remove seal rings from input clutch assembly.

13. Remove front carrier assembly (with input clutch assembly and

rear internal gear) from rear carrier assembly.

CAUTION:

Do not remove it with needle bearing.

SCIA6529E

SCIA2808E

SCIA5014E

SCIA2470E

SCIA5015E
