OVERHAUL

TM-315

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

1.

Needle bearing

2.

Bearing race

3.

High and low reverse clutch assembly

4.

Needle bearing

5.

Direct clutch assembly

6.

Reverse brake dish plate

7.

Reverse brake driven plate

8.

N-spring

9.

Reverse brake drive plate

10. Reverse brake retaining plate

11. Snap ring

12. D-ring

13. D-ring

14. Reverse brake piston

15. Return spring

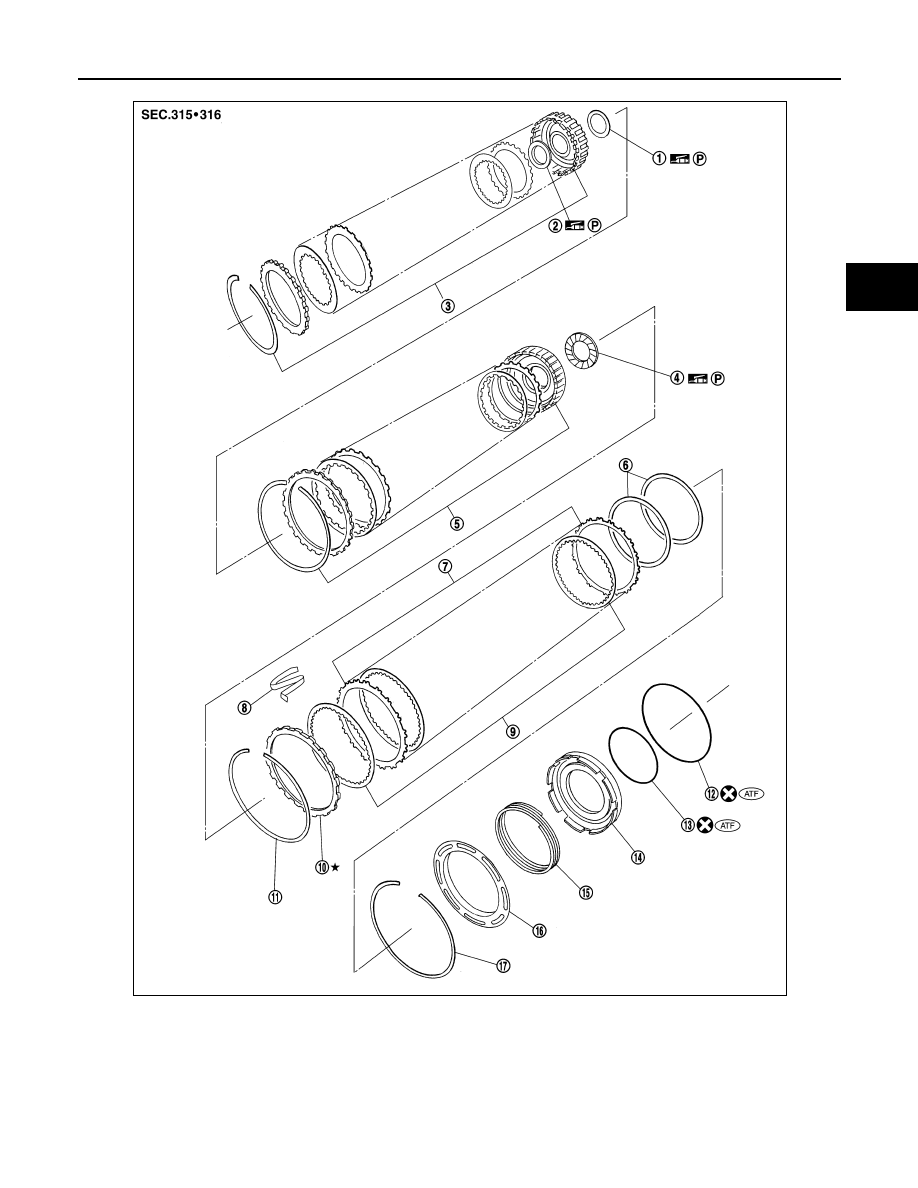

WCIA0575E

TM-316

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

OVERHAUL

2WD Models

16. Spring retainer

17. Snap ring

Refer to

GI-4, "Component"

 for symbols in the figure.

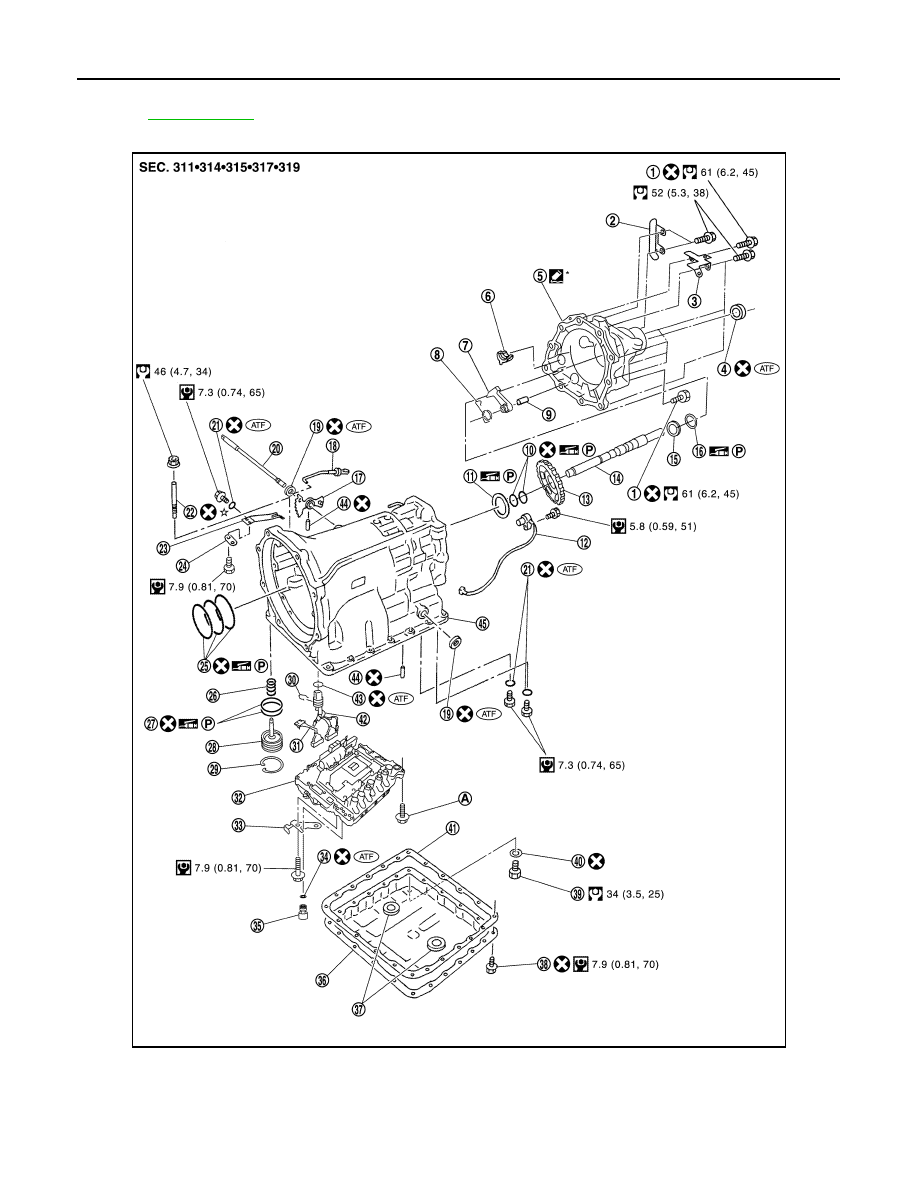

JSDIA2264GB

1.

Self-sealing bolt

2.

Bracket

3.

Bracket

4.

Rear oil seal

5.

Rear extension

6.

Parking actuator support

7.

Parking pawl

8.

Return spring

9.

Pawl shaft

10. Seal ring

11. Needle bearing

12. Output speed sensor

OVERHAUL

TM-317

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

13. Parking gear

14. Output shaft

15. Bearing race

16. Needle bearing

17. Manual plate

18. Parking rod

19. Manual shaft oil seal

20. Manual shaft

21. O-ring

22. Band servo anchor end pin

23. Detent spring

24. Spacer

25. Seal ring

26. Return spring

27.  O-ring

28. Servo assembly

29. Snap ring

30. Snap ring

31. Sub-harness

32. Control valve with TCM

33. Bracket

34. O-ring

35. Plug

36. Oil pan

37. Magnet

38. Oil pan bolt

39. Drain plug

40. Drain plug gasket

41. Oil pan gasket

42. Terminal cord assembly

43. O-ring

44. Retaining pin

45. Transmission case

A.

Tightening must be done following the assembly procedure. Refer to

TM-379, "Assembly (2)"

.

*: Apply Genuine Anaerobic Liquid Gasket or equivalent.

TM-318

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

OVERHAUL

4WD Models

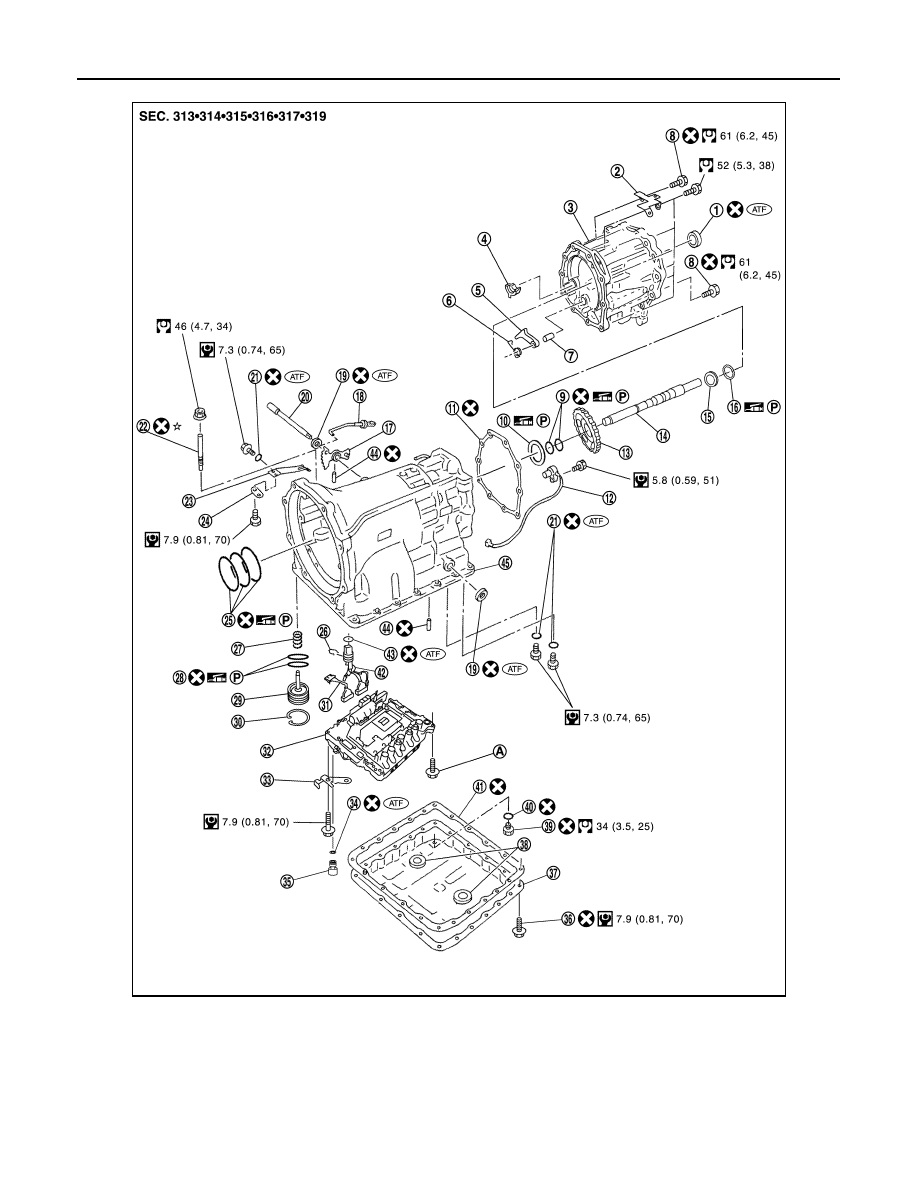

JSDIA2265GB

1.

Rear oil seal

2.

Bracket

3.

Adapter case

4.

Parking actuator support

5.

Parking pawl

6.

Return spring

7.

Pawl shaft

8.

Self-sealing bolt

9.

Seal ring

10. Needle bearing

11. Gasket

12. Output speed sensor

13. Parking gear

14. Output shaft

15. Bearing race

16. Needle bearing

17. Manual plate

18. Parking rod
