CASE COMPONENTS

TM-83

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CASE COMPONENTS

Disassembly

INFOID:0000000009480451

Case Components

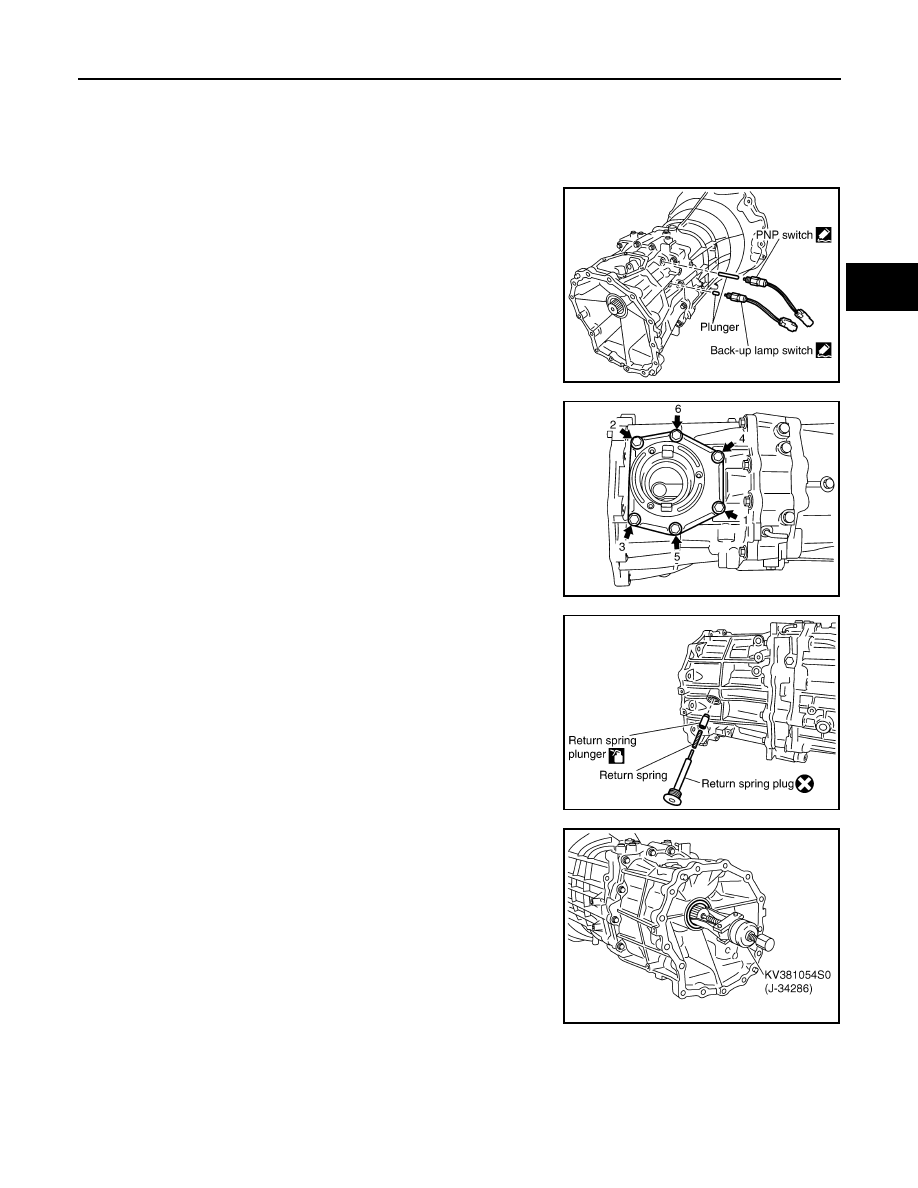

1. Remove clips from PNP switch and back-up lamp switch.
2. Remove PNP switch, back-up lamp switch and plungers from

rear extension (or OD gear case).

3. Remove control housing bolts, and then remove control housing

and gasket from rear extension (or OD gear case).

4. Remove return spring plug, return spring and return spring

plunger from rear extension (or OD gear case).

CAUTION:

Do not reuse return spring plug.

5. Remove rear oil seal from OD gear case using Tool (for 4WD

models).

CAUTION:

Do not damage OD gear case.

PCIB1215E

PCIB1216E

PCIB1643E

Tool number

: KV381054S0 (J-34286)

PCIB1218E

TM-84

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

CASE COMPONENTS

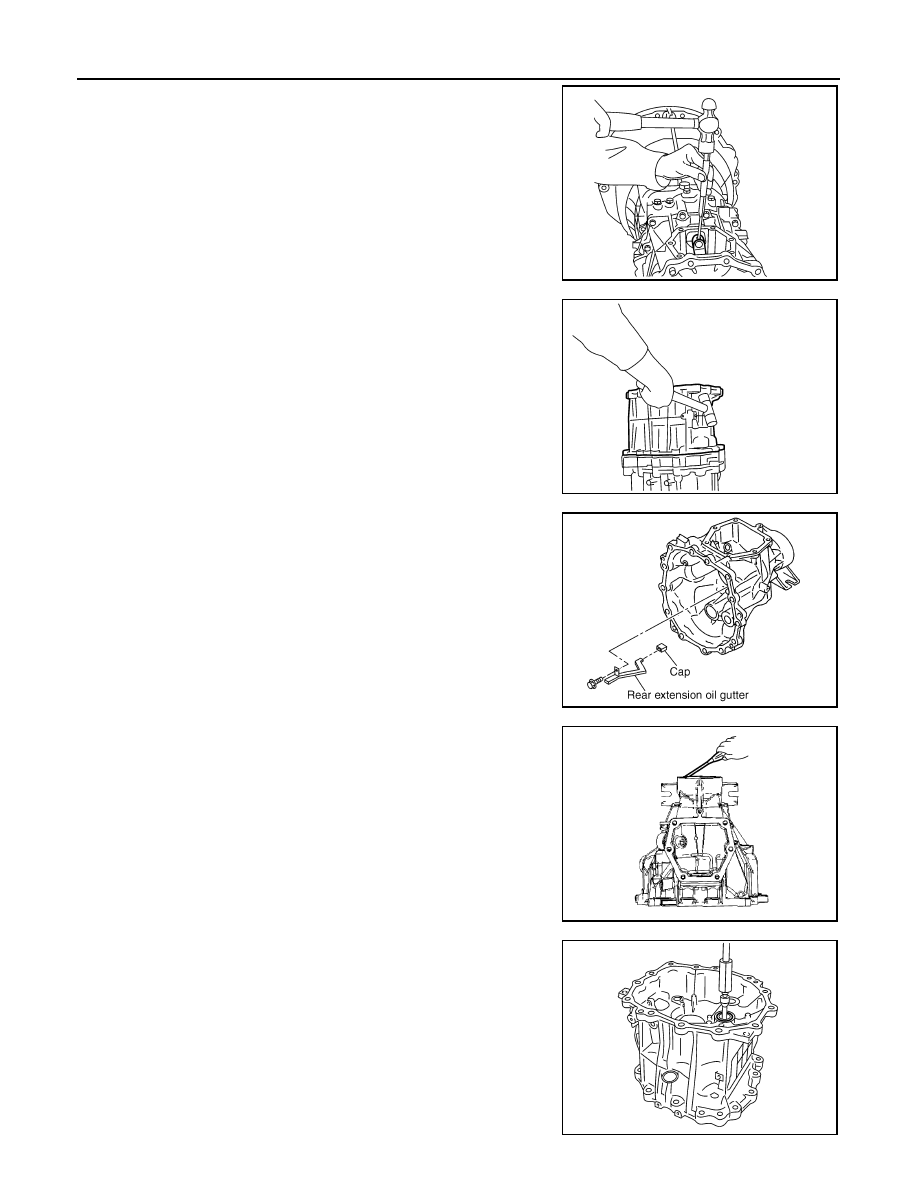

6. Remove retaining pin using suitable tool, and then remove strik-

ing arm from striking rod assembly.

7. Remove rear extension (or OD gear case) bolts, and then

remove rear extension (or OD gear case) from adapter plate

using suitable tool.

8. Remove rear extension oil gutter bolt, and then remove rear

extension oil gutter and cap from rear extension. (For 2WD mod-

els)

9. Remove dust seal and rear oil seal from rear extension using

suitable tool. (For 2WD models)

CAUTION:

Be careful not to damage rear extension.

10. Remove counter end bearing from rear extension (or OD gear

case) using suitable tool.

CAUTION:

Be careful not to damage rear extension (or OD gear case).

PCIB1219E

PCIB1220E

PCIB1221E

PCIB1222E

PCIB1223E

CASE COMPONENTS

TM-85

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

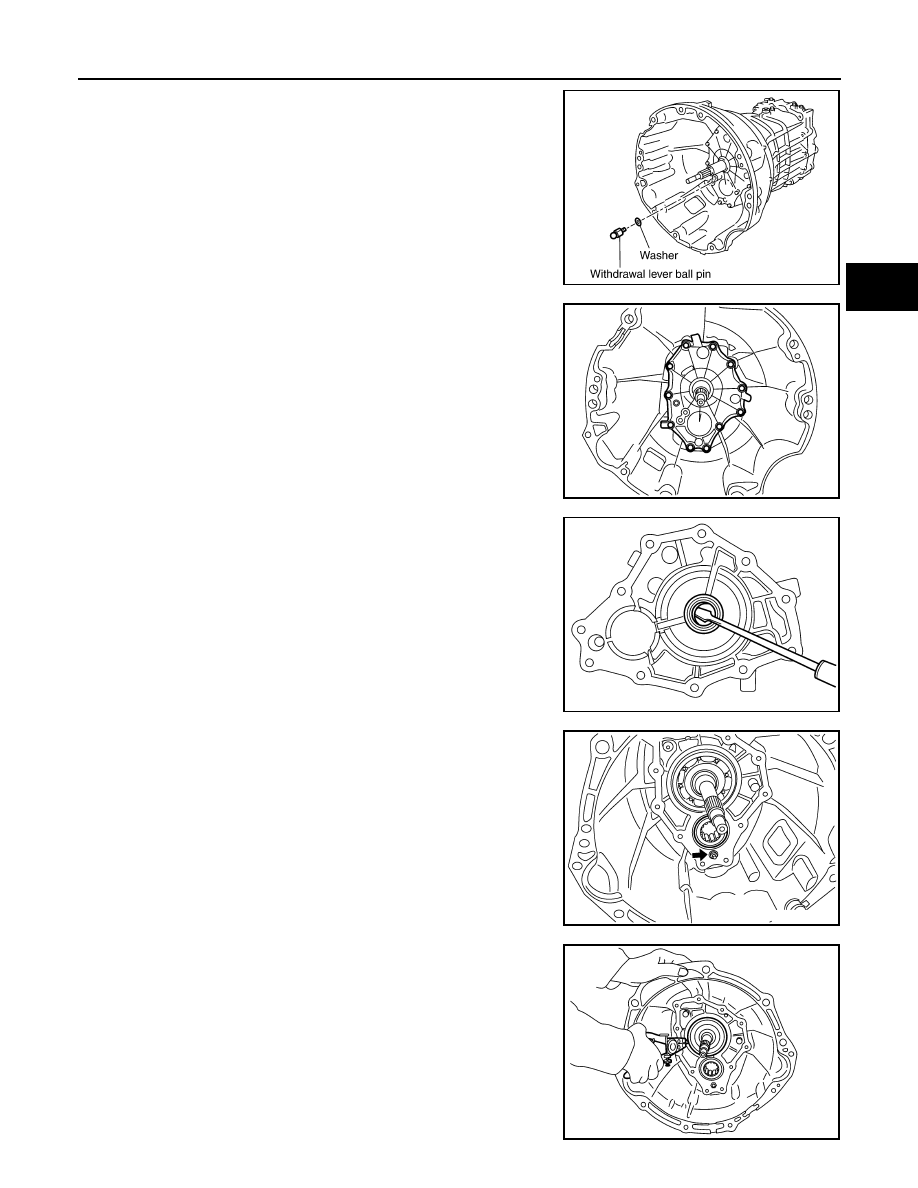

11. Remove withdrawal lever ball pin and washer from front cover.

12. Remove front cover bolts, and then remove front cover   and

front cover gasket from transmission case.

13. Remove front cover oil seal from front cover using suitable tool.

CAUTION:

Be careful not to damage front cover.

14. Remove baffle plate nut from transmission case.

15. Remove snap ring from main drive gear bearing using suitable

tool.

PCIB1224E

PCIB1225E

SCIA1399E

SCIA1443E

SCIA1532E

TM-86

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

CASE COMPONENTS

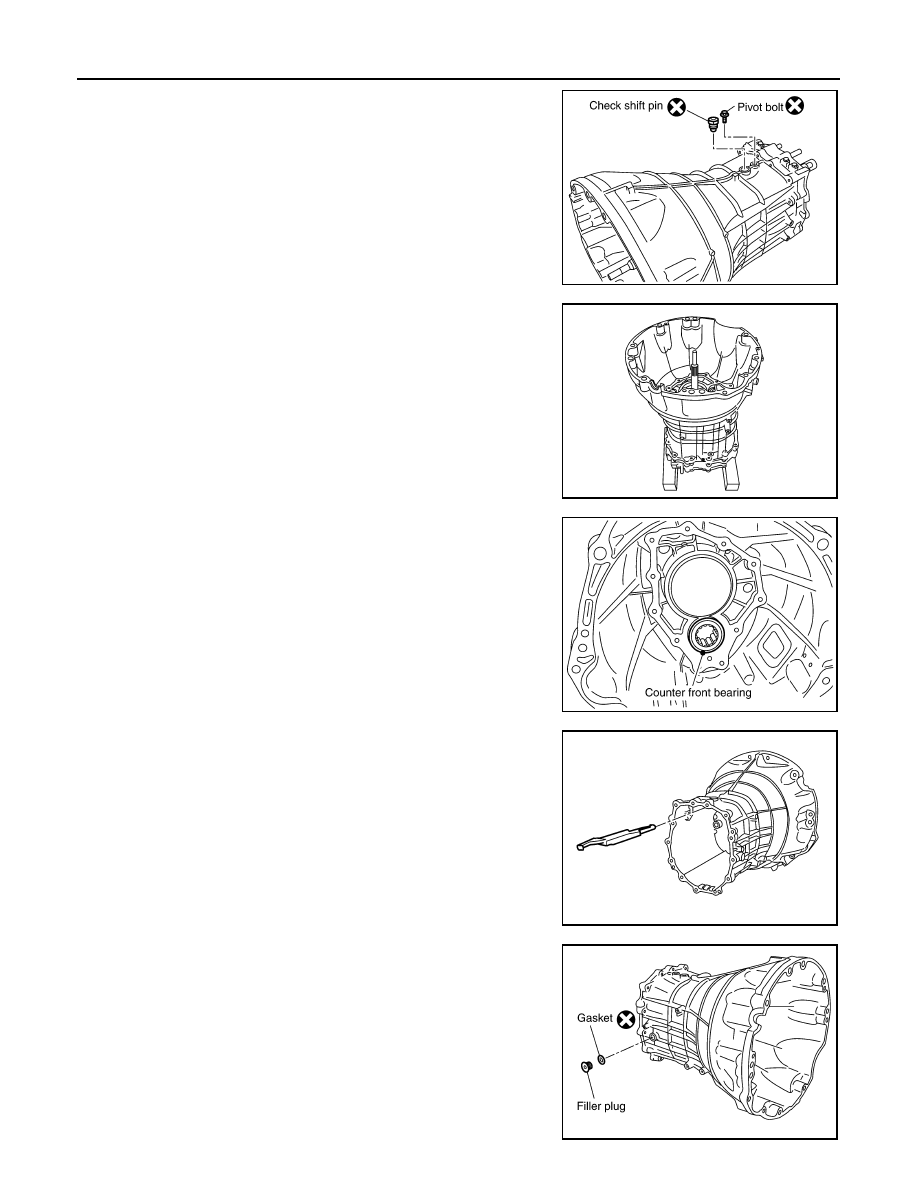

16. Remove pivot bolt and check shift pin from transmission case.

CAUTION:

Do not reuse pivot bolt and check shift pin.

17. Remove transmission case from adapter plate.

18. Remove counter front bearing from transmission case.

19. Remove oil gutter from transmission case.

20. Remove filler plug and gasket from transmission case.

CAUTION:

Do not reuse gasket.

PCIB1226E

PCIB1227E

PCIB0436E

PCIB1228E

PCIB1229E
