PG-76

< WIRING DIAGRAM >

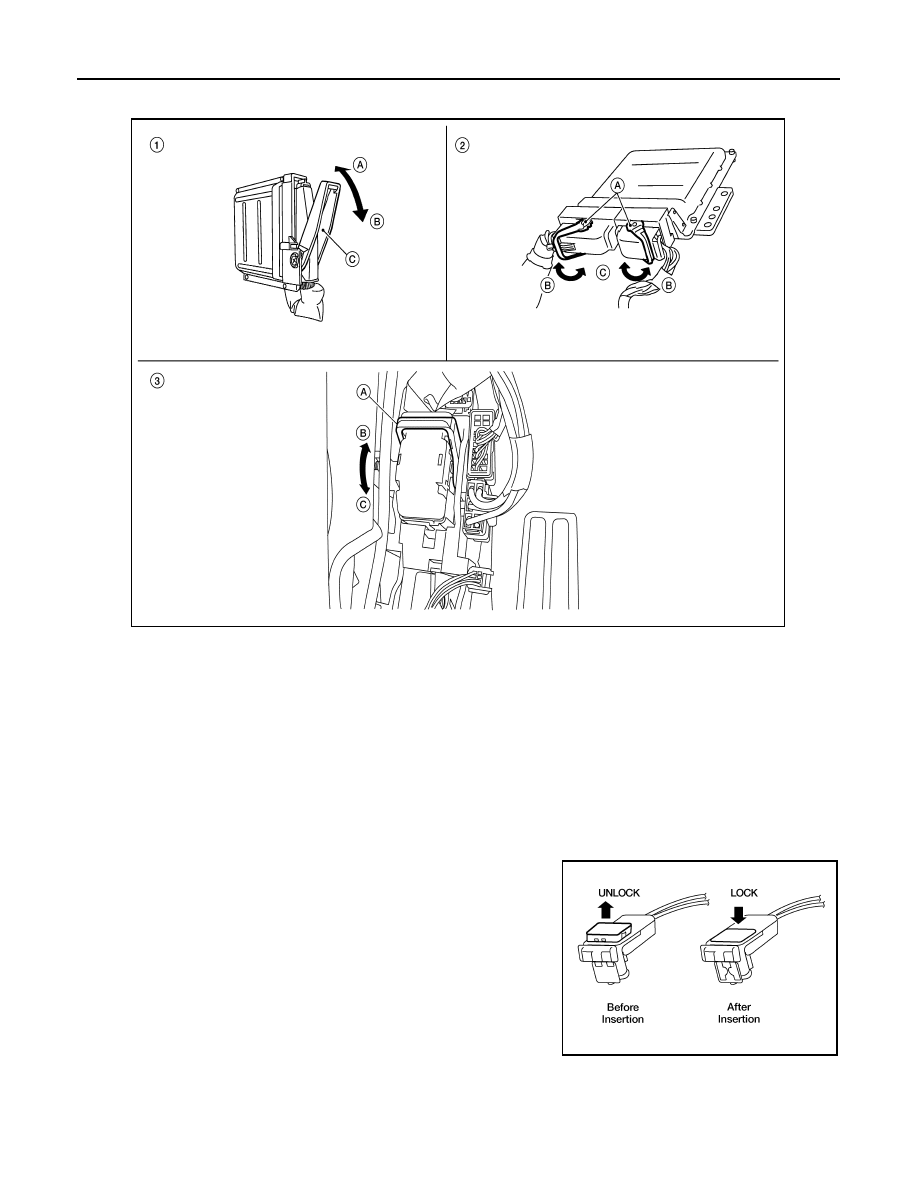

HARNESS CONNECTOR

• Always confirm the lever is fully released (loosened) before attempting to disconnect or connect

these connectors to avoid damage to the connector housing or terminals.

HARNESS CONNECTOR (DIRECT-CONNECT SRS COMPONENT TYPE)

• SRS direct-connect type harness connectors are used on certain SRS components such as air bag modules

and seat belt pre-tensioners.

• Always pull up to release black locking tab prior to removing connector from SRS components.

• Always push down to lock black locking tab after installing connector to SRS components. When locked, the

black locking tab is level with the connector housing.

CAUTION:

• Do not pull the harness or wires when removing connectors

from SRS components.

1.

Control unit with single lever

2.

Control unit with dual lever

3.

SMJ connector

A. Fasten

A. Levers

A. Lever

B. Loosen

B. Fasten

B. Fasten

C. Lever

C. Loosen

C. Loosen

LKIA0670E

WHIA0103E

PG

STANDARDIZED RELAY

PG-77

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

STANDARDIZED RELAY

Description

INFOID:0000000009479165

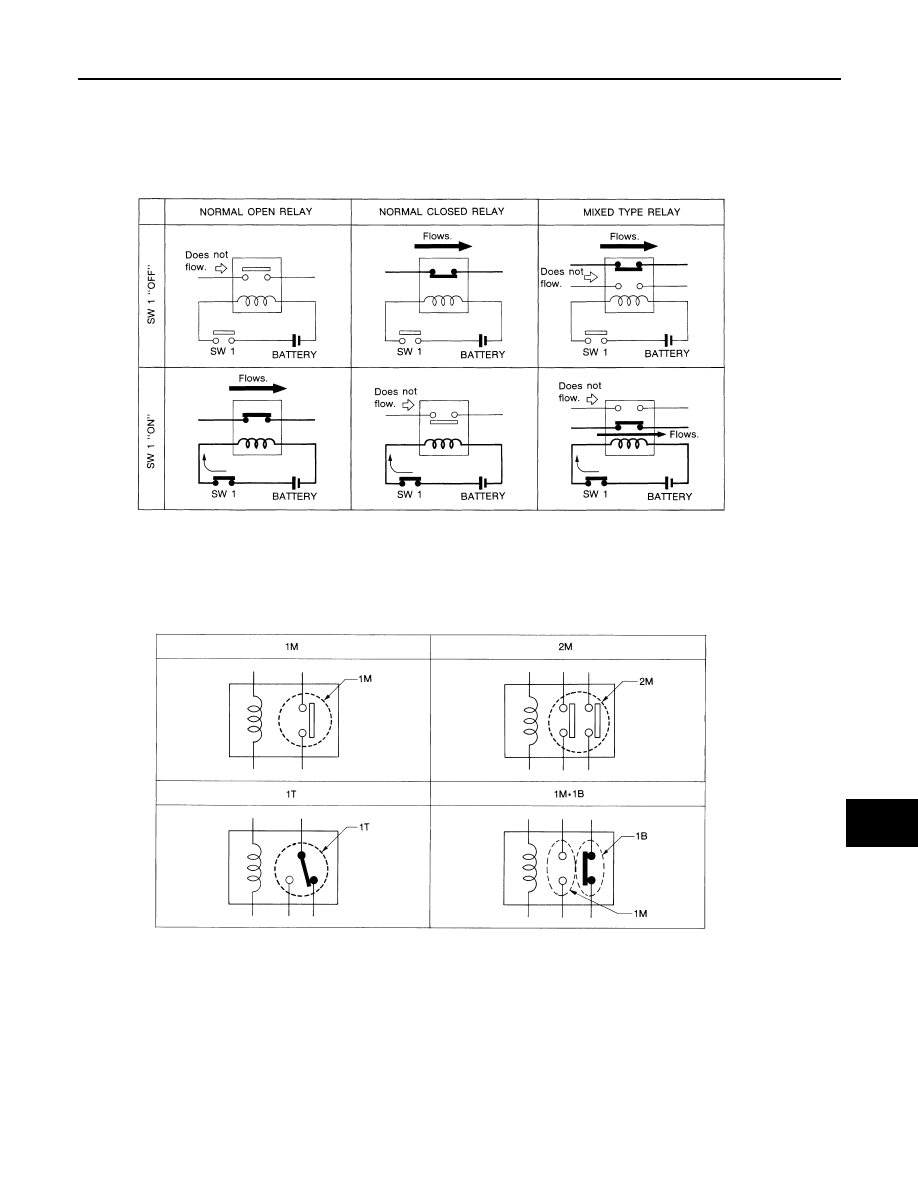

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

TYPE OF STANDARDIZED RELAYS

SEL881H

1M  ····················  1 Make

2M       ····················  2 Make

1T   ····················  1 Transfer

1M·1B  ····················  1 Make 1 Break

SEL882H

PG-78

< WIRING DIAGRAM >

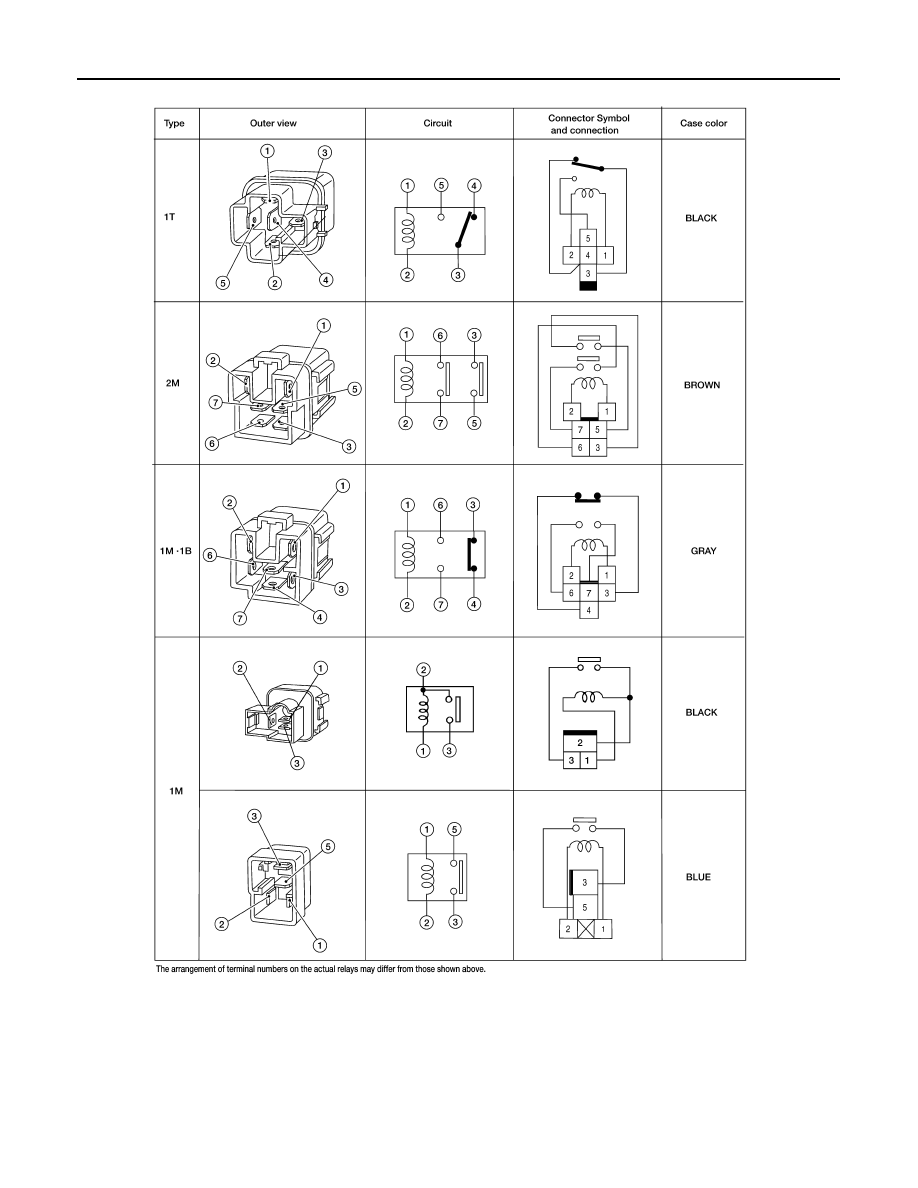

STANDARDIZED RELAY

WKIA0253E

PG

FUSE BLOCK - JUNCTION BOX (J/B)

PG-79

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

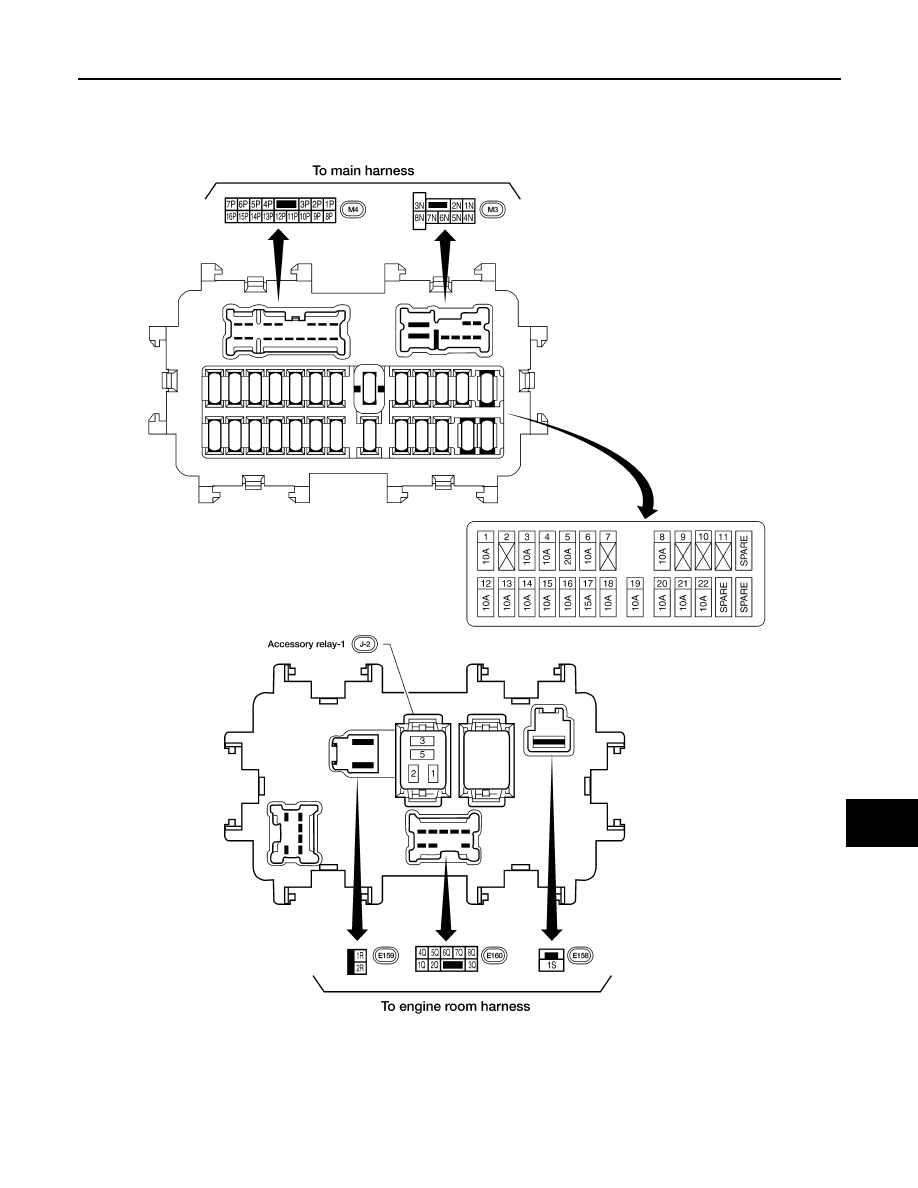

FUSE BLOCK - JUNCTION BOX (J/B)

Terminal Arrangement

INFOID:0000000009479166

ABMIA4367GB
