PG-68

< WIRING DIAGRAM >

HARNESS

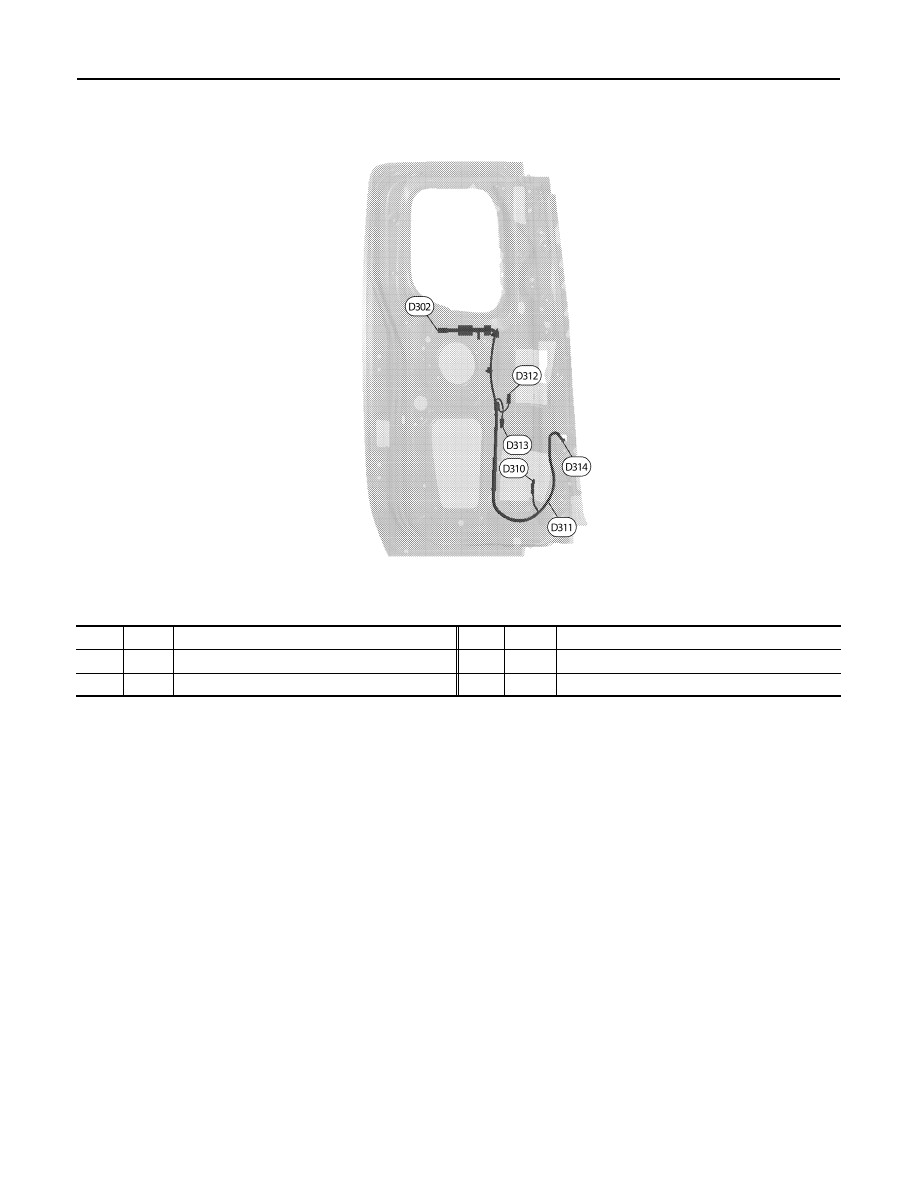

REAR DOOR RH HARNESS (KING CAB MODELS)

ABMIA0409GB

D302

W/8

: To B107

D312

B/2

: Rear door switch upper RH

D310

Y/2

: Front RH seat belt pre-tensioner

D313

B/2

: Rear door switch lower RH

D311

B/3

: Belt tension sensor

D314

W/3

: Front door switch RH

PG

HARNESS

PG-69

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

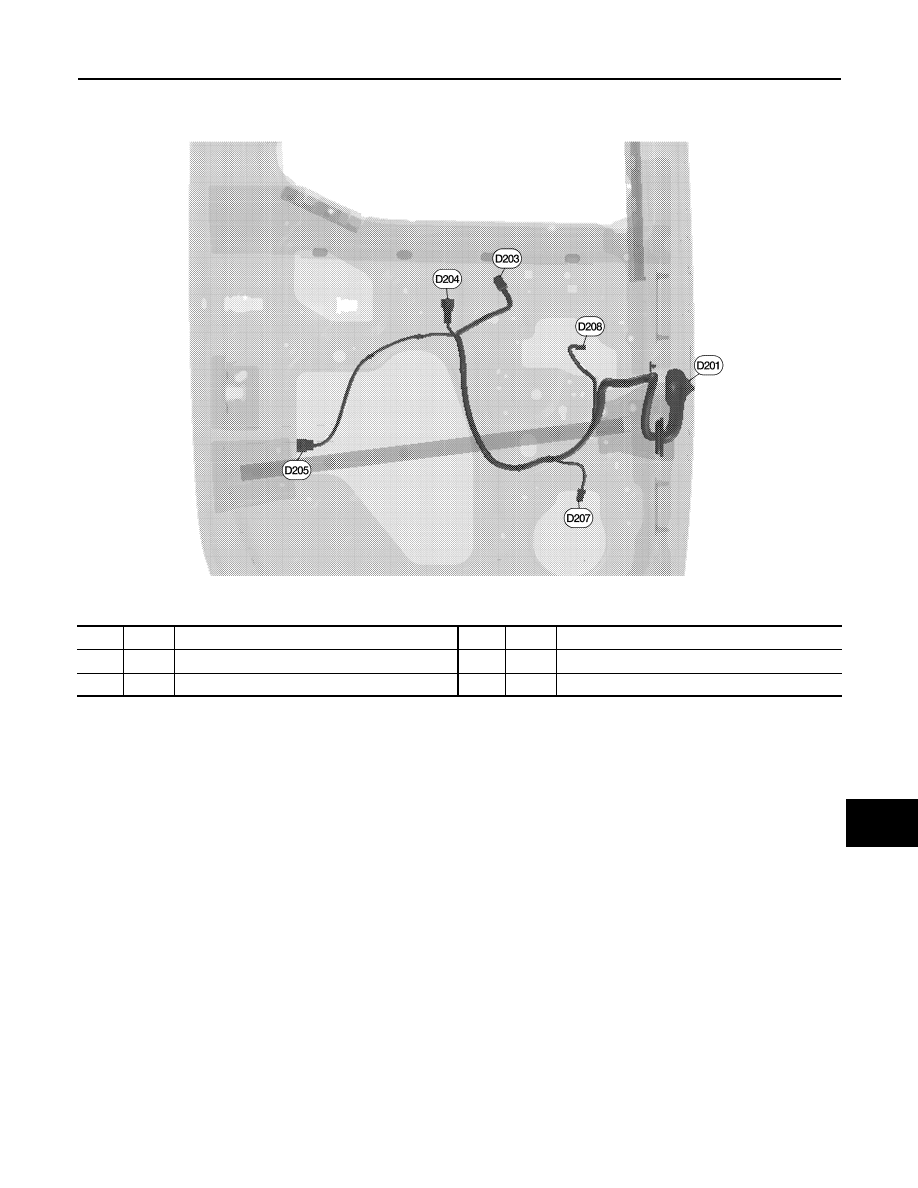

REAR DOOR LH HARNESS (CREW CAB MODELS)

ABMIA2588GB

D201

W/12

: To B6

D205

BR/2

: Rear door lock actuator LH

D203

W/8

: Rear power window switch LH

D207

W/2

: Rear door speaker LH

D204

B/2

: Rear power window motor LH

D208

BR/2

: Rear tweeter LH

PG-70

< WIRING DIAGRAM >

HARNESS

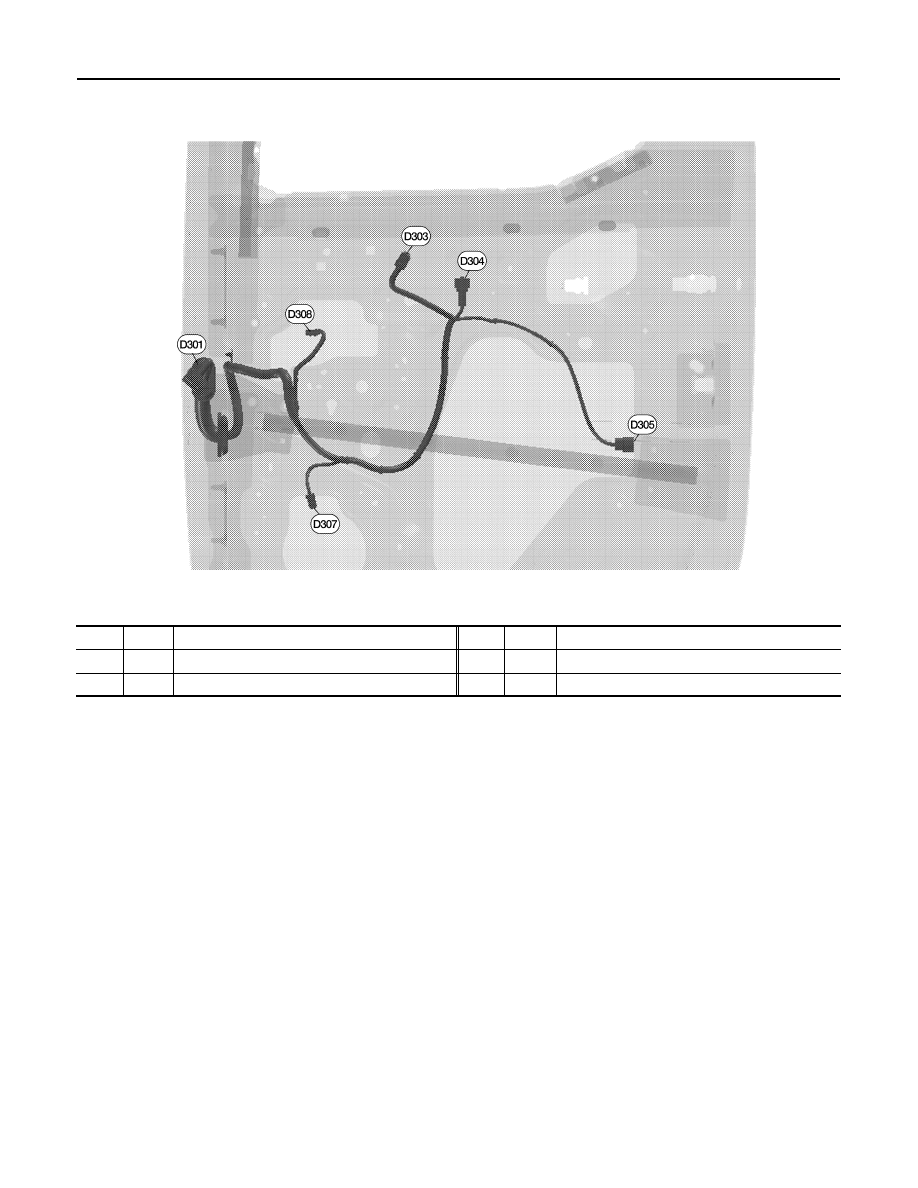

REAR DOOR RH HARNESS (CREW CAB MODELS)

ABMIA2589GB

D301

W/12

: To B106

D305

BR/2

: Rear door lock actuator RH

D303

W/8

: Rear power window switch RH

D307

W/2

: Rear door speaker RH

D304

B/2

: Rear power window motor RH

D308

BR/2

: Rear door tweeter RH

PG

ELECTRICAL UNITS LOCATION

PG-71

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

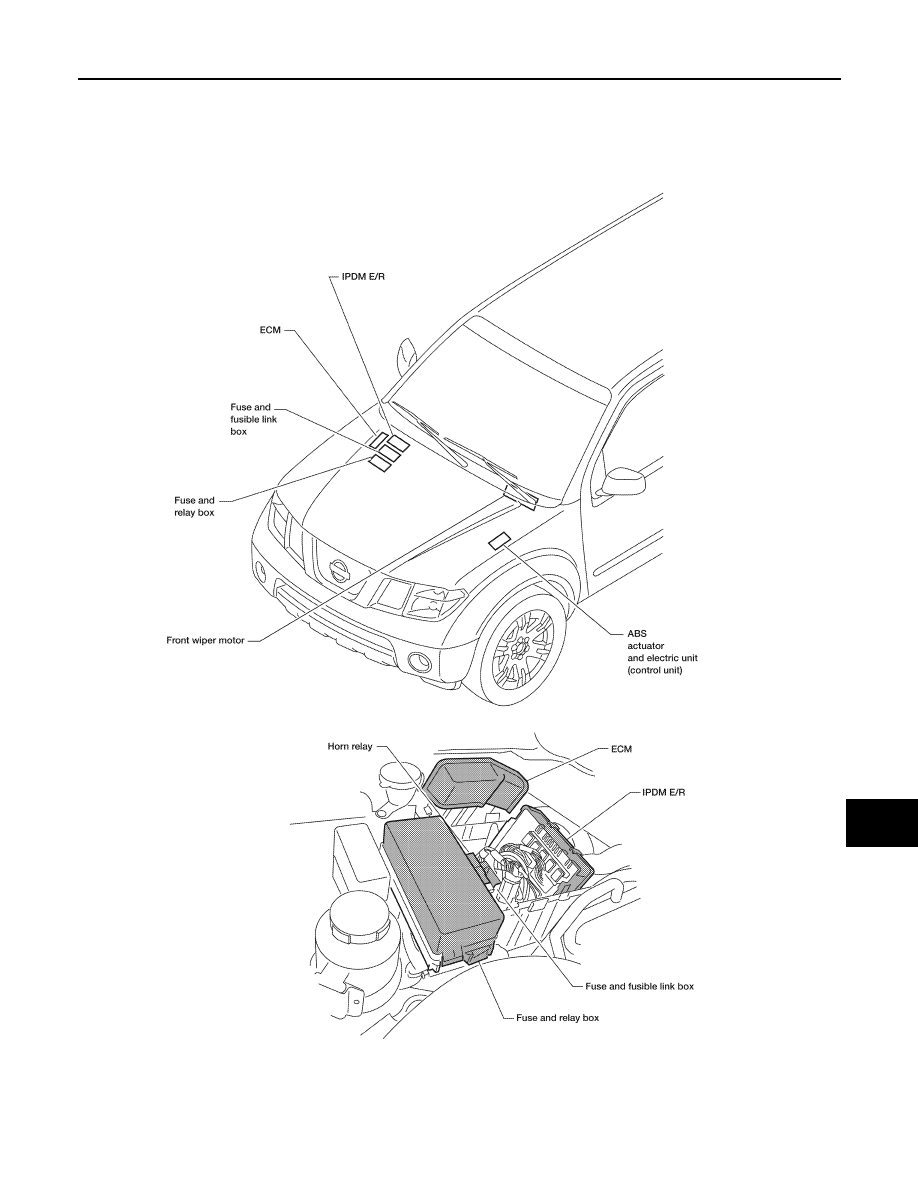

ELECTRICAL UNITS LOCATION

Electrical Units Location

INFOID:0000000009479163

ENGINE COMPARTMENT

ABMIA0357GB
