< WIRING DIAGRAM >

FUSE, FUSIBLE LINK AND RELAY BOX

FUSE, FUSIBLE LINK AND RELAY BOX

Terminal Arrangement

INFOID:0000000009479167

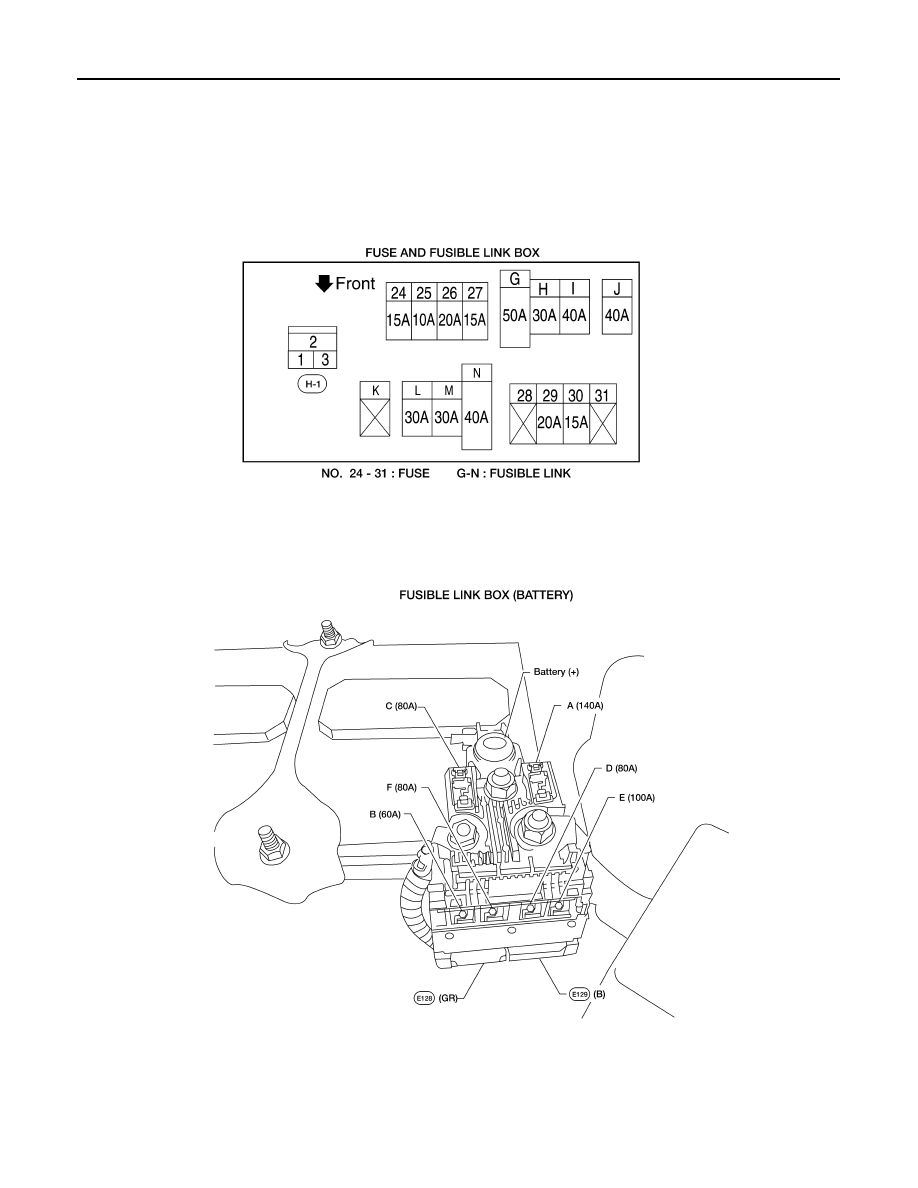

FUSE AND FUSIBLE LINK BOX

ABMIA1482GB

PG

FUSE AND RELAY BOX

PG-81

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

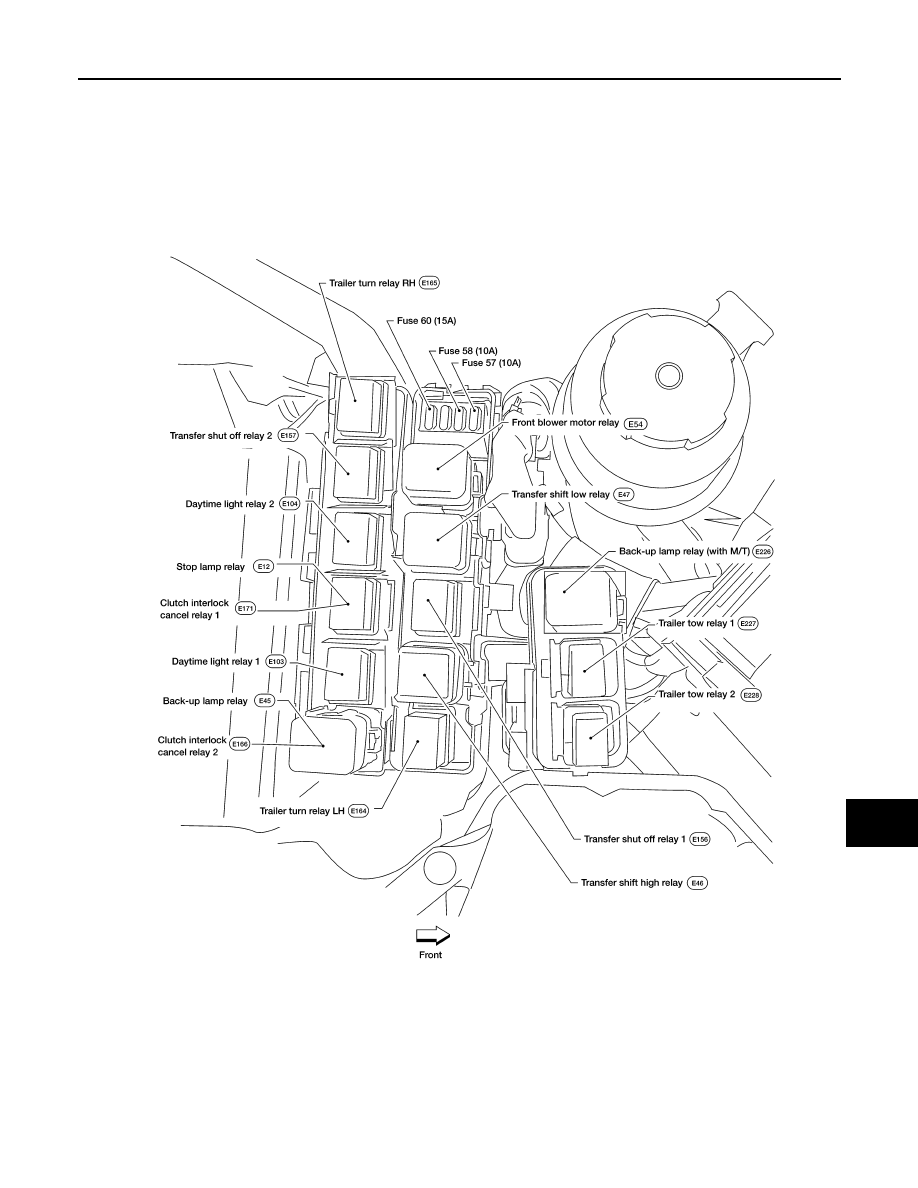

FUSE AND RELAY BOX

Terminal Arrangement

INFOID:0000000009479168

ABMIA5569GB

PG-82

< WIRING DIAGRAM >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

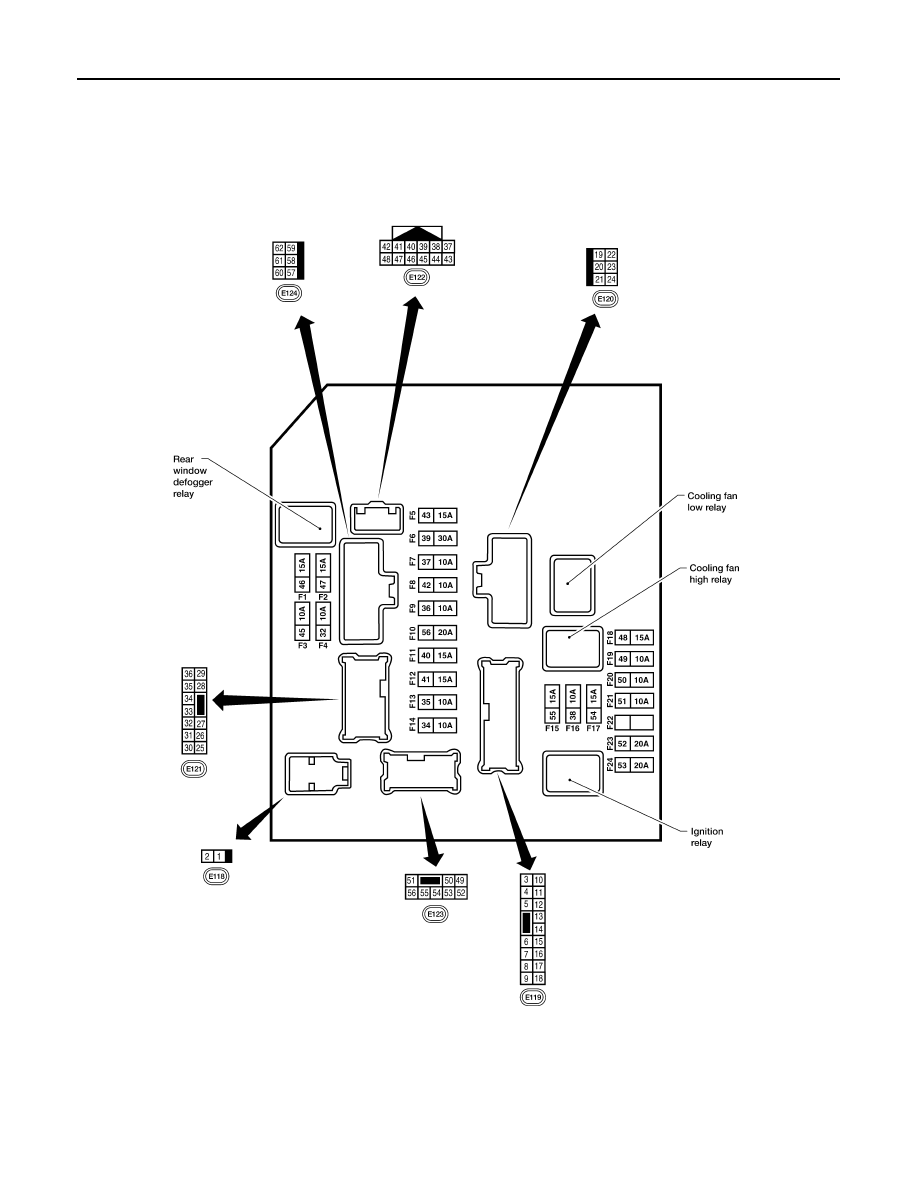

IPDM E/R Terminal Arrangement

INFOID:0000000009479169

NOTE:

Numbers preceded by an "F" represent the fuse numbers imprinted on the IPDM E/R. The other numbers

represent the fuse numbers as they appear in the wiring diagrams.

ABMIA4408GB

PG

BATTERY

PG-83

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REMOVAL AND INSTALLATION

BATTERY

Removal and Installation

INFOID:0000000009479170

REMOVAL

1. Disconnect both negative and positive battery terminals.

CAUTION:

• Before servicing, turn the ignition switch off and wait at

least three minutes.

• Disconnect negative battery terminal first.

2. Remove battery clamp nuts and battery clamp.
3. Remove battery cover.
4. Remove battery.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Connect positive battery terminal first.

Reset electronic systems as necessary. Refer to

PG-7, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Special Repair Requirement"

.

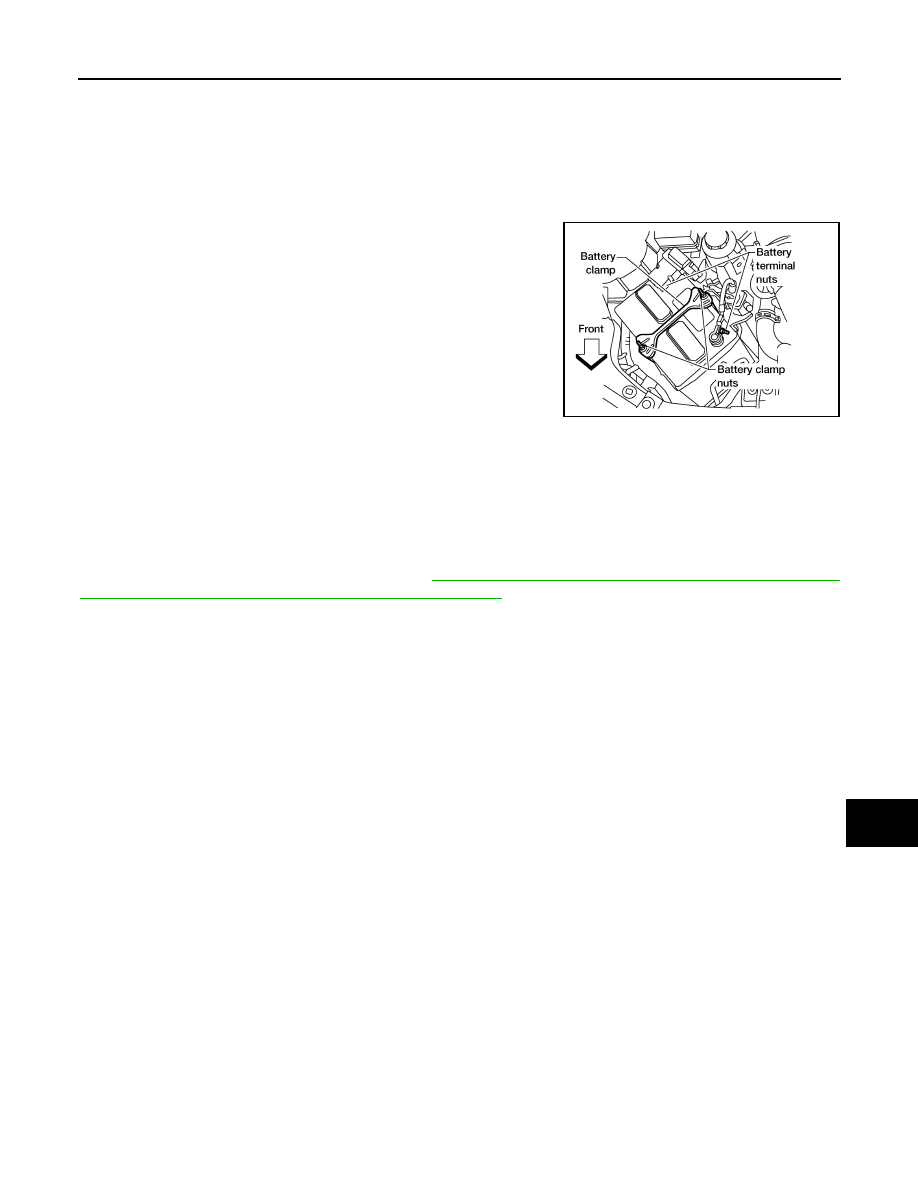

WKIA3188E

Battery clamp nuts

: 3.92 N·m (0.40 kg-m, 35 in-lb)

Battery terminal nut

: 3.4 N·m (0.35 kg-m, 30 in-lb)
