AV-160

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO WITH AMPLIFIER]

COMPONENT PARTS

Component Description

INFOID:0000000009482140

1.

Front tweeter LH M109

2.

Steering wheel audio control switches 3.

Audio unit M46, M48, M65, M66

4.

Front tweeter RH M111

5.

Microphone R8

6.

Front door speaker LH D12
Front door speaker RH D112

7.

Rear tweeter LH D208
Rear tweeter RH D308

8.

Rear door speaker LH D207
Rear door speaker RH D307

9.

Audio amp B158, B159 (Underneath
passenger seat)

10. Bluetooth

®

 control unit B141, B142,

B143 (Underneath passenger seat)

11. Bluetooth

®

 antenna

12. Subwoofer B72 (Underneath rear LH

seat)

13. USB interface M214

14. Rear view camera C251

15. Satellite antenna

16. Rod antenna

Part name

Description

Audio unit

• Controls audio, USB connection, AUX IN connection, satellite radio and rear view

camera functions.

• Display unit is built in to audio unit.

Audio amplifier

Receives audio signals from audio unit and outputs audio signals to each speaker.

Front tweeters

Outputs high, mid and low range audio signals from audio amp.

Front door speakers

Rear tweeters

Rear door speakers

Subwoofer

Steering wheel audio control switches

• Operations for audio, hands-free phone and voice recognition are possible.
• Steering switch signal is output to Bluetooth

®

 control unit.

• Bluetooth

®

 control unit outputs steering switch signal to audio unit.

Microphone

• Used for hands-free phone operations.
• Microphone signal is transmitted to Bluetooth

®

 control unit.

• Power is supplied from Bluetooth

®

 control unit.

Bluetooth

®

 control unit

• Inputs TEL voice signal from Bluetooth

®

 antenna and outputs it to audio unit.

• Controlled via AV communication by audio unit.

Bluetooth

®

 antenna

Receives TEL voice signal and outputs it to Bluetooth

®

 control unit.

USB interface

USB sound and data input signals are transmitted to audio unit.

Rear view camera

• Outputs image of vehicle rear to audio unit.
• Power is supplied from audio unit.

Satellite antenna

Satellite radio signal is received and transmitted to audio unit.

Rod antenna

AM/FM signal is received and transmitted to audio unit.

AV

SYSTEM

AV-161

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO WITH AMPLIFIER]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM

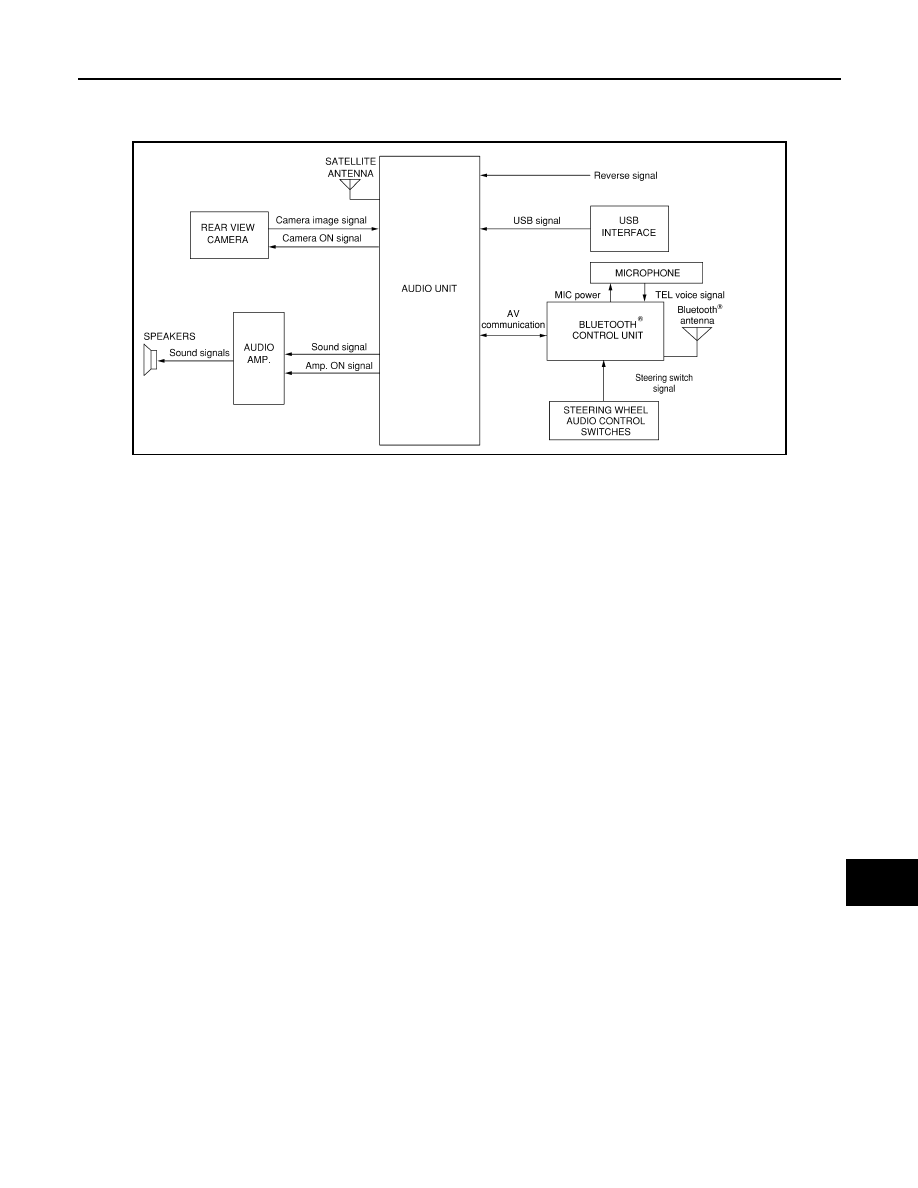

System Diagram

INFOID:0000000009482141

System Description

INFOID:0000000009482142

AUDIO SYSTEM

The audio system consists of the following components

• Audio unit

• Audio amplifier

• Front tweeters

• Front door speakers

• Rear tweeters

• Rear door speakers

• Subwoofer

• Steering wheel audio control switches

• USB  interface

• Rod antenna

When the audio system is on, AM/FM signals received by the rod antenna are sent to the audio unit. The

audio unit then sends audio signals to the audio amplifier. The audio amplifier then sends audio signals to the

front tweeters, front door speakers, rear tweeters, rear door speakers and subwoofer.

Refer to Owner's Manual for audio system operating instructions.

SATELLITE RADIO SYSTEM

The satellite radio system consists of the following components

• Satellite antenna

• Satellite radio tuner integral to audio unit

When the satellite radio system is on, satellite radio signals are supplied to the audio unit from the satellite

antenna. The audio unit then sends audio signals to the audio amplifier. The audio amplifier amplifies the

audio signals before sending them to the speakers, tweeters and subwoofer.

Refer to Owner's Manual for satellite radio system operating instructions.

HANDS-FREE PHONE SYSTEM

System Operation

NOTE:
Cellular telephones must have their wireless connection set up (paired) before using the Bluetooth

®

 telephone

system.
The Bluetooth

®

 telephone system allows users who have a Bluetooth

®

 cellular telephone to make a wireless

connection between their cellular telephone and the Bluetooth

®

 control unit. Hands-free cellular telephone

calls can be sent and received. Some Bluetooth

®

 cellular telephones may not be recognized by the Bluetooth

®

control unit. When a cellular telephone or the Bluetooth

®

 control unit is replaced, the telephone must be paired

AWNIA2776GB

AV-162

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO WITH AMPLIFIER]

SYSTEM

with the Bluetooth

®

 control unit. Different cellular telephones may have different pairing procedures, refer to

the cellular telephone operating manual.
Refer to the Owner's Manual for Bluetooth

®

 telephone system operating instructions.

Bluetooth

®

 Control Unit

When the ignition switch is turned to ACC or ON, the Bluetooth

®

 control unit will power up. During power up,

the Bluetooth

®

 control unit is initialized and performs various self-checks. Initialization may take up to 20 sec-

onds. If a phone is present in the vehicle and paired with the Bluetooth

®

 control unit, Nissan Voice Recognition

will then become active. Bluetooth

®

 telephone functions can be turned off using the Nissan Voice Recognition

system.

Steering Wheel Audio Control Switches

When buttons on the steering wheel audio control switch are pushed, the resistance in steering wheel audio
control switch circuit changes, depending on which button is pushed. The Bluetooth

®

 control unit uses this sig-

nal to perform various functions while navigating through the voice recognition system.

The following functions can be performed using the steering wheel audio control switch:
• Initiate self-diagnosis of the Bluetooth

®

 telephone system

• Start a voice recognition session

• Answer and end telephone calls

• Adjust the volume of calls

Microphone

The microphone is located in the roof console assembly. The microphone sends a signal to the Bluetooth

®

control unit. The microphone can be actively tested during self-diagnosis.

Audio Unit

The audio unit receives signals from the Bluetooth

®

 control unit and sends audio signals to the audio amplifier.

The audio amplifier amplifies the audio signals before sending them to the speakers.

REAR VIEW CAMERA SYSTEM

• The audio unit supplies power to the rear view camera when the reverse signal is received.

• The rear view camera transmits rear view camera images to the audio unit when power is supplied from the

audio unit.

• The audio unit combines a warning message and fixed guide lines with an image received from the rear view

camera to display a rear view camera image on the screen.

AV

DIAGNOSIS SYSTEM (AUDIO UNIT)

AV-163

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO WITH AMPLIFIER]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (AUDIO UNIT)

Description

INFOID:0000000009482143

The audio unit on board diagnosis performs the functions listed in the table below:

On Board Diagnosis Function

INFOID:0000000009482144

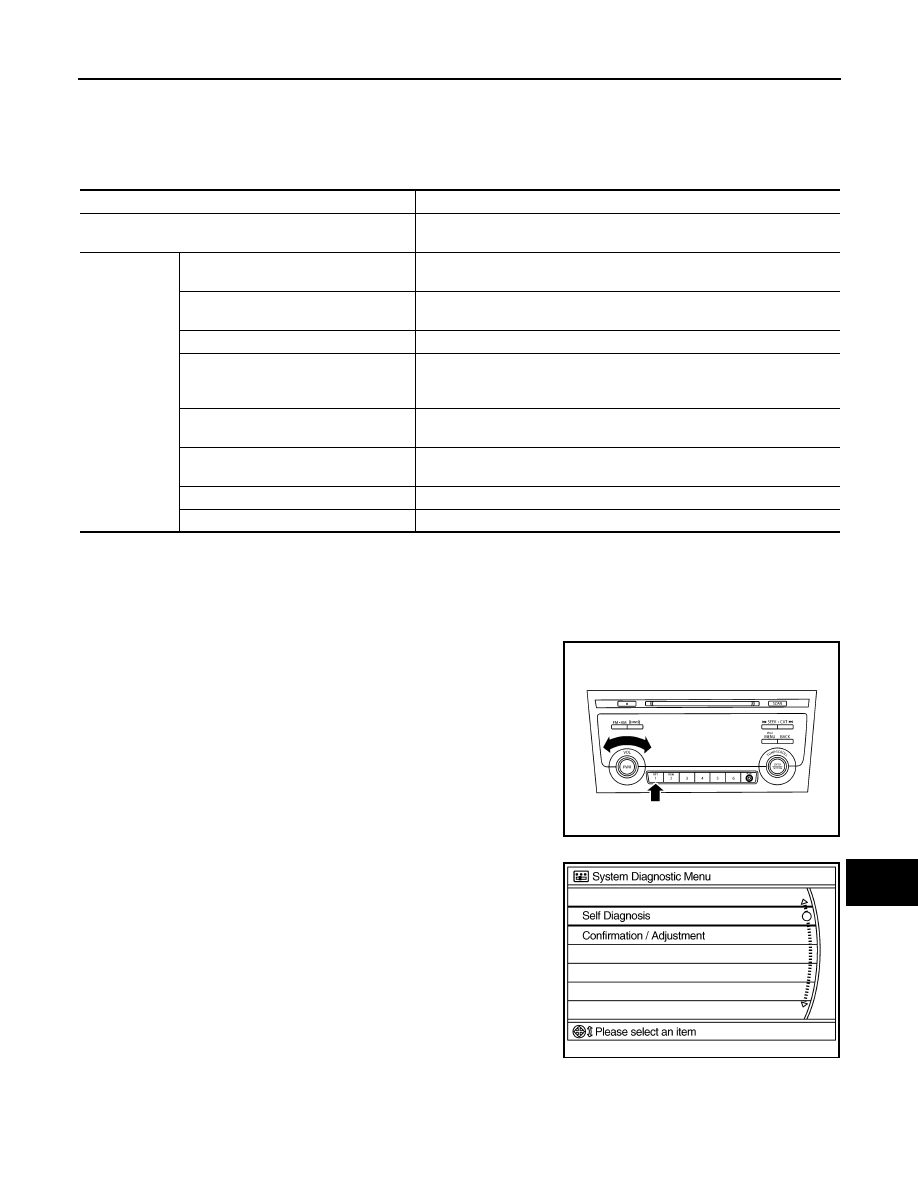

METHOD OF STARTING

1. Turn the ignition ON.

2. Turn the audio system OFF.

3. While pressing the preset 1 button, turn the volume control dial

clockwise or counterclockwise for 40 clicks or more. When self-

diagnosis mode begins, a short beep will be heard. Shifting from

current screen to previous screen is performed by pressing

BACK button.

4. The trouble diagnosis initial screen is displayed, and Self Diag-

nosis or Confirmation/Adjustment can be selected.

SELF DIAGNOSIS MODE

Audio Unit Self Diagnosis

1. Select Self Diagnosis.

Mode

Description

Self Diagnosis

• Audio unit diagnosis.
• Diagnoses the connections across system components.

Confirmation/

Adjustment

Display Diagnosis

The following check functions are available: color tone check by color bar
display and white display, light and shade check by gray scale display.

Vehicle Signals

Diagnosis of signals can be performed for vehicle speed, lights, reverse,
EQ pin, destination and camera type.

Speaker Test

The connection of a speaker can be confirmed by test tone.

Error History

The system malfunction and the frequency when occurring in the past are
displayed. When the malfunctioning item is selected, the time and place
that the selected malfunction last occurred are displayed.

Camera System

Guiding line position that overlaps rear view camera image can be adjust-
ed.

AV COMM Diagnosis

The communication condition of each unit of display audio system can be
monitored.

Delete Unit Connection Log

Erase the connection history of unit and error history.

Initialize Setting

Initializes the audio unit memory.

ALNIA1376ZZ

JSNIA0138GB
