BLUETOOTH CONTROL UNIT

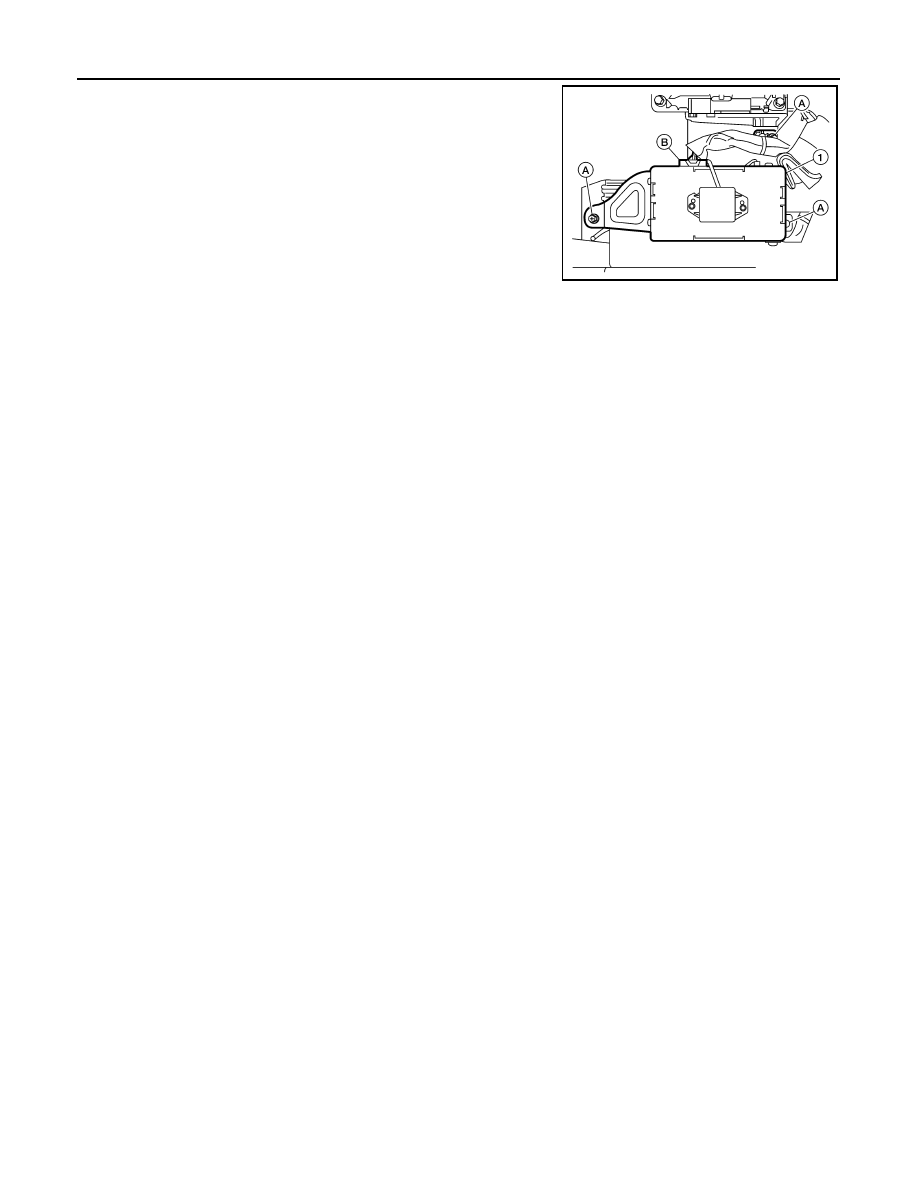

3. Disconnect the harness connector (B) from the Bluetooth control

unit.

4. Remove the Bluetooth control unit screws (A), then remove the

Bluetooth control unit assembly (1).

5. Remove the Bluetooth control unit bracket screws and the Blue-

tooth control unit front and rear brackets.

INSTALLATION

Installation is in the reverse order of removal.

AWNIA1812ZZ

AV

MICROPHONE

AV-153

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITHOUT AMPLIFIER]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MICROPHONE

Removal and Installation

INFOID:0000000009482133

REMOVAL

1. Remove the roof console. Refer to

INT-25, "Removal and Installation"

.

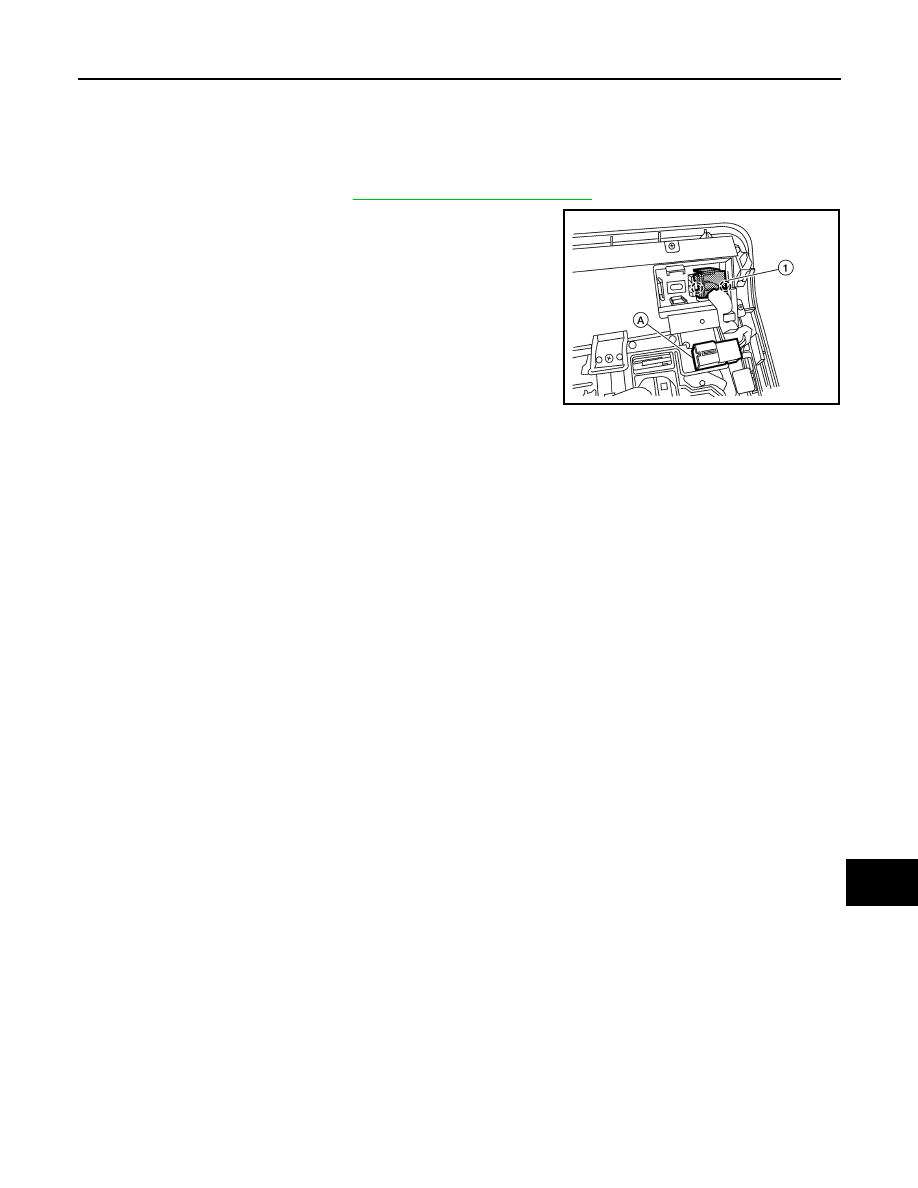

2. Release the pawls that retain the Bluetooth microphone (1) to

the roof console.

3. Disconnect the harness connector (A) from the Bluetooth micro-

phone (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA2931ZZ

AV-154

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITHOUT AMPLIFIER]

AUDIO ANTENNA

AUDIO ANTENNA

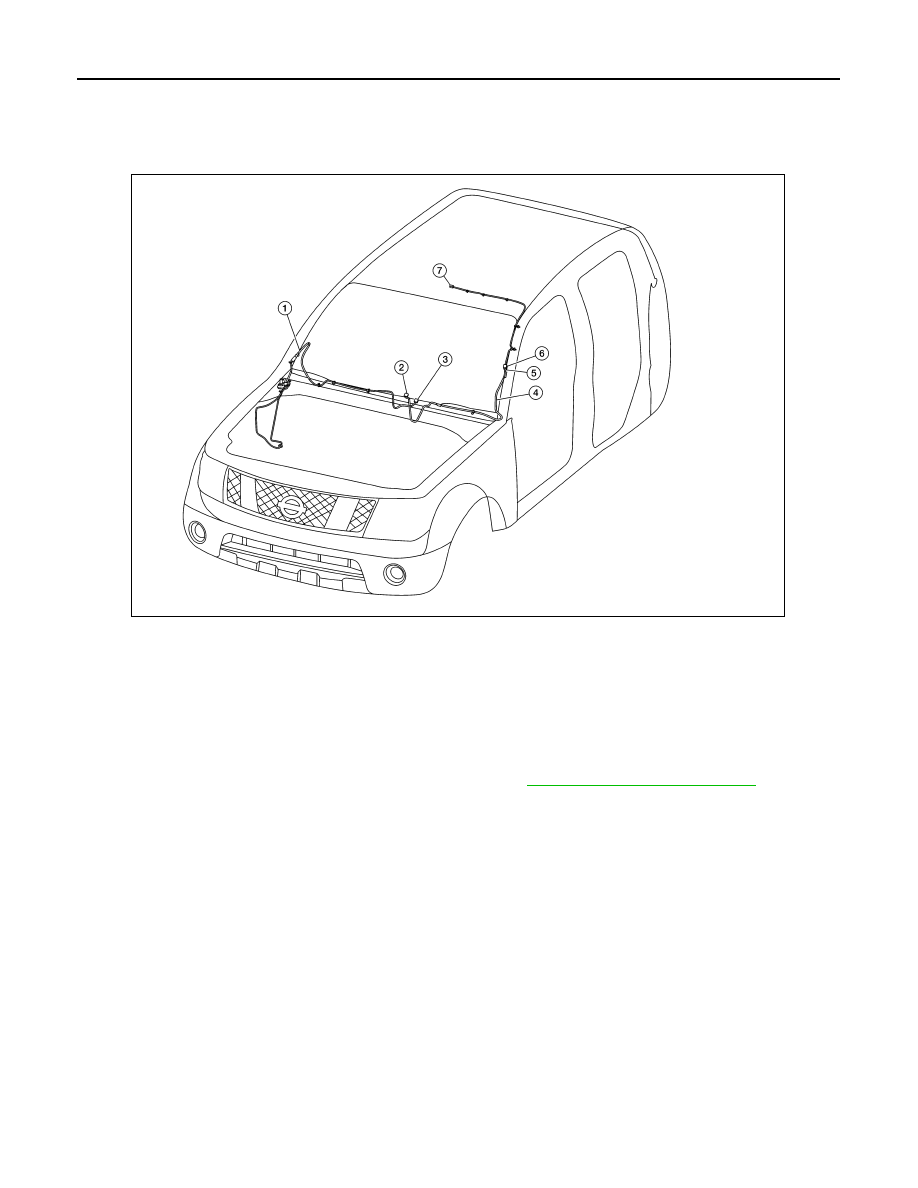

Location of Antenna

INFOID:0000000009482134

Removal and Installation

INFOID:0000000009482135

REMOVAL

1. Remove instrument lower panel RH and glove box. Refer to

IP-24, "Removal and Installation"

.

2. Disconnect audio antenna cable from antenna feeder.

1.

Coaxial antenna feeder

2.

M41

3.

M33

4.

Satellite antenna feeder

5.

M67

6.

M500

7.

M501

AWNIA2926ZZ

AV

AUDIO ANTENNA

AV-155

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITHOUT AMPLIFIER]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

3. Remove antenna rod.
4. Remove rubber seal.
5. Remove cowl top. Refer to

EXT-24, "Removal and Installation"

.

6. Remove fender protector. Refer to

EXT-27, "Removal and Instal-

lation of Front Fender Protector"

.

7. Remove antenna base bolts.
8. Remove antenna base and cable.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Always properly tighten the antenna rod during installation or the antenna rod may bend or break dur-

ing vehicle operation.

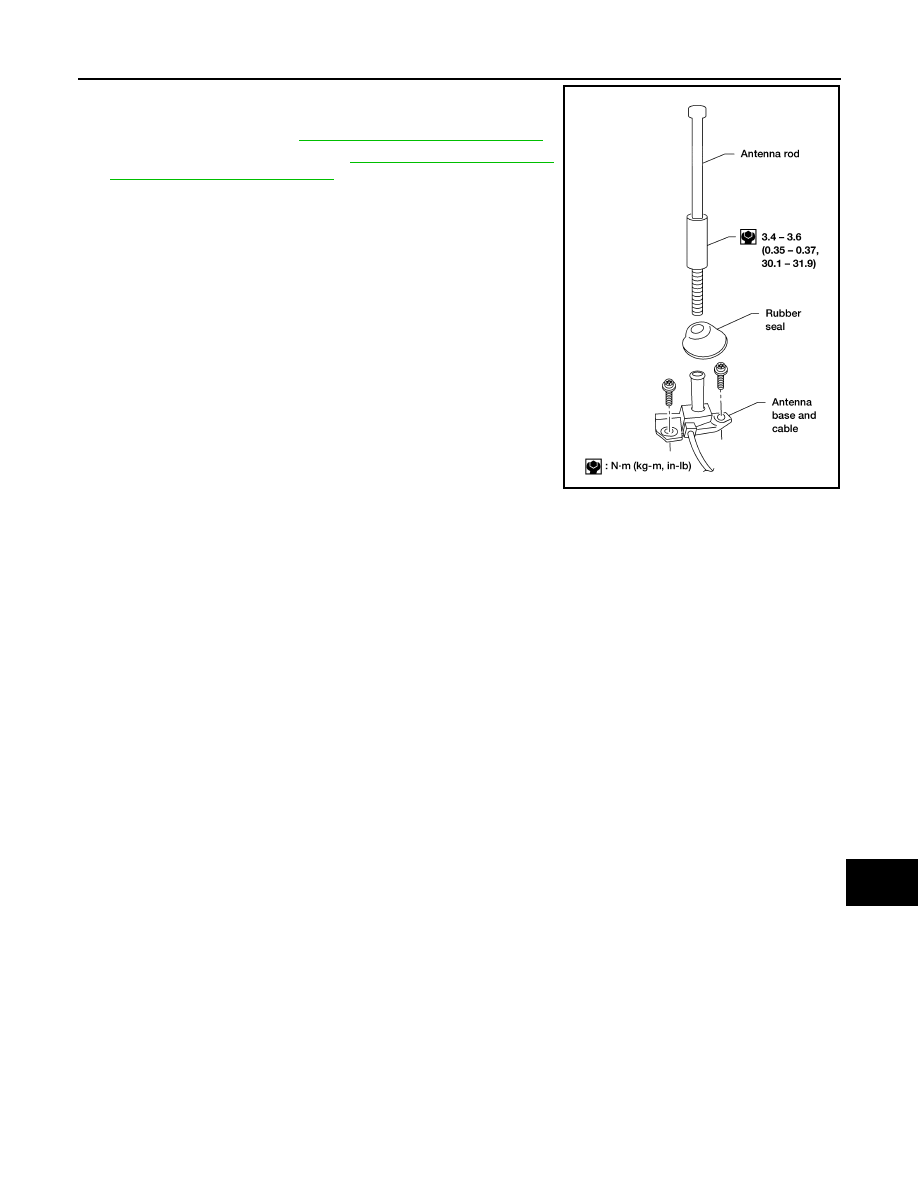

AEL610C
