FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000009482129

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

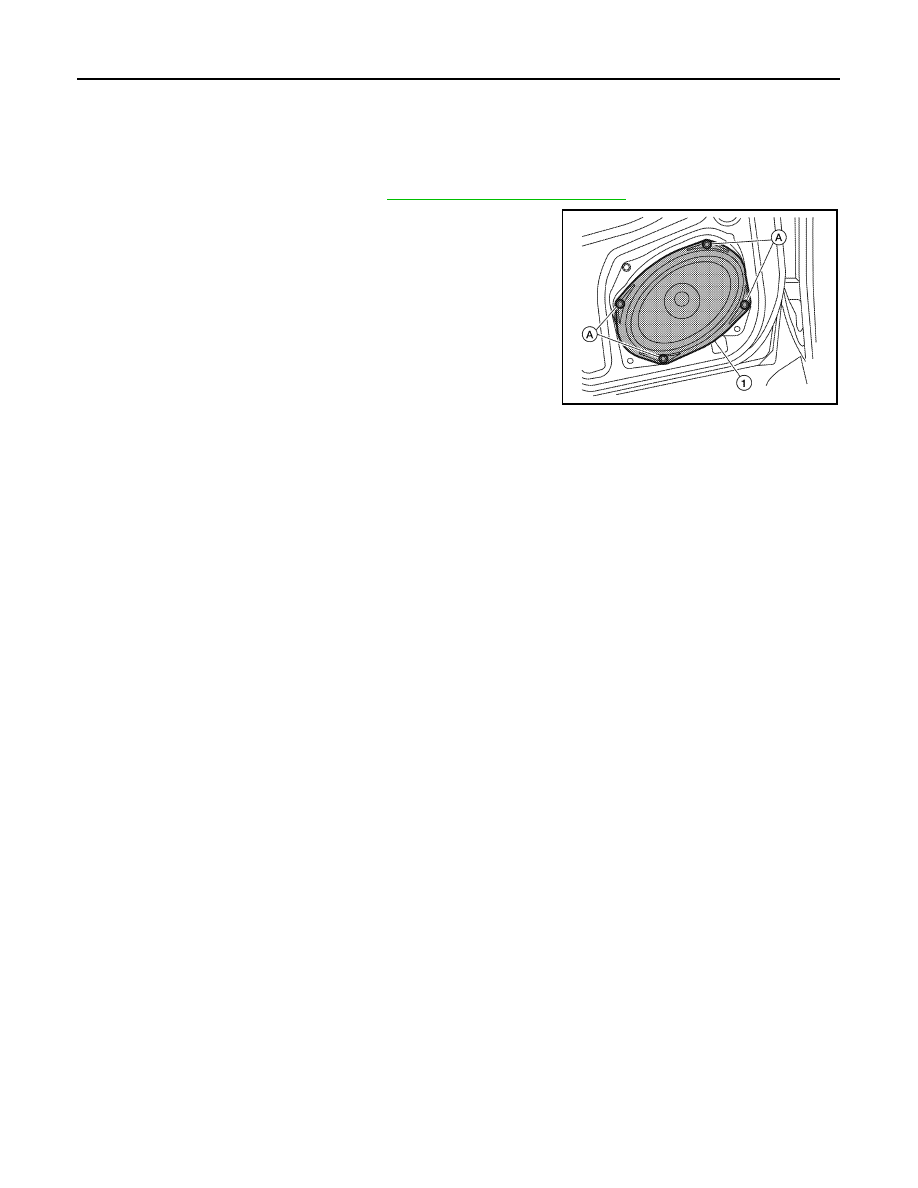

2. Remove the front door speaker screws (A).
3. Pull out the front door speaker (1).
4. Disconnect the harness connector from the front door speaker

(1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0347ZZ

AV

REAR DOOR SPEAKER

AV-149

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITHOUT AMPLIFIER]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000009482130

REMOVAL

1. Remove the rear door finisher. Refer to

INT-15, "Removal and Installation"

.

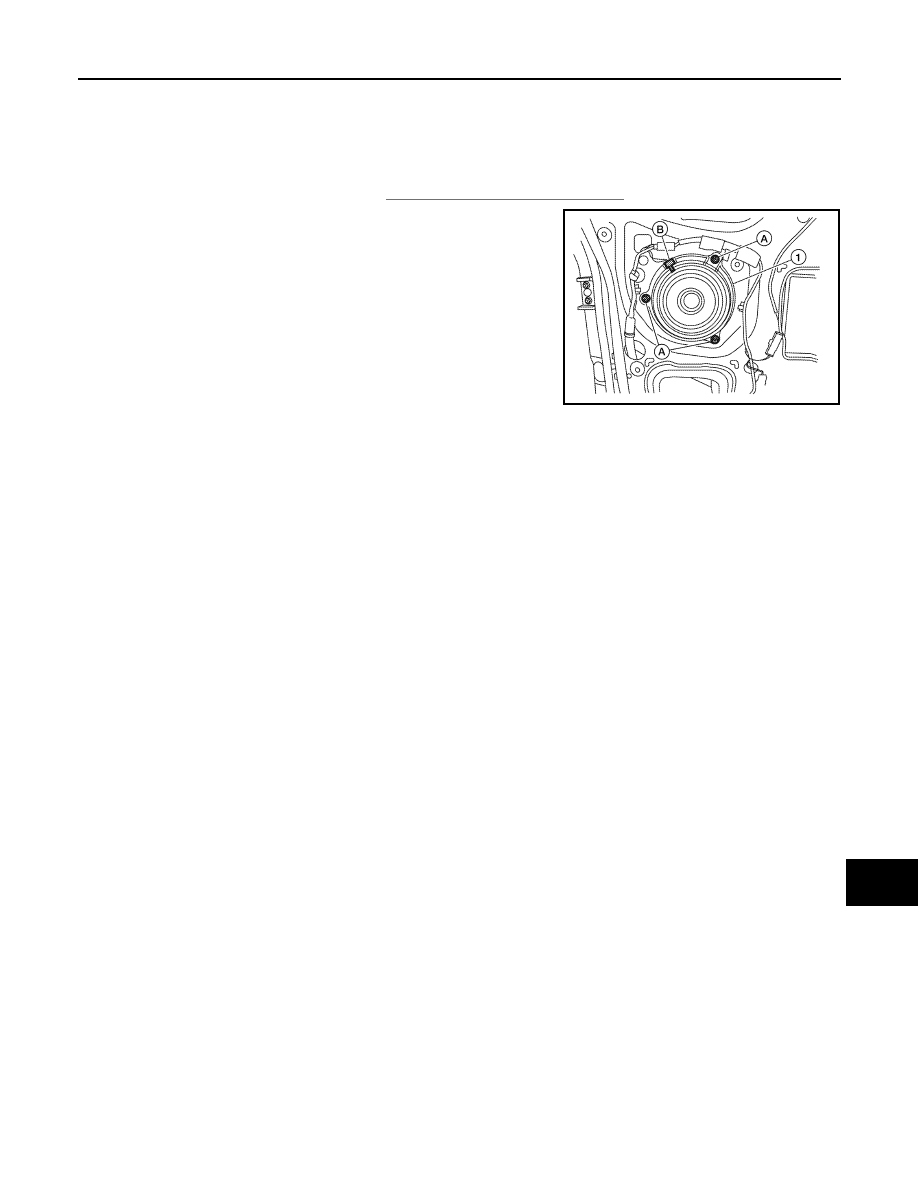

2. Remove the rear door speaker screws (A).
3. Disconnect the harness connector (B) from the rear door

speaker (1) and remove.

NOTE:

King cab shown, crew cab similar.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1071ZZ

AV-150

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITHOUT AMPLIFIER]

STEERING SWITCH

STEERING SWITCH

Removal and Installation

INFOID:0000000009482131

Removal and Installation

REMOVAL

1. Remove the driver air bag module. Refer to

SR-11, "Removal and Installation"

.

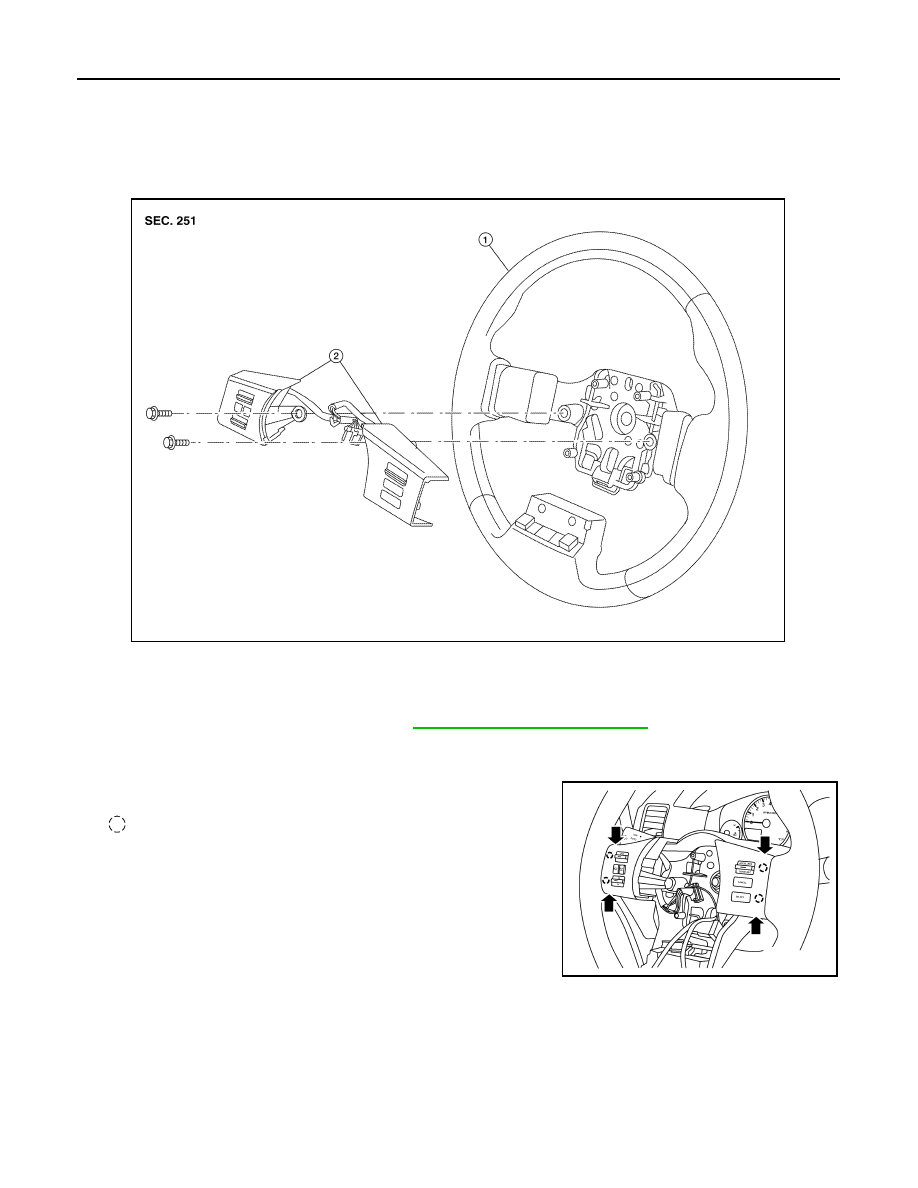

2. Remove the steering wheel audio control switch assembly screws.
3. Disconnect the harness connectors from the steering wheel audio control switches.
4. Remove the steering wheel audio control switches by pulling on

steering wheel audio control switches to release the pawls.

: Pawl

CAUTION:

Do not tilt steering wheel audio control switches during

removal or damage may occur to the pawls.

INSTALLATION

Installation is in the reverse order of removal.

1. Steering wheel

2.

Steering wheel audio control switches

ALNIA0357ZZ

ALNIA1214ZZ

AV

BLUETOOTH CONTROL UNIT

AV-151

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITHOUT AMPLIFIER]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BLUETOOTH CONTROL UNIT

Removal and Installation

INFOID:0000000009482132

REMOVAL

NOTE:

Do not remove the RH front seat from the vehicle.
1. Remove the RH front seat bolts, disconnect the harness connectors from the RH front seat. Refer to

SE-

32, "Removal and Installation"

.

2. Tilt the RH front seat back to access the bluetooth control unit.

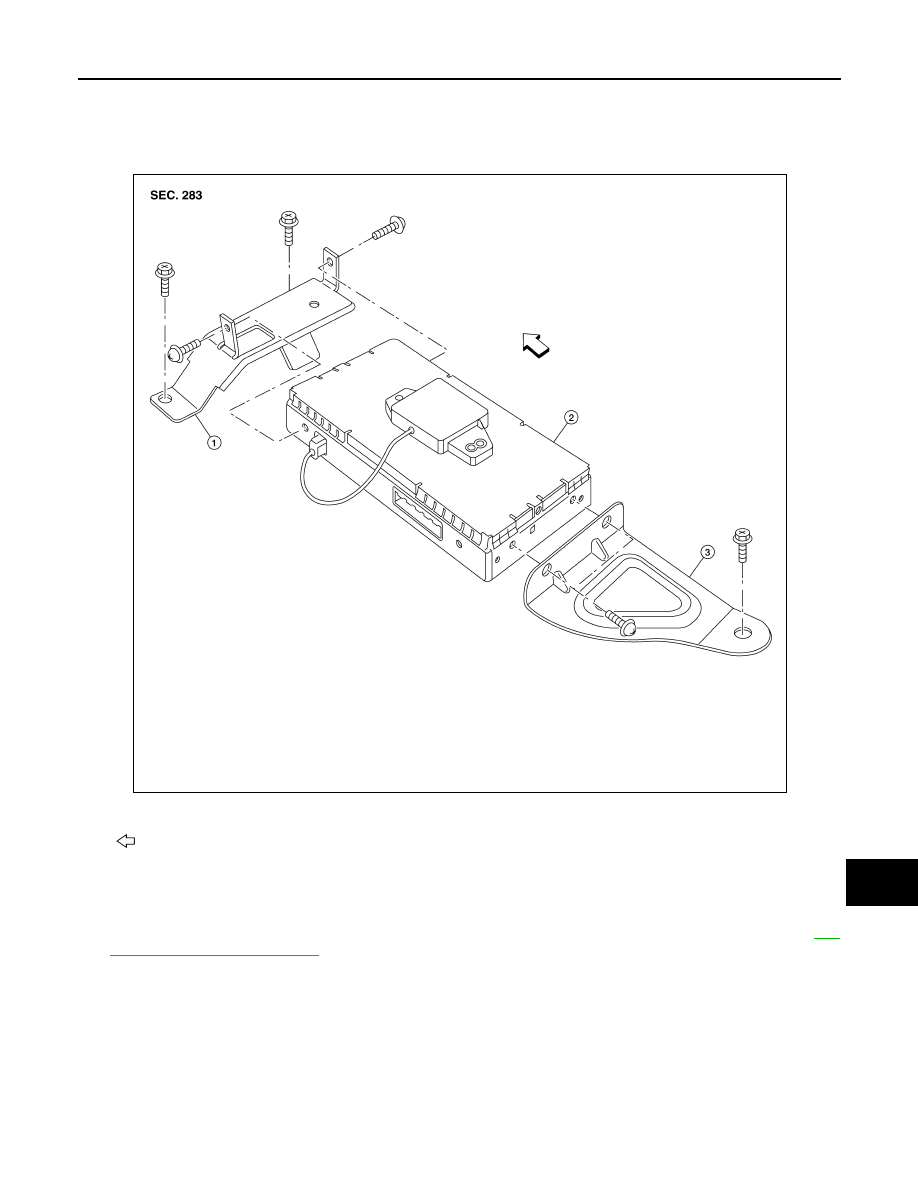

1.

Bluetooth control unit front bracket

2.

Bluetooth control unit/antenna

3.

Bluetooth control unit rear bracket

Front

ALNIA1069ZZ
