WW-56

< REMOVAL AND INSTALLATION >

WASHER NOZZLE & TUBE

WASHER TUBE : Removal and Installation

INFOID:0000000009756108

REMOVAL

1. Drain the washer fluid.
2. Disconnect the washer tube from the washer nozzles (LH/RH). Refer to

WW-54, "WASHER NOZZLE :

Removal and Installation"

.

3. Remove the front under cover. Refer to

EXT-30, "FRONT UNDER COVER : Removal and Installation"

.

4. Disconnect the washer tube from the washer pump.
5. Remove the washer tube from the clips and remove the washer tube.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Fill washer tank with specified amount of fluid. Refer to

WW-64, "Specifications"

.

FRONT WIPER ARM

WW-57

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FRONT WIPER ARM

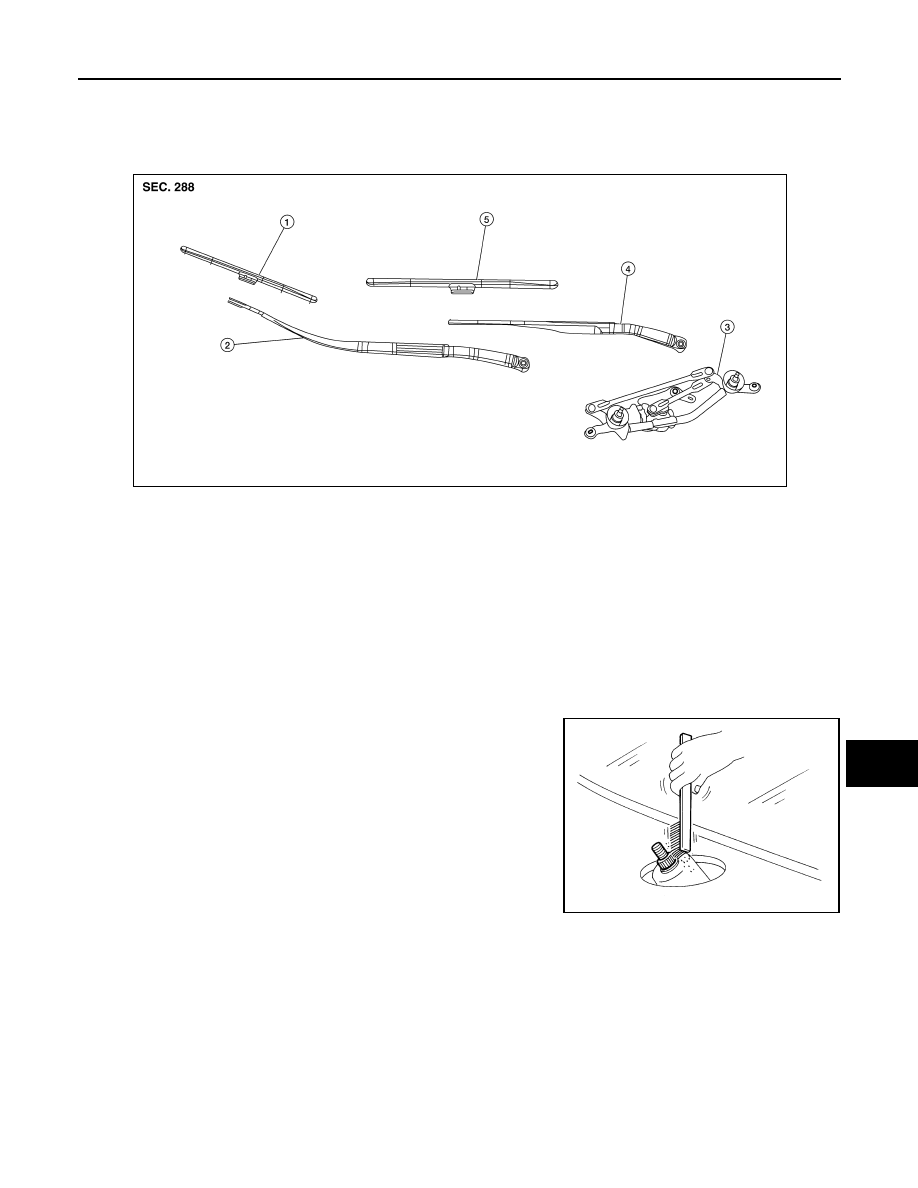

Exploded View

INFOID:0000000009756109

Removal and Installation

INFOID:0000000009756110

REMOVAL

1. Remove the wiper arm cap.
2. Remove the wiper arm nut.
3. Raise the wiper arm, then remove the wiper arm.

INSTALLATION

1. Clean the wiper arm mount as shown.

NOTE:

This will reduce the possibility of wiper arm looseness.

2. Install the wiper arm.
3. Install the wiper arm nut.
4. Install the wiper arm cap.
5. Check that the wiper blades stop at the park position.

1.

Wiper blade (RH)

2.

Wiper arm (RH)

3.

Wiper drive assembly

4.

Wiper arm (LH)

5.

Wiper blade (LH)

AWLIA2038ZZ

ELH0717D

WW-58

< REMOVAL AND INSTALLATION >

WIPER BLADE

WIPER BLADE

WIPER BLADE
WIPER BLADE : Removal and Installation

INFOID:0000000009756111

REMOVAL

1. Put the wiper arms in the service position.
a. Turn the ignition switch ON and then OFF.
b. Within 1 minute, activate washer switch 2 times in less than 0.5 seconds to put the wiper arms in the ser-

vice position.

2. Lift the wiper arm away from the windshield glass.

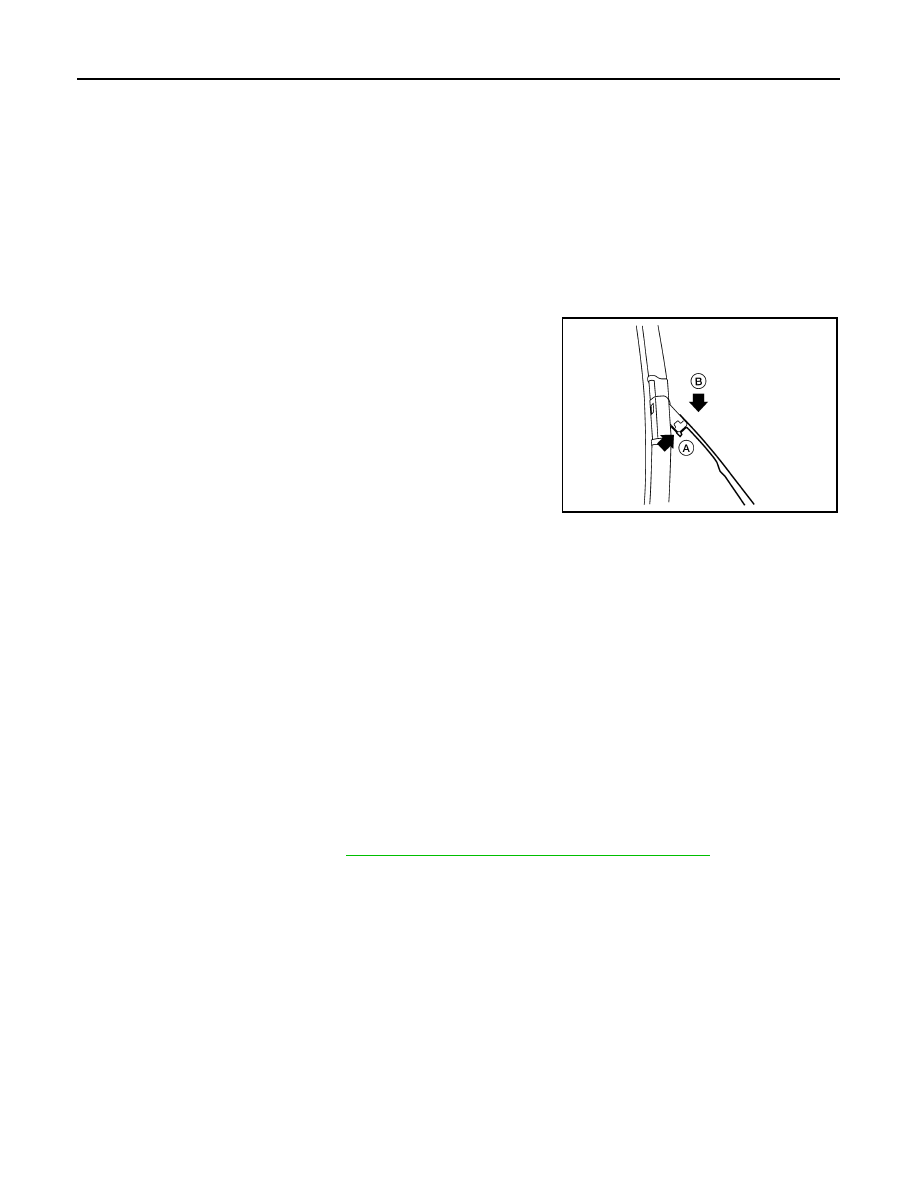

3. Rotate the wiper blade and push the release tab (A), then move

the wiper blade down (B) the wiper arm.

4. Remove the wiper blade.

INSTALLATION

CAUTION:

Return the wiper arm to the service position on the windshield to prevent damage when the hood is

opened.
1. Insert the wiper blade onto the wiper arm and slide it up until it clicks into place.
2. Rotate the wiper blade so the dimple is in the groove.
3. Lay the wiper arm back down in the service position on the windshield.
4. Turn the ignition ON and operate the windshield wipers to ensure the repair has been completed properly.

Operating the windshield wipers will cancel service mode.

5. Check that the wiper blade contacts the windshield properly; otherwise the wiper arm may be damaged

from wind pressure while driving.

WIPER BLADE REFILL
WIPER BLADE REFILL : Removal and Installation

INFOID:0000000009756112

REMOVAL

1. Remove the wiper blade. Refer to

WW-58, "WIPER BLADE : Removal and Installation"

.

AWLIA1565ZZ

WIPER BLADE

WW-59

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

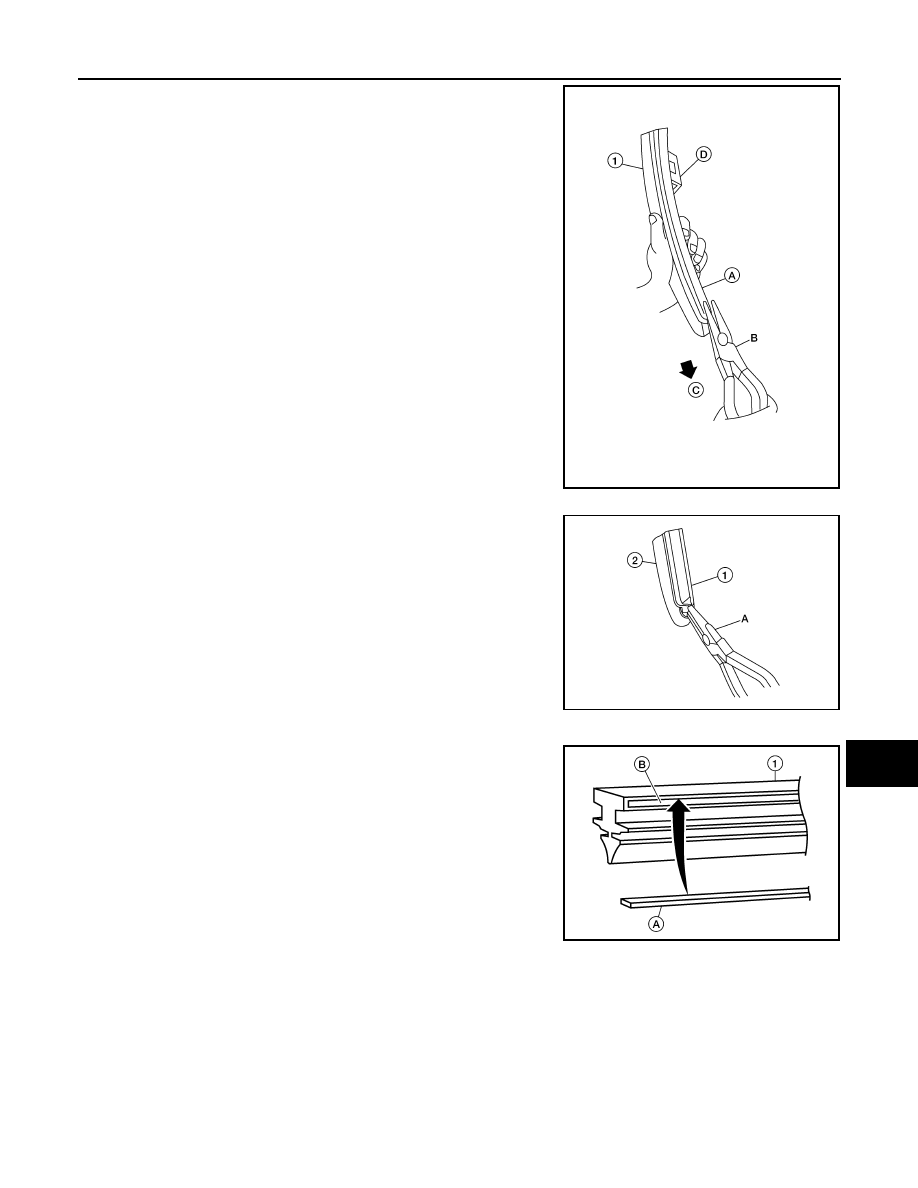

2. Hold the wiper blade refill lip at the end (A) of the wiper blade (1)

with a suitable tool (B) as shown and pull it firmly in the direction

(C).

(D): U clip (part of wiper blade)

• If the wiper blade refill lip is torn due to wear, insert a suitable

tool (A) into the space between the end of the wiper blade refill

(1) and the wiper blade (2) and pull the wiper blade refill (1) out

as shown.

INSTALLATION

1. If the rib (A) has become detached from the wiper blade refill (1),

check that the curve of the rib (A) is in the same direction as the

curve of the wiper blade refill (1) and insert the rib (A) into the slit

(B) in the wiper blade refill (1) as shown.

ALLIA0860ZZ

ALLIA0861ZZ

ALLIA0866ZZ
