Nissan Sentra. Manual - part 953

WW-60

< REMOVAL AND INSTALLATION >

WIPER BLADE

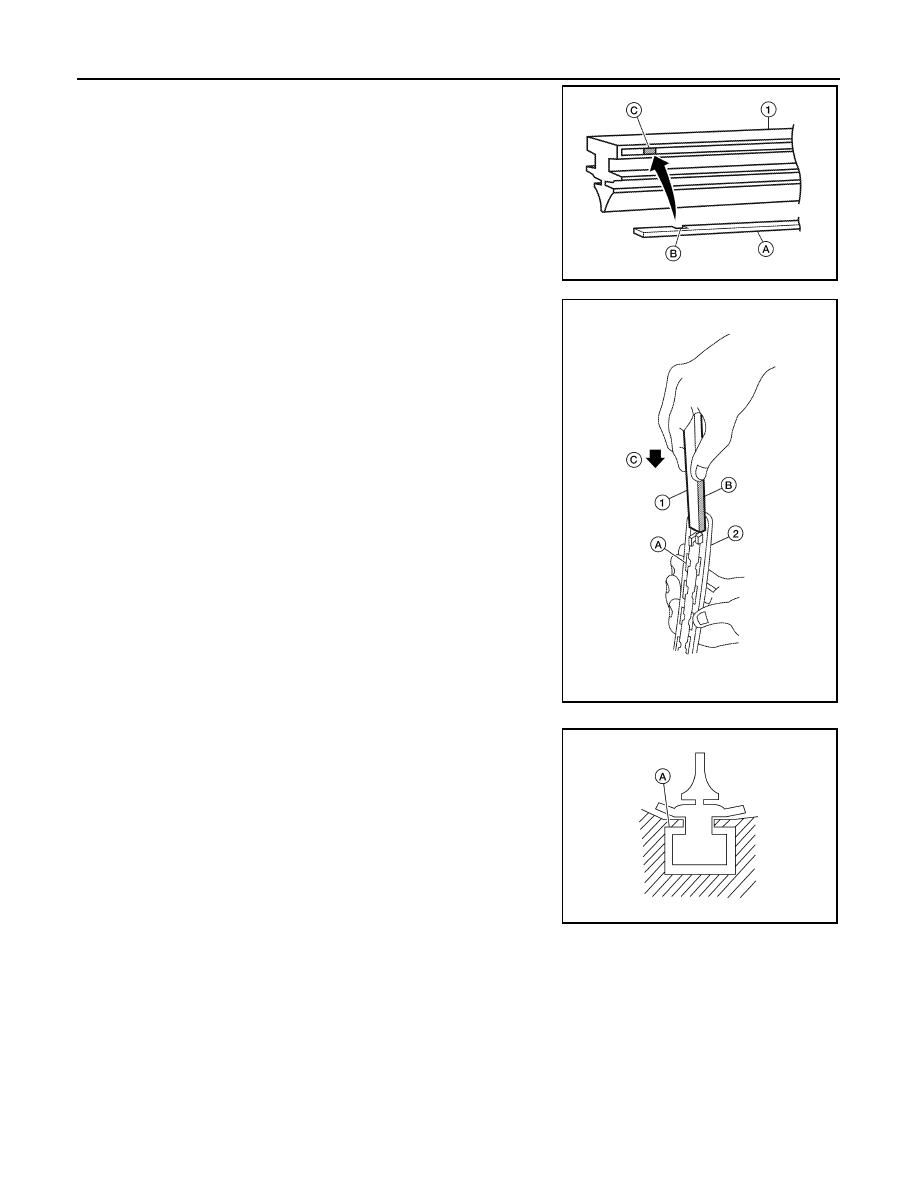

• If the rib (A) has a notch (B), insert the rib (A) into the wiper

blade refill (1) so the notch (B) fits over the protrusion (C) in

the wiper blade refill (1) as shown.

2. Insert the wiper blade refill (1) tip into the end of the wiper blade

(2) in the direction (C). Push the wiper blade refill (1) in while

pressing it into the end of the wiper blade (2) as shown. After the

wiper blade refill is fully inserted, remove the holder (B).

(A): Tab (part of wiper blade) (2)

• Make sure to slide the refill into the wiper blade so that the

wiper blade refill is held by the tabs (A) on the wiper blade as

shown.

ALLIA0867ZZ

ALLIA0862ZZ

ALLIA0863ZZ

WIPER BLADE

WW-61

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

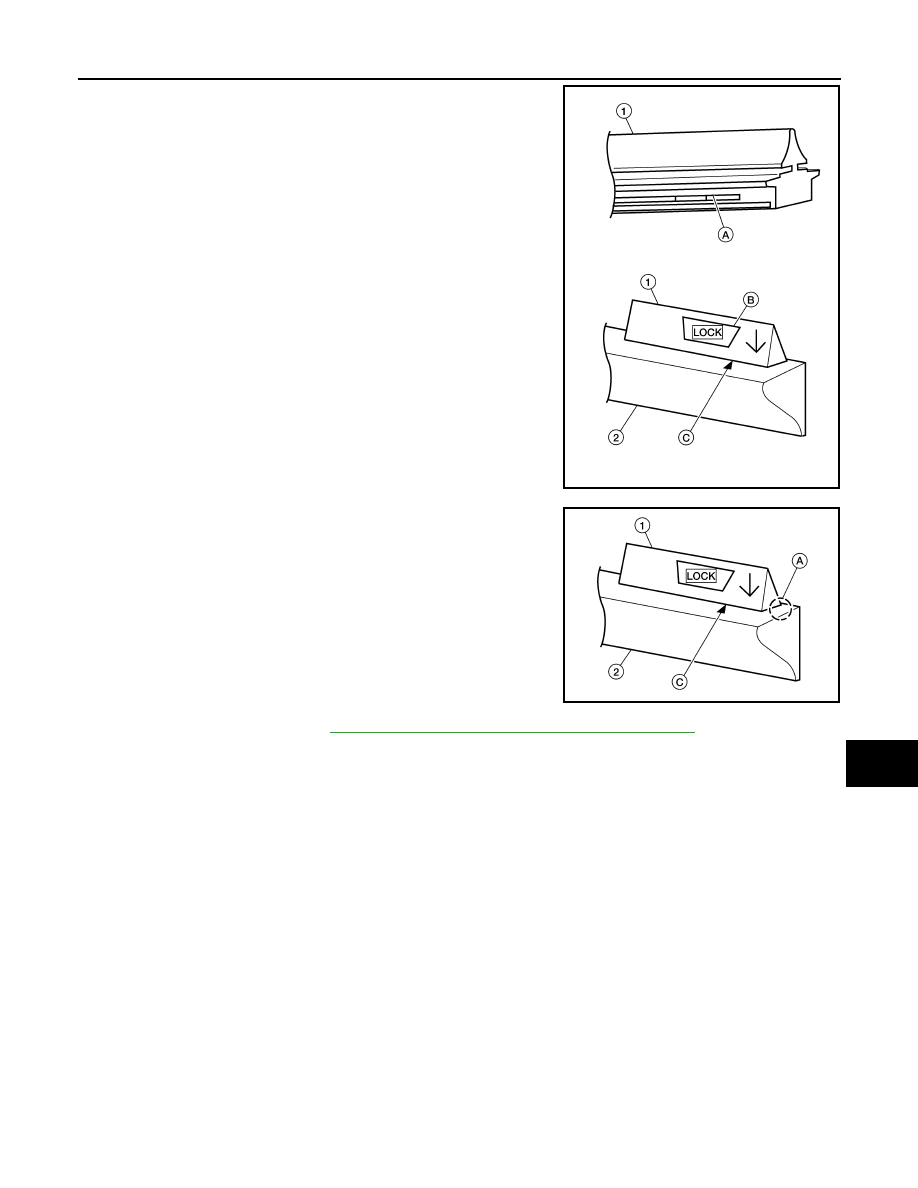

3. Push the wiper blade refill (1) until the tabs on the wiper blade

(2) fit into the stoppers (A) in the end of the wiper blade refill (1).

Make sure the LOCK mark (B) on the wiper blade refill (1) is

aligned with the lock point symbol (C) on the wiper blade (2) as

shown.

4. Before installing the wiper blade, make sure that the wiper blade

refill (1) end is fully covered by the wiper blade (2) in area (A) as

shown.

5. Install the wiper blade. Refer to

WW-58, "WIPER BLADE : Removal and Installation"

.

ALLIA0864ZZ

ALLIA0865ZZ

WW-62

< REMOVAL AND INSTALLATION >

FRONT WIPER DRIVE ASSEMBLY

FRONT WIPER DRIVE ASSEMBLY

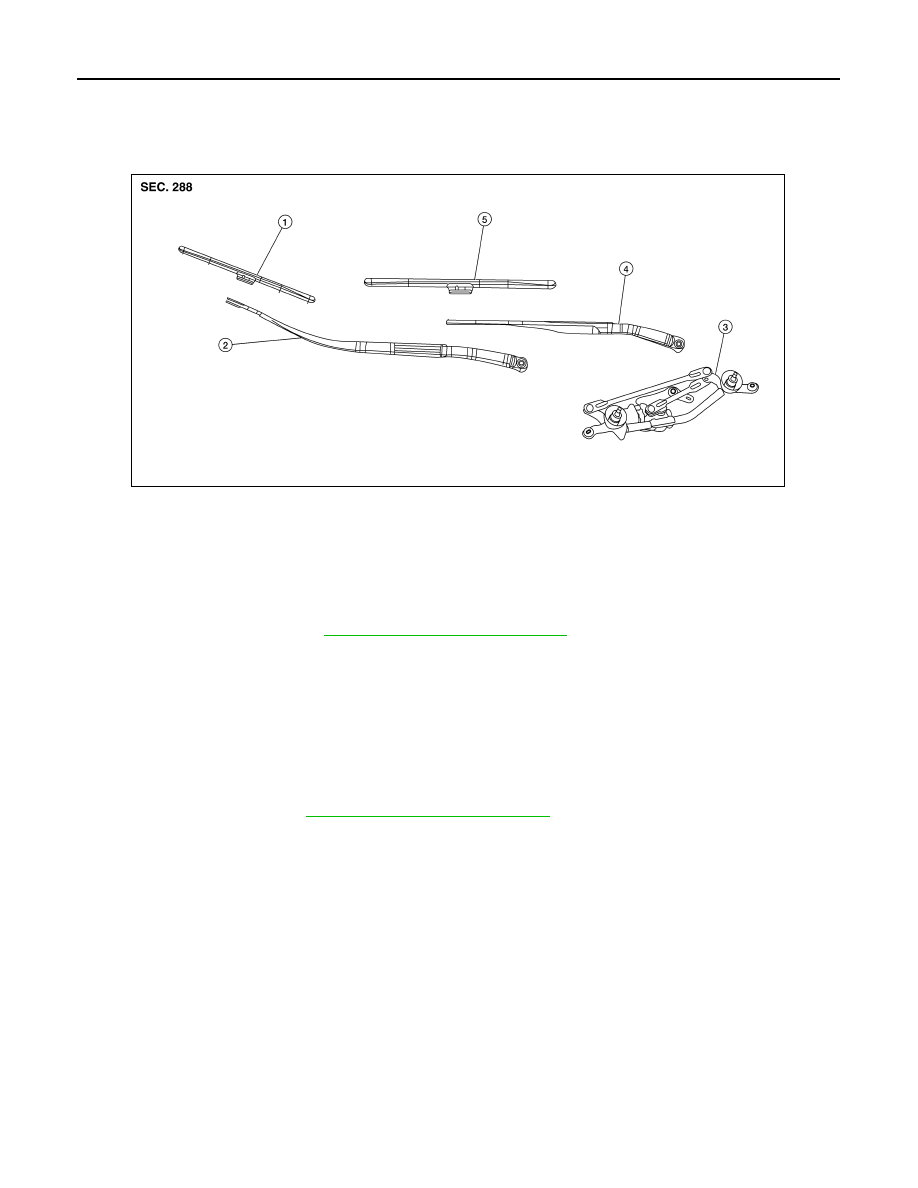

Exploded View

INFOID:0000000009756113

Removal and Installation

INFOID:0000000009756114

REMOVAL

1. Remove the cowl top. Refer to

EXT-26, "Removal and Installation"

.

2. Disconnect the harness connector from the wiper drive assembly.
3. Remove the wiper drive assembly bolts.
4. Remove the wiper drive assembly.

INSTALLATION

1. Install the wiper drive assembly.
2. Install the wiper drive assembly bolts.
3. Connect the harness connector to the wiper drive assembly.
4. Install the cowl top. Refer to

EXT-26, "Removal and Installation"

.

5. Check the operation of the wiper blades and that they stop at the normal position.

1.

Wiper blade (RH)

2.

Wiper arm (RH)

3.

Wiper drive assembly

4.

Wiper arm (LH)

5.

Wiper blade (LH)

AWLIA2038ZZ

WIPER AND WASHER SWITCH

WW-63

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WIPER AND WASHER SWITCH

Removal and Installation

INFOID:0000000009756115

The wiper and washer switch is serviced as an assembly with the combination switch. Refer to

EXL-128,

"Removal and Installation"

.
