Nissan Sentra. Manual - part 908

TM-268

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

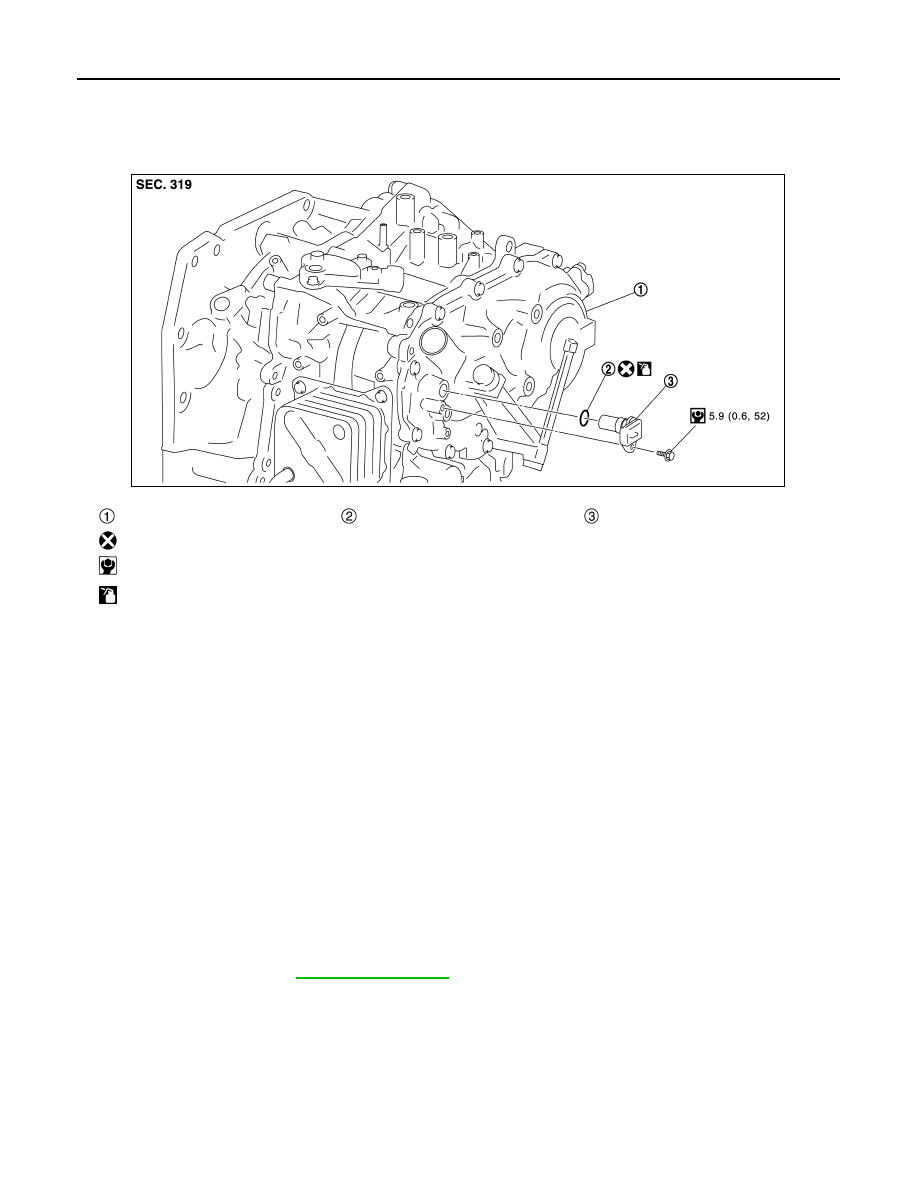

PRIMARY SPEED SENSOR

PRIMARY SPEED SENSOR

Exploded View

INFOID:0000000009759519

Removal and Installation

INFOID:0000000009759520

REMOVAL

1. Disconnect the primary speed sensor connector.
2. Remove the primary speed sensor.
3. Remove the O-ring from the primary speed sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Apply Genuine NISSAN CVT Fluid NS-3 to the O-ring.

Inspection and Adjustment

INFOID:0000000009759521

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

Adjust CVT fluid level. Refer to

TM-251, "Adjustment"

.

Transaxle assembly

O-ring

Primary speed sensor

: Always replace after every disassembly.

: N m (kg-m, in-lb)

: Genuine NISSAN CVT Fluid NS-3

JSDIA1880GB

SECONDARY SPEED SENSOR

TM-269

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

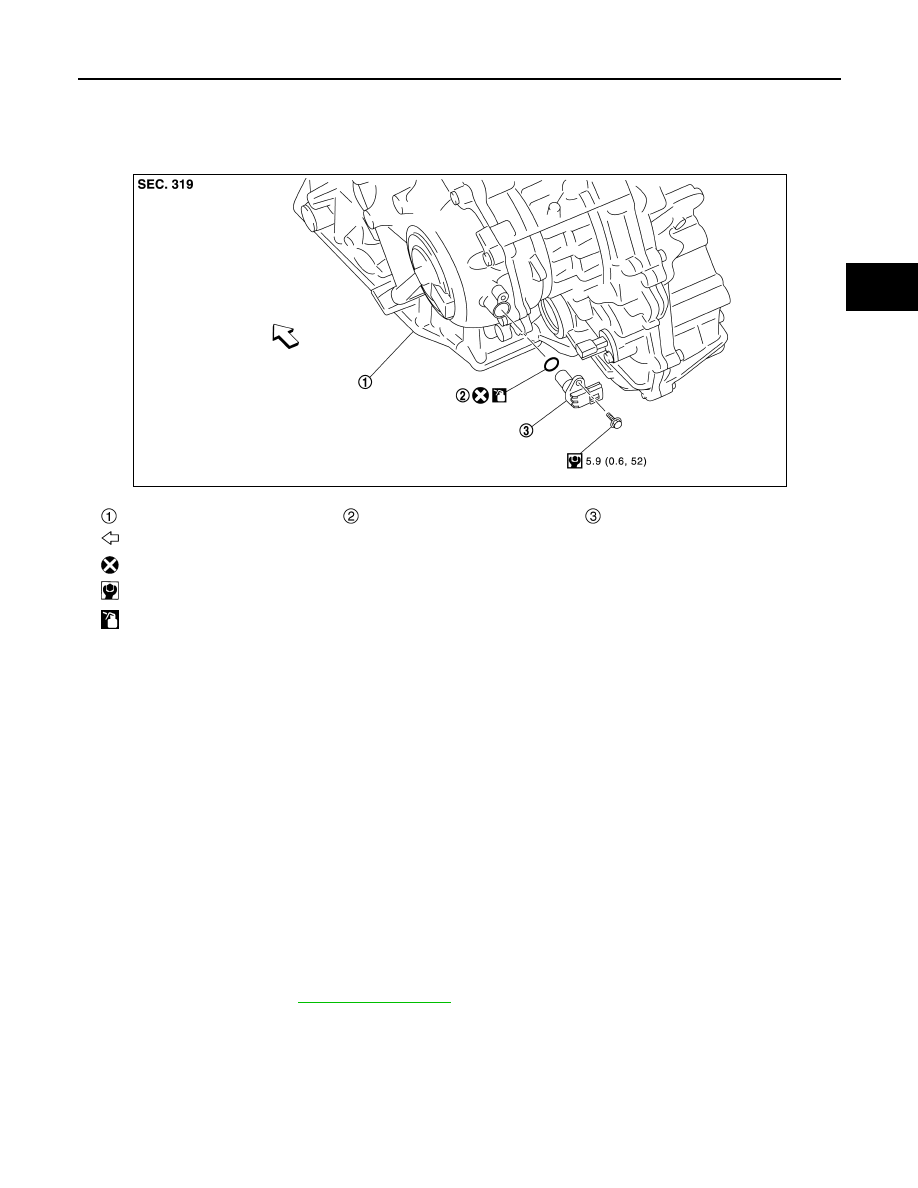

SECONDARY SPEED SENSOR

Exploded View

INFOID:0000000009759522

Removal and Installation

INFOID:0000000009759523

REMOVAL

1. Disconnect the secondary speed sensor connector.
2. Remove the secondary speed sensor.
3. Remove the O-ring from the secondary speed sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Apply Genuine NISSAN CVT Fluid NS-3 to the O-ring.

Inspection and Adjustment

INFOID:0000000009759524

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

Adjust CVT fluid level. Refer to

TM-251, "Adjustment"

.

Transaxle assembly

O-ring

Secondary speed sensor

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Genuine NISSAN CVT Fluid NS-3

JSDIA1881GB

TM-270

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

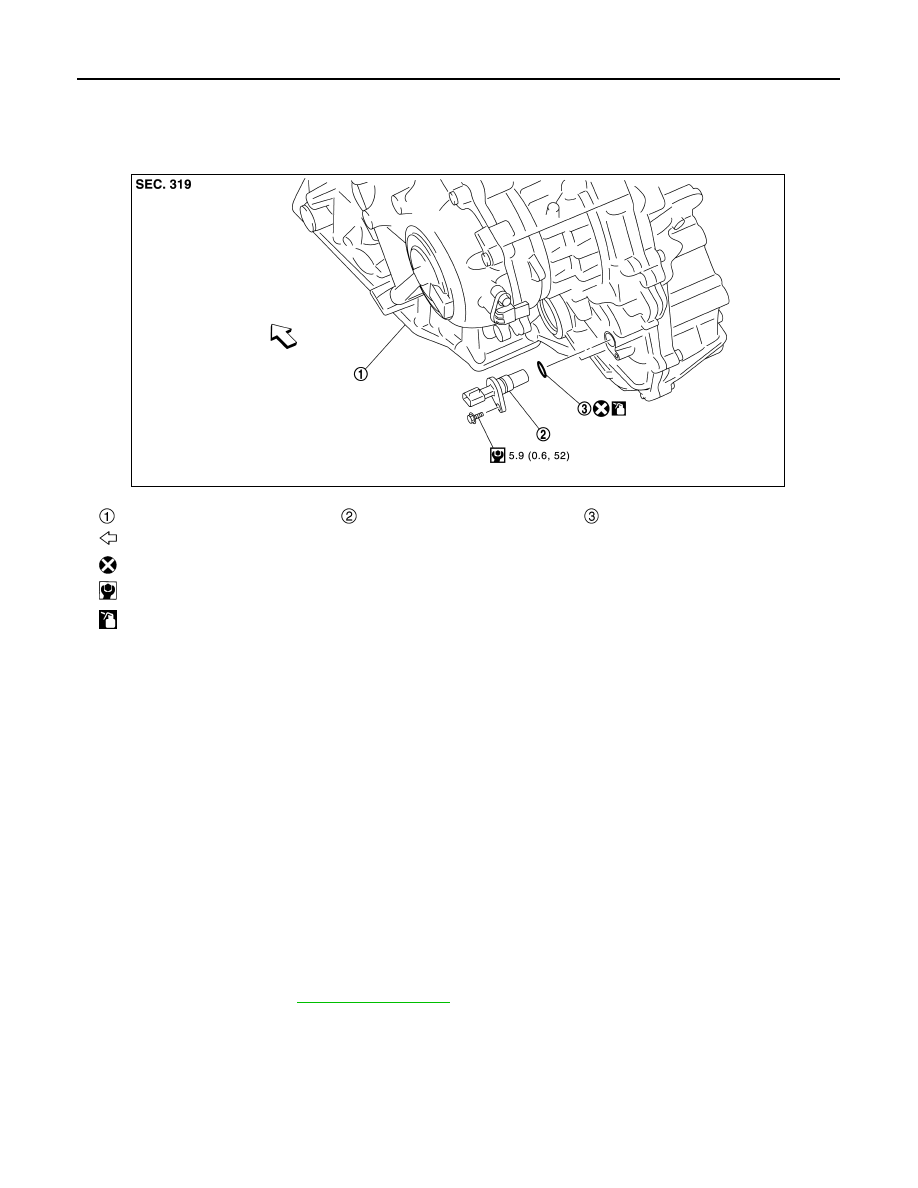

OUTPUT SPEED SENSOR

OUTPUT SPEED SENSOR

Exploded View

INFOID:0000000009759525

Removal and Installation

INFOID:0000000009759526

REMOVAL

1. Disconnect the output speed sensor harness connector.
2. Remove the output speed sensor.
3. Remove the O-ring from the output speed sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Apply Genuine NISSAN CVT Fluid NS-3 to the O-ring.

Inspection and Adjustment

INFOID:0000000009759527

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

Check CVT fluid level. Refer to

TM-251, "Adjustment"

.

Transaxle assembly

Output speed sensor

O-ring

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Genuine NISSAN CVT Fluid NS-3

JSDIA1882GB

DIFFERENTIAL SIDE OIL SEAL

TM-271

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

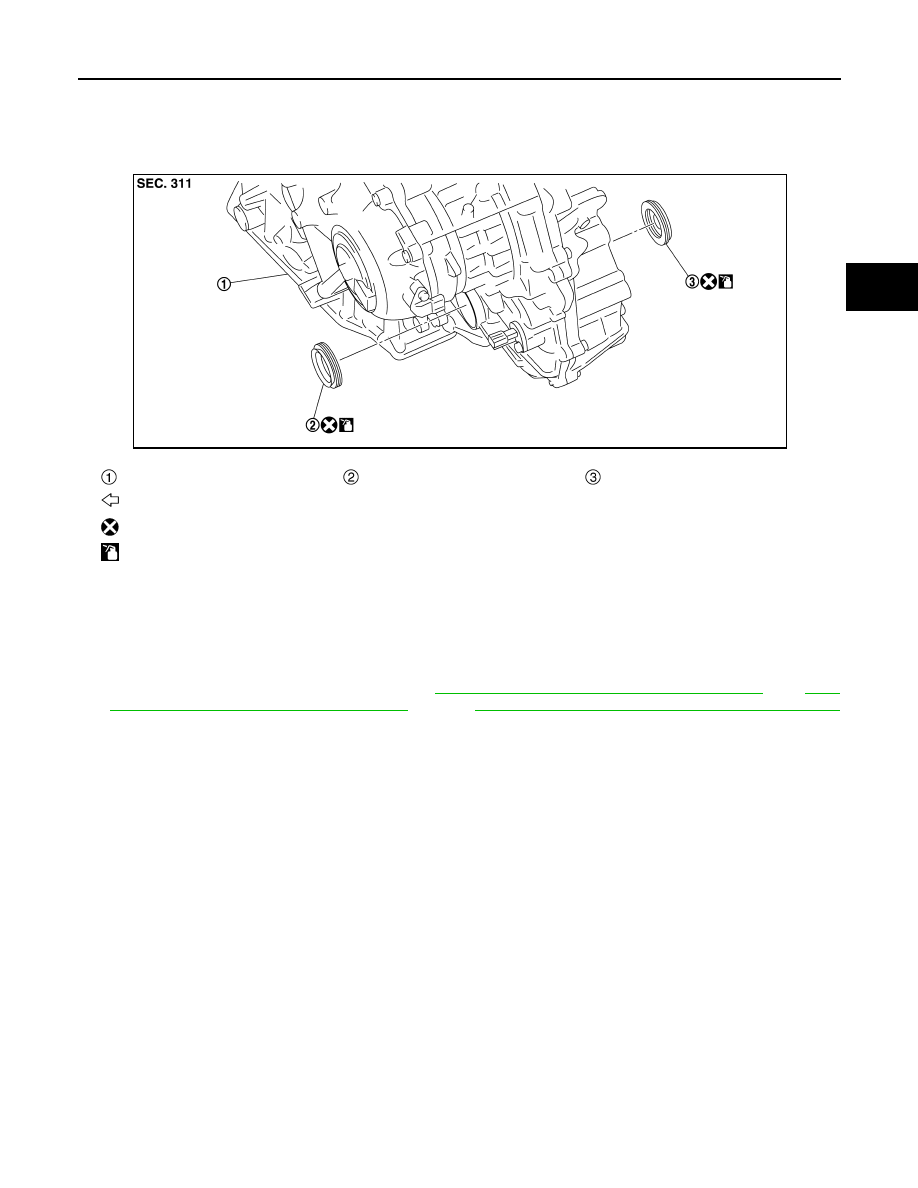

DIFFERENTIAL SIDE OIL SEAL

Exploded View

INFOID:0000000009759528

Removal and Installation

INFOID:0000000009759529

REMOVAL

NOTE:

Cap or plug openings to prevent fluid from spilling.
1. Remove the front drive shaft (RH/LH). Refer to

FAX-21, "6M/T : Removal and Installation (RH)"

(RH),

FAX-

18, "6M/T : Removal and Installation (LH)"

(LH) and

FAX-26, "EXCEPT 6M/T : Removal and Installation"

(Except 6M/T).

2. Use oil seal remover or a similar means and remove the differential side oil seal.

CAUTION:

When removing the differential side oil seal, be careful not to scratch the oil seal mounting sur-

faces of the transaxle case and converter housing.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse differential side oil seal.

• Apply Genuine NISSAN CVT Fluid NS-3 to the differential side oil seal lip and around the oil seal.

• When inserting the drive shaft, be sure to use a protector.

Using Tool, drive the differential side oil seal in until the amount of oil seal projection from the case edge

matches dimensions (C) and (D).

Transaxle assembly

Differential side oil seal (left side)

Differential side oil seal (right side)

: Vehicle front

: Always replace after every disassembly.

: Genuine NISSAN CVT Fluid NS-3

JSDIA1888ZZ
