TM-36

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

TRANSAXLE ASSEMBLY

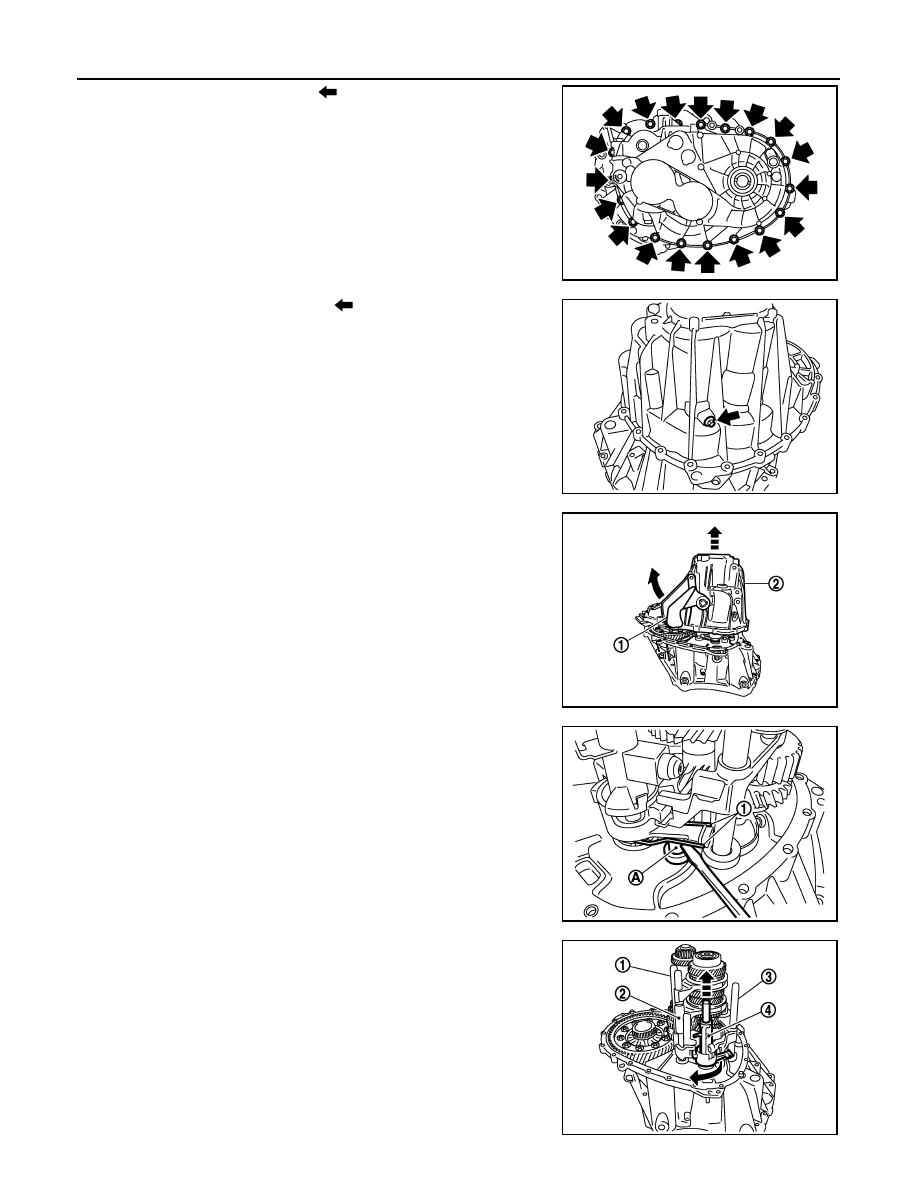

5. Remove transaxle case bolts (

).

6. Remove reverse idler shaft bolt (

) and sealing washer.

7. Remove transaxle case (2) while rotating shifter lever A (1) in

the direction as shown.

8. Remove selector spring (1) from return bushing (A).

9. Shift 1st-2nd fork rod (1), fork rod (2), and reverse fork rod (3) to

the neutral position.

10. Remove selector (4) from clutch housing.

PCIB1694E

PCIB1695E

JPDIC0444ZZ

JPDIC0445ZZ

PCIB1698E

TRANSAXLE ASSEMBLY

TM-37

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

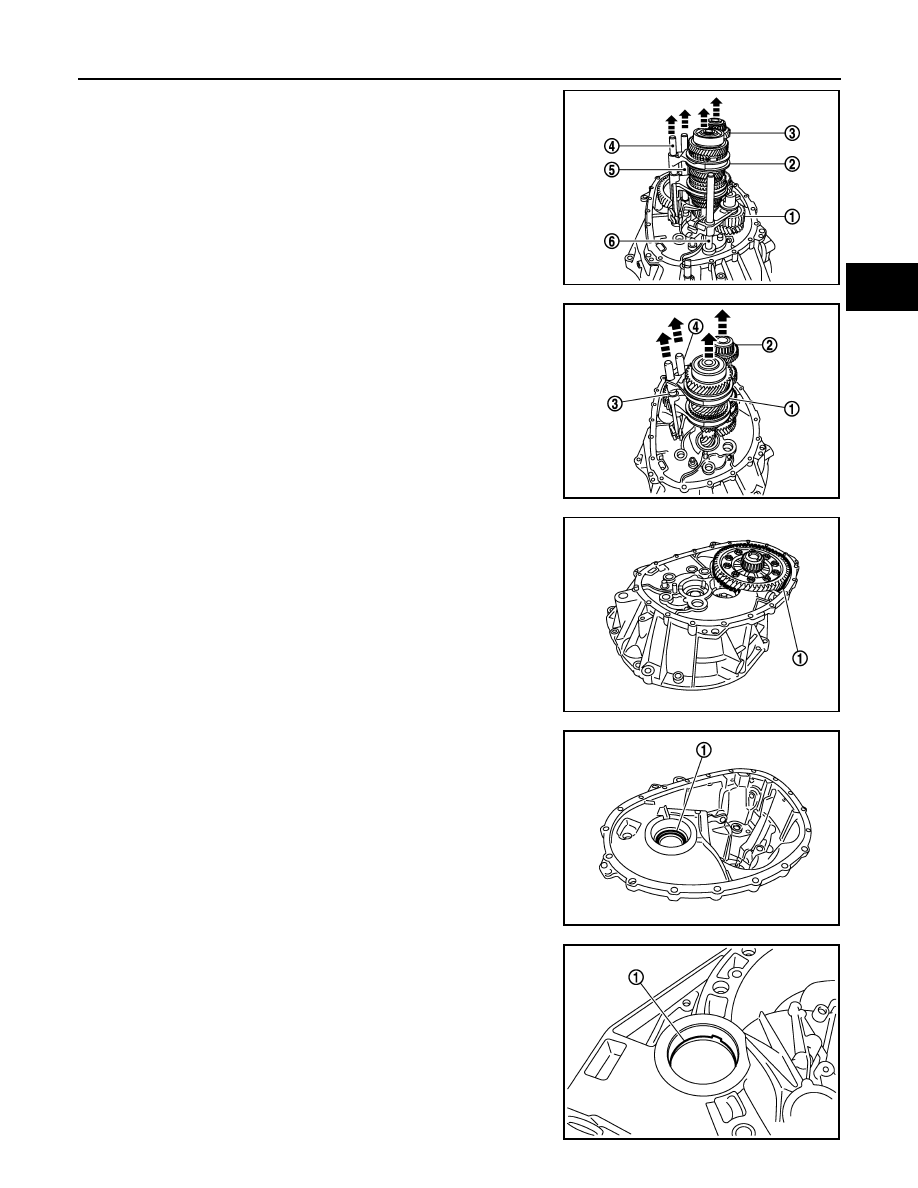

11. Remove reverse idler shaft assembly (1), with the following pro-

cedure.

a. Pull up input shaft assembly (2), mainshaft assembly (3), fork

rod (4), and 1st-2nd fork rod (5).

NOTE:

It is easier to pull up when shifting each fork rod to each shaft

side.

b. Remove reverse idler shaft assembly and reverse fork rod (6)

from clutch housing.

12. Remove spring washer from clutch housing.

13. Pull up and remove input shaft assembly (1), mainshaft assem-

bly (2), fork rod (3), and 1st-2nd fork rod (4) from clutch housing.

NOTE:

It is easier to pull up when shifting each fork rod to each shaft

side.

14. Remove final drive assembly (1) from clutch housing.
15. Remove magnet from clutch housing.

16. Remove differential side oil seals (1) from clutch housing and

transaxle case.

CAUTION:

Do not damage clutch housing and transaxle case.

Do not reuse differential side oil seal.

17. Remove differential side bearing outer race (1) from clutch hous-

ing, using a suitable tool.

CAUTION:

Do not damage clutch housing.

JPDIC0606ZZ

JPDIC0607ZZ

PCIB1703E

PCIB1704E

PCIB1716E

TM-38

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

TRANSAXLE ASSEMBLY

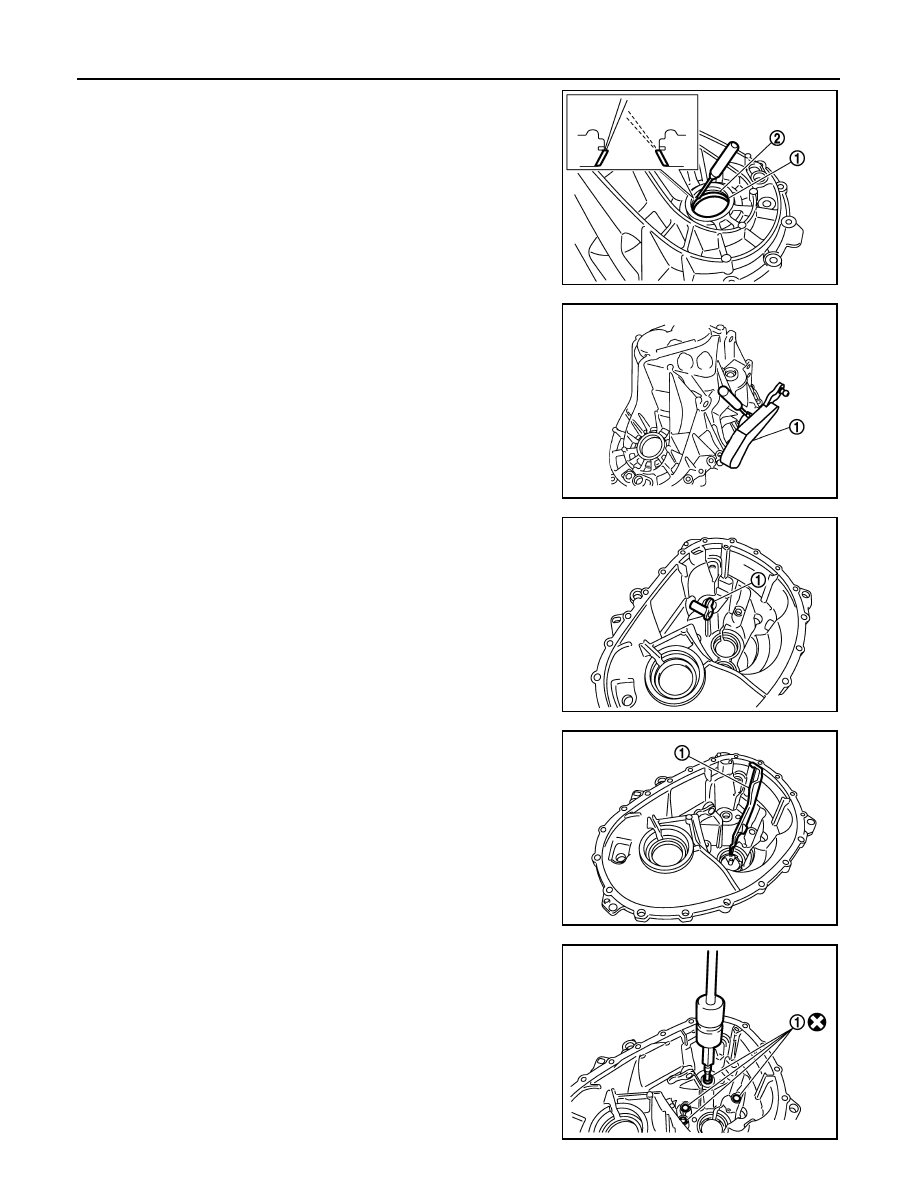

18. Remove differential side bearing outer race (1) from transaxle

case, using a suitable tool.

CAUTION:

Do not damage transaxle case.

19. Remove shim (2) from transaxle case.

20. Remove shifter lever A (1) retaining pin, using a suitable tool.

CAUTION:

Do not reuse retaining pin.

21. Remove shifter lever A from transaxle case.

22. Remove shifter lever B (1) from transaxle case.

23. Remove oil gutter (1) from transaxle case.

24. Remove bushings (1) from transaxle case, using a suitable tool.

CAUTION:

Do not reuse bushings.

PCIB1705E

JPDIC0106ZZ

PCIB1712E

PCIB1707E

PCIB1710E

TRANSAXLE ASSEMBLY

TM-39

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

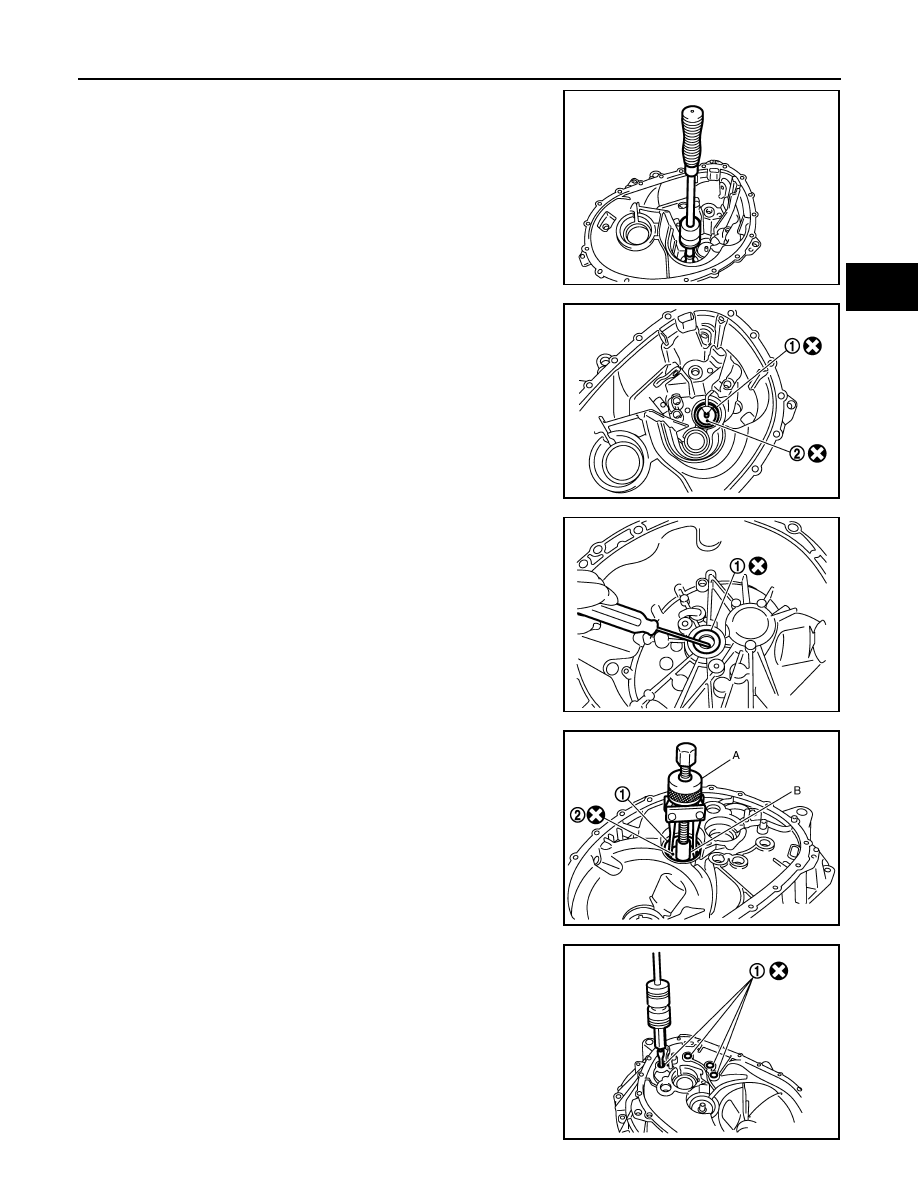

25. Remove mainshaft rear bearing outer race from transaxle case,

using a suitable tool.

26. Remove mainshaft rear bearing adjusting shim from transaxle

case.

27. Remove snap ring (1) and oil channel (2) from transaxle case.

CAUTION:

Do not reuse snap ring or oil channel.

28. Remove input shaft oil seal (1) from clutch housing, using a suit-

able tool.

CAUTION:

Do not damage clutch housing.

Do not reuse input shaft oil seal.

29. Remove mainshaft front bearing outer race (1) from clutch hous-

ing, using Tool (A) and a suitable tool (B).

30. Remove oil channel (2) from clutch housing.

CAUTION:

Do not reuse oil channel.

31. Remove bushings (1) from clutch housing, using a suitable tool.

CAUTION:

Do not reuse bushings.

PCIB1706E

PCIB1708E

PCIB1714E

Tool number (A) : KV381054S0 (J-34286)

JPDIC0107ZZ

PCIB1717E
