TM-28

< UNIT REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

TRANSAXLE ASSEMBLY

UNIT REMOVAL AND INSTALLATION

TRANSAXLE ASSEMBLY

Exploded View

INFOID:0000000009759284

Removal and Installation

INFOID:0000000009759285

WARNING:

Do not remove the radiator cap when the engine is hot. Serious burns could occur from high pressure

coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter turn to

allow built-up pressure to escape. Carefully remove the cap by turning it all the way.

CAUTION:

Do not reuse CSC (Concentric Slave Cylinder). The CSC slides back to the original position every time

the transaxle assembly is removed. This action may allow dust or contaminants to gather on the slid-

ing parts and damage a seal of CSC causing clutch fluid leakage.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Remove the engine and transaxle assembly. Refer to

EM-82, "M/T : Removal and Installation"

.

2. Disconnect the reverse lamp switch harness connector.
3. Remove the bolts that fasten the transaxle assembly and engine assembly.
4. Remove transaxle assembly from the engine assembly.
5. Remove engine mounting bracket (LH). Refer to

EM-82, "M/T : Exploded View"

.

6. Remove CSC. Refer to

CL-16, "Removal and Installation"

.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When replacing an engine or transaxle you must make sure any dowels are installed correctly during

re-assembly

• The transaxle assembly must not interfere with the wire harnesses and clutch tube.

1.

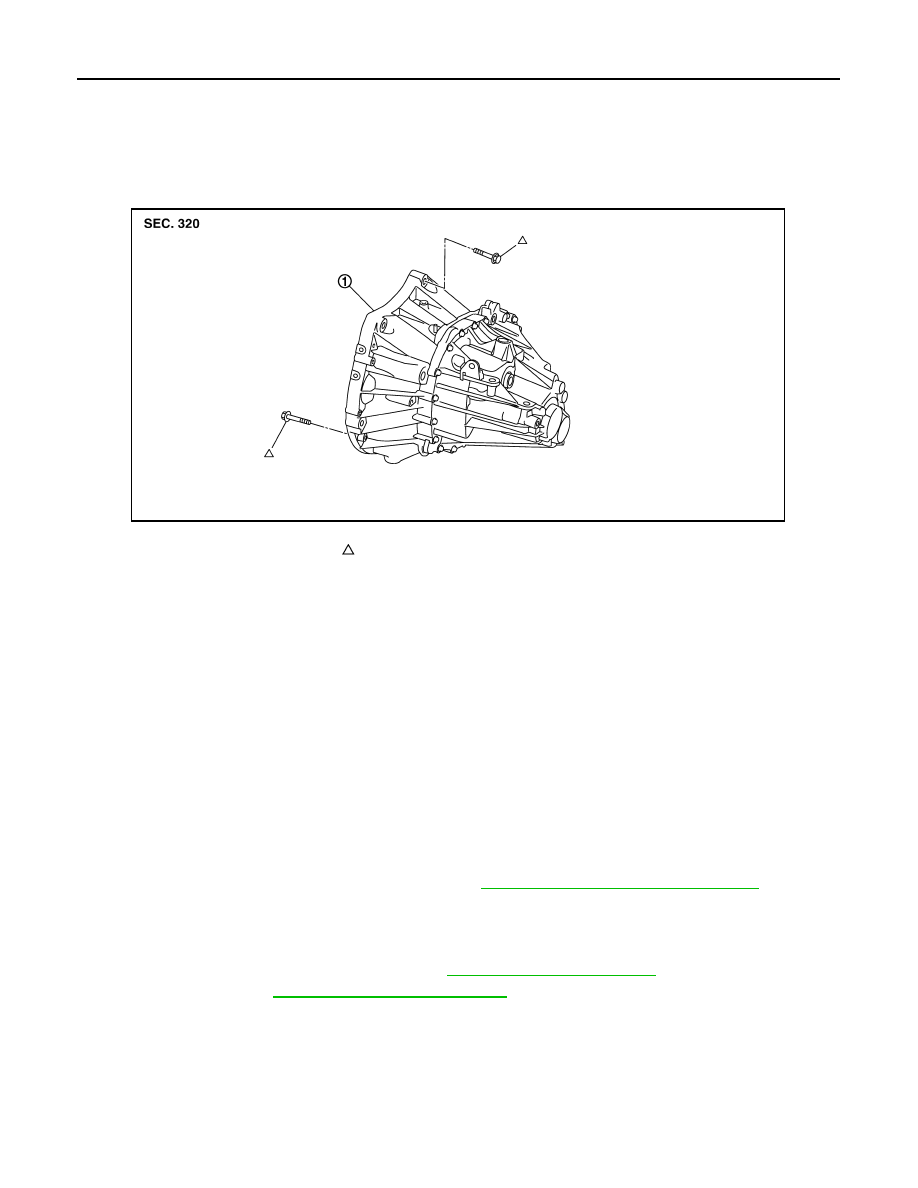

Transaxle assembly

     Refer to INSTALLATION

JPDIC0137ZZ

TRANSAXLE ASSEMBLY

TM-29

< UNIT REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• Improper alignment caused by missing dowels may cause vibration, oil leaks or breakage of drive

train components.

• When installing transaxle assembly, do not bring input shaft into contact with clutch cover.

• Tapping work for tapping bolts is not applied to new transaxle case. Do not perform tapping by other

than screwing tapping bolts because tapping is formed by screwing tapping bolts into transaxle

case.

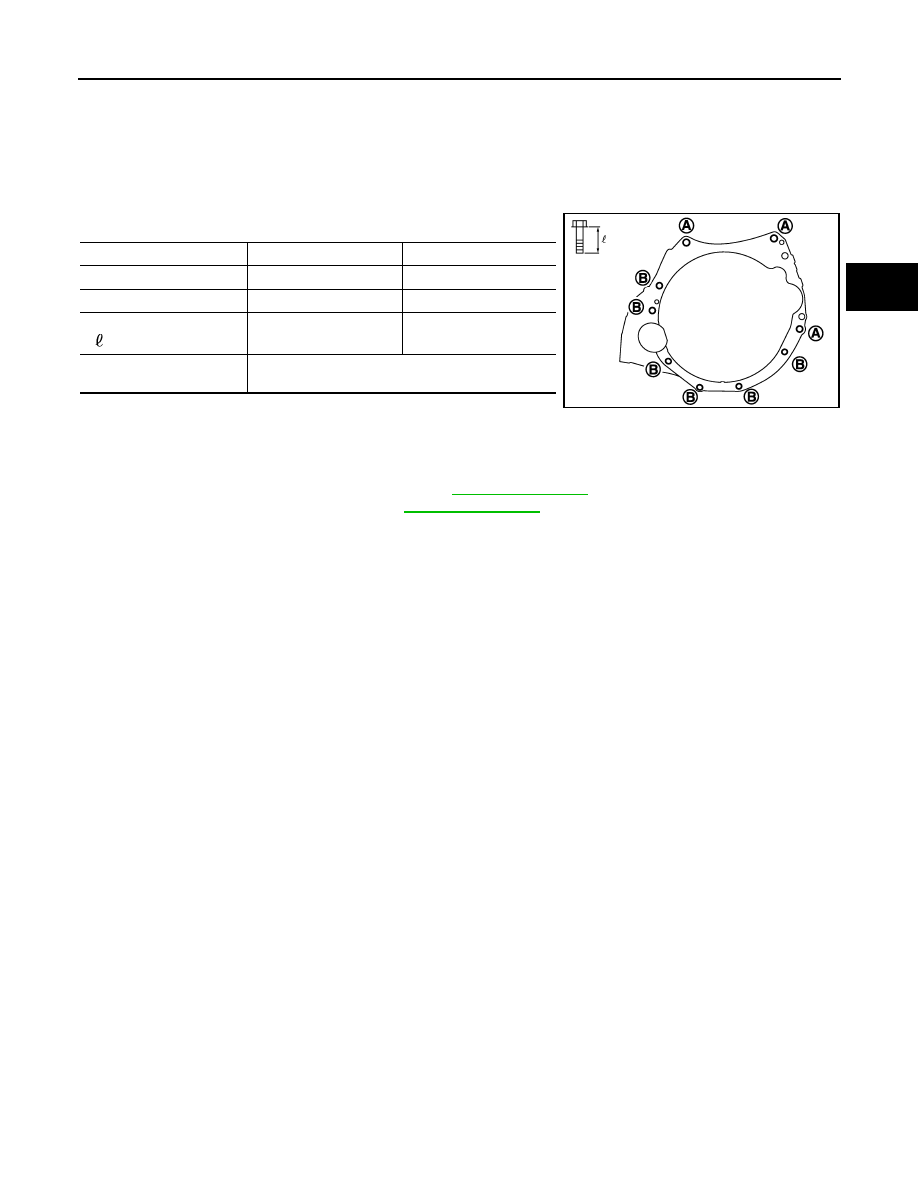

Tighten transaxle assembly mounting bolts to the specified torque. As shown viewing from

the engine.

Inspection

INFOID:0000000009759286

INSPECTION AFTER INSTALLATION

• Check the operation of the control linkage. Refer to

TM-26, "Inspection"

.

• Check the oil level and for oil leaks. Refer to

TM-19, "Inspection"

.

Bolt symbol

(A)

(B)

Insertion direction

Transaxle to engine

Engine to transaxle

Quantity

3

6

Bolt length
“ ”  mm  (in)

60 (2.36)

50 (1.97)

Tightening torque
 N·m (kg-m, ft-lb)

62.0 (6.3, 46)

JPDIC0837ZZ

TM-30

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

TRANSAXLE ASSEMBLY

UNIT DISASSEMBLY AND ASSEMBLY

TRANSAXLE ASSEMBLY

Exploded View

INFOID:0000000009759287

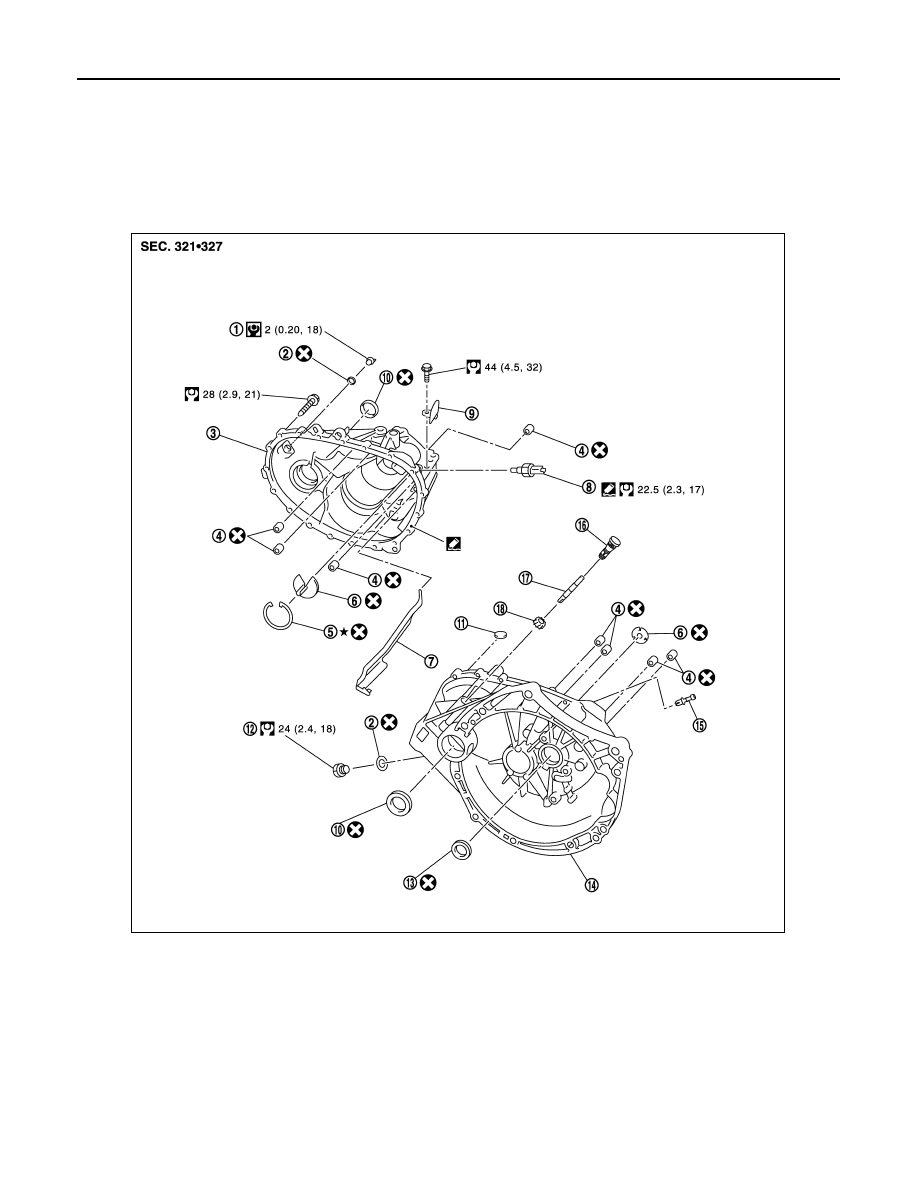

CASE AND HOUSING

SHAFT AND GEAR

1.

Filler plug

2.

Gasket

3.

Transaxle case

4.

Bushing

5.

Snap ring

6.

Oil channel

7.

Oil gutter

8.

Position switch

9.

Bracket

10. Differential side oil seal

11.

Magnet

12. Drain plug

13. Input shaft oil seal

14. Clutch housing

15. 2 way connector

16. Plug

17. Pinion shaft

18. Pinion gear

JPDIC0437GB

TRANSAXLE ASSEMBLY

TM-31

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

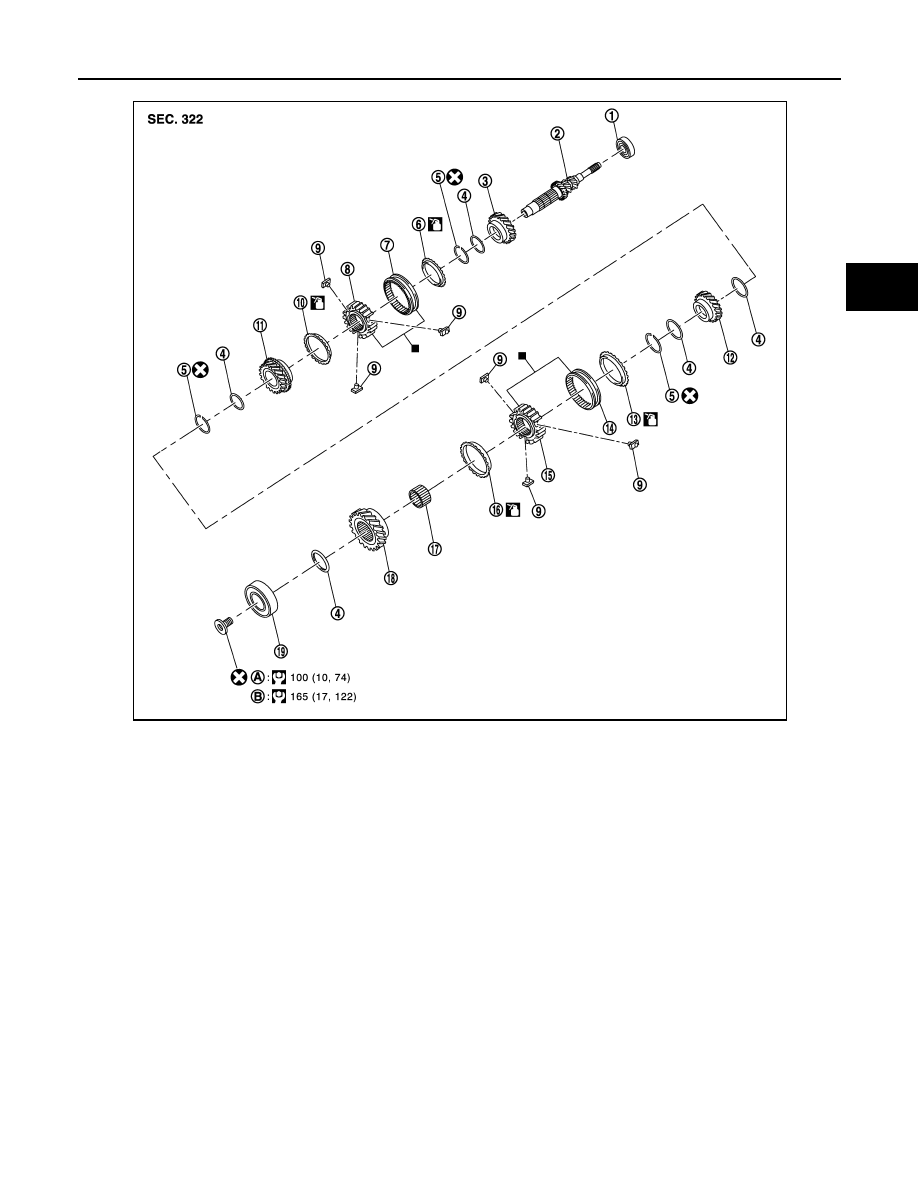

1.

Input shaft front bearing

2.

Input shaft

3.

3rd input gear

4.

Spacer

5.

Snap ring

6.

3rd baulk ring

7.

3rd-4th coupling sleeve

8.

3rd-4th synchronizer hub

9.

Insert key

10. 4th baulk ring

11.

4th input gear

12. 5th input gear

13. 5th baulk ring

14. 5th-6th coupling sleeve

15. 5th-6th synchronizer hub

16. 6th baulk ring

17. Needle bearing

18. 6th input gear

19. Input shaft rear bearing

A.

First step

B.

Final step

JPDIC0407GB
