Nissan Sentra. Manual - part 846





TM-20

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

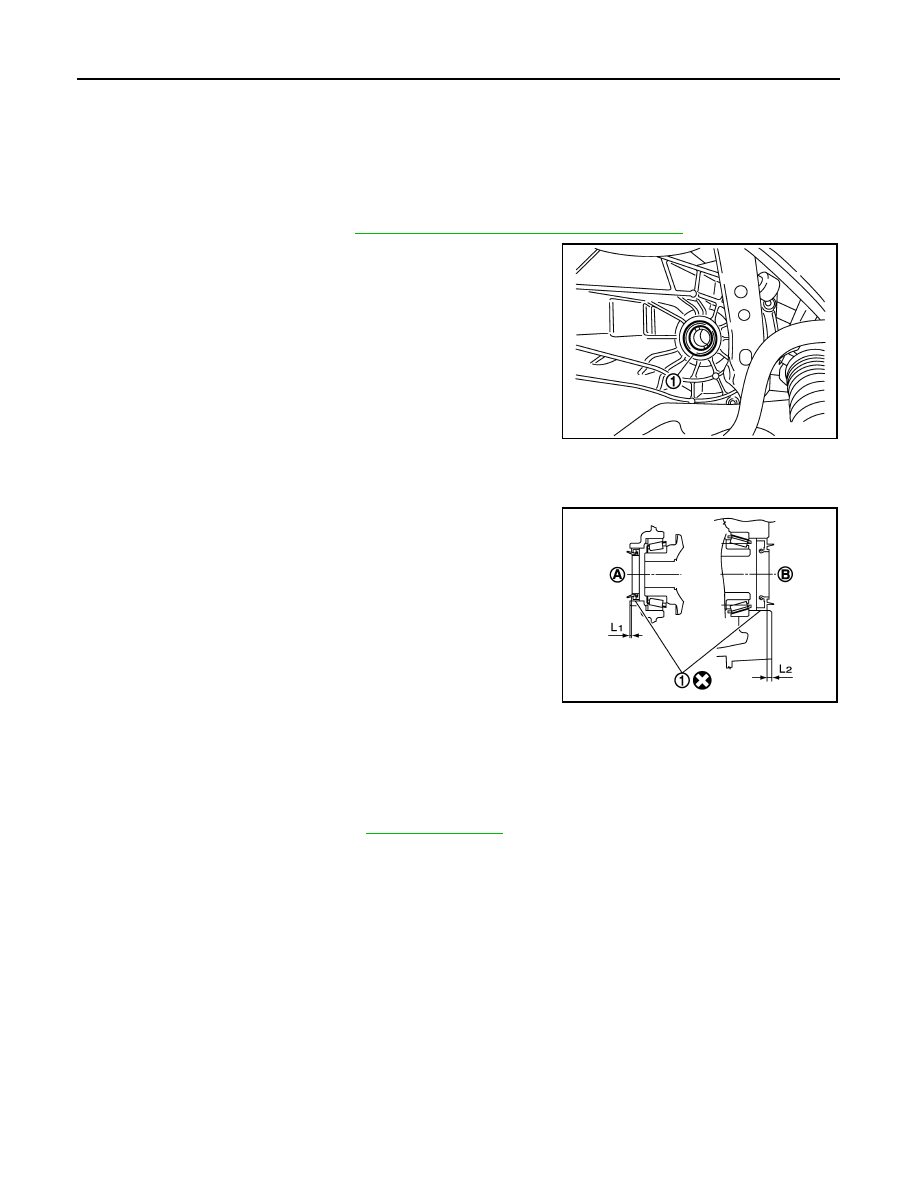

SIDE OIL SEAL

REMOVAL AND INSTALLATION

SIDE OIL SEAL

Removal and Installation

INFOID:0000000009759275

REMOVAL

1. Remove front drive shafts. Refer to

FAX-18, "6M/T : Removal and Installation (LH)"

.

2. Remove differential side oil seals (1) from clutch housing and

transaxle case using a suitable tool.

CAUTION:

Do not damage transaxle case and clutch housing.

INSTALLATION

Installation is in the reverse order of removal.

• Install differential side oil seals (1) to clutch housing and transaxle case, using Tools.

CAUTION:

• Do not incline differential side oil seal.

• Do not damage clutch housing and transaxle case.

Inspection

INFOID:0000000009759276

INSPECTION AFTER INSTALLATION

Check the oil level and oil leaks. Refer to

TM-19, "Inspection"

.

SCIA7625E

Tool number

: KV32500QAA

Tool number

: B.vi 1666-B

(A)

: Transaxle case side

(B)

: Clutch housing side

Dimension (L

1

)

: 1.2 – 1.8 mm (0.047 – 0.071 in)

Dimension (L

2

)

: 2.7 – 3.3 mm (0.106 – 0.130 in)

JPDIC0454ZZ

POSITION SWITCH

TM-21

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

POSITION SWITCH

Removal and Installation

INFOID:0000000009759277

REMOVAL

1. Remove battery. Refer to

PG-50, "Removal and Installation (Battery)"

.

2. Disconnect position switch harness connector.
3. Remove position switch from transaxle case.

INSTALLATION

1. Apply recommended sealant to threads of position switch.

• Use Genuine Liquid Gasket, Three Bond 1215 or an equivalent. Refer to

GI-21, "Recommended

Chemical Products and Sealants"

.

CAUTION:

Remove old sealant and oil adhering to threads.

2. Install position switch to transaxle case.
3. Tighten position switch to the specified torque. Refer to

TM-30, "Exploded View"

.

4. For the next step and after, install in the reverse order of removal.

Inspection

INFOID:0000000009759278

INSPECTION AFTER INSTALLATION

• Check continuity between position switch terminals. Refer to

TM-17, "BACK-UP LAMP SWITCH : Compo-

nent Inspection"

 (Back-up lamp switch) and

TM-17, "PARK/NEUTRAL POSITION (PNP) SWITCH : Compo-

nent Inspection"

 (PNP switch).

• Check the oil leaks. Refer to

TM-19, "Inspection"

.

TM-22

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

CONTROL LINKAGE

CONTROL LINKAGE

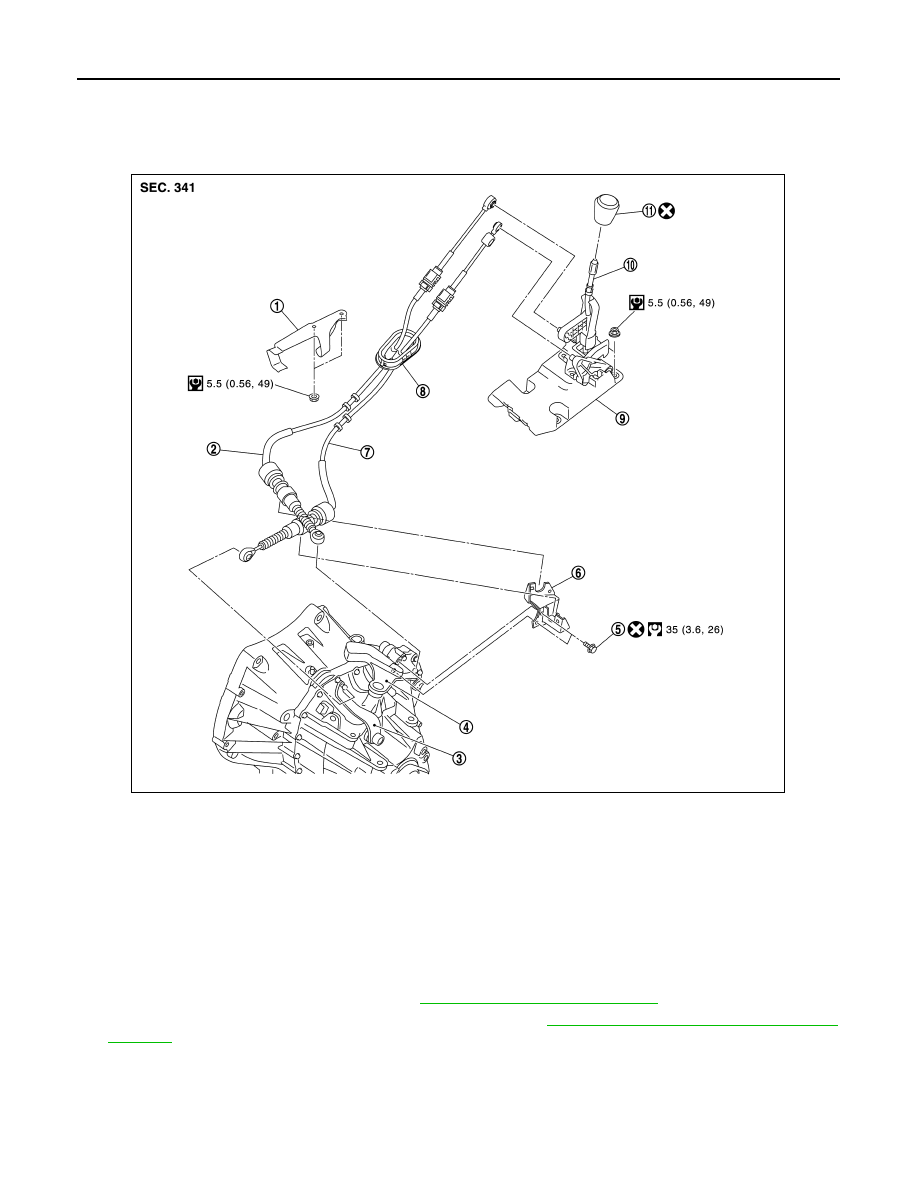

Exploded View

INFOID:0000000009759279

Removal and Installation

INFOID:0000000009759280

REMOVAL

1. Move the shift selector to the neutral position.
2. Remove air cleaner case assembly. Refer to

EM-25, "Removal and Installation"

.

3. Remove the battery tray and battery support brackets. Refer to

PG-51, "Removal and Installation (Battery

Bracket)"

.

1.

Bracket

2.

Shifter cable

3.

Selector lever

4.

Shift lever

5.

Tapping bolt

6.

M/T cable mounting bracket

7.

Selector cable

8.

Grommet

9.

Shift selector assembly

10.

Shift selector

11.

Shift selector knob

JPDIC0856GB

CONTROL LINKAGE

TM-23

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

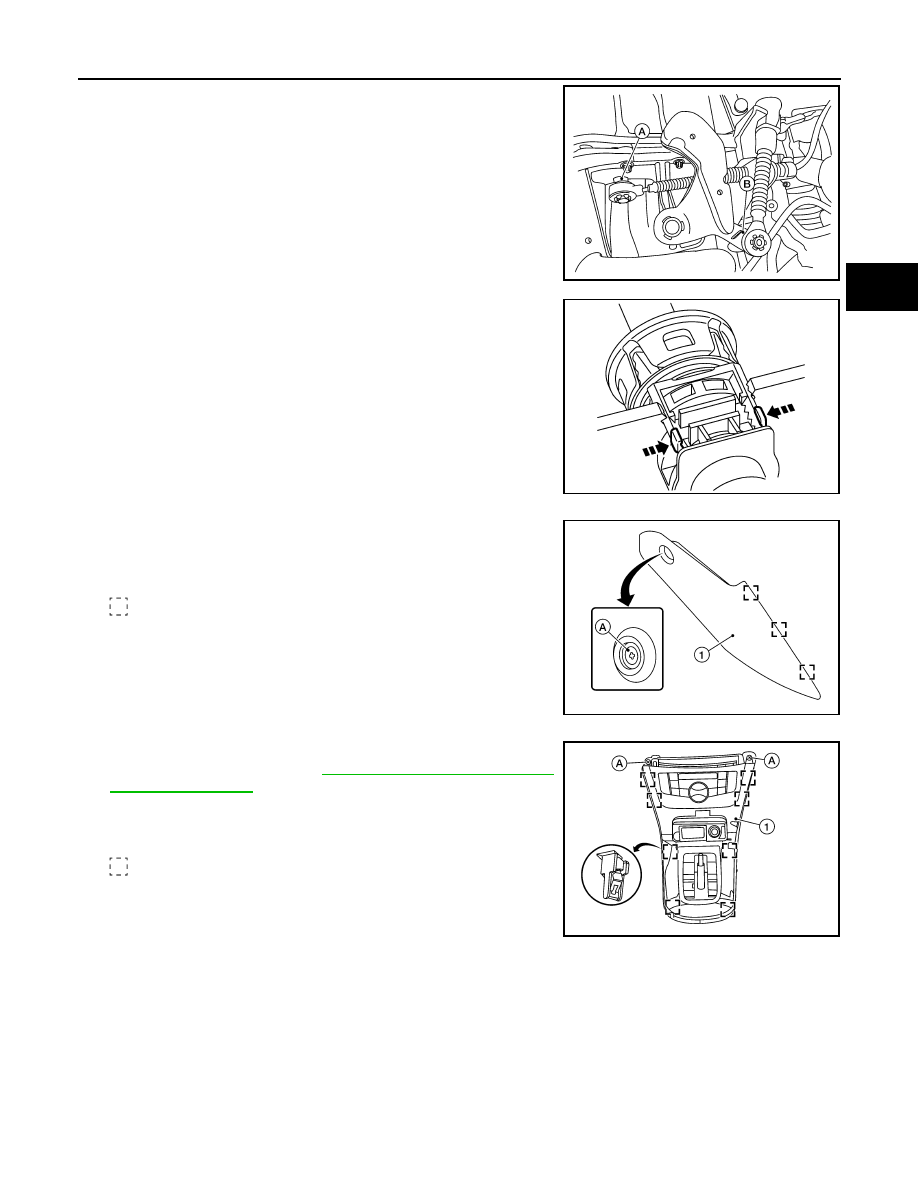

4. Disconnect the each cable from the shifter lever A (B) and the

selector lever (A) using a suitable tool.

5. While pressing the lock of the selector cable in the direction of

the arrow shown, remove the selector cable from the M/T cable

bracket.

6. While pressing the lock of the shifter cable in the direction of the

arrow shown, remove the shifter cable from the M/T cable

bracket.

7. Remove M/T cable bracket from transaxle case.

8. Remove the center console side finishers (1) (LH/RH).
a. Remove the center console side finisher screw (A) (LH/RH).
b. Release the clips using a suitable tool, then remove the center

console side finisher.

: Metal clip

9. Remove the CVT/MT shift selector finisher (1).
a. Remove cluster lid C. Refer to

IP-20, "Removal and Installation -

Cluster Lid C Lower"

.

b. Remove the CVT/MT shift selector screws (A).
c. Release the clips using a suitable tool, then remove the CVT/MT

shift selector finisher.

: Metal clip

10. Pull out and disconnect the shifter cable from the pin of the shift selector assembly using a suitable tool.

ALDIA0380ZZ

JPDIC0793ZZ

ALJIA1037ZZ

ALJIA1038ZZ
