Nissan Sentra. Manual - part 844

TM-12

< PREPARATION >

[6MT: RS6F94R]

PREPARATION

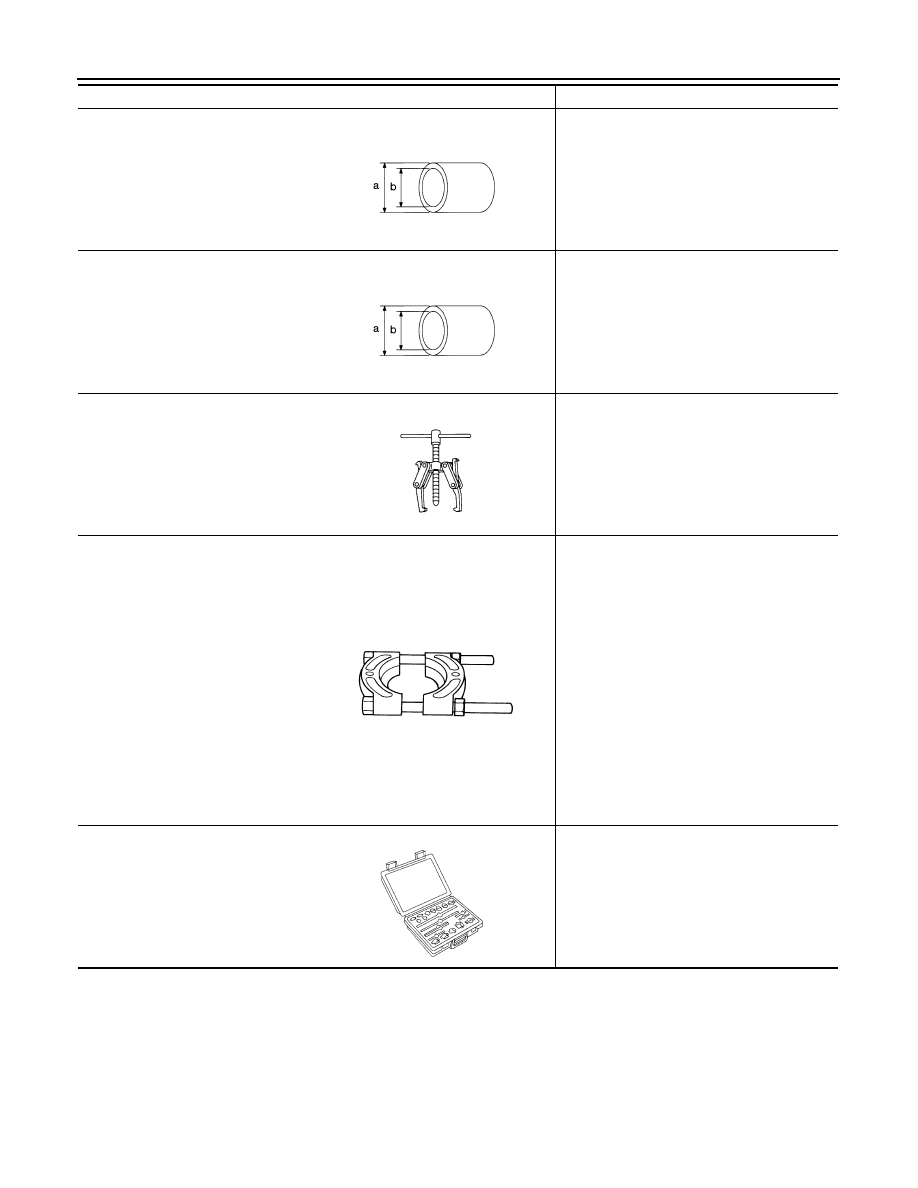

Drift

Installing differential side bearing inner race
(clutch housing side)
a: 45 mm (1.77 in) dia.
b: 39 mm (1.54 in) dia.

Drift

Installing differential side bearing inner race
(transaxle case side)
a: 52 mm (2.05 in) dia.
b: 45 mm (1.77 in) dia.

Puller

• Removing differential side bearing inner

race (clutch housing side)

• Removing differential side bearing inner

race (transaxle case side)

Puller

• Removing differential side bearing inner

race (clutch housing side)

• Removing differential side bearing inner

race (transaxle case side)

• Removing input shaft rear bearing
• Removing input shaft front bearing
• Removing mainshaft rear bearing inner race
• Removing 6th main gear
• Removing 4th main gear
• Removing 5th main gear
• Removing 1st main gear
• Removing 1st-2nd synchronizer hub as-

sembly

• Removing 2nd main gear
• Removing 3rd main gear
• Removing mainshaft front bearing inner

race

Remover

• Removing bushing
• Removing mainshaft rear bearing outer

race

Tool name

Description

S-NT474

S-NT474

NT077

ZZB0823D

S-NT134

PREPARATION

TM-13

< PREPARATION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

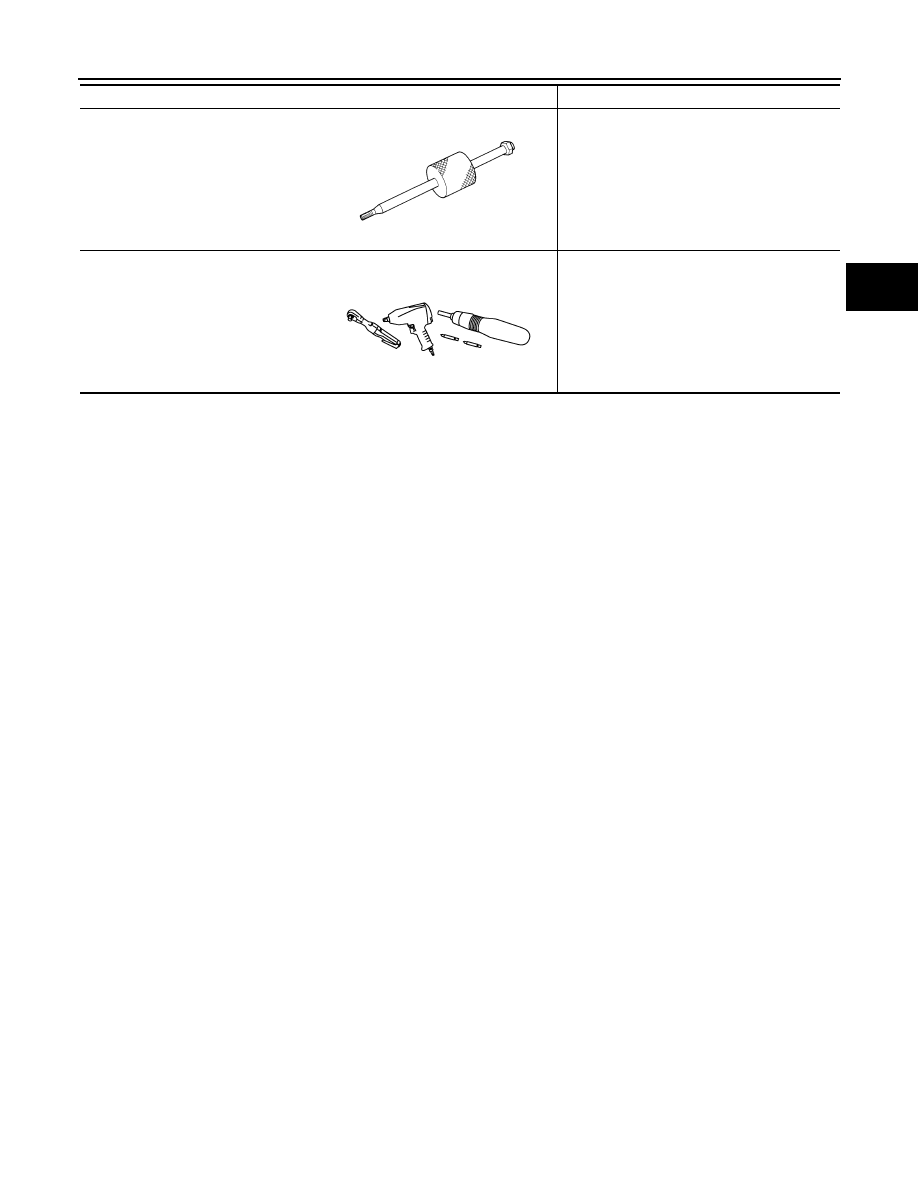

Sliding hammer

Removing bushings and seals

Power tool

Loosening nuts, screws and bolts

Tool name

Description

ZZA0023D

PIIB1407E

TM-14

< SYSTEM DESCRIPTION >

[6MT: RS6F94R]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

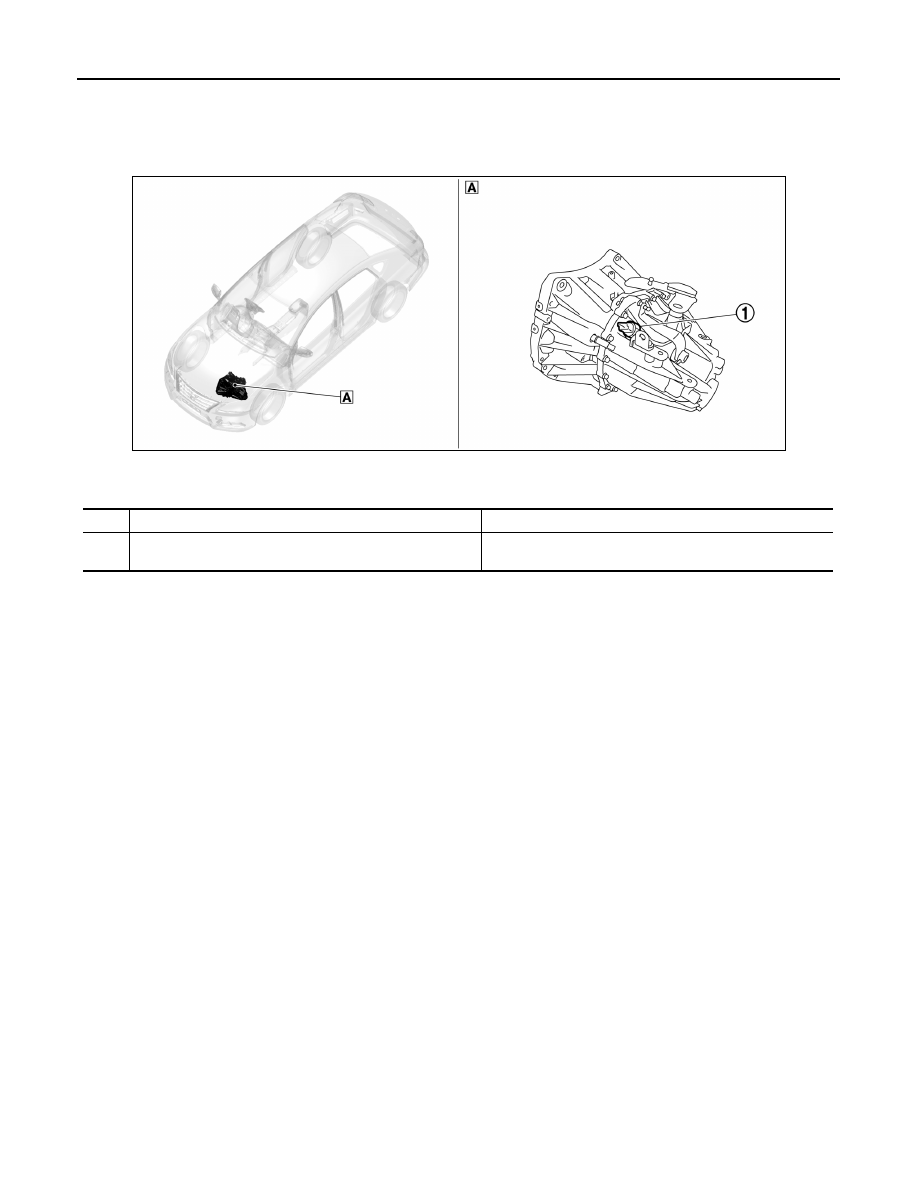

Component Parts Location

INFOID:0000000009759266

JSDIA3670ZZ

A.

Transaxle assembly

No.

Component

Function

1.

Position switch

• It detects that the transaxle is in neutral.
• It detects that the transaxle is in reverse.

STRUCTURE AND OPERATION

TM-15

< SYSTEM DESCRIPTION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

STRUCTURE AND OPERATION

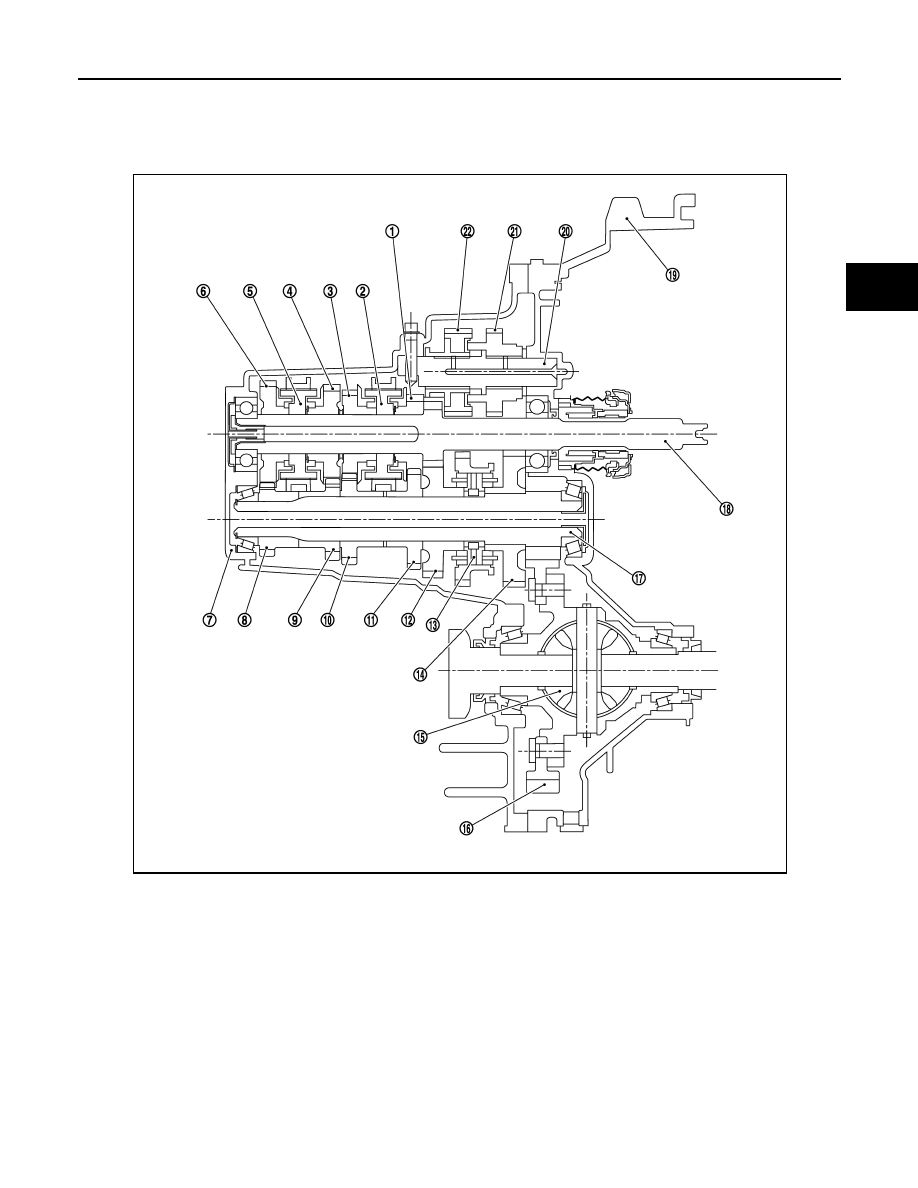

Sectional View

INFOID:0000000009759267

System Description

INFOID:0000000009759268

TRIPLE-CONE SYNCHRONIZER

1.

3rd input gear

2.

3rd-4th synchronizer hub assembly

3.

4th input gear

4.

5th input gear

5.

5th-6th synchronizer hub assembly

6.

6th input gear

7.

Transaxle case

8.

6th main gear

9.

5th main gear

10. 4th main gear

11.

3rd main gear

12.

2nd main gear

13. 1st-2nd synchronizer hub assembly

14.

1st main gear

15.

Differential

16. Final gear

17.

Mainshaft

18.

Input shaft

19. Clutch housing

20.

Reverse idler shaft

21.

Reverse input gear

22. Reverse output gear

JPDIC0631ZZ
