Nissan Sentra. Manual - part 588

HRN-6

< REMOVAL AND INSTALLATION >

HORN

REMOVAL AND INSTALLATION

HORN

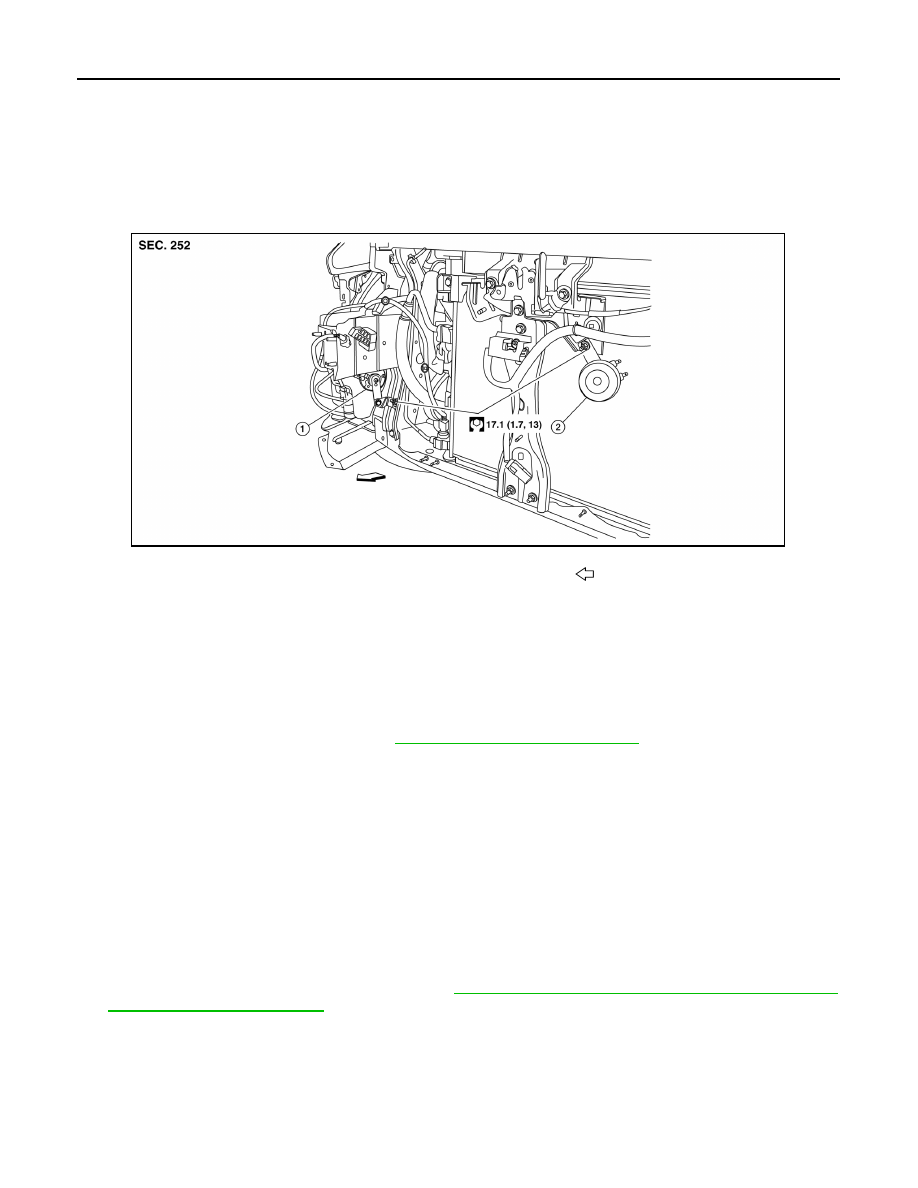

Exploded View

INFOID:0000000009756278

HORN

NOTE:

Shown with the front fascia removed for clarity.

Removal and Installation

INFOID:0000000009756279

HORN LOW

Removal

1. Remove the core support cover. Refer to

EXT-23, "Removal and Installation"

.

2. Disconnect the horn low harness connectors.

NOTE:

The harness connector locations prior to removal.

3. Remove the horn nut and the horn low.

Installation

Installation is in the reverse order of removal.

NOTE:

Install the harness connector in the proper locations.

HORN HIGH

Removal

1. Partially remove the RH fender protector. Refer to

EXT-28, "FENDER PROTECTOR : Removal and Instal-

lation - Front Fender Protector"

.

2. Disconnect the horn high harness connectors.

NOTE:

The harness connector locations prior to removal.

3. Remove the horn nut and the horn high.

Installation

Installation is in the reverse order of removal.

1.

Horn high

2.

Horn low

Front

ALLIA1184ZZ

HORN

HRN-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

HRN

N

O

P

NOTE:

Install the harness connector in the proper locations.
