Nissan Sentra. Manual - part 586





HAC-192

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONER]

DOOR MOTOR

DOOR MOTOR

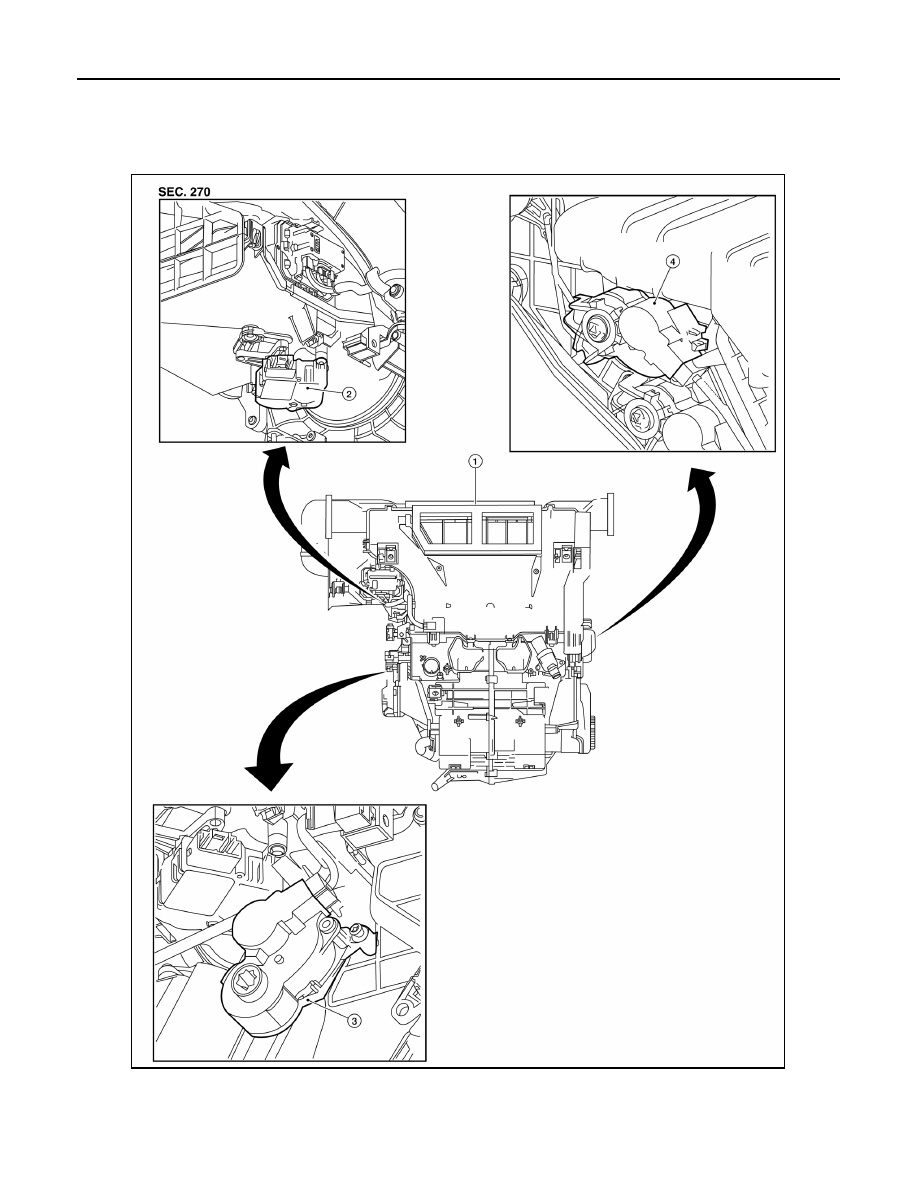

Exploded View

INFOID:0000000009757780

1.

Heating and cooling unit assembly

2.

Intake door motor

3.

Mode door motor

4.

Air mix door motor

AWIIA1604ZZ

DOOR MOTOR

HAC-193

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

INTAKE DOOR MOTOR
INTAKE DOOR MOTOR : Removal and Installation

INFOID:0000000009757781

REMOVAL

1. Remove the heating and cooling unit assembly. Refer to

HA-43, "HEATING AND COOLING UNIT

ASSEMBLY : Removal and Installation"

.

2. Disconnect the harness connector from the intake door motor.
3. Remove the intake door motor screws and the intake door motor.

INSTALLATION

Installation is in the reverse order of removal.

MODE DOOR MOTOR
MODE DOOR MOTOR : Removal and Installation

INFOID:0000000009757782

REMOVAL

1. Remove the front floor duct LH. Refer to

HA-42, "Exploded View"

.

2. Disconnect the harness connector from the mode door motor.
3. Remove the mode door motor screws and the mode door motor.

INSTALLATION

Installation is in the reverse order of removal.

AIR MIX DOOR MOTOR
AIR MIX DOOR MOTOR : Removal and Installation

INFOID:0000000009757783

REMOVAL

1. Remove the glove box assembly. Refer to

IP-22, "Removal and Installation"

.

2. Disconnect the harness connector from the air mix door motor.
3. Remove the air mix door motor screws and the air mix door motor.

INSTALLATION

Installation is in the reverse order of removal.

HAC-194

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONER]

BLOWER MOTOR RESISTOR

BLOWER MOTOR RESISTOR

Removal and Installation

INFOID:0000000009757784

REMOVAL

1. Remove the instrument lower panel LH. Refer to

IP-21, "Removal and Installation"

.

2. Disconnect the harness connector from the blower motor resistor.
3. Release the pawls using a suitable tool and remove the blower motor resistor.

INSTALLATION

Installation is in the reverse order of removal.
