A/C ASSEMBLY SWITCH

REMOVAL AND INSTALLATION

A/C ASSEMBLY SWITCH

Removal and Installation

INFOID:0000000009757775

REMOVAL

1. Remove the CVT shift selector finisher (CVT: RE0F11A). Refer to

TM-253, "Removal and Installation"

.

2. Remove the MT shift selector finisher (6MT: RS6F94R). Refer to

TM-22, "Exploded View"

.

3. Remove the front air control screws.
4. Release the front air control metal clips using a suitable tool.
5. Disconnect the harness connectors from the A/C assembly switch and remove.

INSTALLATION

Installation is in the reverse order of removal.

A/C AUTO AMP.

HAC-189

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

A/C AUTO AMP.

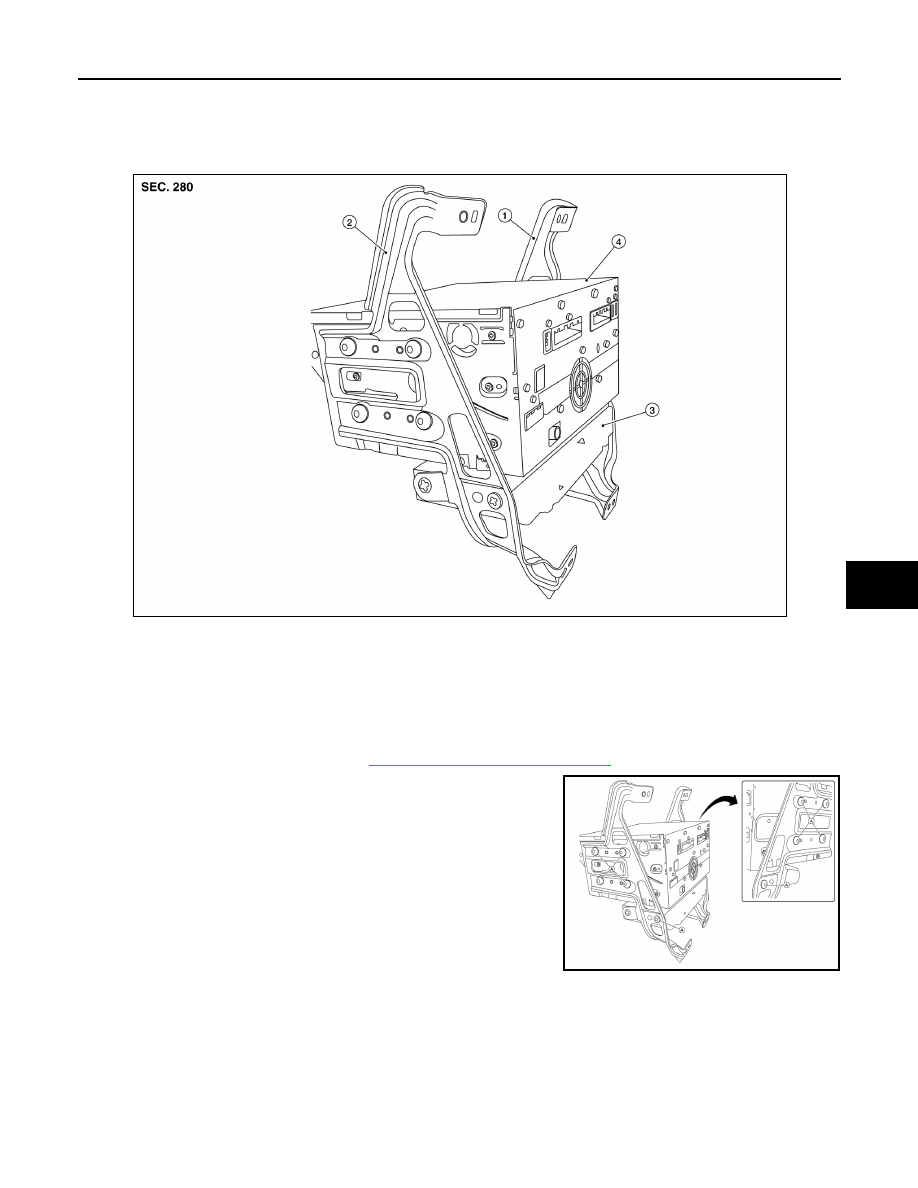

Exploded View

INFOID:0000000009757776

Removal and Installation

INFOID:0000000009757777

REMOVAL

1. Remove the AV control unit. Refer to

AV-406, "Removal and Installation"

.

2. Remove the AV control unit bracket screws (A).

3. Remove the A/C auto amp.

INSTALLATION

Installation is in the reverse order of removal.

1.

AV control unit bracket (LH)

2.

AV control unit bracket (RH)

3.

A/C auto amp.

4.

AV control unit

ALIIA0666ZZ

ALIIA0667ZZ

HAC-190

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONER]

INTAKE SENSOR

INTAKE SENSOR

Removal and Installation

INFOID:0000000009757778

The intake sensor is serviced as an assembly with the heating and cooling unit assembly. Refer to

HA-43,

"HEATING AND COOLING UNIT ASSEMBLY : Removal and Installation"

.

REFRIGERANT PRESSURE SENSOR

HAC-191

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

REFRIGERANT PRESSURE SENSOR

Removal and Installation

INFOID:0000000009757779

REMOVAL

1. Discharge the refrigerant. Refer to

HA-23, "Recycle Refrigerant"

.

2. Remove the core support upper. Refer to

HA-39, "Exploded View"

.

3. Disconnect the harness connector from the refrigerant pressure sensor.

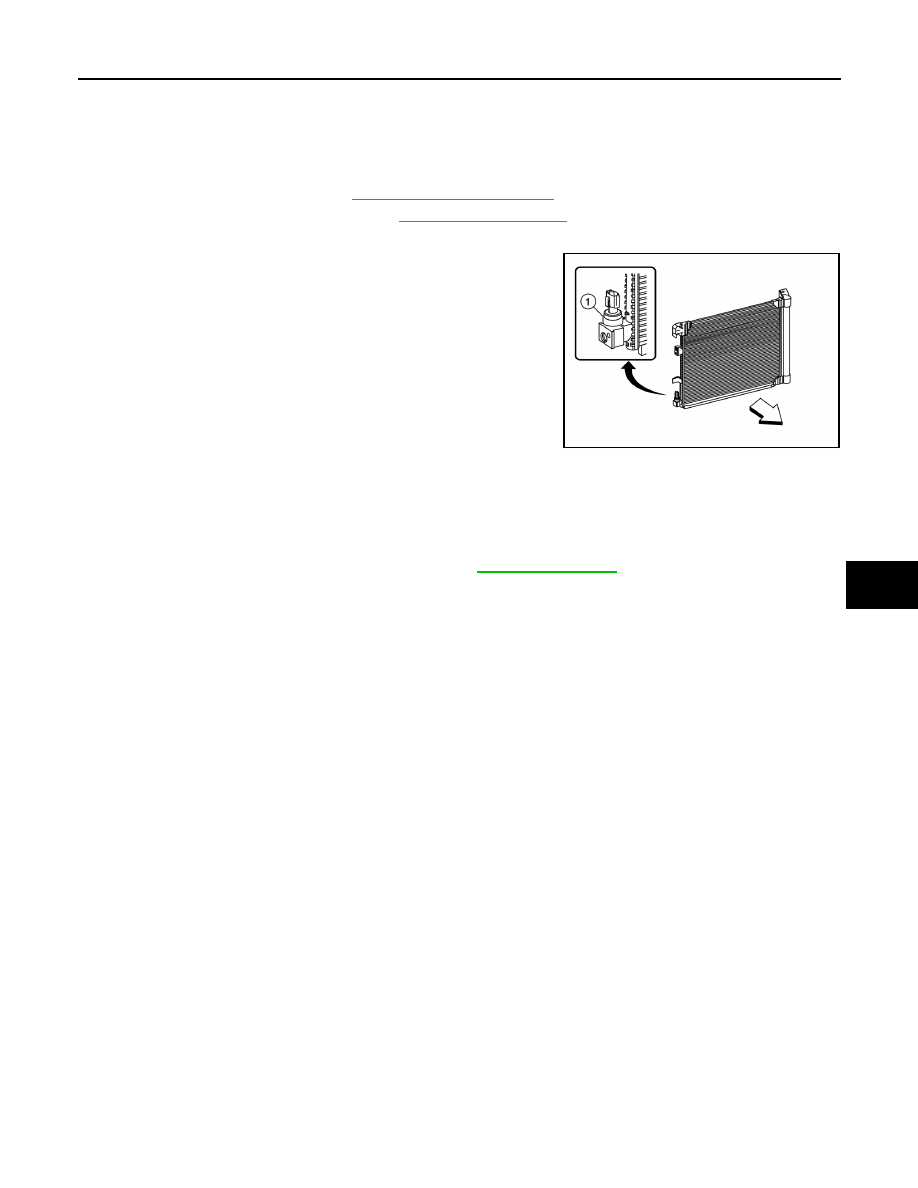

4. Remove the refrigerant pressure sensor (1).
