PRECAUTIONS

INL-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009757565

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Work

INFOID:0000000009757566

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with a new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components:

- Water soluble dirt:

• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.

• Then rub with a soft, dry cloth.

- Oily  dirt:

• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty

area.

• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.

• Then rub with a soft, dry cloth.

- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.

- For genuine leather seats, use a genuine leather seat cleaner.

INL-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000009757567

The actual shape of the tools may differ from those illustrated here.

Tool number
(TechMate No.)
Tool name

Description

(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

COMPONENT PARTS

INL-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

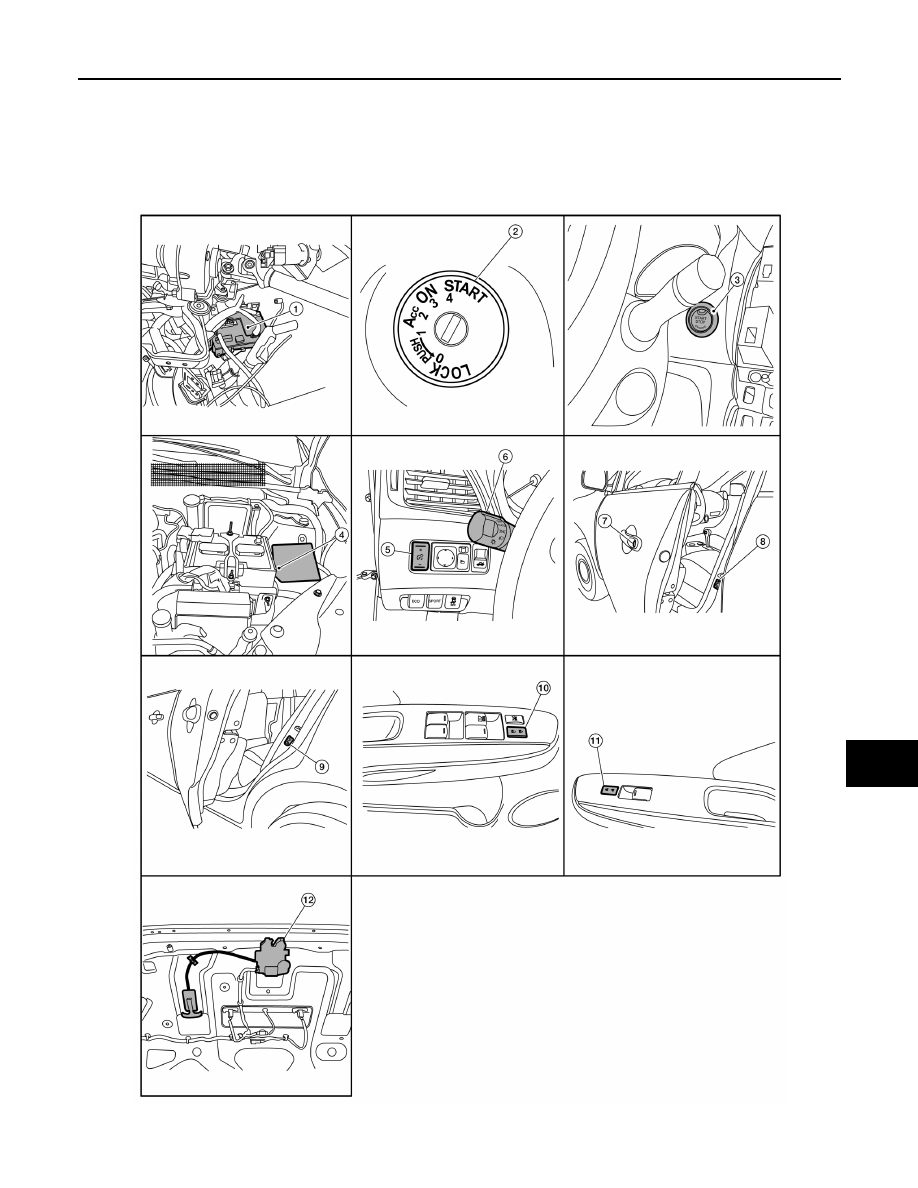

Component Parts Location

INFOID:0000000009757568

AWLIA2052ZZ

INL-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

Component Description

INFOID:0000000009757569

1.

BCM (view with instrument panel removed)

2.

Key switch
(without Intelligent Key)

3.

Push-button ignition switch
(with Intelligent Key)

4.

IPDM E/R

5.

Illumination control switch

6.

Combination switch (lighting and
turn signal switch)

7.

Front door lock LH (key cylinder switch)

8.

Front door switch LH (RH similar)

9.

Rear door switch LH (RH similar)

10. Main power window and door lock/unlock

switch

11.  Power window and door lock/unlock

switch RH

12. Trunk lid opener assembly

Part name

Description

BCM

Provides power and ground and controls timer functions for the in-
terior room lamp, map lamp and trunk room lamp.

IPDM E/R

Provides power and ground and controls timer functions for the in-
terior room lamp, map lamp and trunk room lamp.

Push-button ignition switch (with Intelligent Key)

Provides ignition switch status to the BCM.

Key switch (without Intelligent Key)

Provides key in ignition switch status to the BCM.

Door switches

Provides door OPEN/CLOSED status to the BCM.

Main power window and door lock/unlock switch

Provides door lock/unlock switch LH status to the BCM.

Power window and door lock/unlock switch RH

Provides door lock/unlock switch RH status to the BCM.

Front door lock assembly LH (key cylinder switch)

Provides door lock/unlock switch LH status to the BCM.

Trunk lid opener assembly

Provides trunk lid OPEN/CLOSED status to the BCM.
