Nissan Sentra. Manual - part 495





FL-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010289518

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

General Precaution

INFOID:0000000009756222

WARNING:

When replacing fuel line parts, be sure to observe the following.

• Put a “CAUTION: FLAMMABLE” sign in the work area.
• Be sure to work in a well ventilated area and have a CO

2

 fire extinguisher.

• Do not smoke while working on the fuel system. Keep open flames and sparks away from the work

area.

CAUTION:

• Before removing fuel line parts, carry out the following procedures:

- Put drained fuel in an explosion-proof container and put the lid on securely. Keep the container in

safe area.

- Release fuel pressure from the fuel lines. Refer to

EC-49, "EVAPORATIVE EMISSION SYSTEM : Sys-

tem Description"

.

- Disconnect the battery ground cable.

• Always replace O-rings and clamps with new ones.

• Do not kink or twist tubes when they are being installed.

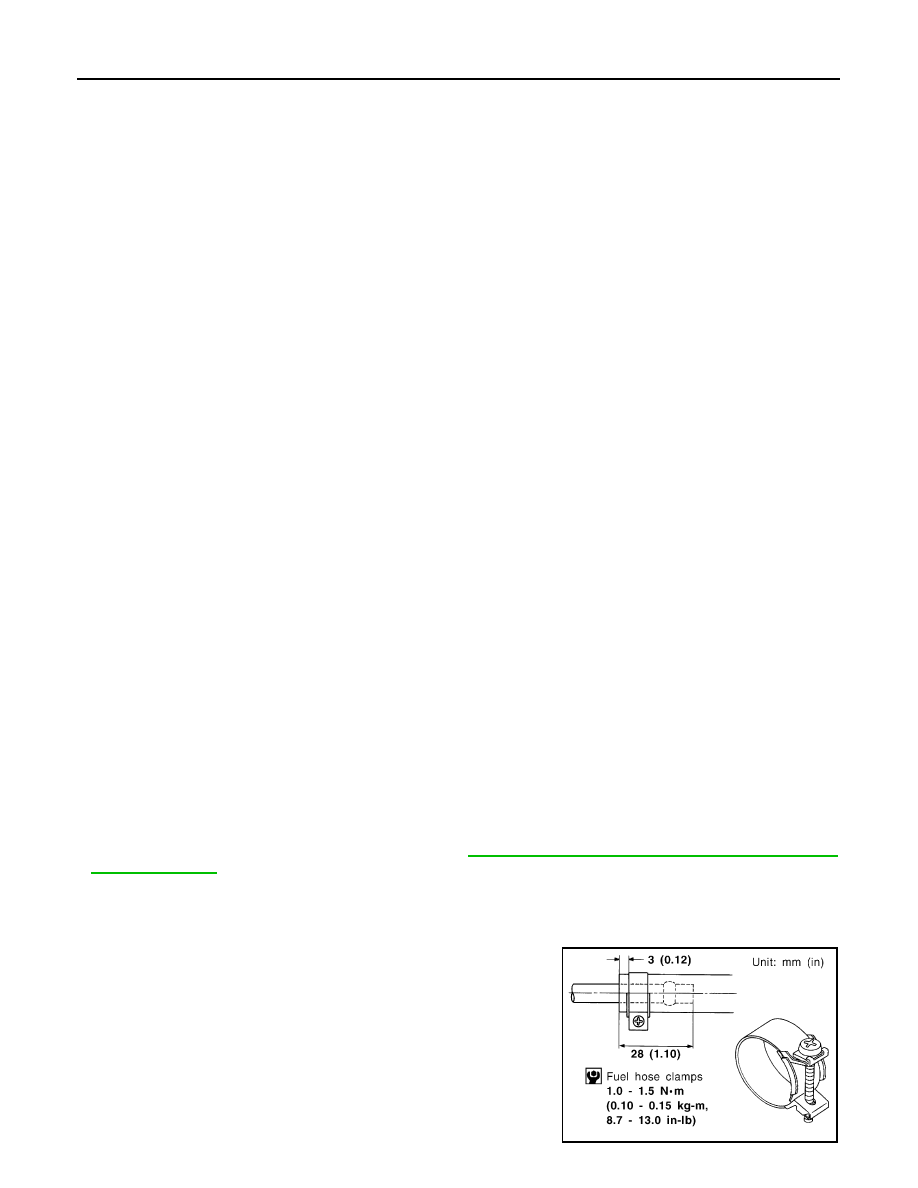

• Do not tighten hose clamps excessively to avoid damaging hoses.

Tighten high-pressure rubber hose clamp so that clamp end

is 3 mm (0.12 in) from hose end.

Tightening torque specifications are the same for all rubber

hose clamps.

Ensure that screw does not contact adjacent parts.

MMA104A

PRECAUTIONS

FL-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

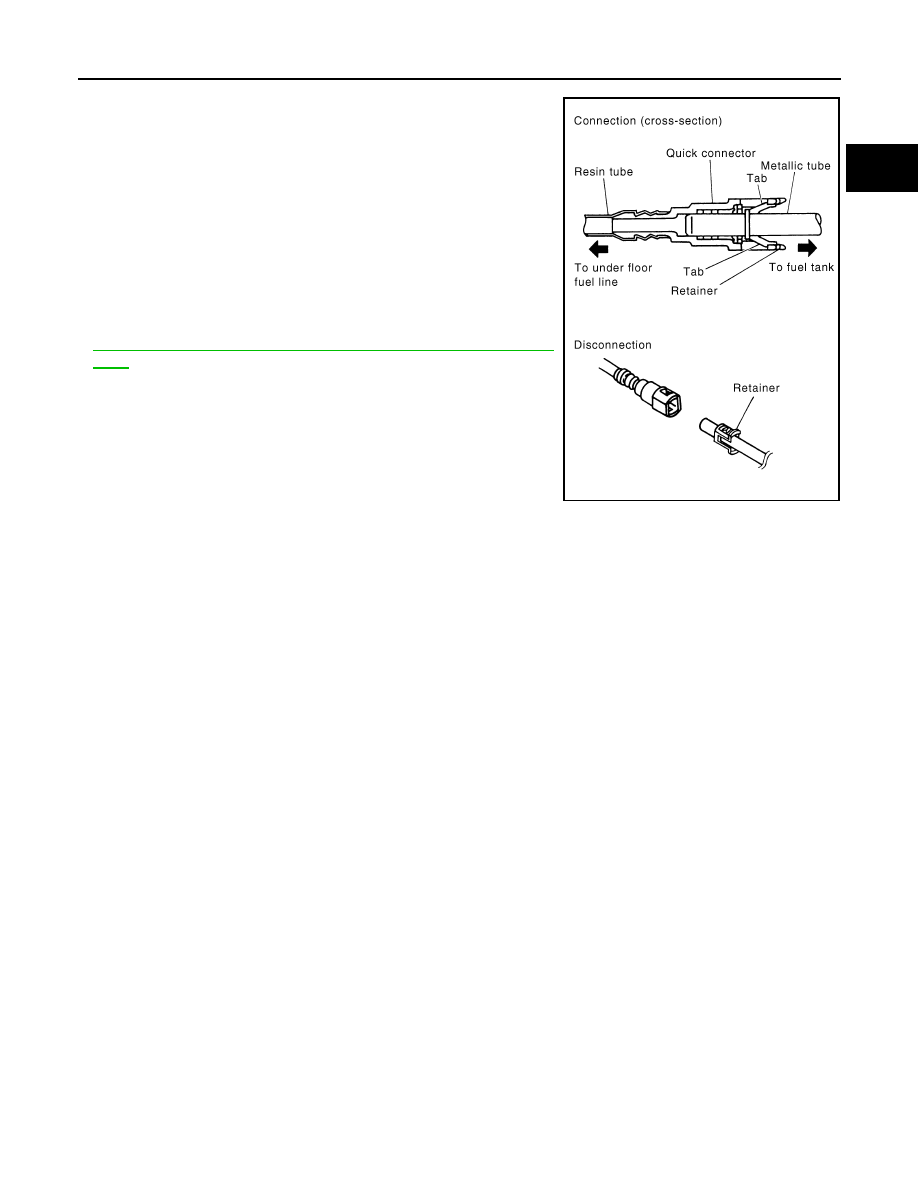

• After connecting the fuel tube quick connectors, make sure

the quick connectors are secure.

Check that the connector and resin tube do not contact any

adjacent parts.

- a) Apply fuel pressure to the fuel system by turning the igni-

tion switch to ON (without starting the engine). Then check for

fuel leaks at the fuel tube connections.

- b) Start the engine and rev the engine, then check for fuel

leaks at the fuel tube connections.

• After installing the tubes, run the engine and check for fuel

leaks at the connections.

• Use only a Genuine NISSAN fuel filler cap as a replacement. If

an incorrect fuel filler cap is used, the MIL may come on.

• For servicing “Evaporative Emission System” parts, refer to

EC-49, "EVAPORATIVE EMISSION SYSTEM : System Descrip-

tion"

PBIC0199E

FL-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

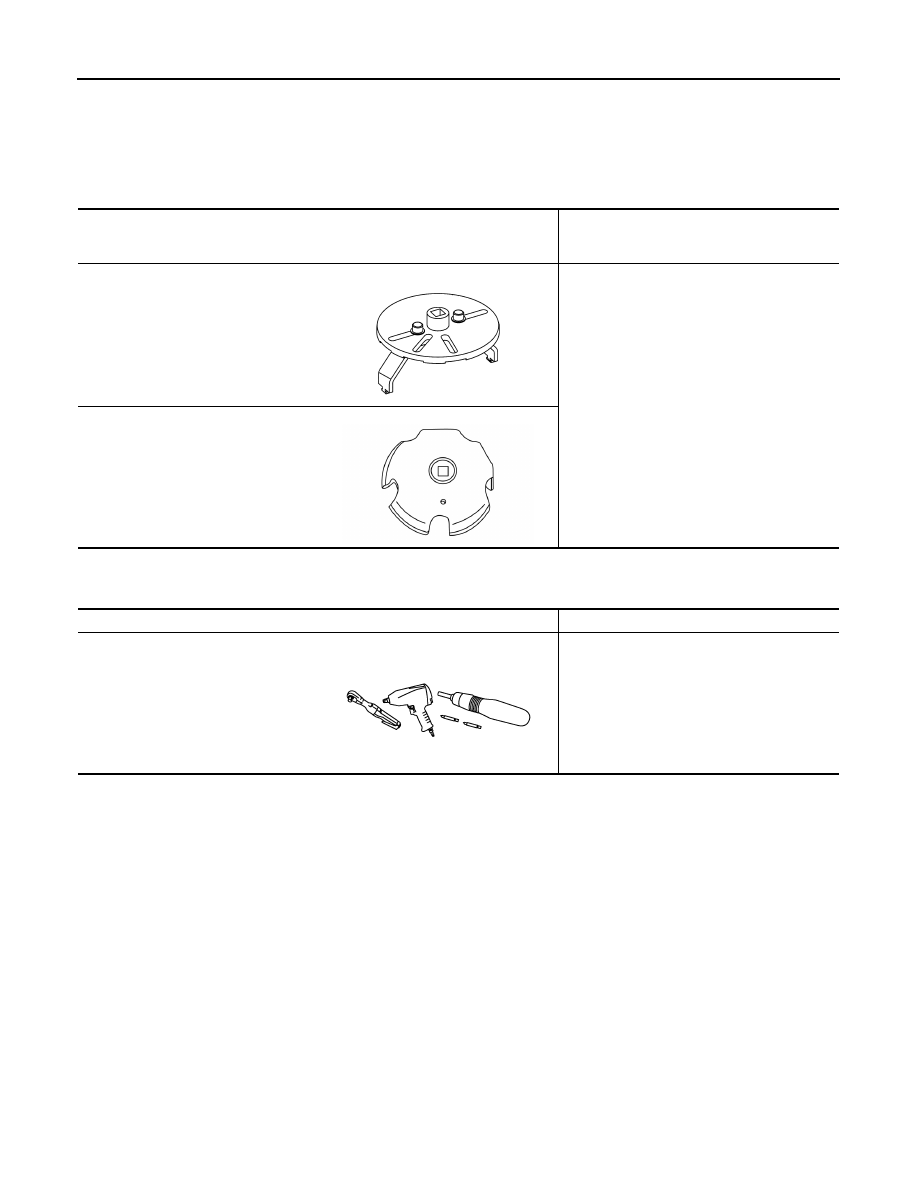

Special Service Tool

INFOID:0000000009756223

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tool

INFOID:0000000009756224

Tool number
(TechMate No.)
Tool name

Description

KV101207S0
( — )
Unified fuel lock ring wrench

Removing and installing fuel tank lock ring

KV991J0090
(J-46214)
Lock ring wrench

JPBIA6384ZZ

ALBIA0951ZZ

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

FUEL SYSTEM

FL-5

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

PERIODIC MAINTENANCE

FUEL SYSTEM

Inspection

INFOID:0000000009756225

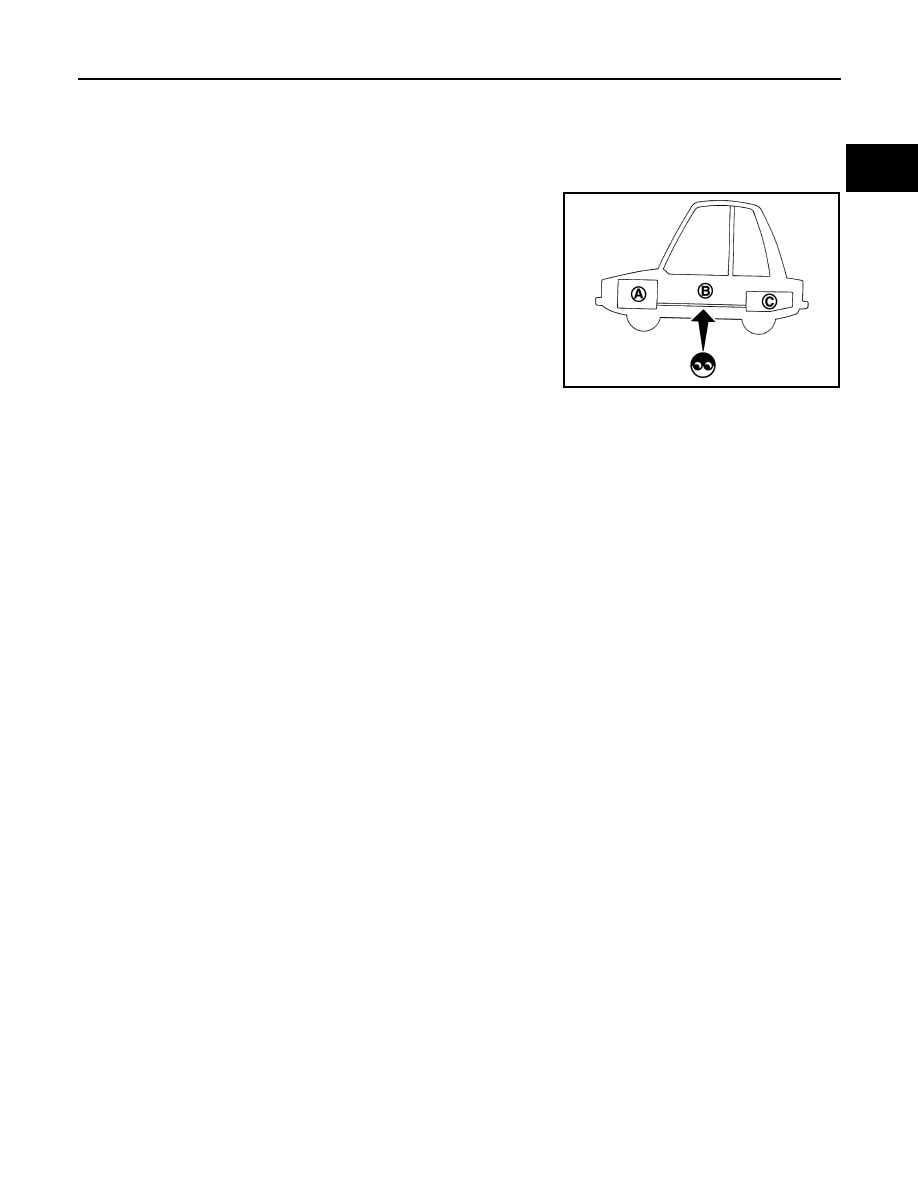

Inspect fuel lines, fuel filler cap, and fuel tank for improper attach-

ment, leakage, cracks, damage, loose connections, chafing or dete-

rioration.

If necessary, repair or replace damaged parts.

Quick Connector

INFOID:0000000009756226

CAUTION:

• After connecting fuel tube quick connectors, check quick connectors are secure.

• Ensure that connector and resin tube do not contact any adjacent parts.

(A)

: Engine

(B)

: Fuel line

(C)

: Fuel tank

JPBIA0129ZZ
