EXT-24

< REMOVAL AND INSTALLATION >

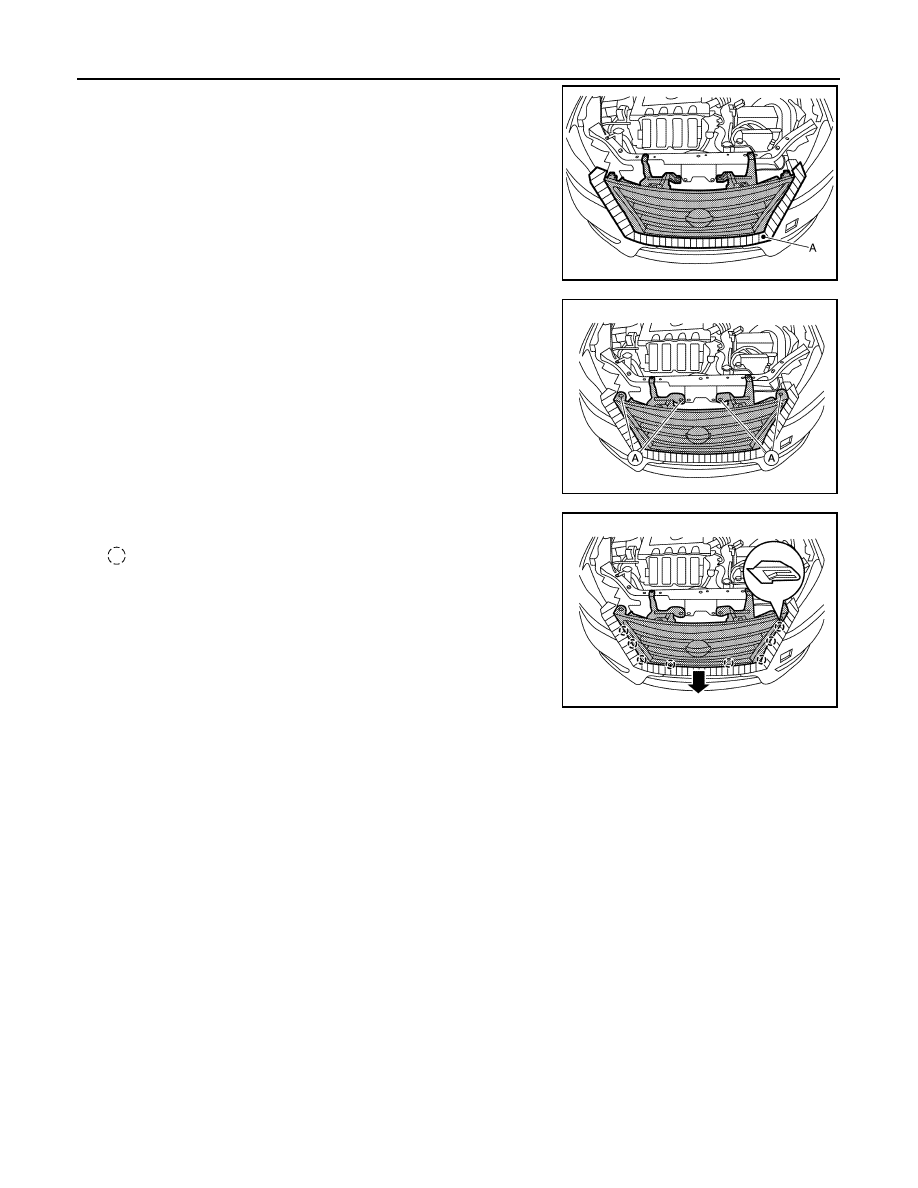

FRONT GRILLE

2. Apply protective tape (A) to protect the components from dam-

age.

3. Remove the front grille clips (A).

4. Release pawls from back side while pulling front grille toward

vehicle front and remove front grille.

: Pawl

5. Remove emblem from front grille (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

JMKIB0243ZZ

AWKIA2114ZZ

AWKIA2115ZZ

COWL TOP

EXT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

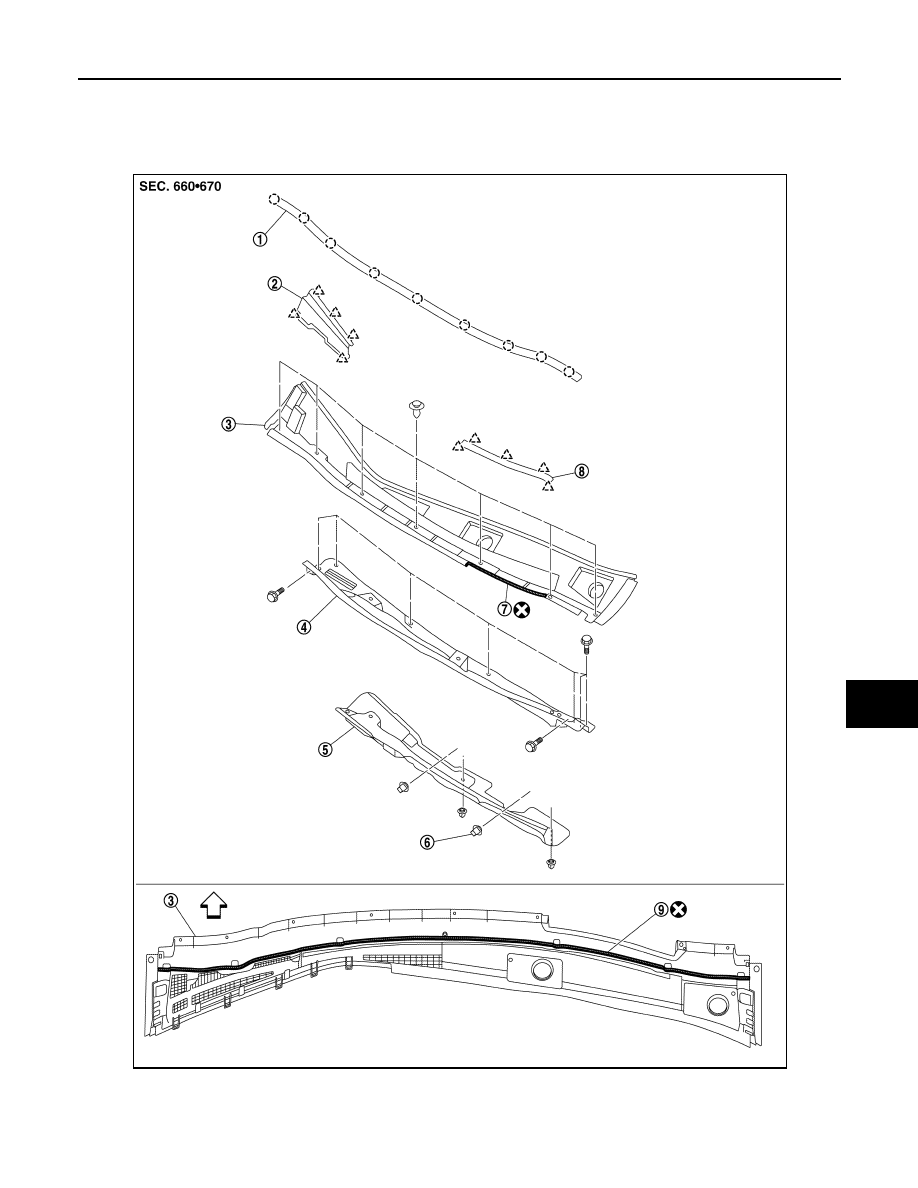

COWL TOP

Exploded View

INFOID:0000000009758038

1.

Cowl top seal

2.

Cowl top grille cap

3.

Cowl top cover

4.

Cowl top extension

5.

Cowl top extension insulator

6.

Clip

JMKIB0365ZZ

EXT-26

< REMOVAL AND INSTALLATION >

COWL TOP

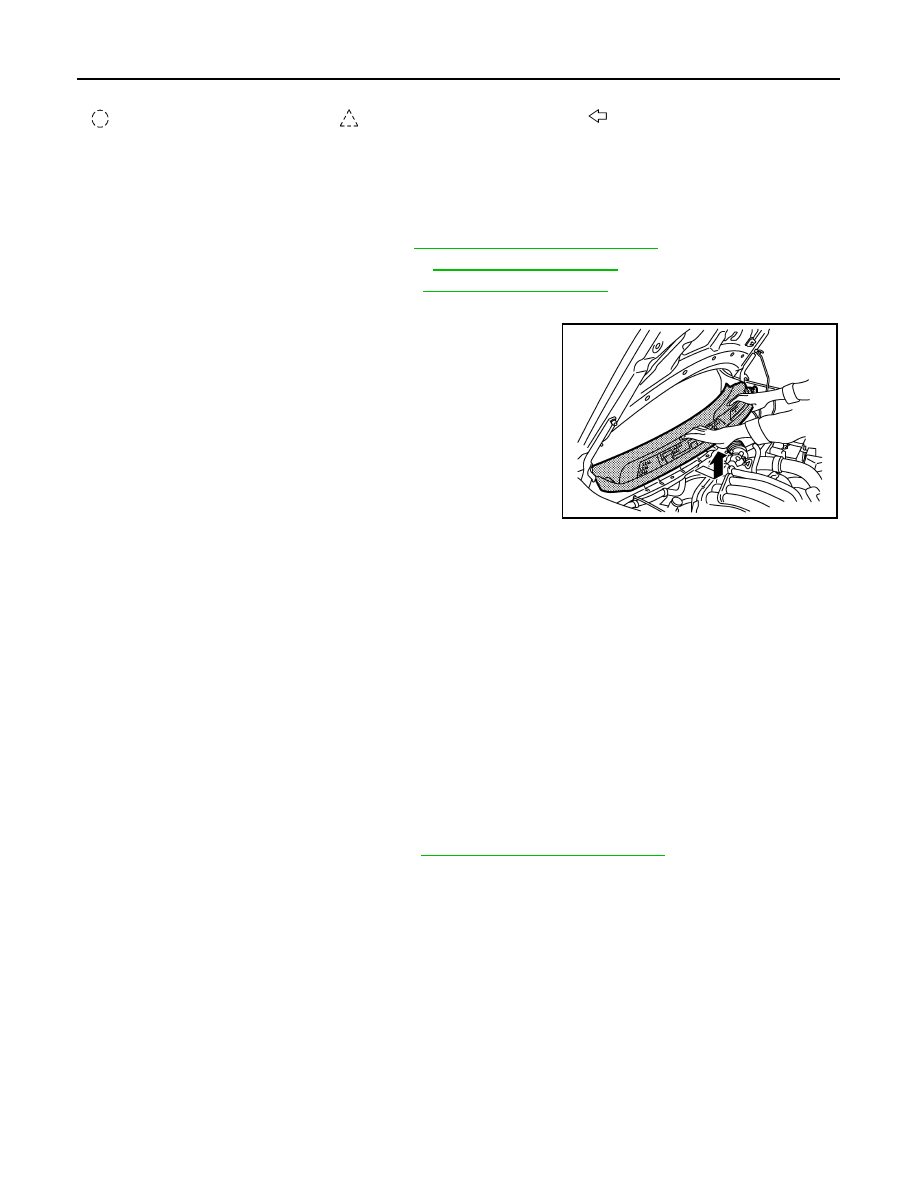

Removal and Installation

INFOID:0000000009758039

COWL TOP COVER

Removal

1. Remove front wiper arms (LH/RH). Refer to

WW-57, "Removal and Installation"

.

2. Remove front fender covers (LH/RH). Refer to

DLK-159, "Exploded View"

.

3. Remove front fender seals (LH/RH). Refer to

DLK-306, "Exploded View"

.

4. Remove cowl top cover clips.
5. Pull forward to release cowl top cover from windshield glass.

CAUTION:

When performing the procedure after removing cowl top

cover, cover the lower end of windshield glass with ure-

thane etc.

6. Remove cowl top cover.

7. Remove the following from the cowl top cover.

• EPT sealer

• Cowl top seal

• Cowl top grille cap

Installation

Installation is in the reverse order of removal.

CAUTION:

• Clean the joint between the cowl top cover and the windshield.

• Replace the EPT sealer on the back surface with new EPT sealer when reusing the cowl top cover.

• Remove the EPT sealer remaining on the cowl top cover using a double-faced adhesive tape remove.

• To maintain adhesion, do not wash the vehicle within 24 hours after installation.

• Perform the stop position adjustment at the installation of the front wiper arms.

Cowl Top Extension

Removal

1. Remove the cowl top cover.
2. Remove front wiper drive assembly. Refer to

WW-62, "Removal and Installation"

.

3. Remove cowl top extension bolts and cowl top extension.
4. Remove cowl top extension insulator clips and cowl top extension insulator.

Installation

Installation is in the reverse order of removal.

7.

EPT seal [t: 3.0 mm (0.12 in)

8.

Cowl top cover cap

9.

EPT seal [t: 5.0 mm (0.20 in)]

Pawl

Clip

Front

JMKIA3819ZZ

FENDER PROTECTOR

EXT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

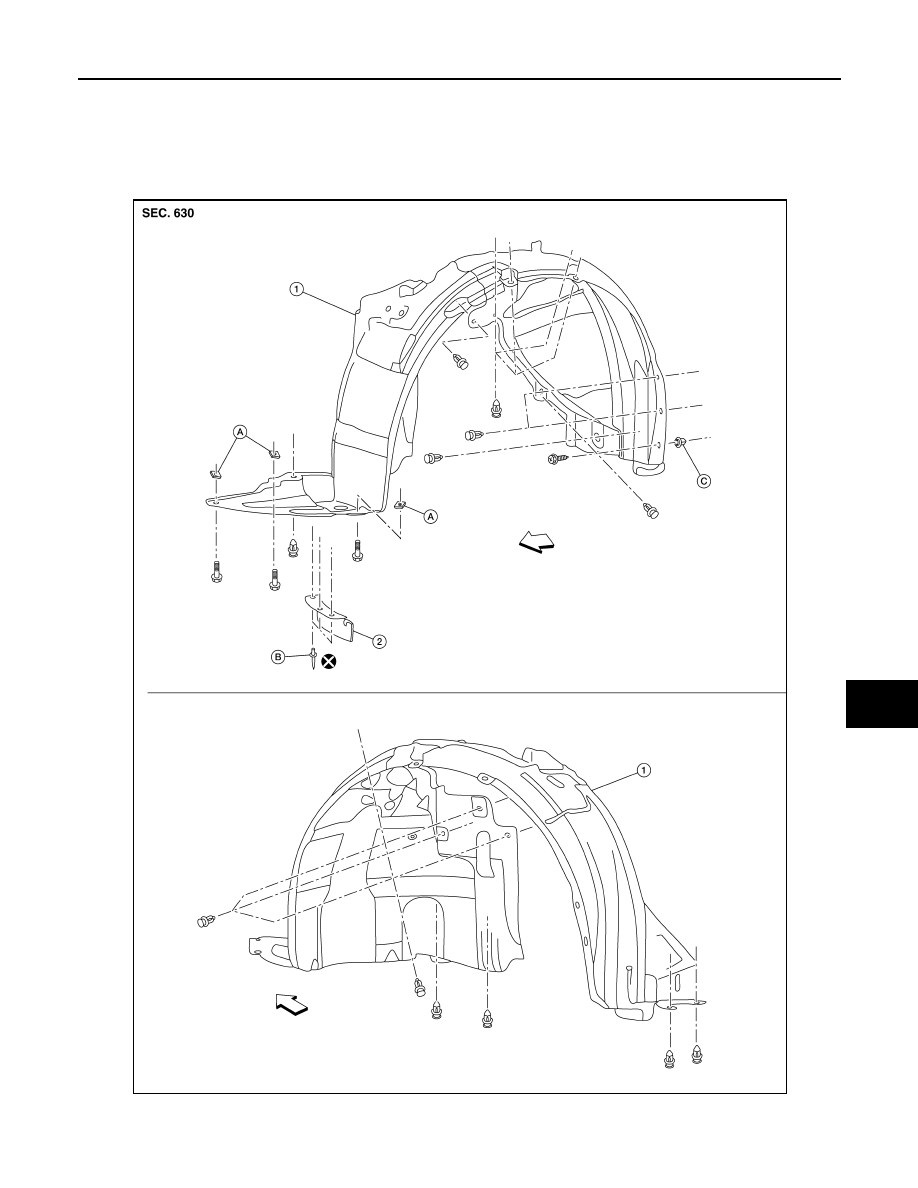

FENDER PROTECTOR

FENDER PROTECTOR
FENDER PROTECTOR : Exploded View

INFOID:0000000009758040

AWKIA2120ZZ
