EXT-20

< REMOVAL AND INSTALLATION >

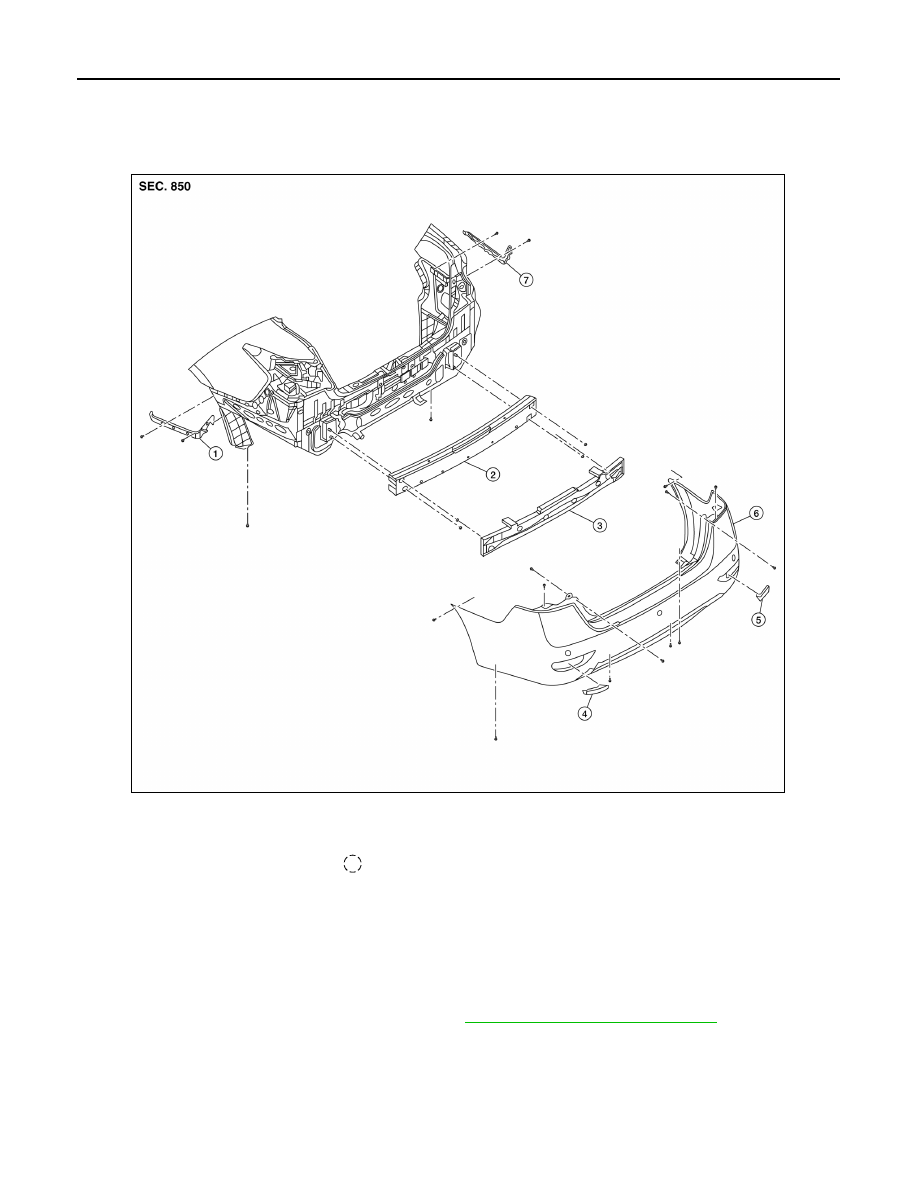

REAR BUMPER

REAR BUMPER

Exploded View

INFOID:0000000009758034

Removal and Installation

INFOID:0000000009758035

CAUTION:

Bumper fascia is made of resin. Use care when handling to prevent damage. Avoid contact with oily

substances.

REMOVAL

1. Remove rear combination lamps (LH/RH). Refer to

EXL-126, "Removal and Installation"

.

1.

Rear bumper side bracket (LH)

2.

Rear bumper reinforcement

3.

Rear bumper energy absorber

4.

Rear bumper fascia reflector (LH) 5.

Rear bumper fascia reflector (RH) 6.

Rear bumper fascia

7.

Rear bumper side bracket (RH)

Pawl

ALKIA2934ZZ

REAR BUMPER

EXT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

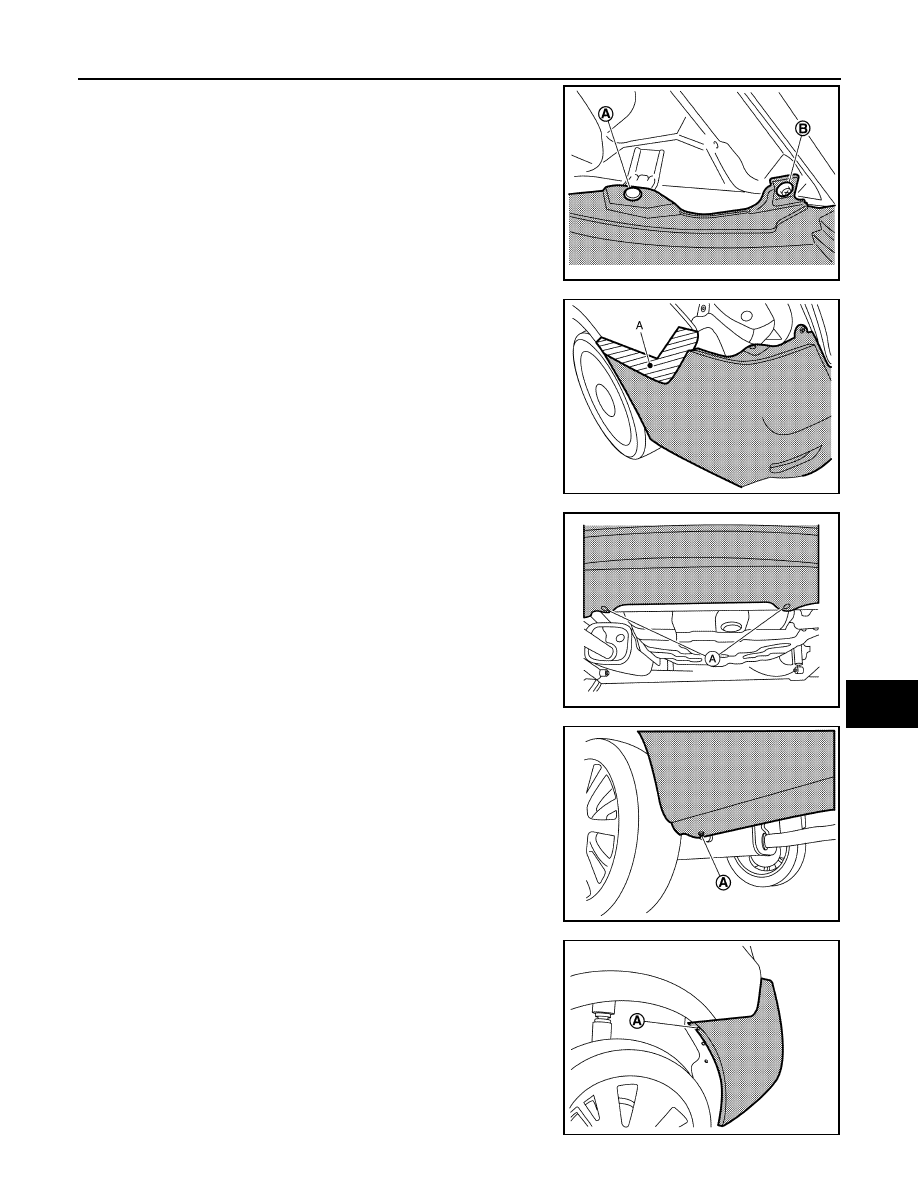

2. Remove the clips (A) (LH/RH) and bolts (B) (LH/RH) from the

rear bumper fascia upper side.

3. Apply protective tape (A) to protect the components from dam-

age on each side as shown.

4. Remove clips (A) (LH/RH) from rear bumper fascia lower side.

5. Remove bolts (A) (LH/RH) from rear bumper fascia lower side.

6. Remove rear bumper fascia screws (A) (LH/RH).

JMKIA8020ZZ

JMKIB0222ZZ

AWKIA2110ZZ

JMKIB0224ZZ

JMKIB0225ZZ

EXT-22

< REMOVAL AND INSTALLATION >

REAR BUMPER

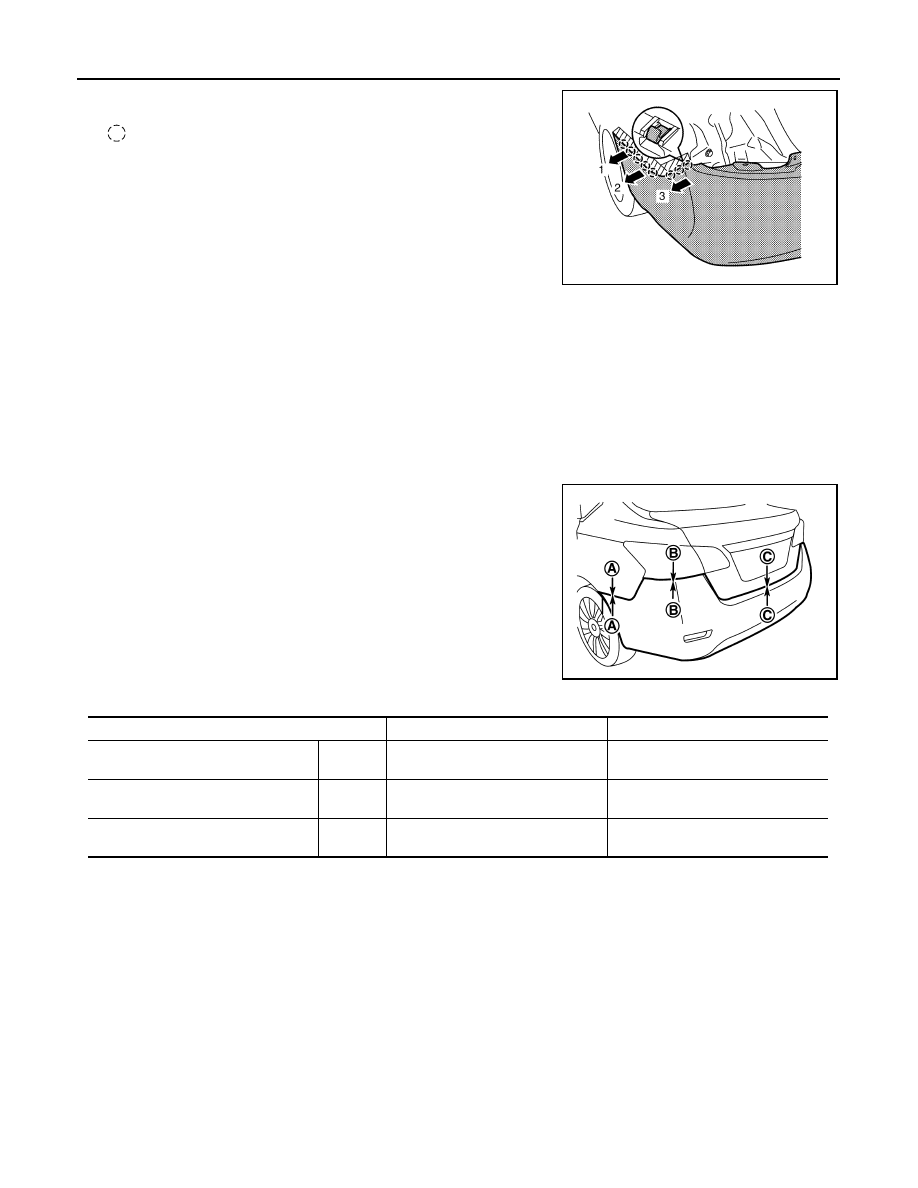

7. Release the rear bumper fascia from the rear bumper fascia

side bracket on each side (LH/RH) as shown.

: Pawl

CAUTION:

When removing rear bumper fascia, two people are

required as to avoid damaging.

8. Remove rear bumper fascia.
9. Remove the rear bumper fascia reflectors (LH/RH) from rear bumper fascia.

10. Remove rear bumper energy absorber.
11. Remove rear bumper side bracket screws and the rear bumper side brackets (LH/RH).

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

• The following table shows the specified values for checking normal installation status.

• Fitting adjustment cannot be performed.

AWKIA2111ZZ

JMKIB0226ZZ

Portion

Clearance

Surface height difference

Rear Bumper fascia – Rear fender

A-A

0.0 – 1.0 mm

(0.00 – 0.04 in)

(

−1.7) – (+0.3) mm

[(

−0.07) – (+0.01) in]

Rear bumper fascia – Rear combina-
tion lamp

B-B

0.5 – 3.5 mm

(0.02 – 0.14 in)

—

Rear bumper fascia –Trunk lid

C-C

5.0 – 9.0 mm

(0.20 – 0.35 in)

—

FRONT GRILLE

EXT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

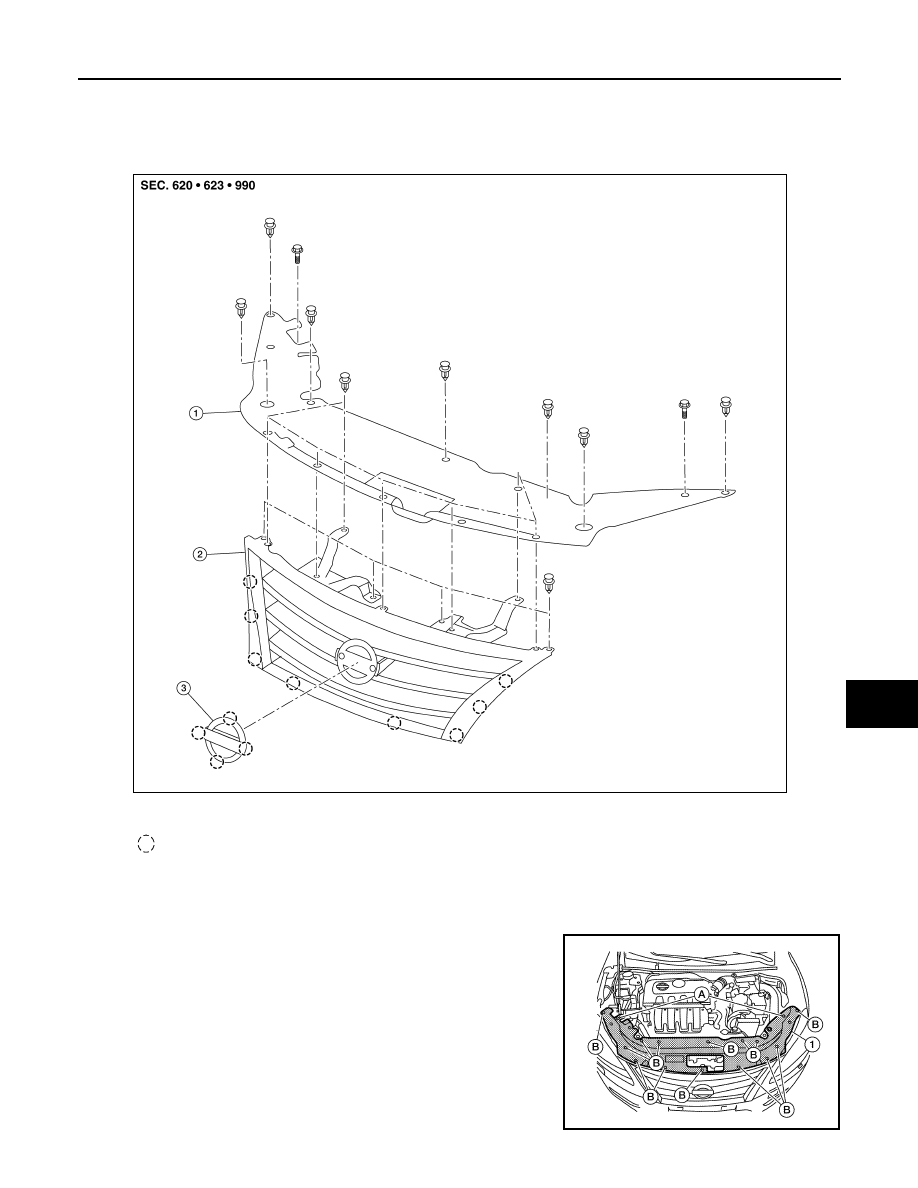

FRONT GRILLE

Exploded View

INFOID:0000000009758036

Removal and Installation

INFOID:0000000009758037

REMOVAL

1. Remove core support cover bolts (A), clips (B) and core support

cover (1).

1. Core support cover

2. Front grille

3. Emblem

Pawl

AWKIA2112ZZ

AWKIA2113ZZ
