EXT-16

< REMOVAL AND INSTALLATION >

FRONT BUMPER

REMOVAL AND INSTALLATION

FRONT BUMPER

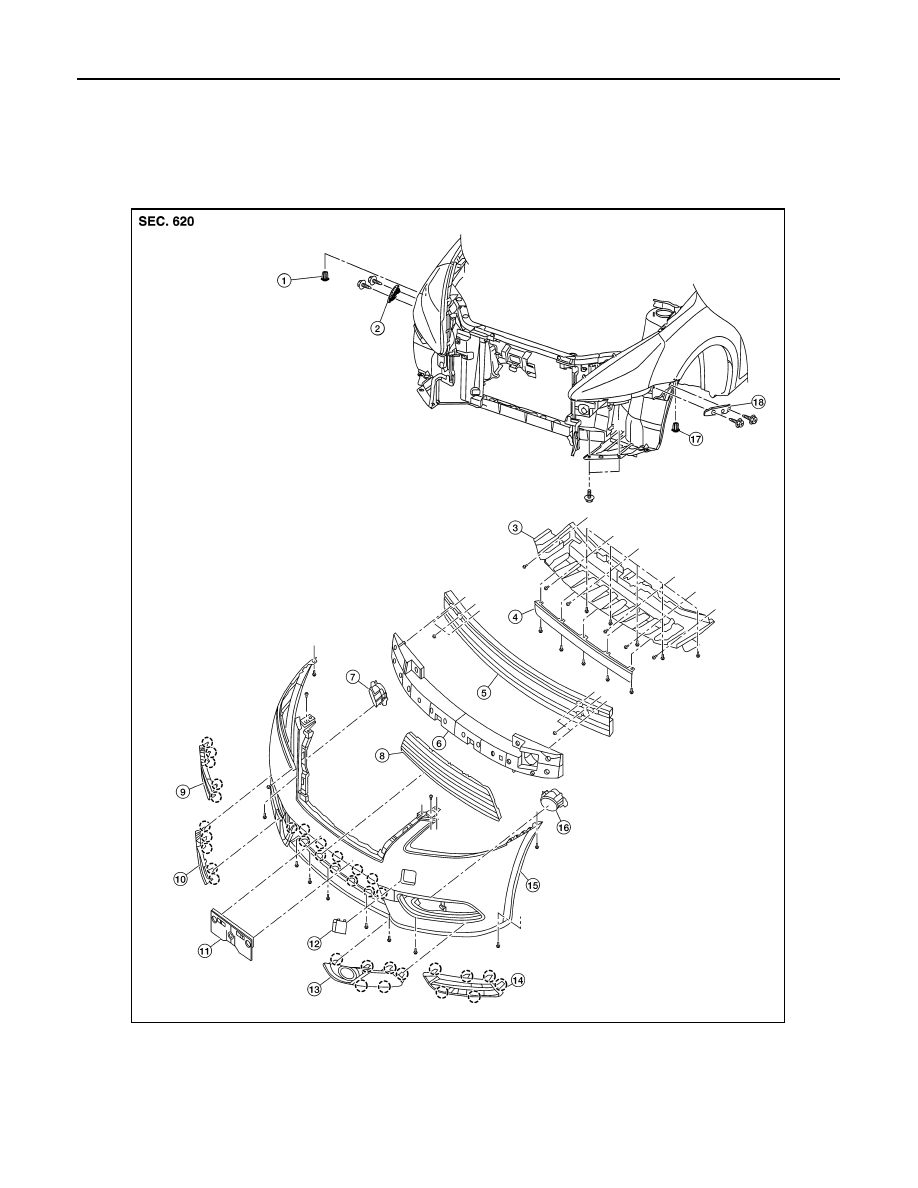

Exploded View

INFOID:0000000009758032

1.

Grommet

2.

Front bumper side bracket (RH)

3.

Front under cover

4.

Front air spoiler

5.

Front bumper reinforcement

6.

Front energy absorber

7.

Front fog lamp (RH) (if equipped)

8.

Front bumper lower grille

9.

Front bumper fascia finisher (RH)
(if equipped)

AWKIA2104ZZ

FRONT BUMPER

EXT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

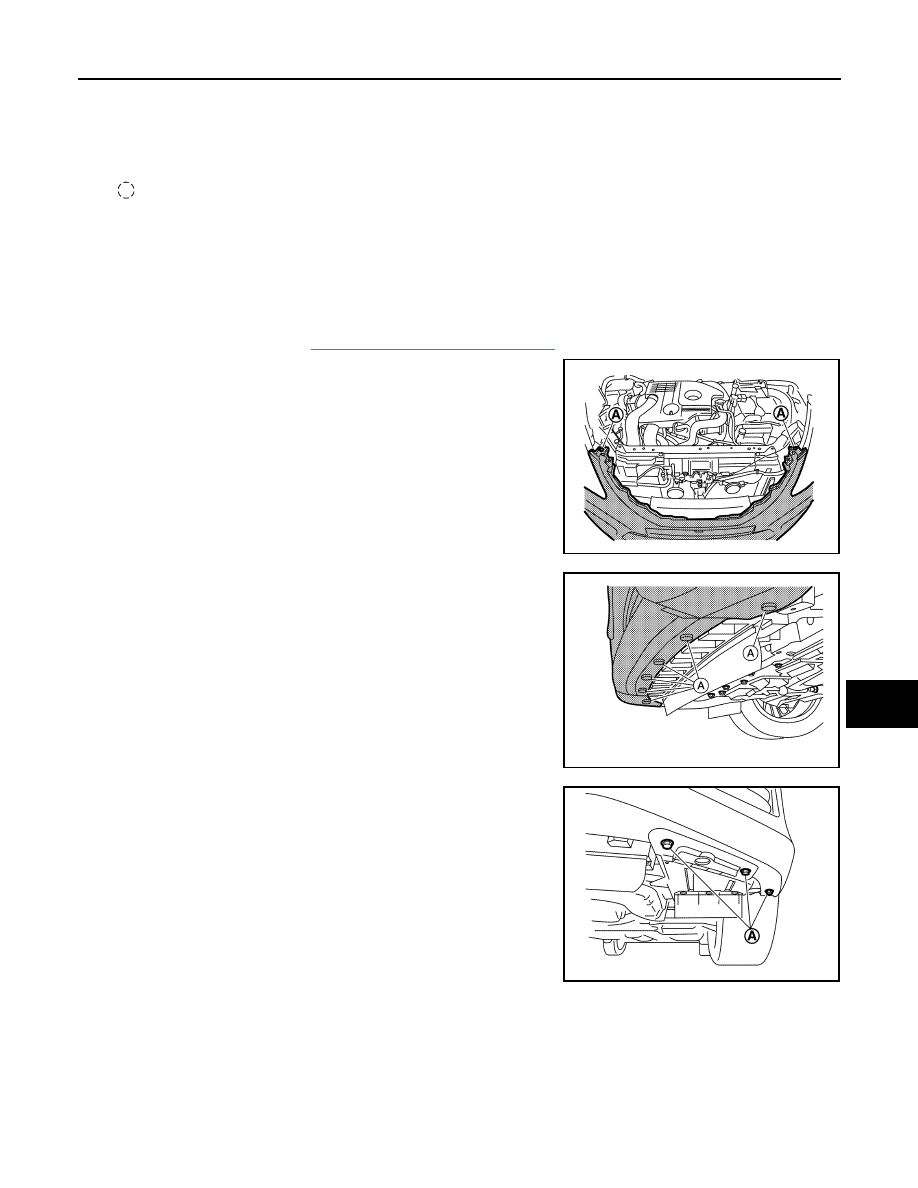

Removal and Installation

INFOID:0000000009758033

CAUTION:

Bumper fascia is made of resin. Use care when handling to prevent damage. Avoid contact with oily

substances.

REMOVAL

1. Remove front grille. Refer to

EXT-23, "Removal and Installation"

.

2. Remove front bumper fascia clips (A) from front bumper fascia

upper side.

3. Remove front bumper fascia clips (A) from front bumper fascia

lower side.

4. Remove fender protector bolts (A) (LH/RH).

10. Front fog lamp finisher (RH) (if

equipped)

11. License plate bracket

12. Tow cover

13. Front fog lamp finisher (LH) (if

equipped)

14. Front bumper fascia finisher (LH)

(if equipped)

15. Front bumper fascia

16. Front fog lamp (LH) (if equipped)

17. Grommet

18. Front bumper side bracket (LH)

Pawl

JMKIA8445ZZ

AWKIA2105ZZ

JMKIA8446ZZ

EXT-18

< REMOVAL AND INSTALLATION >

FRONT BUMPER

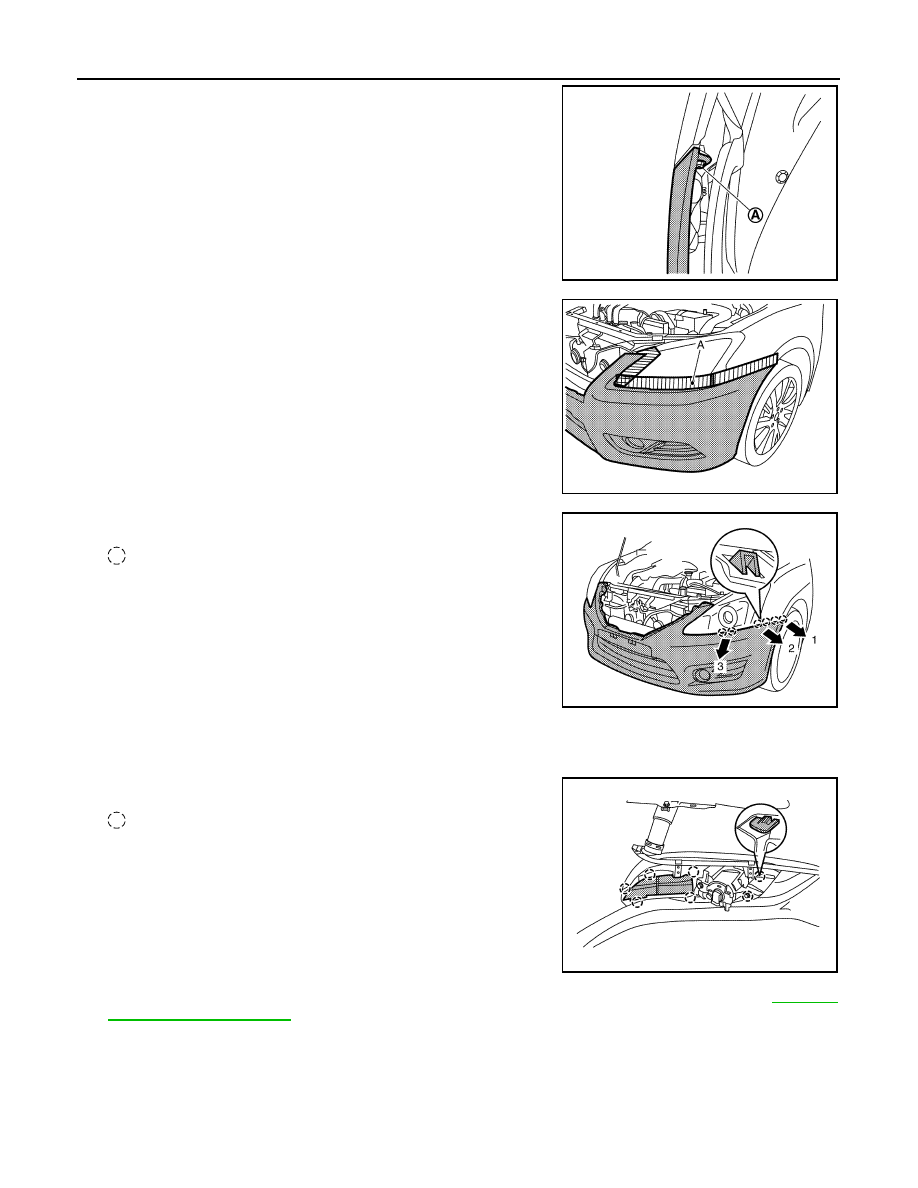

5. Remove front bumper fascia screws (A) (LH/RH).

6. Apply protective tape (A) to protect the component from damage

on each side as shown.

7. Release the front bumper fascia to release from the front

bumper fascia side bracket on each side (LH/RH) as shown.

: Pawl

CAUTION:

When removing front bumper fascia two people are required to

avoid damaging.

8. Disconnect the harness connectors from the front fog lamps (if equipped).
9. Remove the front bumper fascia.
10. Release front fog lamp finisher pawls, then remove front fog

lamp finishers (LH/RH).

: Pawl

11. Remove the front fog lamp assemblies (LH/RH) (if equipped) from front bumper fascia. Refer to

EXL-122,

"Removal and Installation"

.

12. Remove front bumper energy absorber.
13. Remove front bumper reinforcement nuts and the front bumper reinforcement.
14. Remove front bumper side bracket screws and the front bumper side brackets (LH/RH).
15. Remove front under cover bolts, clips and front under cover.

INSTALLATION

JMKIA8449ZZ

JMKIB0220ZZ

AWKIA2107ZZ

AWKIA2108ZZ

FRONT BUMPER

EXT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

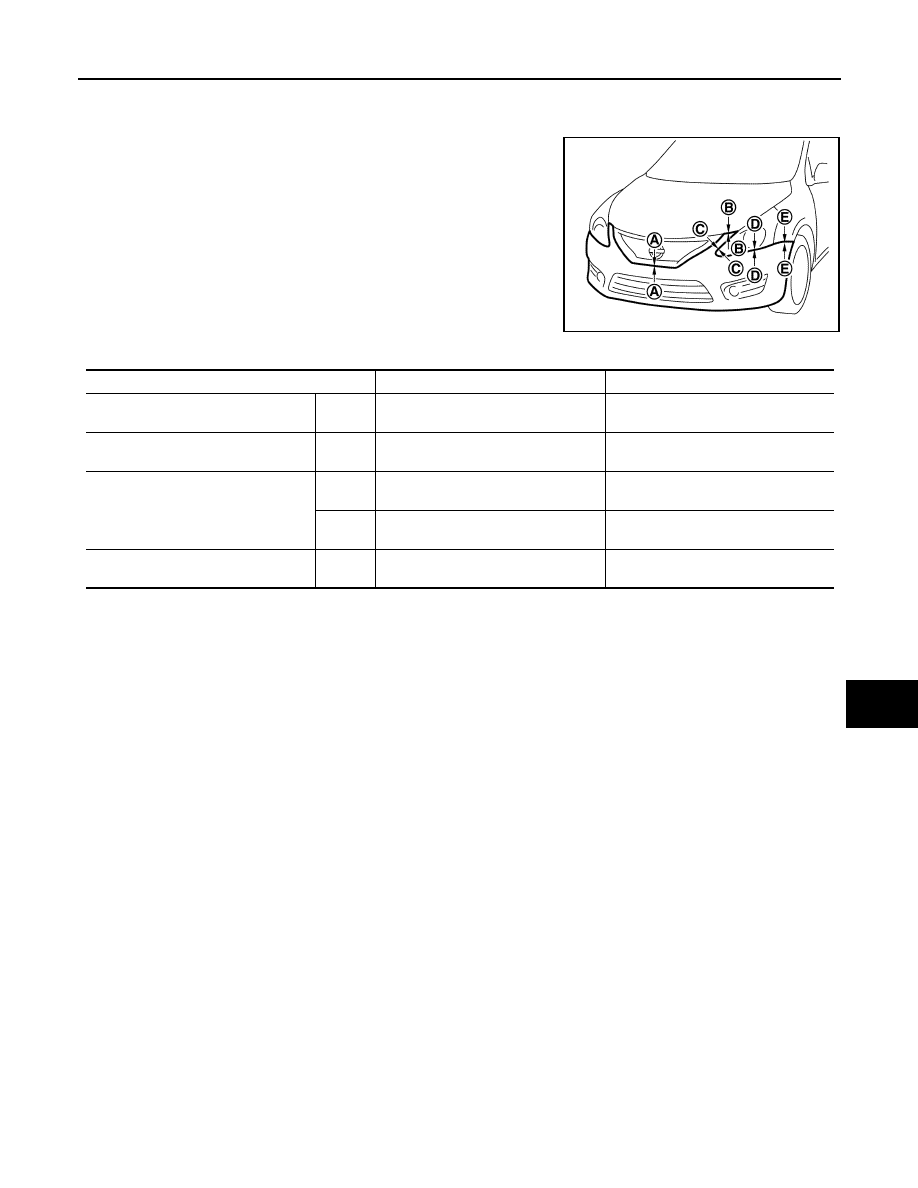

Installation is in the reverse order of removal.

NOTE:

• The following table shows the specified values for checking normal installation status.

• Fitting adjustment cannot be performed.

JMKIA8589ZZ

Portion Clearance

Surface

height

difference

Front bumper fascia– Front grille

A-A

0.4 – 2.8 mm

(0.02 – 0.11 in)

0.0 – 3.4 mm

(0.00 – 0.13 in)

Front bumper fascia – Hood

B-B

4.0 – 8.4 mm

(0.16 – 0.33 in)

—

Front bumper fascia – Front combina-
tion lamp

C-C

0.5 – 2.9 mm

(0.02 – 0.11 in)

—

D-D

1.5 – 3.9 mm

(0.06 – 0.15 in)

—

Front bumper fascia – Front fender

E-E

0.0 – 1.0 mm

(0.00 –0.04 in)

(

−0.3) – (+1.7) mm

[(

−0.01) – (+0.07) in]
