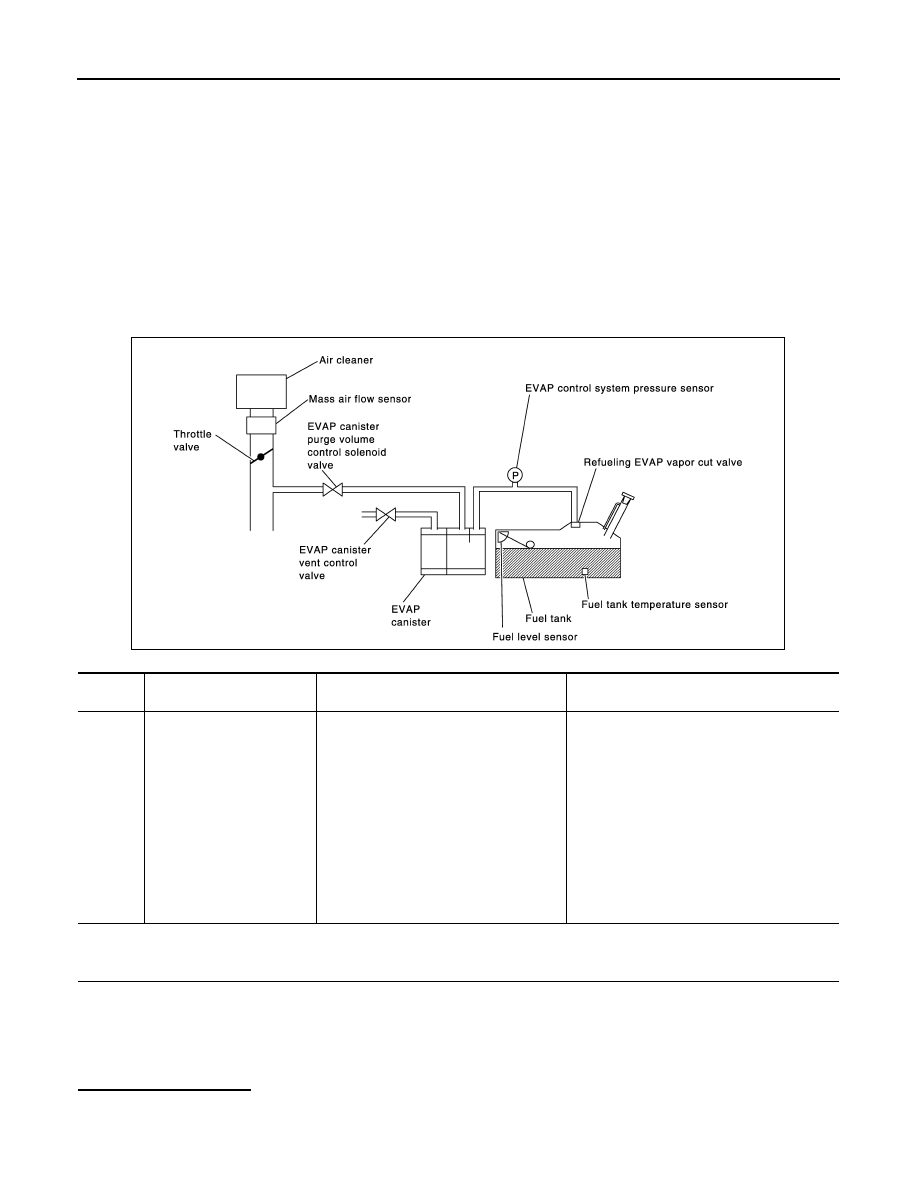

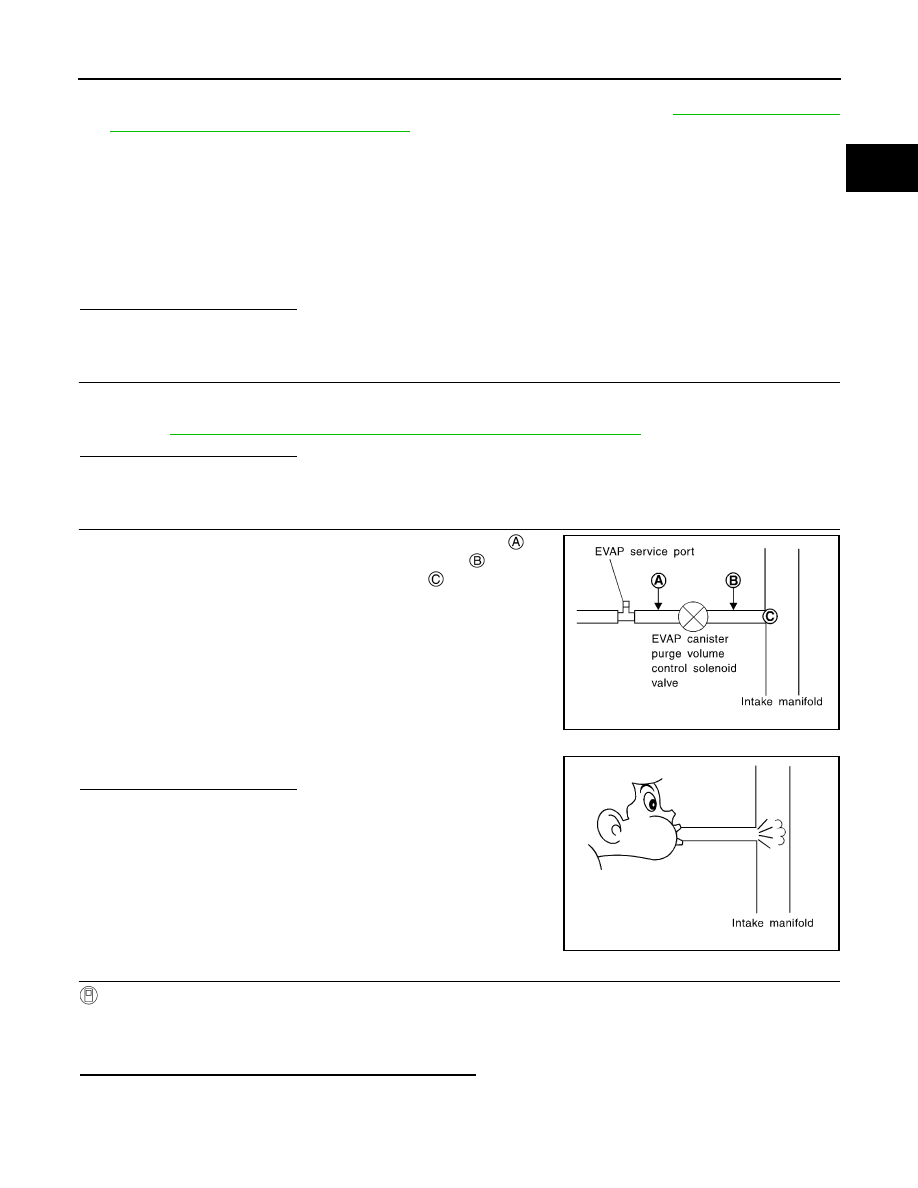

EC-288 < DTC/CIRCUIT DIAGNOSIS > [MRA8DE] P0441 EVAP CONTROL SYSTEM P0441 EVAP CONTROL SYSTEM DTC Logic INFOID:0000000009758533 DTC DETECTION LOGIC NOTE: If DTC P0441 is displayed with other DTC such as P2122, P2123, P2127, P2128 or P2138, first perform trouble diagnosis for other DTC. In this evaporative emission (EVAP) control system, purge flow occurs during non-closed throttle conditions. Purge volume is related to air intake volume. Under normal purge conditions (non-closed throttle), the EVAP canister purge volume control solenoid valve is open to admit purge flow. Purge flow exposes the EVAP con- trol system pressure sensor to intake manifold vacuum. Under normal conditions (non-closed throttle), sensor output voltage indicates if pressure drop and purge flow are adequate. If not, a malfunction is determined. DTC CONFIRMATION PROCEDURE 1. PRECONDITIONING If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test. 1. Turn ignition switch OFF and wait at least 10 seconds. 2. Turn ignition switch ON. 3. Turn ignition switch OFF and wait at least 10 seconds. YES >> GO TO 2. NO >> GO TO 5. JSBIA0416GB DTC No. CONSULT screen terms (Trouble diagnosis content) DTC detecting condition Possible cause P0441 EVAP PURG FLOW/MON EVAP control system does not operate • EVAP canister purge volume control sole- noid valve stuck closed • EVAP control system pressure sensor and the circuit • Loose, disconnected or improper connection of rubber tube • Blocked rubber tube noid valve circuit • Accelerator pedal position sensor |
