[SPORT MODE (CVT)]

SPORT MODE

ECU DIAGNOSIS INFORMATION

SPORT MODE

List of ECU Reference

INFOID:0000000009755940

ECU

Reference

TCM

TM-114, "Reference Value"

TM-122, "Fail-Safe"

TM-125, "DTC Inspection Priority Chart"

TM-126, "DTC Index"

ECM

EC-77, "Reference Value"

EC-90, "Fail Safe"

EC-93, "DTC Inspection Priority Chart"

EC-94, "DTC Index"

Combination meter

MWI-20, "Reference Value"

MWI-25, "Fail-Safe"

MWI-26, "DTC Index"

DMS

SPORT MODE SYSTEM

DMS-65

< WIRING DIAGRAM >

[SPORT MODE (CVT)]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

WIRING DIAGRAM

SPORT MODE SYSTEM

Wiring Diagram

INFOID:0000000010287570

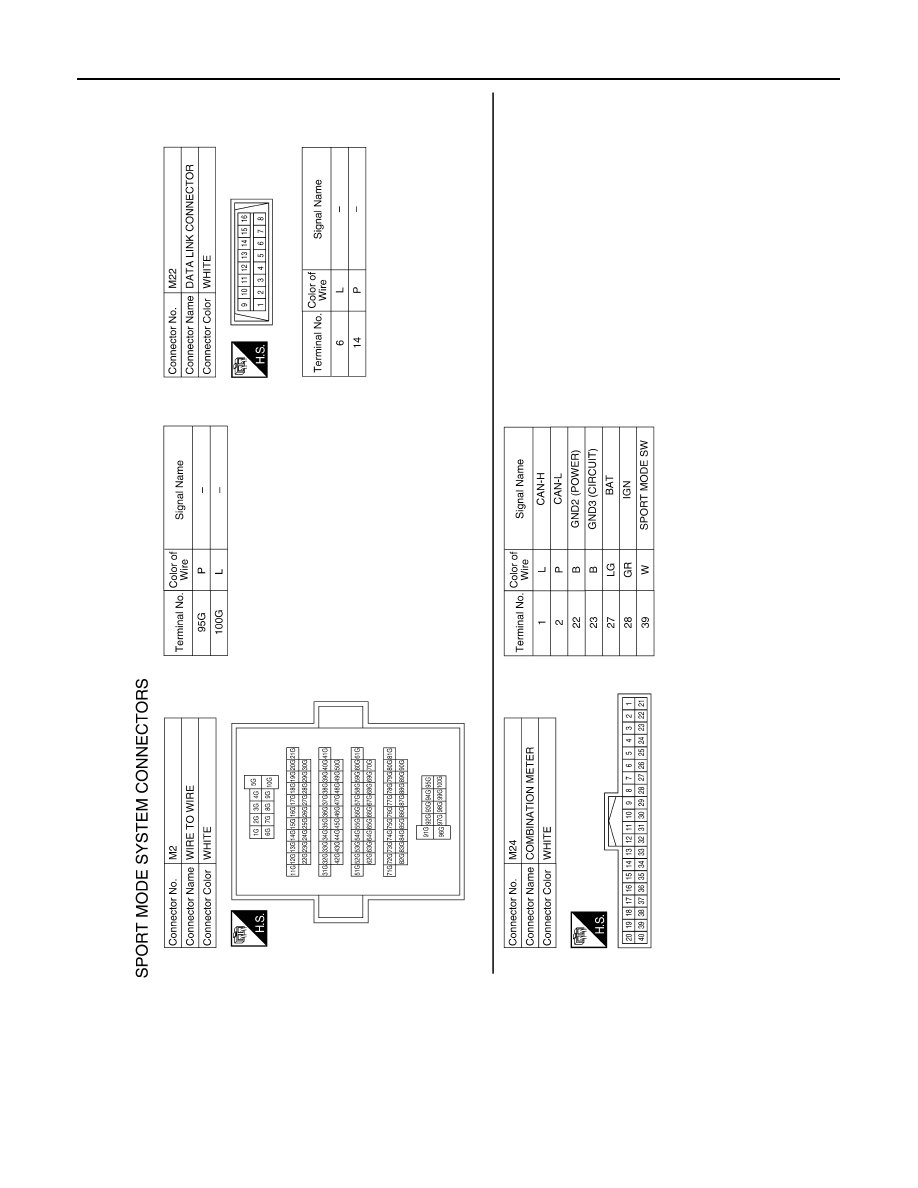

ABOWA0047GB

DMS-66

< WIRING DIAGRAM >

[SPORT MODE (CVT)]

SPORT MODE SYSTEM

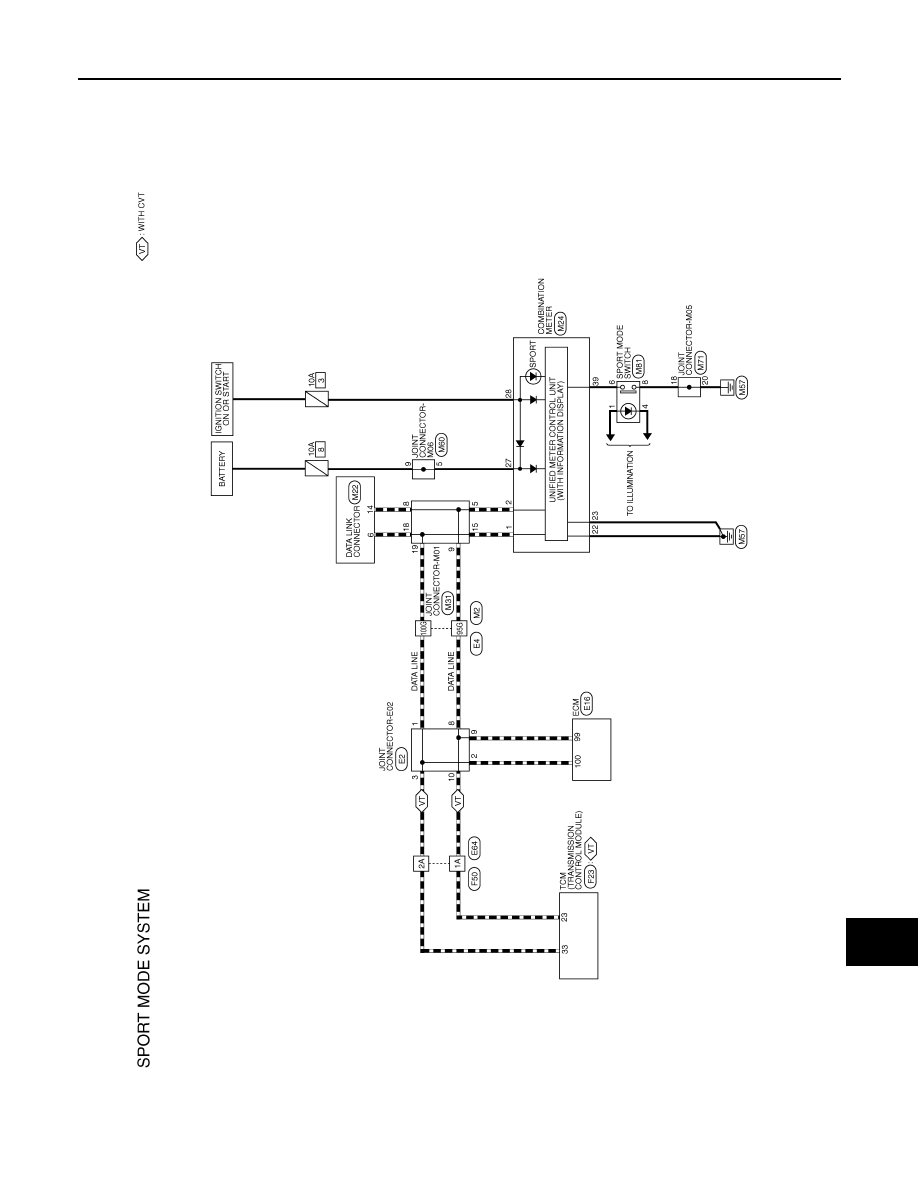

AAOIA0063GB

DMS

SPORT MODE SYSTEM

DMS-67

< WIRING DIAGRAM >

[SPORT MODE (CVT)]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

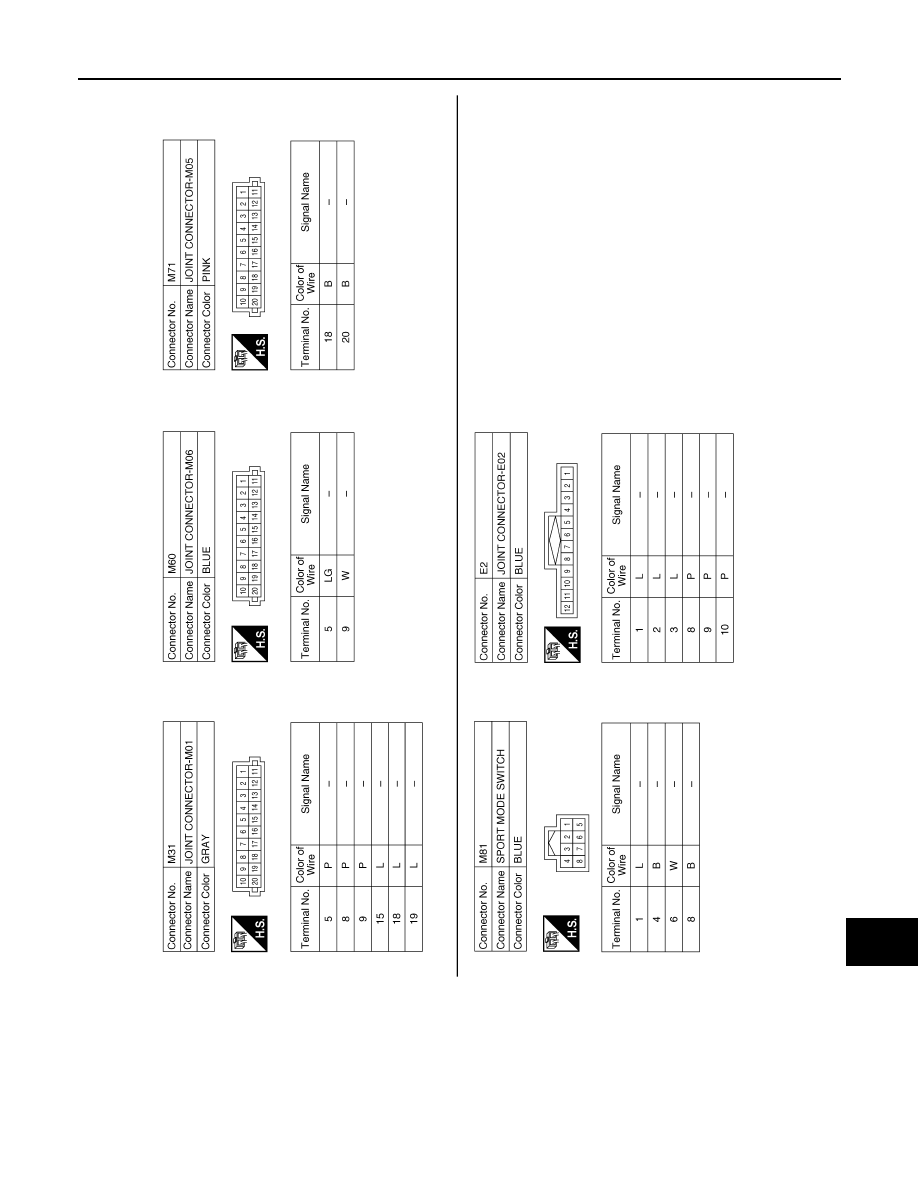

ABOIA0171GB
