DMS-60

< SYSTEM DESCRIPTION >

[SPORT MODE (CVT)]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

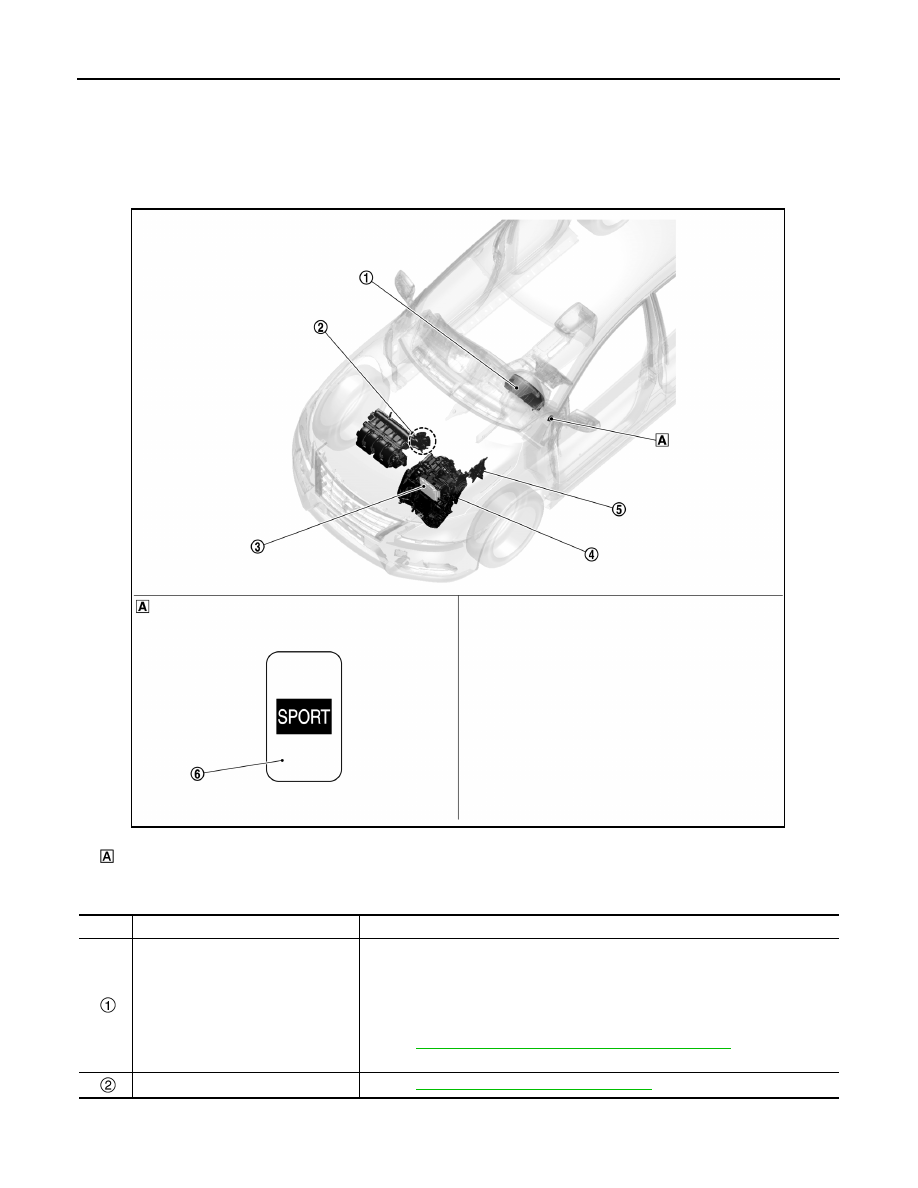

Component Parts Location

INFOID:0000000009755936

COMPONENT DESCRIPTION

Instrument lower finisher

JSOIA0680ZZ

No.

Component

Function

Combination meter

• The combination meter transmittes the following signal via CAN communications

to the TCM.

- SPORT mode switch signal
• The combination meter receives the following signal via CAN communications

from the ECM.

- SPORT mode indicator signal
Refer to

MWI-5, "METER SYSTEM : Component Parts Location"

 for detailed instal-

lation location.

Electric throttle control actuator

Refer to

EC-22, "Electric Throttle Control Actuator"

.

DMS

COMPONENT PARTS

DMS-61

< SYSTEM DESCRIPTION >

[SPORT MODE (CVT)]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

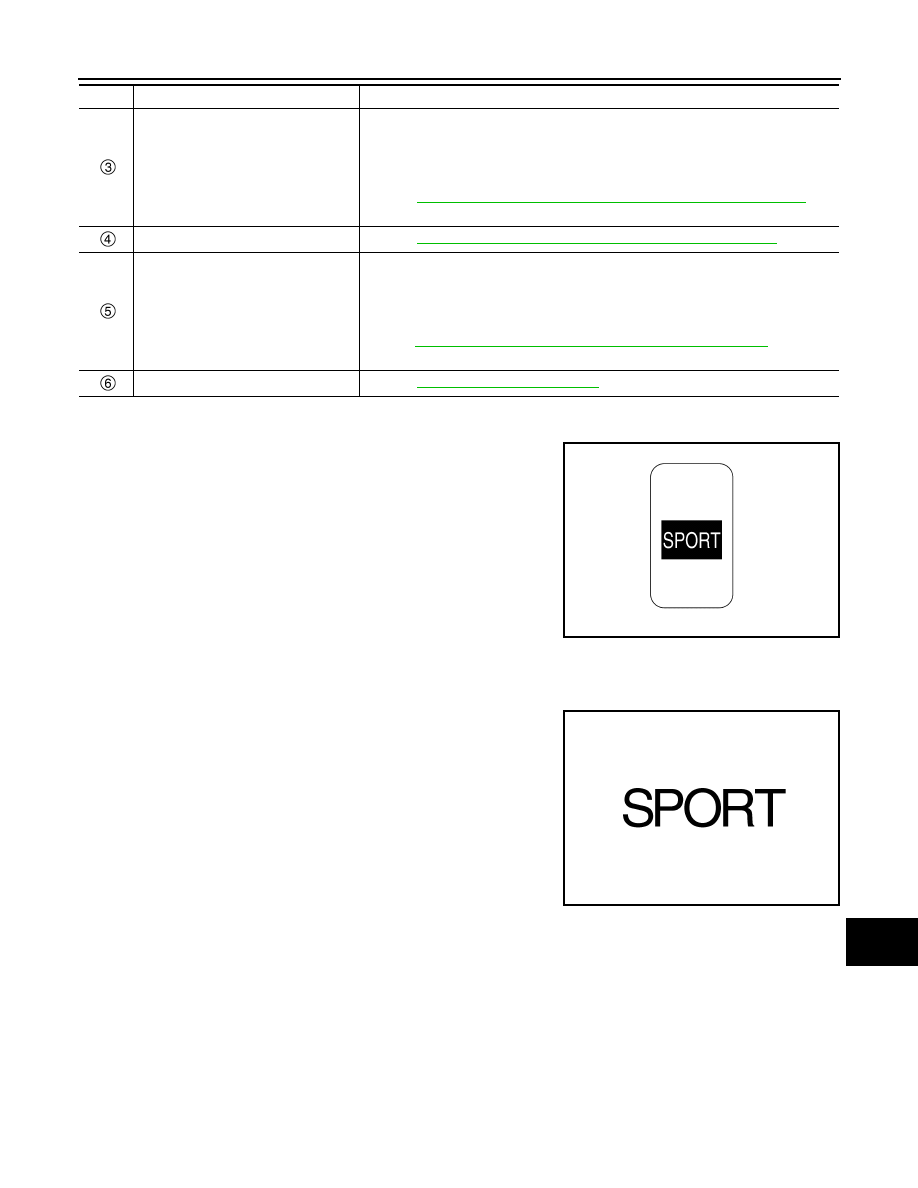

SPORT Mode Switch

INFOID:0000000009755937

• The SPORT mode switch is installed to the instrument lower fin-

isher.

• When the SPORT mode indicator lamp on the combination meter

is OFF and the SPORT mode switch is pressed, the SPORT mode

is active and the SPORT mode indicator lamp is ON.

• When the SPORT mode indicator lamp on the combination meter

is ON and the SPORT mode switch is pressed, the SPORT mode

is cancelled and the SPORT mode indicator lamp is OFF.

SPORT Mode Indicator Lamp

INFOID:0000000009755938

DESIGN/PURPOSE

The SPORT mode indicator lamp inform the driver that the vehicle is

in SPORT mode.

BULB CHECK

Not applicable

SIGNAL PATH

• TCM receives SPORT mode switch signal (ON/OFF) from combination meter via CAN communication.

Based on the signal, TCM transmits SPORT mode signal to ECM via CAN communication.

• ECM transmits SPORT mode indicator signal to combination meter via CAN communication. Based on the

signal, combination meter illuminates SPORT mode indicator lamp.

LIGHTING CONDITION

When all of the following conditions are satisfied.

• Ignition switch: ON

• The SPORT mode switch is pressed when the SPORT mode indicator lamp is OFF

ECM

• The ECM receives the following signal via CAN communications from the TCM.
- SPORT mode signal
• The ECM transmittes the following signal via CAN communications to the combi-

nation meter.

- SPORT mode indicator signal
Refer to

EC-15, "ENGINE CONTROL SYSTEM : Component Parts Location"

 for

detailed installation location.

Transaxle assembly

Refer to

TM-73, "CVT CONTROL SYSTEM : Component Parts Location"

.

TCM

• The TCM receives the following signal via CAN communications from the combi-

nation meter.

- SPORT mode switch signal
• The TCM transmittes the following signal via CAN communications to the ECM.
- SPORT mode signal
Refer to

TM-73, "CVT CONTROL SYSTEM : Component Parts Location"

 for detailed

installation location.

SPORT mode switch

Refer to

DMS-61, "SPORT Mode Switch"

.

No.

Component

Function

JSOIA0686ZZ

JPNIA1895ZZ

DMS-62

< SYSTEM DESCRIPTION >

[SPORT MODE (CVT)]

COMPONENT PARTS

SHUTOFF CONDITION

When any of the condition listed below is satisfied.

• Ignition switch: Other than ON

• The SPORT mode switch is pressed when the SPORT mode indicator lamp is ON.

• The ECO mode switch is pressded when the SPORT mode indicator lamp is ON.

DMS

SYSTEM

DMS-63

< SYSTEM DESCRIPTION >

[SPORT MODE (CVT)]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

SYSTEM

SPORT MODE CONTROL
SPORT MODE CONTROL : System Description

INFOID:0000000009755939

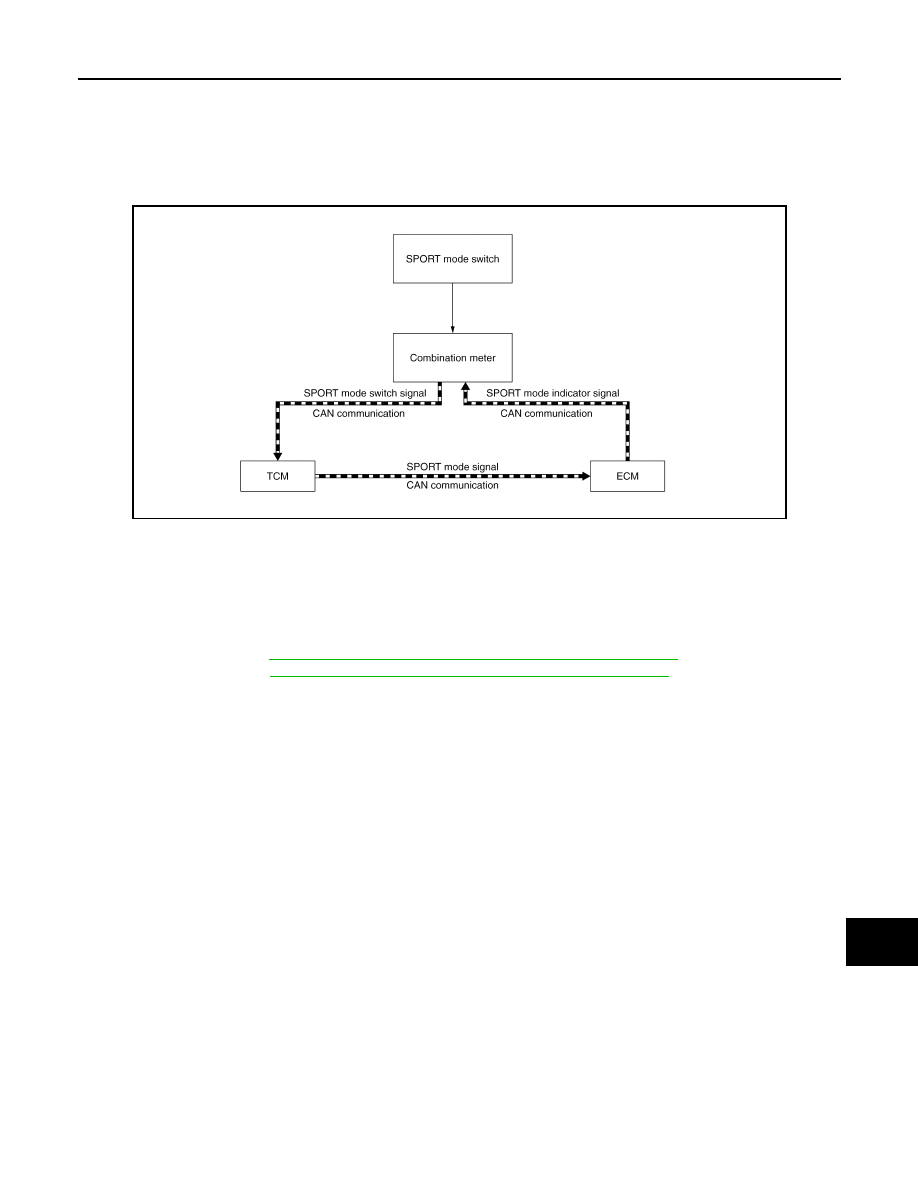

SYSTEM DIAGRAM

SYSTEM DISCRIPTION

• TCM receive SPORT mode switch signal (ON/OFF) from combination meter via CAN communication. TCM

transmit SPORT mode signal to ECM via CAN communication according to the signal.

• ECM transmit SPORT mode indicator signal to combination meter via CAN communication. Combination

meter illuminates SPORT mode indicator lamp according to the signal.

Each ECU Control

• For TCM control, refer to

TM-104, "SPORT MODE CONTROL : System Description"

.

• For ECM control, refer to

EC-53, "SPORT MODE CONTROL : System Description"

.

JSOIA0681GB
