DLK-336

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

TRUNK LID

Installation is in the reverse order of removal.

CAUTION:

After installation, perform the trunk lid assembly adjustment procedure. Refer to

DLK-332, "TRUNK

LID ASSEMBLY : Adjustment"

.

FUEL FILLER LID OPENER

DLK-337

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

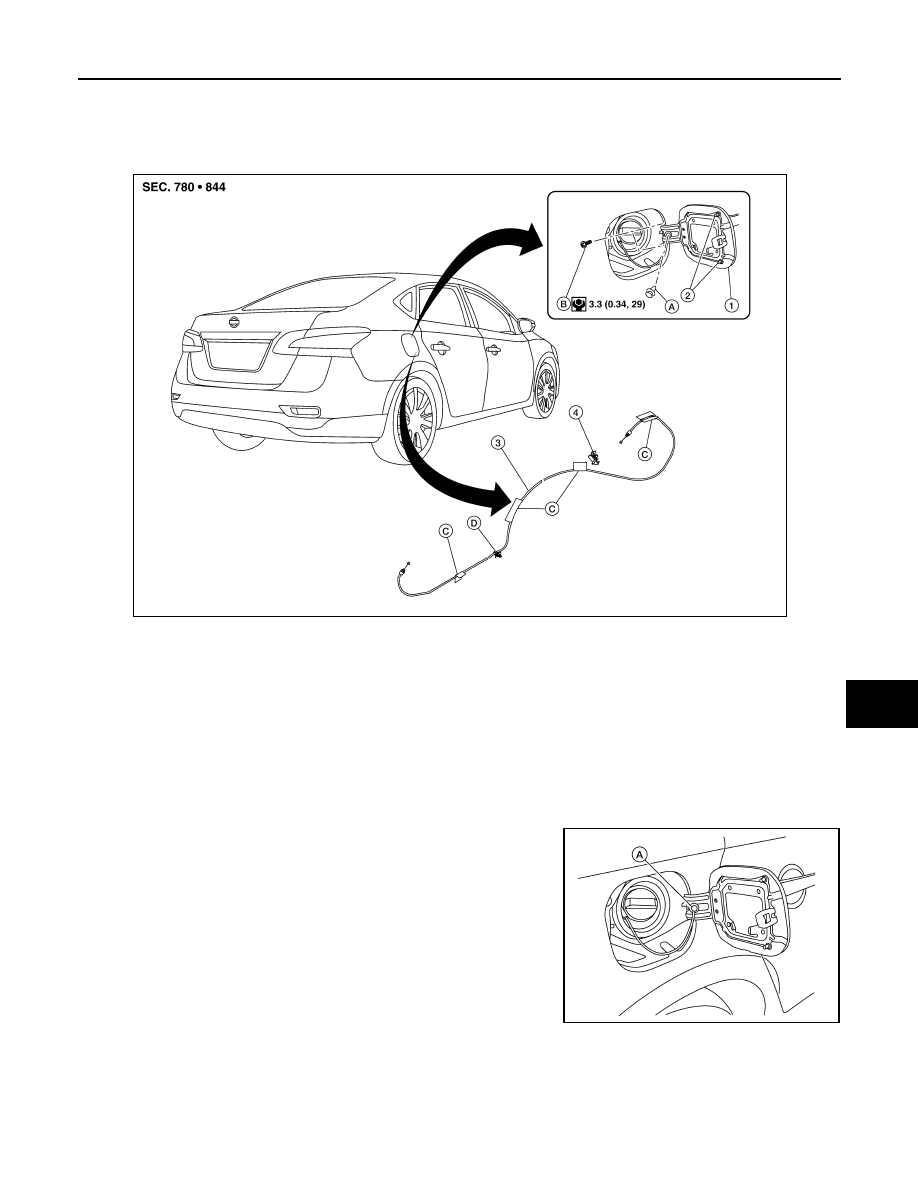

FUEL FILLER LID OPENER

Exploded View

INFOID:0000000009756654

FUEL FILLER LID
FUEL FILLER LID : Removal and Installation

INFOID:0000000009756655

REMOVAL

1. Fully open fuel filler lid.
2. Remove fuel cap clip (A).

1.

Fuel filler lid

2.

Bumper rubber

3.

Fuel filler lid opener cable

4.

Fuel filler lid lock

A.

Clip

B.

Bolts

C.

Cable protector

ALKIA2919ZZ

ALKIA2921ZZ

DLK-338

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

FUEL FILLER LID OPENER

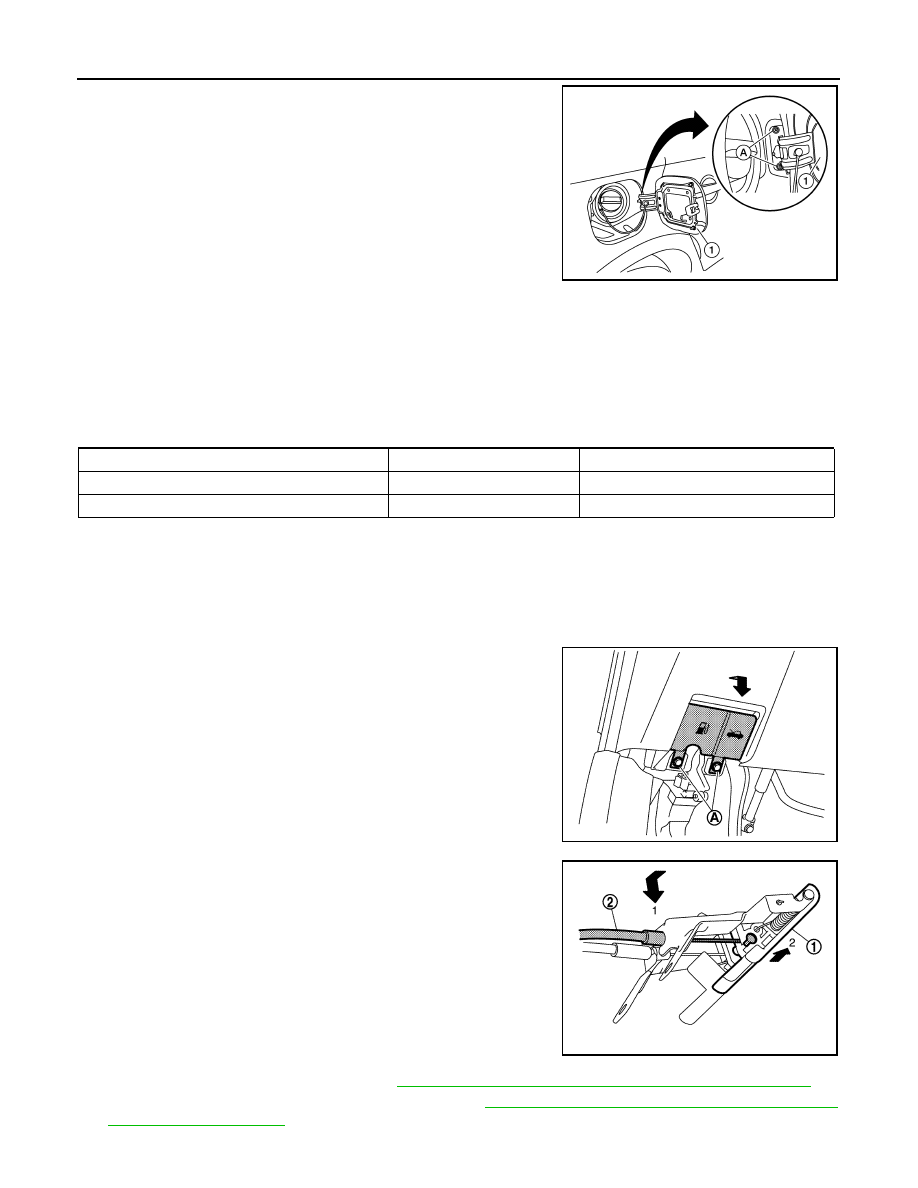

3. Remove fuel filler lid screws (A) and fuel filler lid (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid assembly open/close, lock/unlock operation.

NOTE:

• The following table shows the specifications for a correctly installed fuel filler lid.

• Fitting adjustment cannot be performed.

Unit: mm (in)

FUEL FILLER OPENER CABLE
FUEL FILLER OPENER CABLE : Removal and Installation

INFOID:0000000009756656

REMOVAL

1. Remove hood and fuel filler handle assembly bolts (A).

2. Release fuel filler lid opener cable (2) by pulling downward and

then sliding cable end to the side to remove from hood and fuel

filler handle assembly (1).

3. Remove dash side finisher (LH). Refer to

INT-26, "DASH SIDE FINISHER : Removal and Installation"

.

4. Remove center pillar lower finisher (LH). Refer to

INT-27, "CENTER PILLAR LOWER FINISHER :

Removal and Installation"

.

ALKIA2929ZZ

Portion

Measurement

Standard

Fuel filler lid – Body side outer

Clearance

5.1

±1.0 (0.20 ±0.04)

Fuel filler lid – Body side outer

Surface height

0.0

±1.0 (0.0 ±0.04)

JMKIA7998ZZ

JMKIA7999ZZ

FUEL FILLER LID OPENER

DLK-339

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

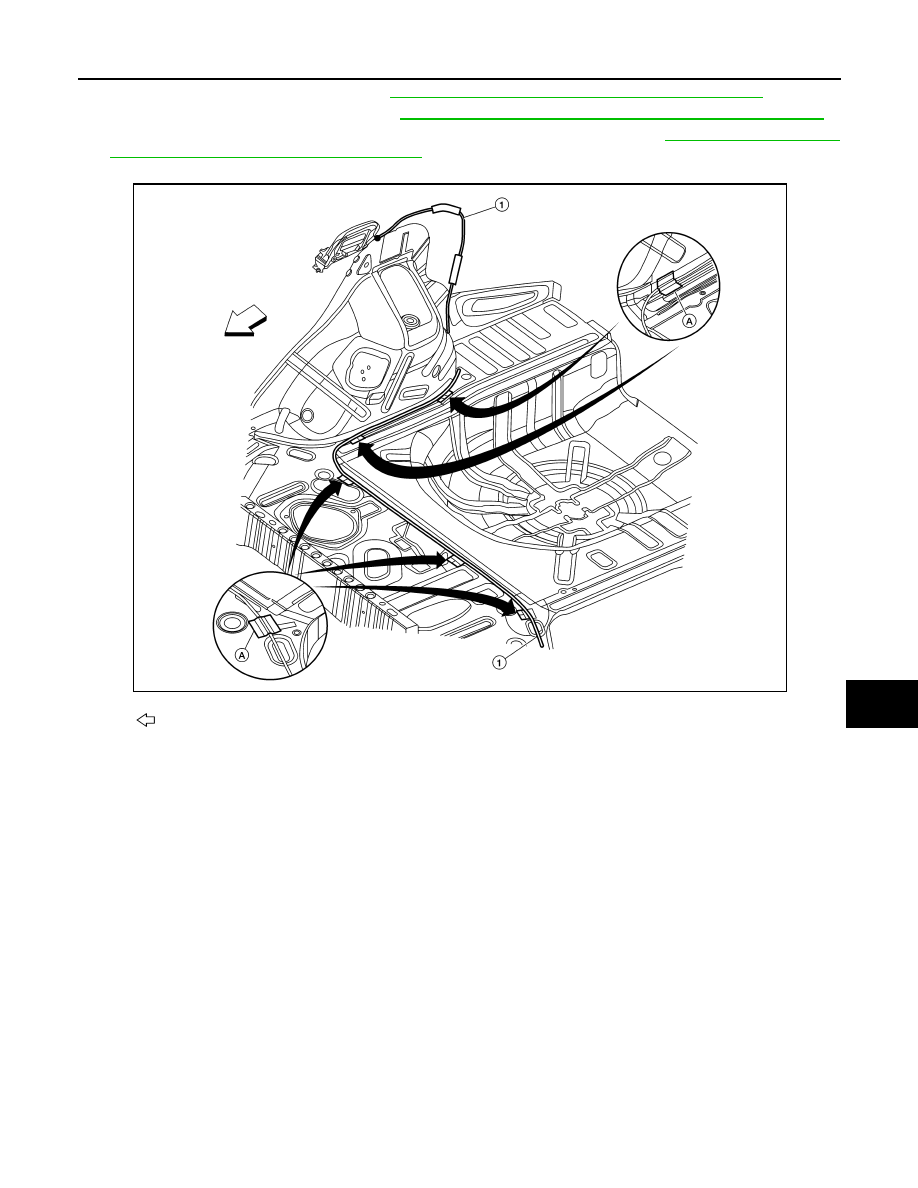

5. Remove rear seat bolster (LH). Refer to

SE-24, "Removal and Installation - Rear Seat Bolster"

.

6. Remove trunk side finisher (LH). Refer to

INT-43, "TRUNK SIDE FINISHER : Removal and Installation"

.

7. Remove fuel filler lid opener cable (1) from fuel filler lid lock assembly. Refer to

DLK-338, "FUEL FILLER

OPENER CABLE : Removal and Installation"

.

8. Remove each cable protector (A), then remove fuel filler lid opener cable (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid assembly open/close, lock/unlock operation.

FUEL FILLER LID LOCK
FUEL FILLER LID LOCK : Removal and Installation

INFOID:0000000009756657

REMOVAL

1. Fully open fuel filler lid.

Front

ALKIA2931ZZ
