Nissan Sentra. Manual - part 303

DLK-328

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DOOR LOCK

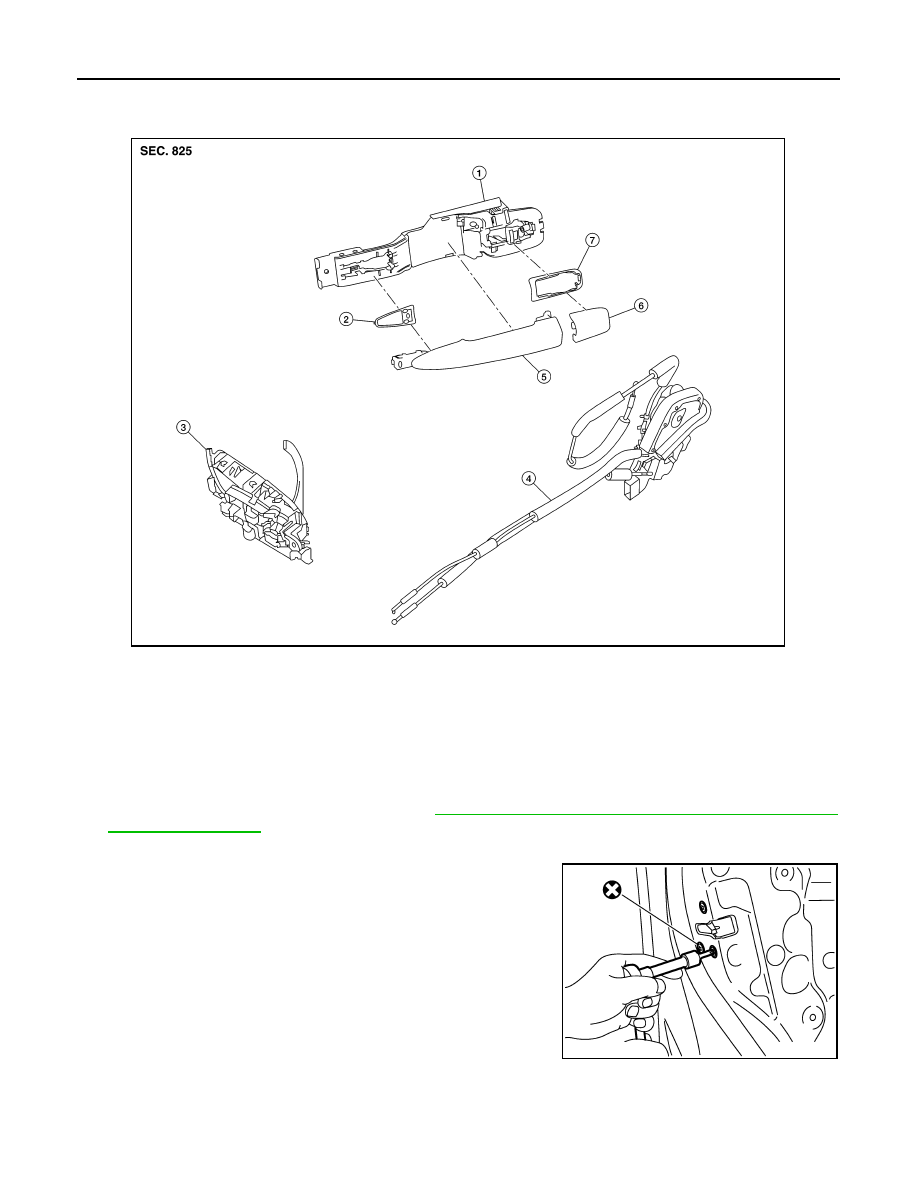

REAR DOOR LOCK : Exploded View

INFOID:0000000009756644

REAR DOOR LOCK : Removal and Installation

INFOID:0000000009756645

REMOVAL

1. Remove the rear door outside handle. Refer to

DLK-176, "REAR DOOR HANDLE : Removal and Installa-

tion - Outside Handle"

.

2. Disconnect the harness connector from the rear door lock actuator.
3. Remove the screws, and the door lock assembly.

INSTALLATION

Installation is in the reverse order of removal.

Tighten rear door lock screws to specified torque.

1.

Outside handle bracket

2.

Front gasket

3.

Inside handle assembly

4.

Door lock assembly

5.

Outside handle

6.

Outside handle escutcheon

7.

Rear gasket

ALKIA2940ZZ

PIIB5812E

DOOR LOCK

DLK-329

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

CAUTION:

• Do not reuse rear door lock assembly screws. Always replace screws with new ones when removed.

• Check rear door lock cables are properly engaged to inside handle and outside handle bracket.

• After installation, check rear door open/close, lock/unlock operation.

• Check rear door lock assembly for poor lubrication. If necessary apply a suitable multi-purpose

grease.

Rear door lock screws:

5.8 N·m (0.59 kg-m, 51 in-lb)

DLK-330

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

TRUNK LID

TRUNK LID

TRUNK LID ASSEMBLY

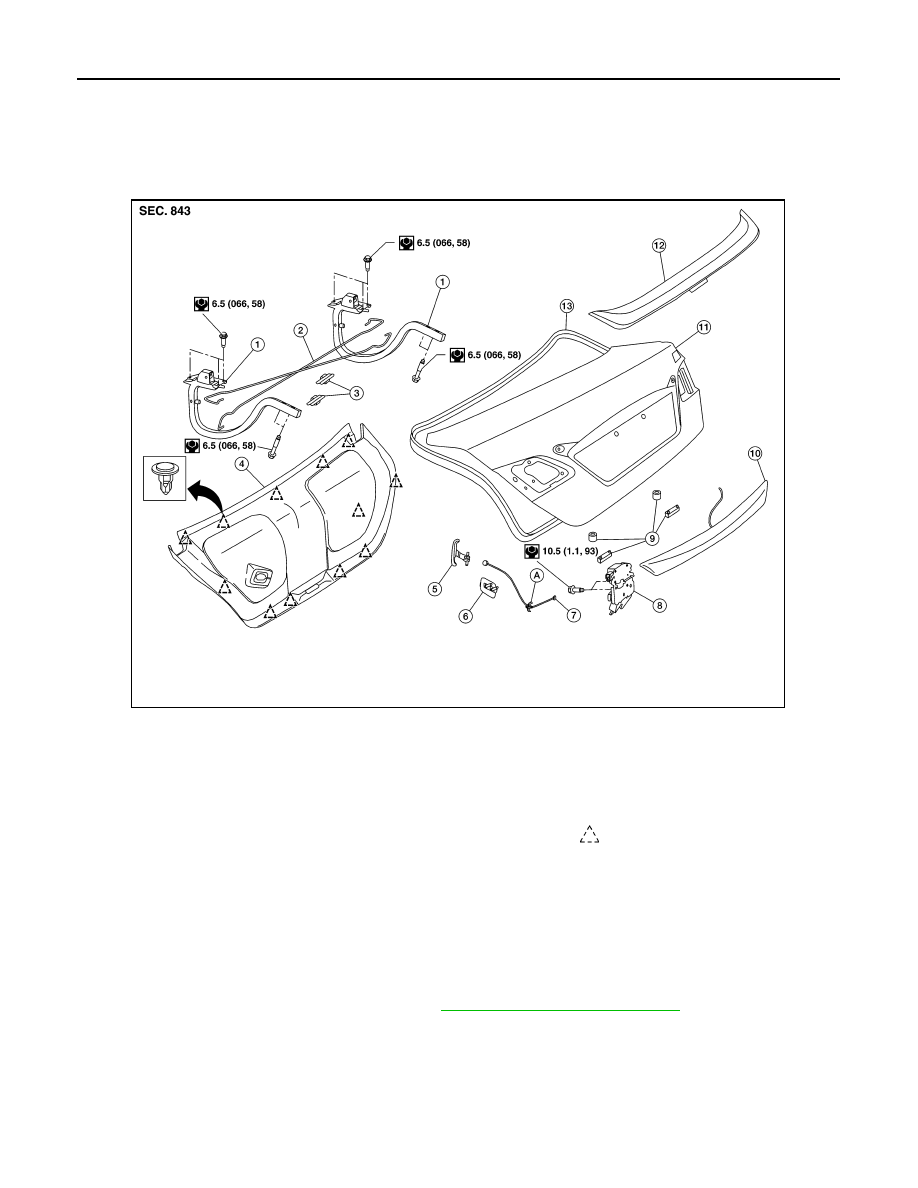

TRUNK LID ASSEMBLY : Exploded View

INFOID:0000000009756646

TRUNK LID ASSEMBLY : Removal and Installation

INFOID:0000000009756647

CAUTION:

• Use two people when removing or installing trunk lid assembly due to its heavy weight.

• Use protective tape or shop cloths to protect surrounding components from damage during removal

and installation of trunk lid assembly.

REMOVAL

1. Remove trunk lid finisher (if equipped). Refer to

INT-45, "Removal and Installation"

.

1.

Trunk lid hinge LH/RH

2.

Torsion bar LH/RH

3.

Torsion bar clips

4.

Trunk lid finisher (if equipped)

5.

Emergency release handle

6.

Emergency release handle clip

7.

Emergency release handle ca-
ble

8.

Trunk lid lock

9.

Trunk lid bumpers

10.

License lamp finisher

11.

Trunk lid

12.

Rear spoiler (if equipped)

13.

Weatherstrip

A.

Clip

Clip

ALKIA2941ZZ

TRUNK LID

DLK-331

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

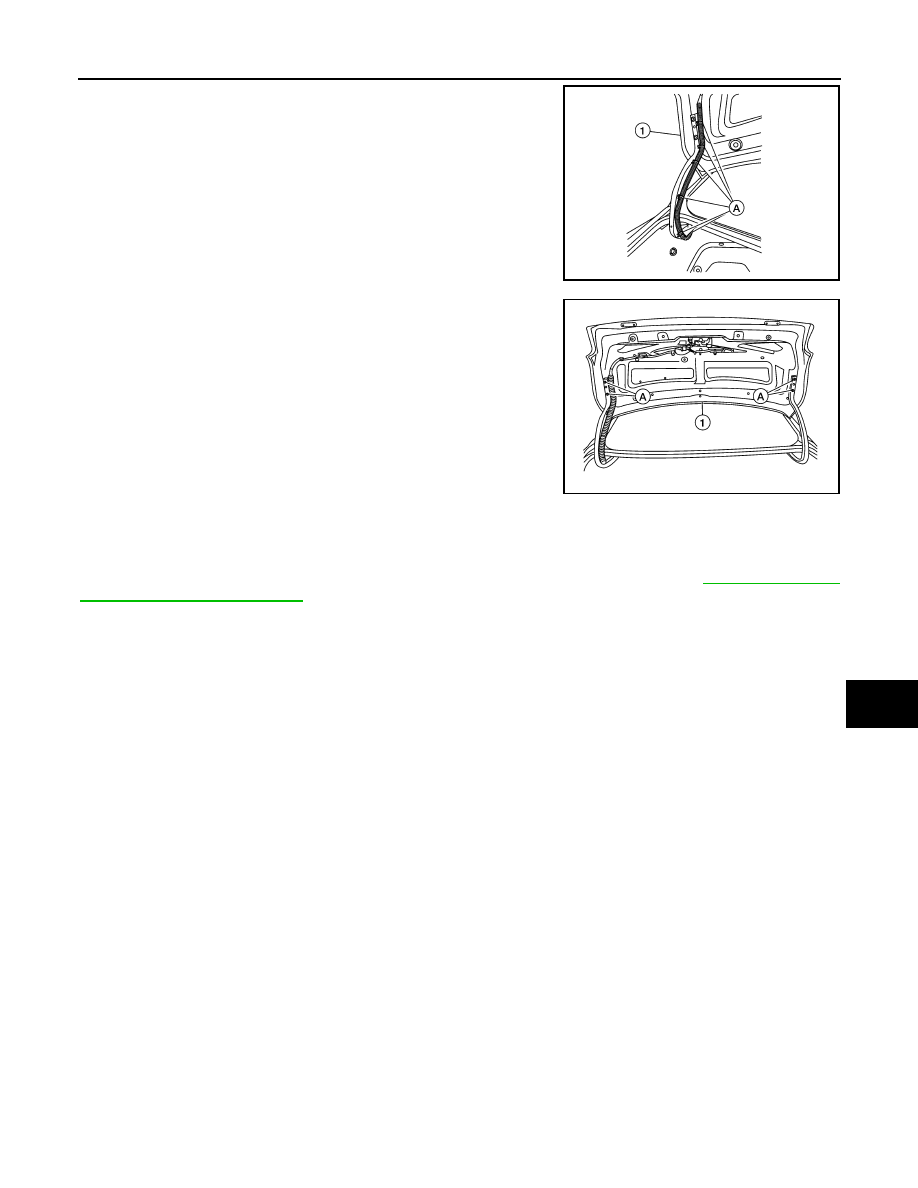

2. Disconnect the harness connectors in the trunk lid assembly (1)

and remove the harness clips (A) then pull out harness from the

trunk lid assembly (1).

3. Remove the bolts (A) and remove the trunk lid assembly (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, perform the trunk lid assembly adjustment procedure. Refer to

DLK-332, "TRUNK

LID ASSEMBLY : Adjustment"

.

ALKIA2733ZZ

ALKIA2734ZZ
