DLK-340

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

FUEL FILLER LID OPENER

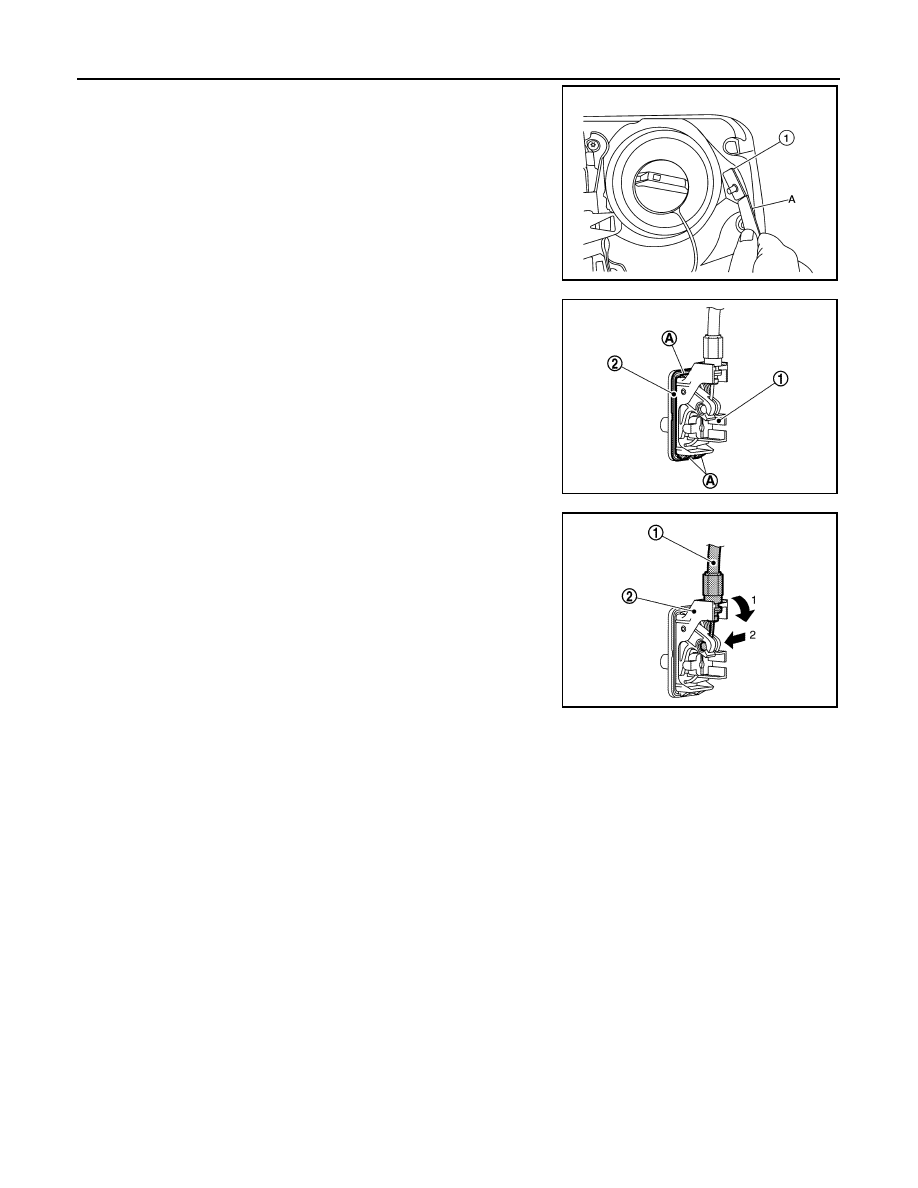

2. Insert a suitable tool (A) as shown into bottom of fuel filler lock

assembly(1).

3. Release upper and lower pawls (A) using a suitable tool and

remove fuel filler lid lock assembly (1).

CAUTION:

Be careful not to damage gasket (2) when removing.

4. Disconnect fuel filler lid opener cable (1) by pulling downward

and then sliding cable end to the side to remove from fuel filler

lid lock assembly (2).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid assembly open/close, lock/unlock operation.

ALKIA2731ZZ

JMKIA8138ZZ

JMKIA8139ZZ

DOOR SWITCH

DLK-341

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR SWITCH

Removal and Installation

INFOID:0000000009756659

REMOVAL

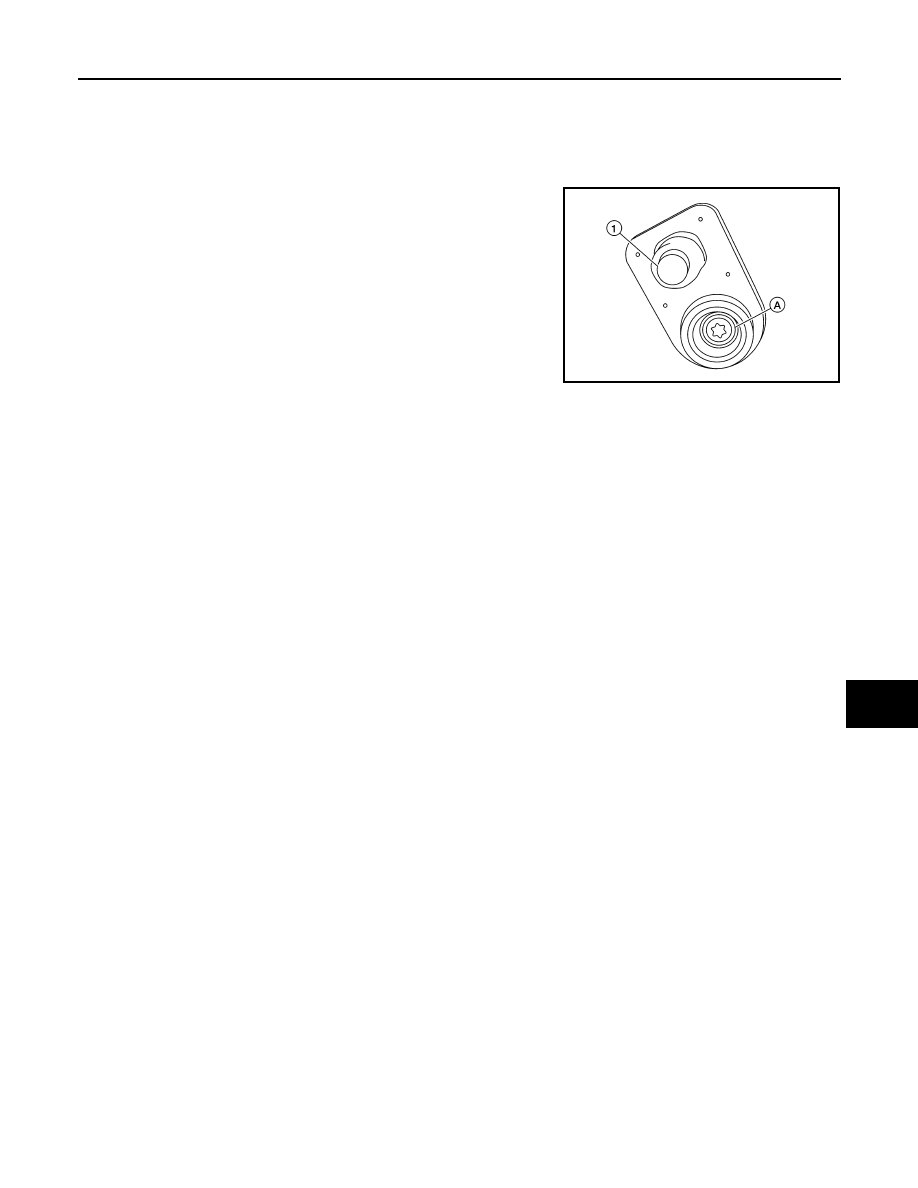

1. Remove the door switch bolt (A).
2. Disconnect the harness connector from the door switch (1) and

remove.

INSTALLATION

Installation is in the reverse order of removal.

ALKIA2509ZZ

ALKIA2930ZZ

DLK-342

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

REMOTE KEYLESS ENTRY RECEIVER

REMOTE KEYLESS ENTRY RECEIVER

Removal and Installation

INFOID:0000000009756660

REMOVAL

1. Remove glove box assembly. Refer to

IP-22, "Removal and Installation"

.

2. Disconnect the harness connector from the remote keyless entry receiver.
3. Remove the screw and remote keyless entry receiver.

INSTALLATION

Installation is in the reverse order or removal.

KEYFOB BATTERY

DLK-343

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

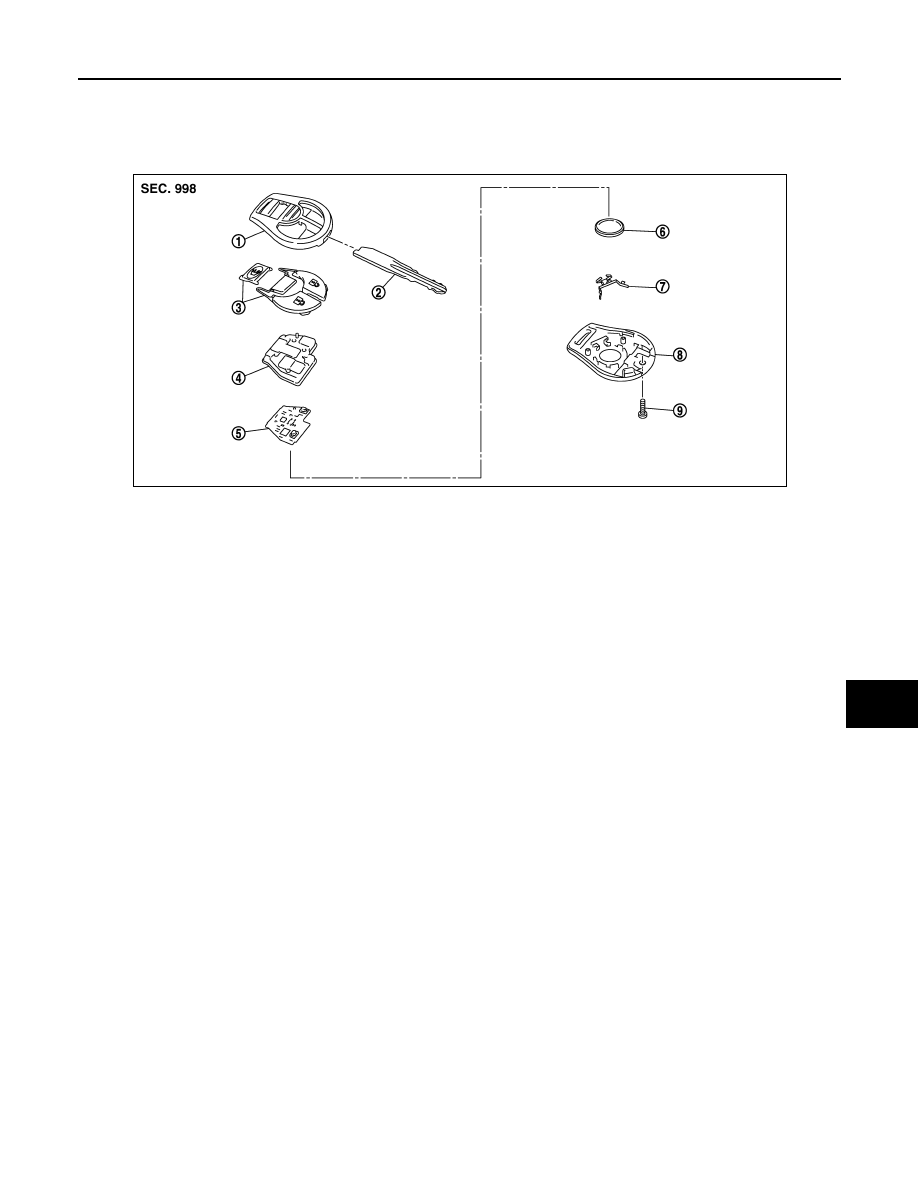

KEYFOB BATTERY

Exploded View

INFOID:0000000009756661

Removal and Installation

INFOID:0000000009756662

REMOVAL

1. Remove the keyfob screw.
2. Seperate the upper and lower case using a suitable tool.

CAUTION:

• Do not touch the circuit board or battery terminal.

• The keyfob is water-resistant. However, if it does get wet, immediately wipe it dry.

3. Remove the circuit board from the upper case.

CAUTION:

Do not touch the printed circuits directly.

4. Remove the keyfob battery from the upper case.

CAUTION:

• When replacing battery, keep dirt, grease, and other foreign materials off the electrode contact

area.

• After replacing the battery, Be sure to check that door locking operates normally using the key-

fob.

INSTALLATION

Installation is in the reverse order of removal.

1.

Upper case

2.

Key

3.

Switch cover

4.

Switch rubber

5.

Board surface

6.

Battery

7.

Plate

8.

Lower case

9.

Screw

JMKIA1442ZZ

Battery replacement

: Coin-type lithium battery (CR1620)
