AV-416

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

USB CONNECTOR AND AUX JACK

USB CONNECTOR AND AUX JACK

Removal and Installation

INFOID:0000000009759075

Removal

1. Remove the center console rear finisher cover. Refer to

TM-253, "Exploded View"

.

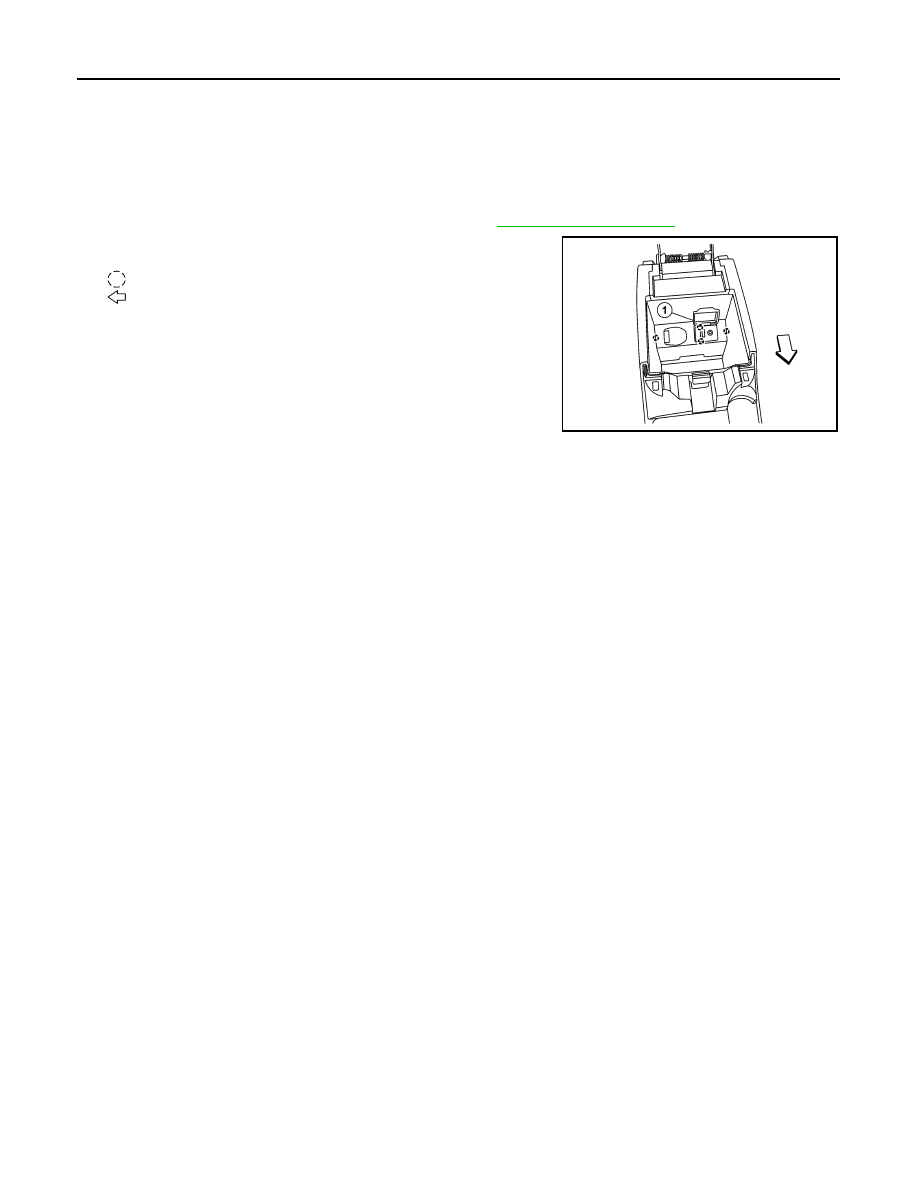

2. Release the pawls and remove the USB connector and aux jack

(1) from the center console rear finisher cover.

: Pawl

: Front

Installation

Installation is in the reverse order of removal.

ALNIA1411ZZ

AV

BOSE SPEAKER AMP

AV-417

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BOSE SPEAKER AMP

Removal and Installation

INFOID:0000000009759076

REMOVAL

1. Open the trunk lid.

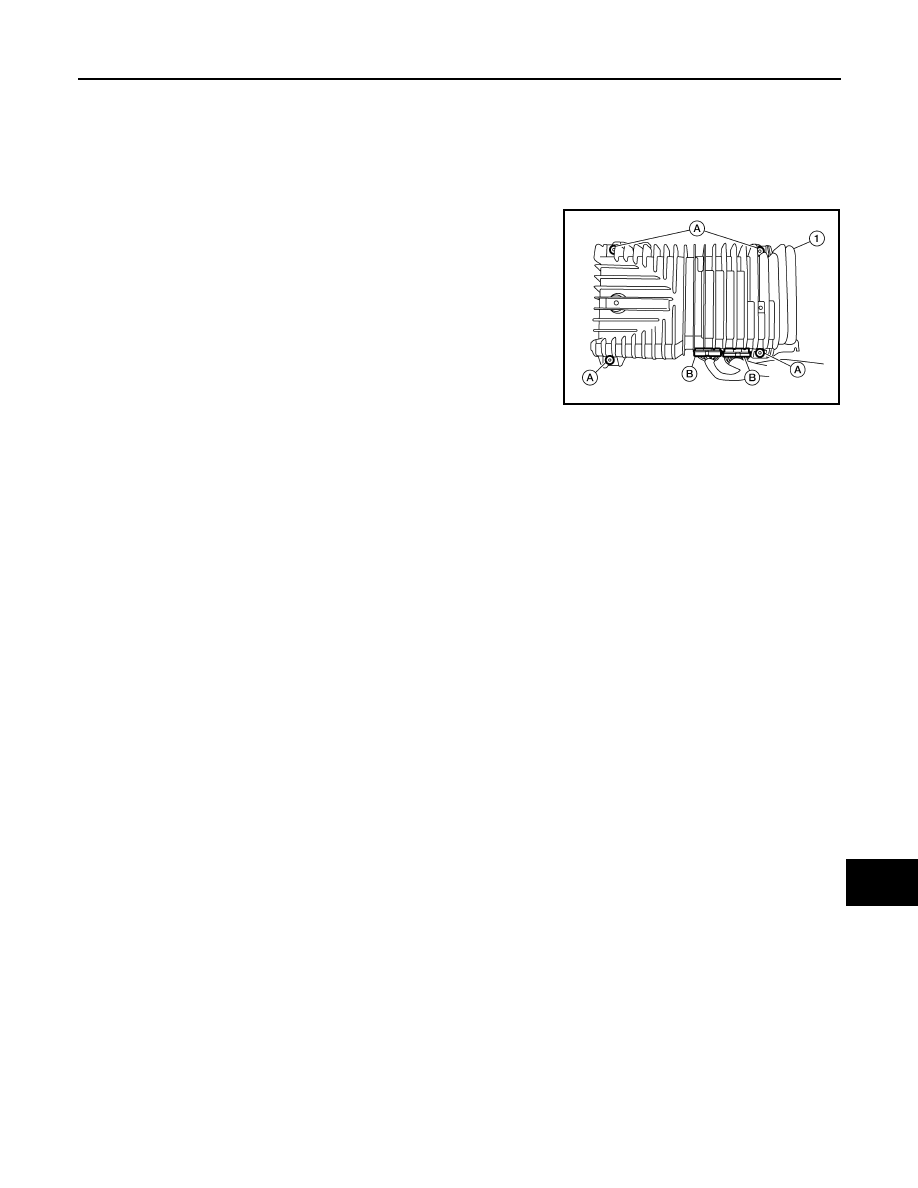

2. Remove the Bose speaker amp. screws (A).
3. Disconnect the harness connectors (B) from the Bose speaker

amp. (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1020ZZ

AV-418

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

WINDOW ANTENNA

WINDOW ANTENNA

Removal and Installation

INFOID:0000000010304579

The window antenna is serviced as an assembly with the filament. Refer to

DEF-47, "Inspection and Repair"

.

AV

SATELLITE RADIO ANTENNA

AV-419

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SATELLITE RADIO ANTENNA

Removal and Installation

INFOID:0000000009759077

REMOVAL

1. Lower the headlining at the rear. Refer to

INT-38, "Exploded View"

.

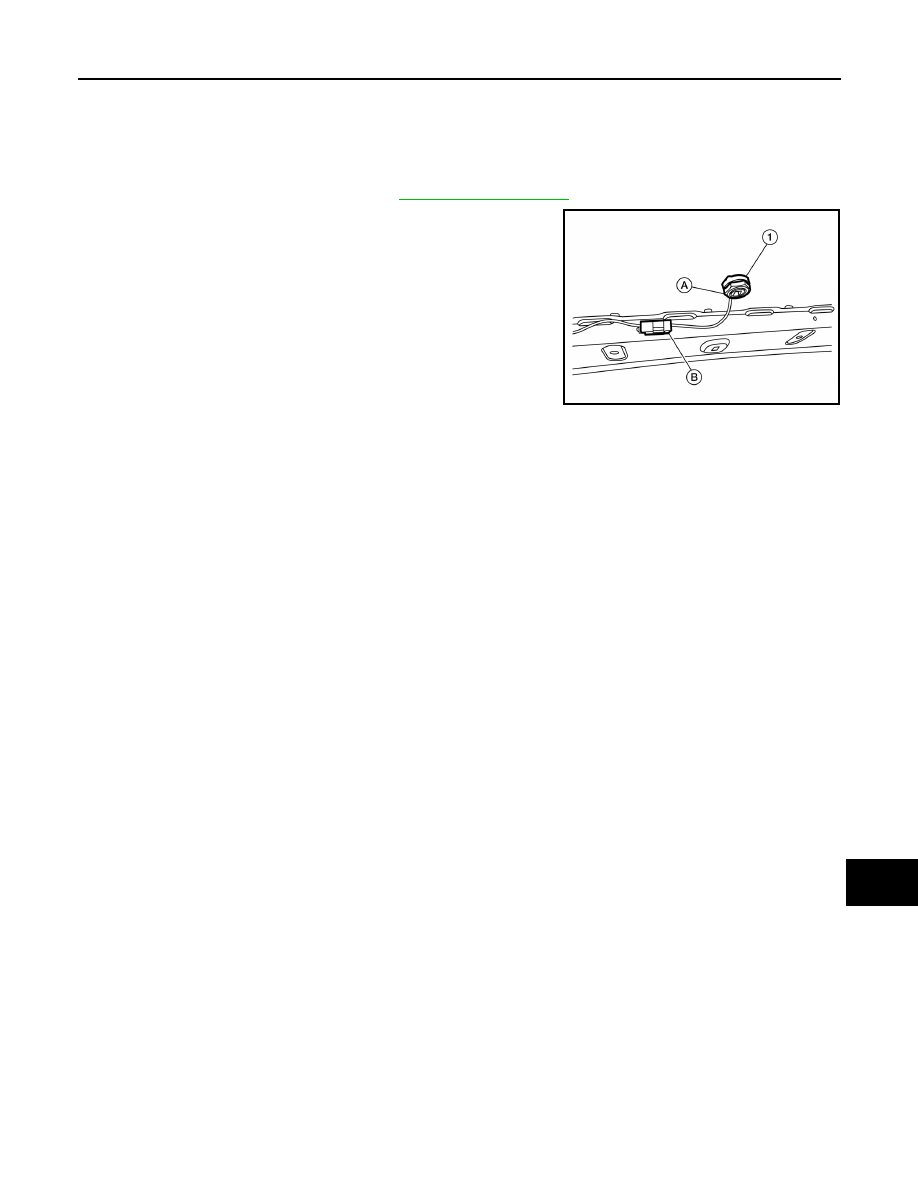

2. Remove the satellite radio antenna nut (A).
3. Disconnect the harness connector (B) from the satellite radio

antenna (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1412ZZ
