Nissan Sentra. Manual - part 107

AV-420

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

GPS ANTENNA

GPS ANTENNA

Removal and Installation

INFOID:0000000009759078

REMOVAL

1. Remove the combination meter. Refer to

MWI-77, "Removal and Installation"

.

2. Remove the AV control unit. Refer to

AV-406, "Removal and Installation"

.

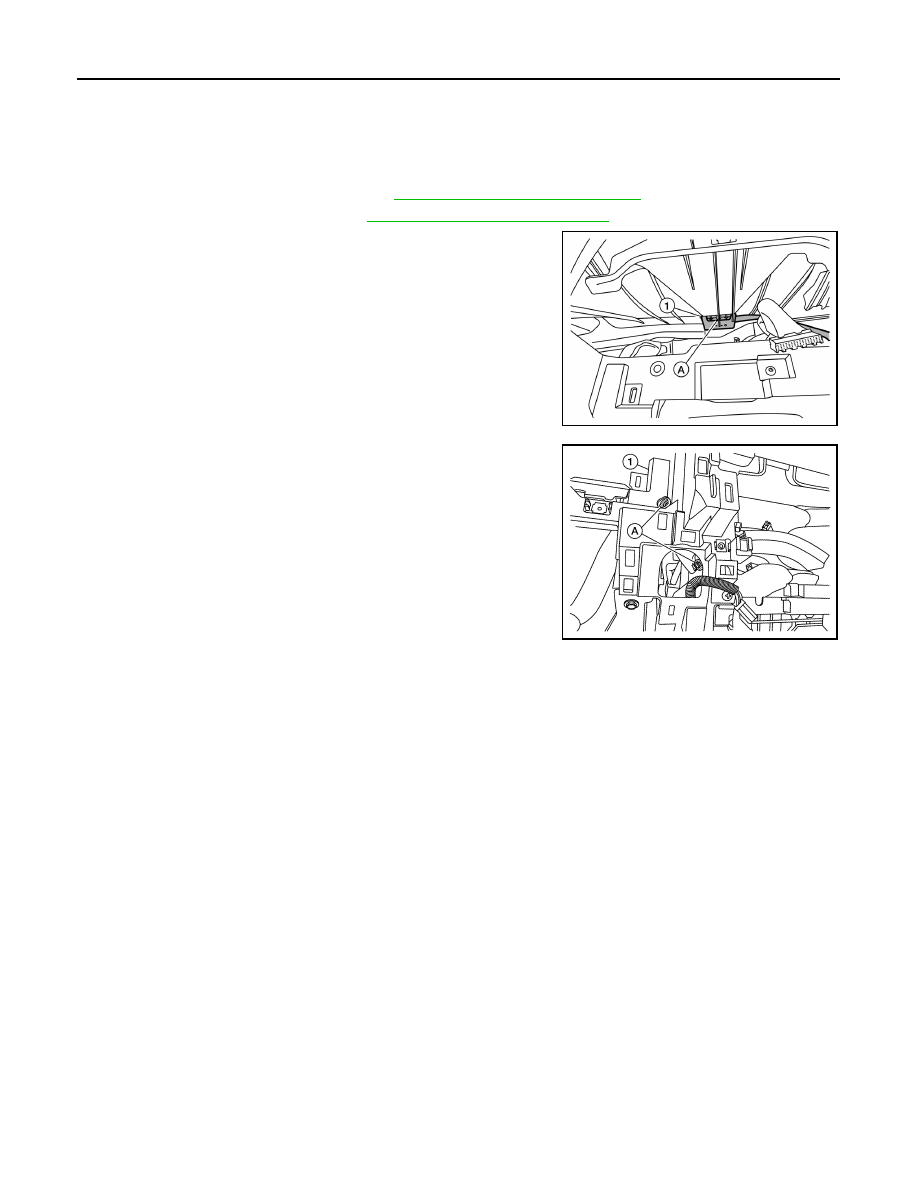

3. Remove the screw (A) from the GPS antenna (1).

4. Release the harness clips (A) from the instrument panel (1) and

remove the GPS antenna.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1413ZZ

AWNIA2817ZZ

AV

MICROPHONE

AV-421

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MICROPHONE

Removal and Installation

INFOID:0000000009759079

REMOVAL

1. Remove the front room/map lamp assembly. Refer to

INL-52, "Removal and Installation"

.

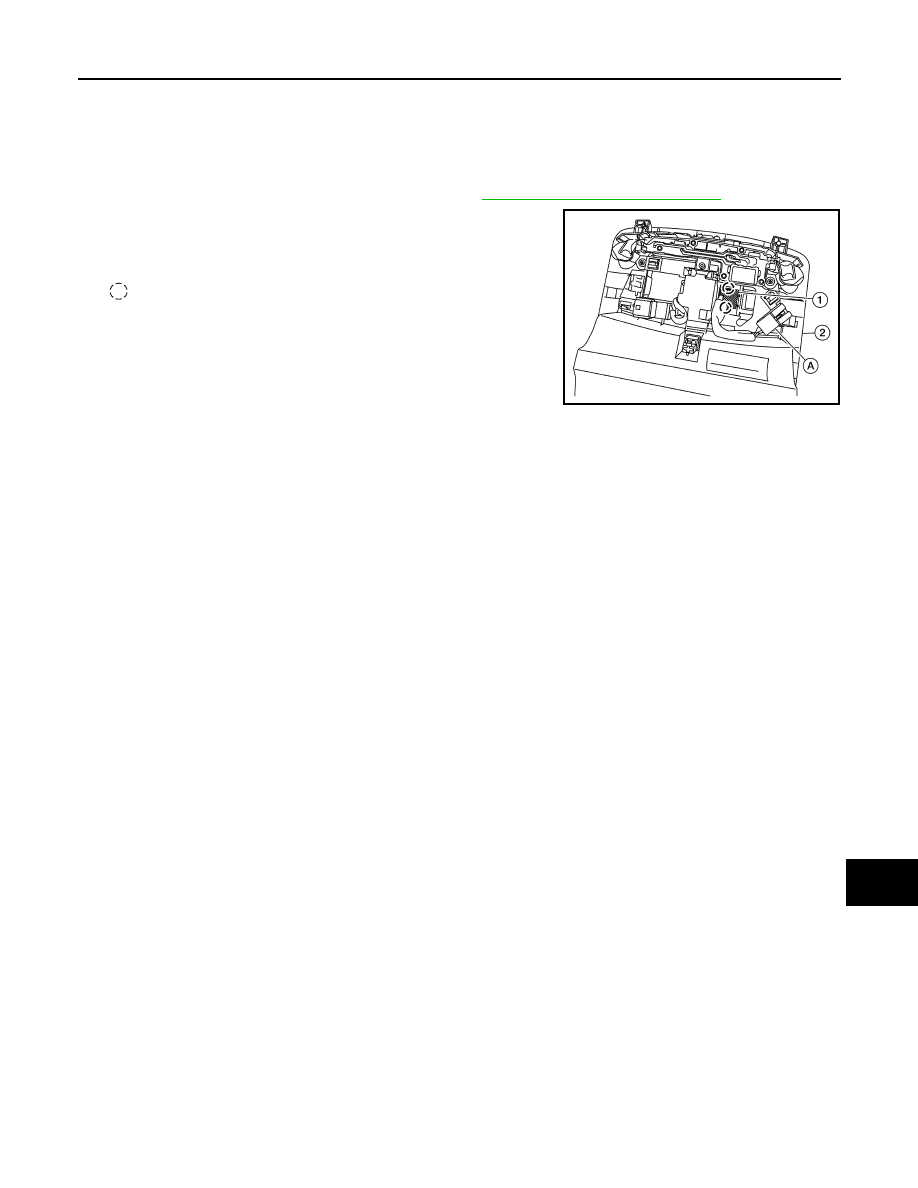

2. Disconnect the microphone connector (A) from the front room/

map lamp assembly (2).

3. Release the microphone pawls, then remove the microphone

(1).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1366ZZ

AV-422

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

REAR VIEW CAMERA

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000009759080

REMOVAL

1. Remove trunk lid finisher. Refer to

INT-45, "Removal and Installation"

.

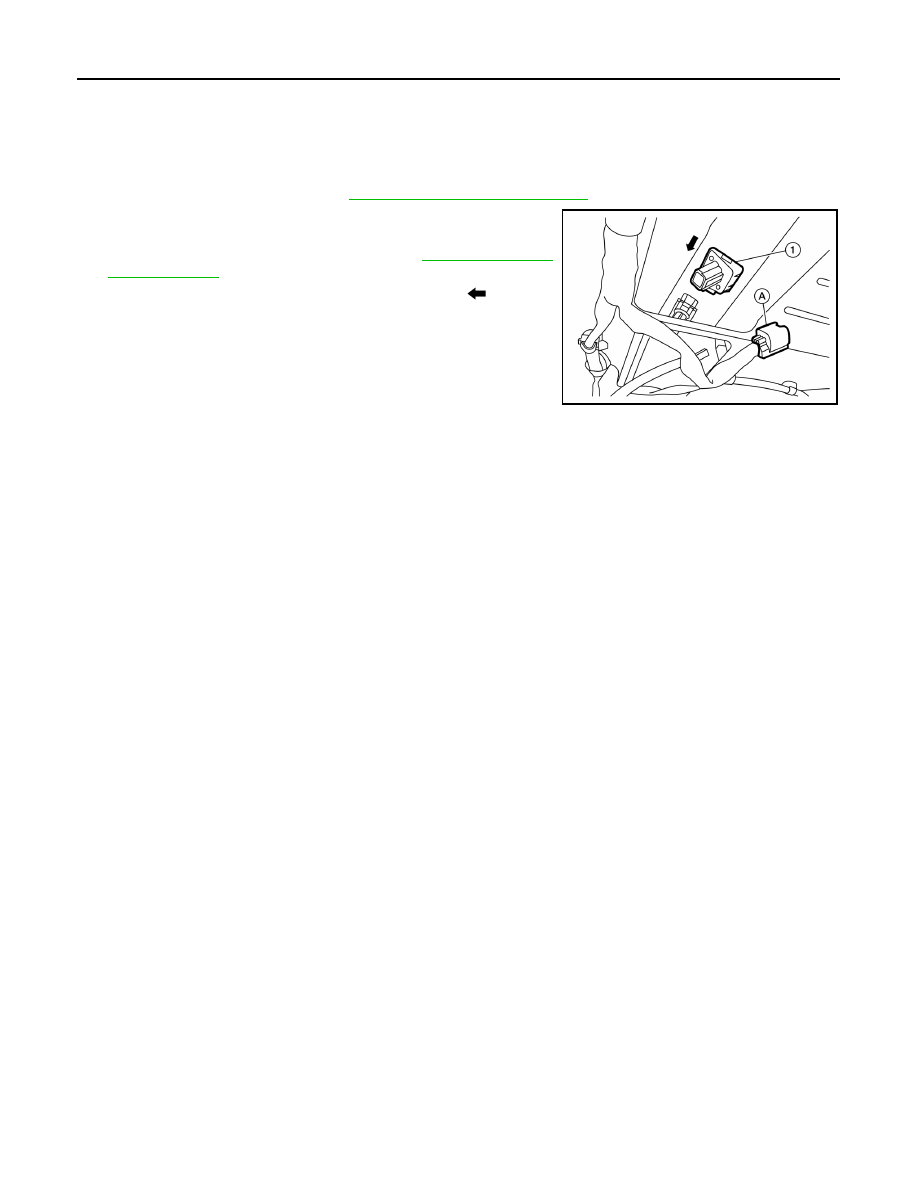

2. Disconnect the harness connector (A) from rear view camera

(1).

3. Remove the license lamp finisher. Refer to

EXT-44, "Removal

and Installation"

.

4. Push the rear view camera (1) in direction shown (

) and pull

out to remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1415ZZ
