FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000009759067

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

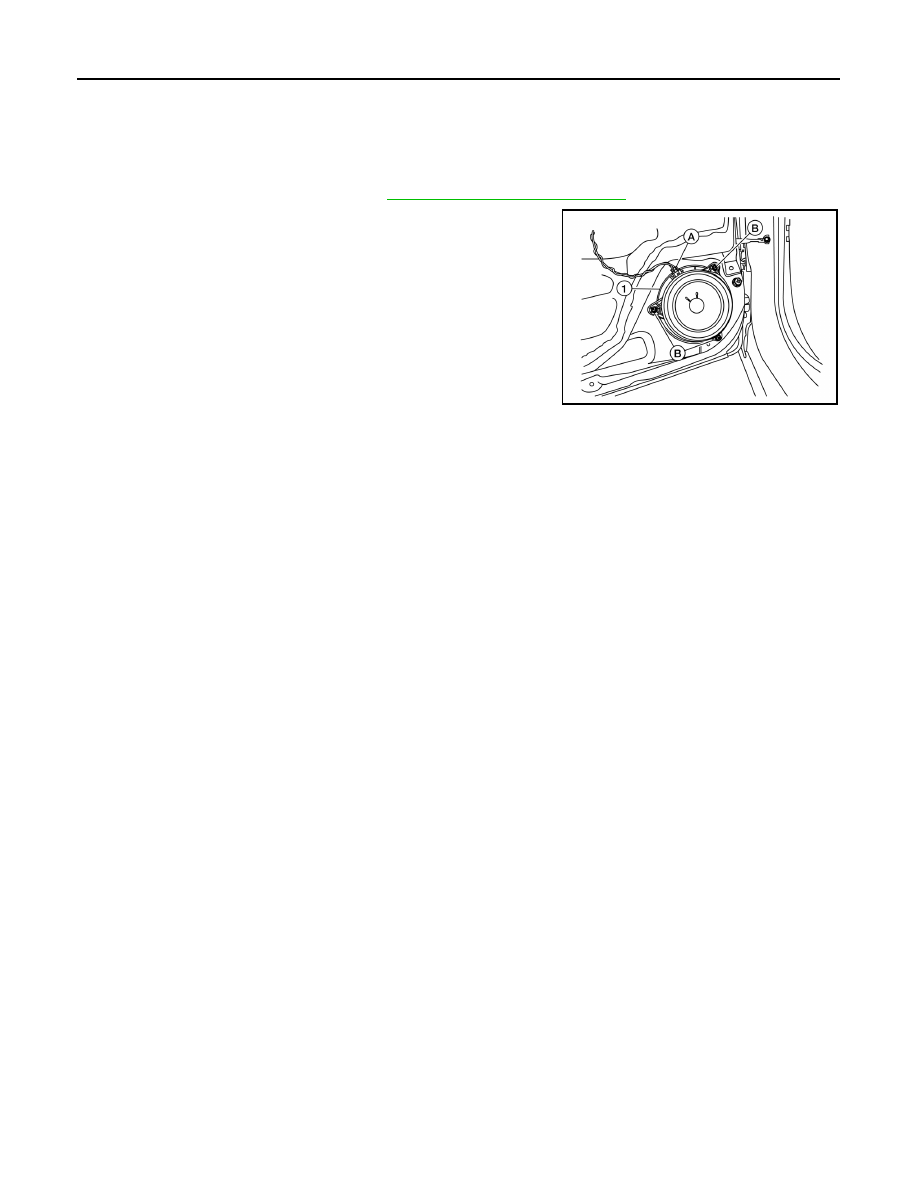

2. Remove the front door speaker screws (B).
3. Disconnect the harness connector (A) from the front door

speaker (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1406ZZ

AV

REAR DOOR SPEAKER

AV-409

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000009759068

REMOVAL

1. Remove the rear door finisher. Refer to

INT-19, "Removal and Installation"

.

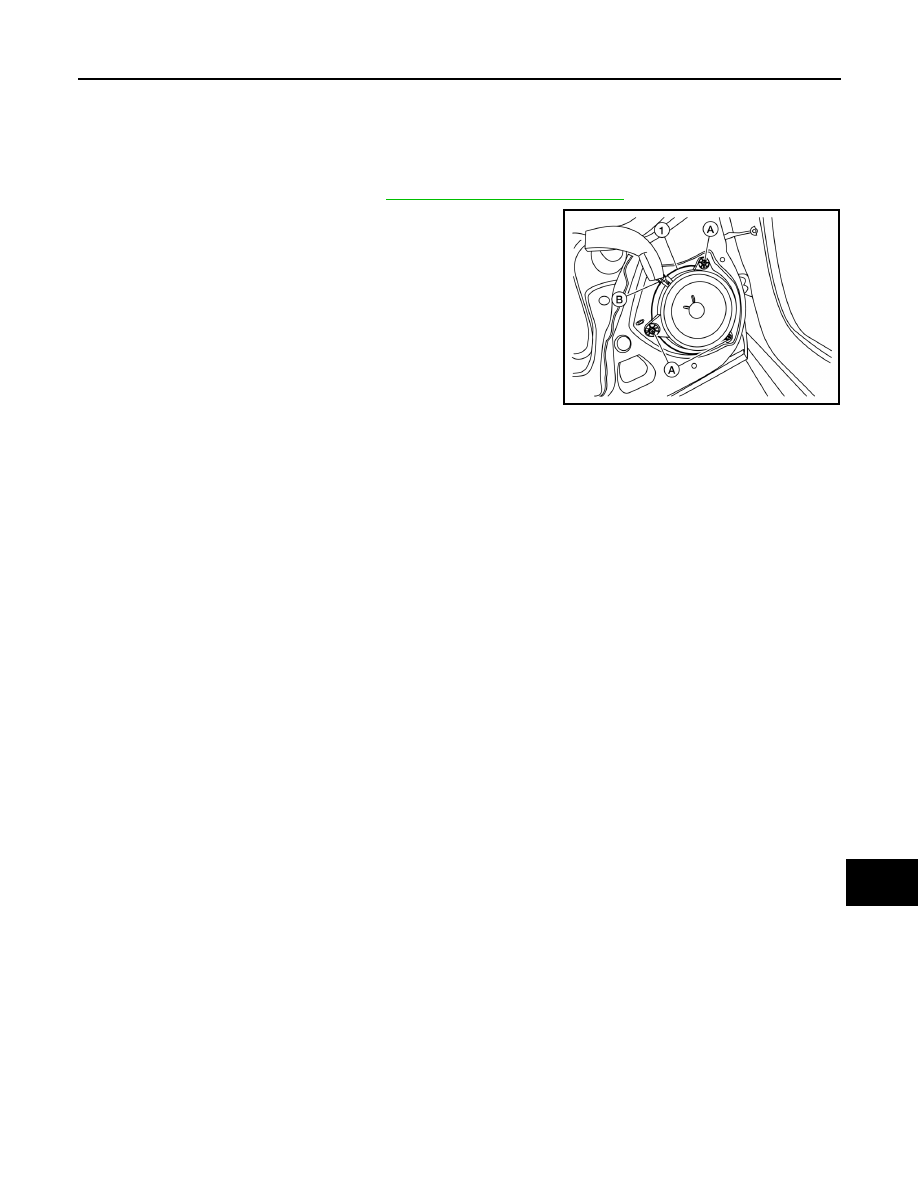

2. Remove the rear door speaker screws (A).
3. Disconnect the harness connector (B) from the rear door

speaker (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1416ZZ

AV-410

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

REAR WOOFER

REAR WOOFER

Removal and Installation

INFOID:0000000009759069

REMOVAL

1. Remove the rear parcel shelf finisher. Refer to

INT-33, "Removal and Installation"

.

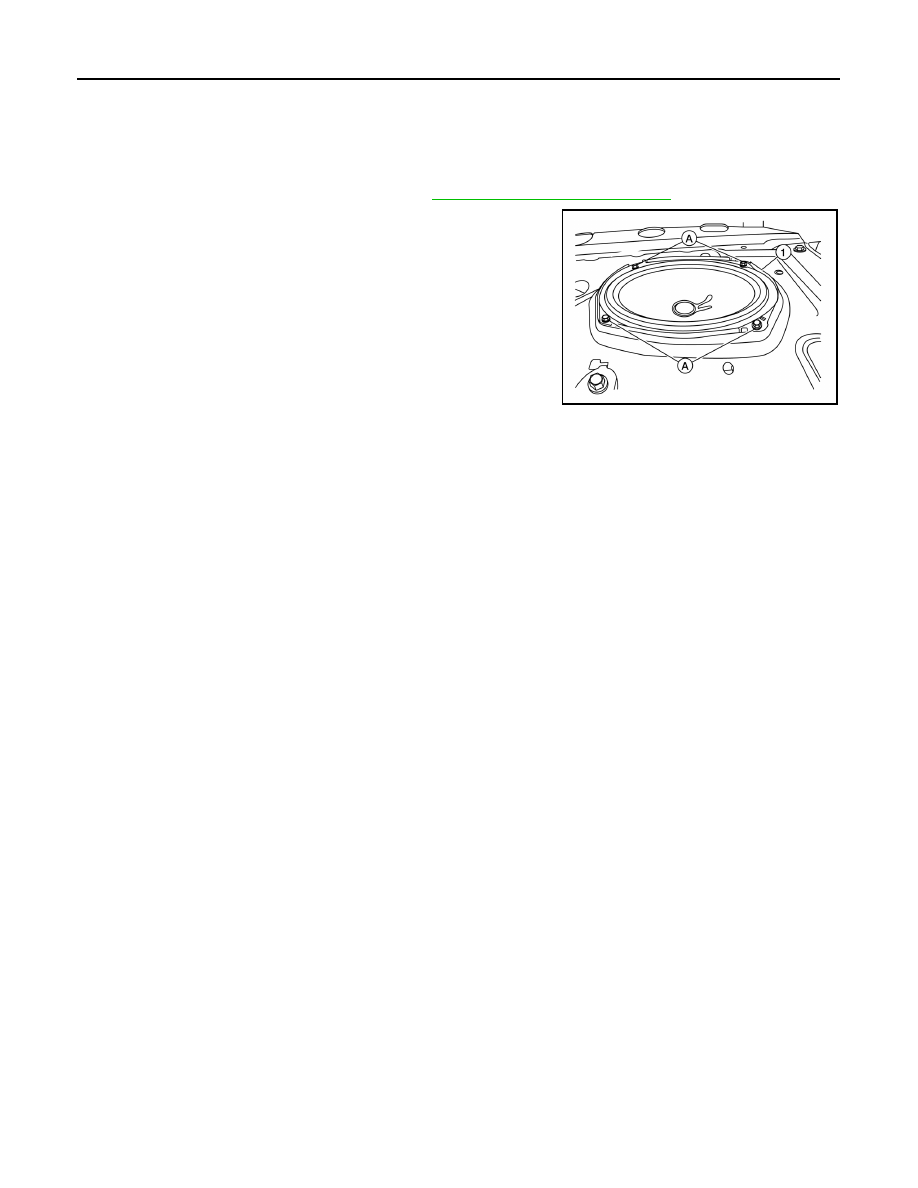

2. Remove the rear woofer screws (A).
3. Disconnect the harness connector from the rear woofer (1) and

remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1407ZZ

AV

STEERING SWITCH

AV-411

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH

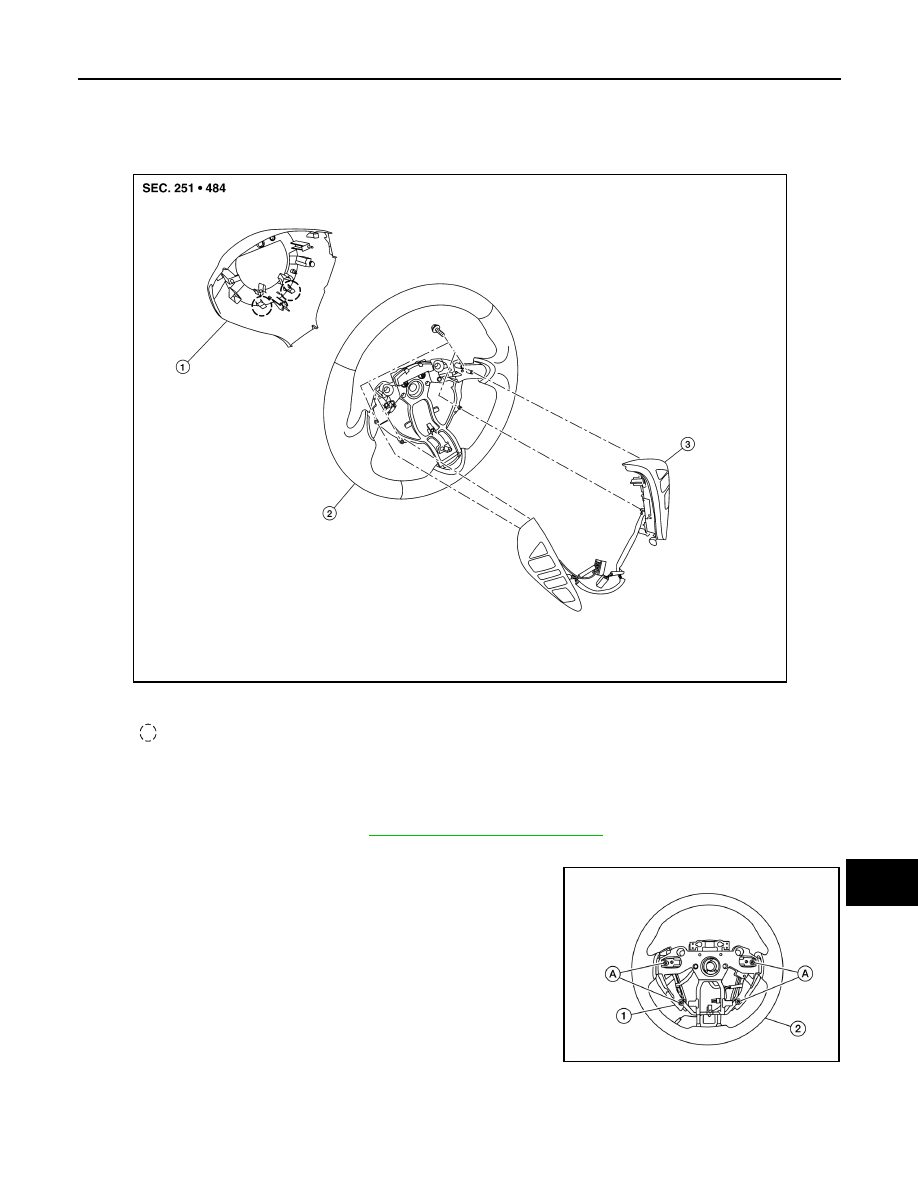

Exploded View

INFOID:0000000009759070

Removal and Installation

INFOID:0000000009759071

REMOVAL

1. Remove the steering wheel. Refer to

ST-10, "Removal and Installation"

.

2. Release the pawls on the steering wheel rear finisher and remove.
3. Remove the steering switches screws (A).
4. Remove the steering switches (1) from steering wheel (2).

INSTALLATION

Installation is in the reverse order of removal.

1.

Steering wheel rear finisher

2.

Steering wheel

3.

Steering switches

Pawl

AWNIA2816ZZ

ALNIA1409ZZ
