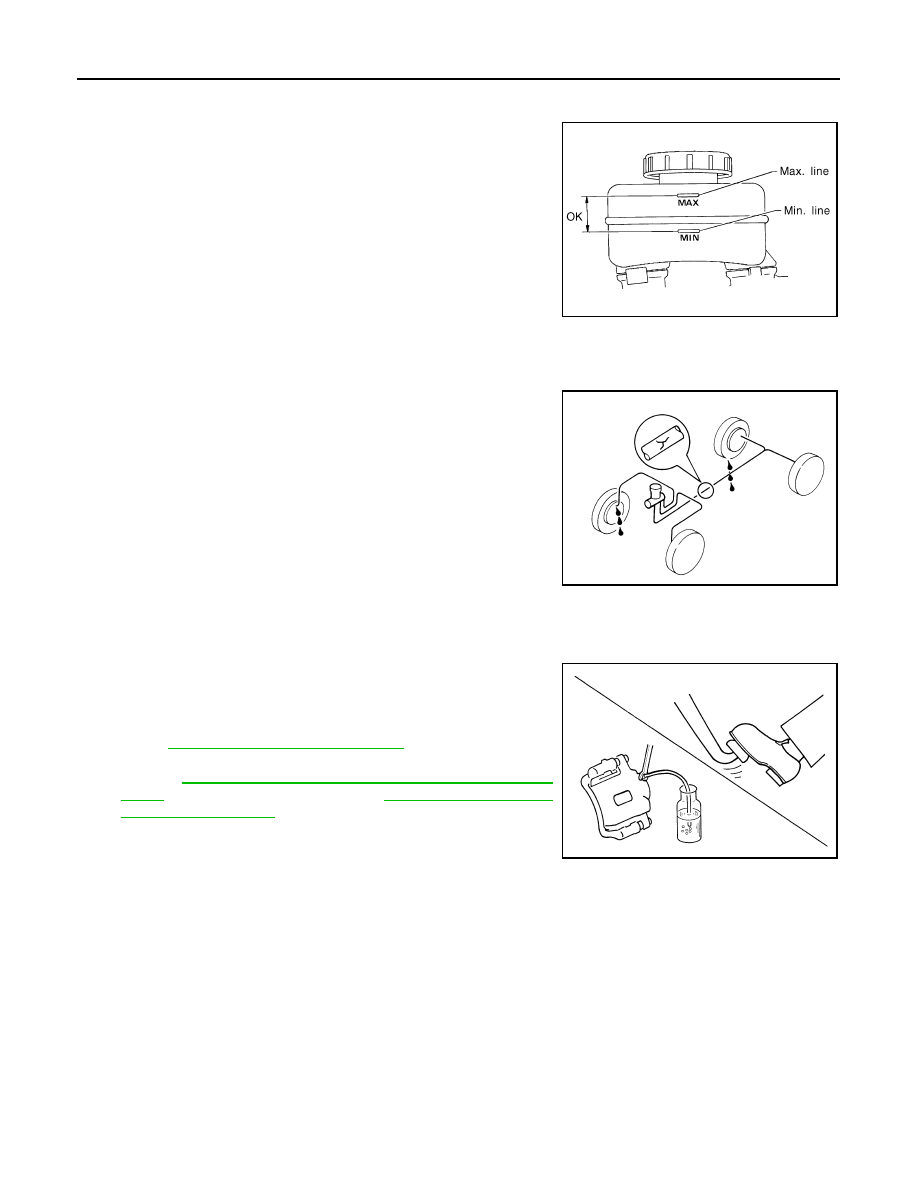

BRAKE FLUID LEVEL AND LEAKS : Inspection

INFOID:0000000010121535

• If fluid level is extremely low, check brake system for leaks.

BRAKE LINES AND CABLES
BRAKE LINES AND CABLES : Inspection

INFOID:0000000010121536

• Check brake fluid lines and parking brake cables for improper

attachment, leaks, chafing, abrasions, deterioration, etc.

BRAKE FLUID
BRAKE FLUID : Changing

INFOID:0000000010121537

1. Drain brake fluid from each bleed valve.
2. Refill until new brake fluid comes out from each bleed valve.

Use same procedure as in bleeding hydraulic system to refill

brake fluid.

Refer to

BR-494, "Bleeding Brake System"

.

• Refill with recommended brake fluid.

Refer to

MA-16, "FOR USA AND CANADA : Fluids and Lubri-

cants"

 (United States and Canada) or

MA-17, "FOR MEXICO :

Fluids and Lubricants"

 (Mexico).

• Never reuse drained brake fluid.

• Be careful not to splash brake fluid on painted areas.

DISC BRAKE

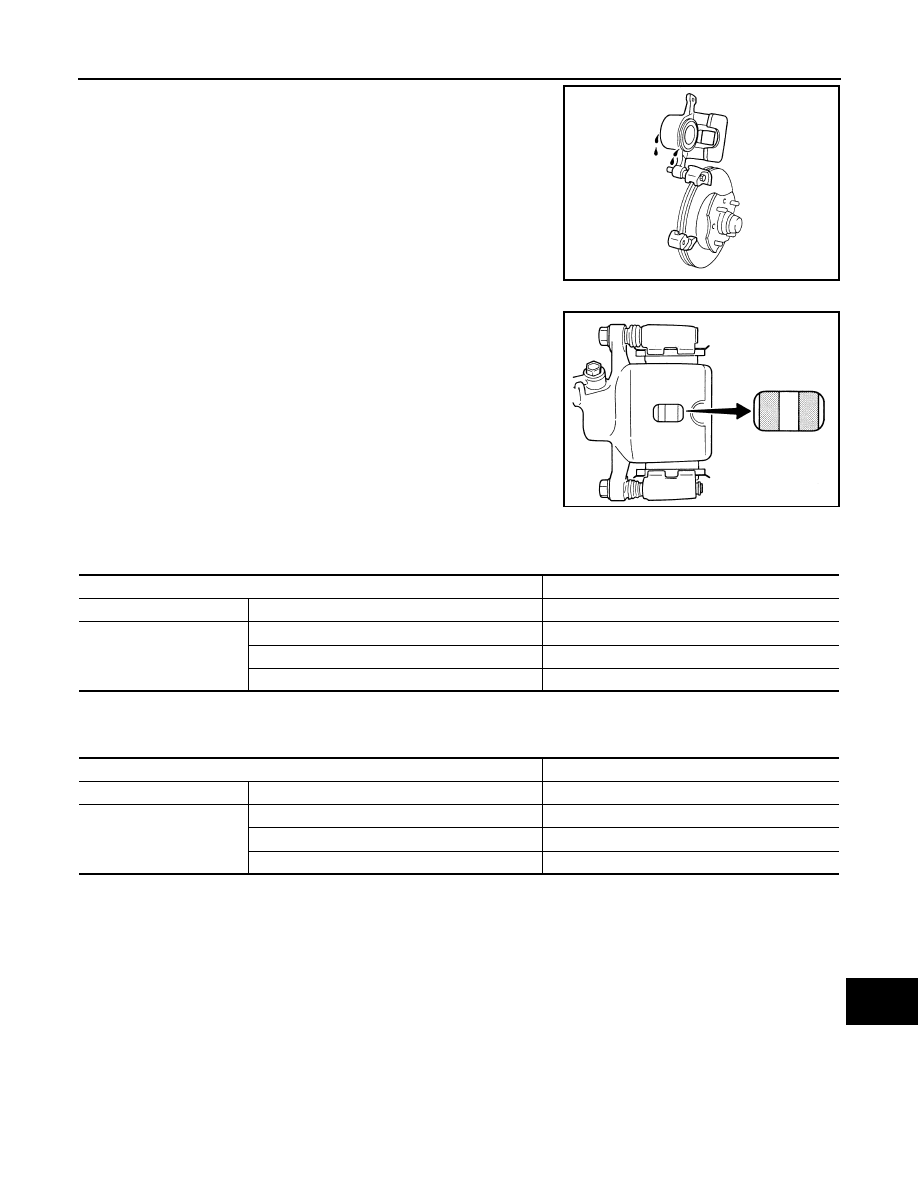

DISC BRAKE : Inspection

INFOID:0000000010121538

DISC ROTOR

Check condition, wear, and damage.

CALIPER

SBR451D

SBR389C

SBR419C

CHASSIS MAINTENANCE

MA-27

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

• Check for leakage.

BRAKE PAD

• Check for wear or damage.

DISC BRAKE : Front Disc Brake

INFOID:0000000010121539

Unit: mm (in)

DISC BRAKE : Rear Disc Brake

INFOID:0000000010121540

Unit: mm (in)

STEERING GEAR AND LINKAGE
STEERING GEAR AND LINKAGE : Inspection

INFOID:0000000010121541

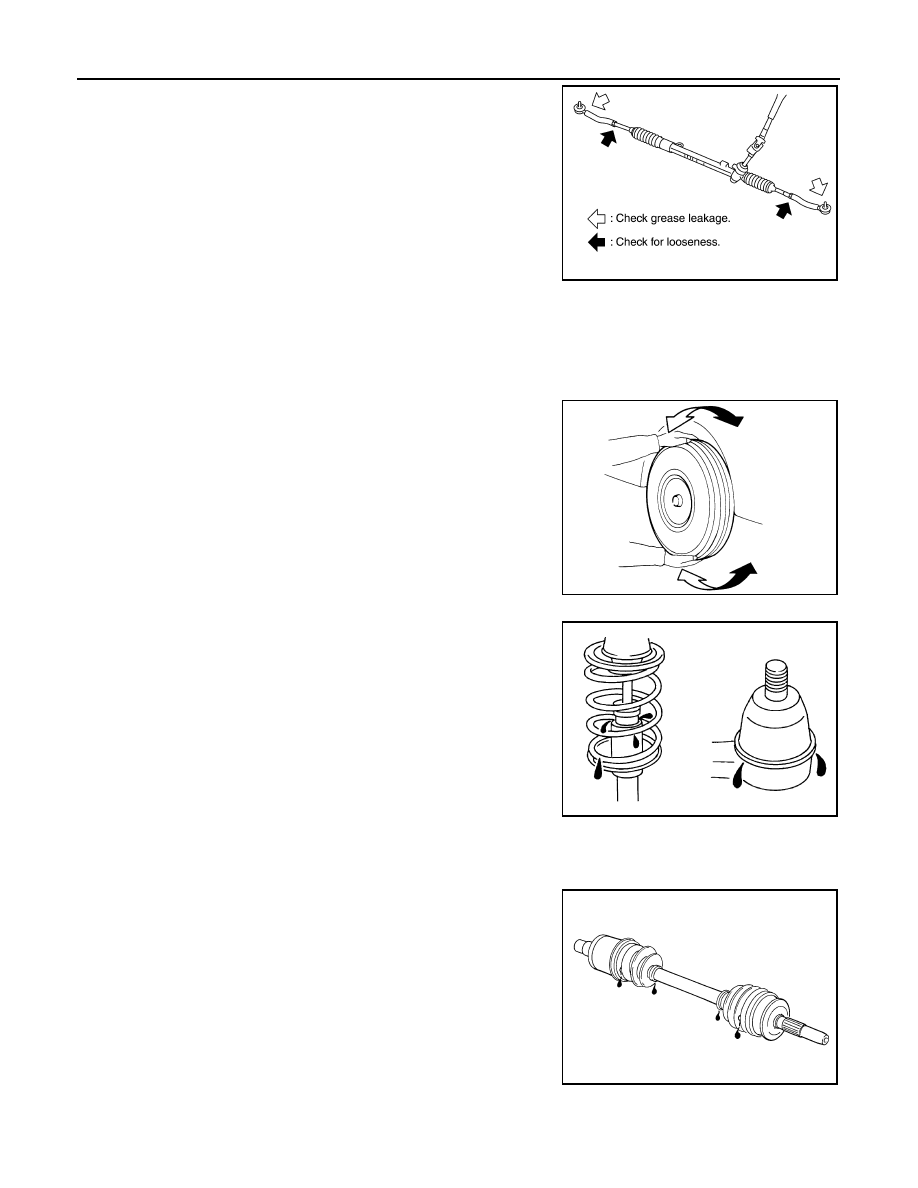

STEERING GEAR

SMA922A

BRA0010D

Item

Limit

Brake pad

Wear thickness

2.0 (0.079)

Disc rotor

Wear thickness

26.0 (1.024)

Thickness variation (measured at 8 positions)

0.015 (0.0006)

Runout (with it attached to the vehicle)

0.035 (0.0014)

Item

Limit

Brake pad

Wear thickness

2.0 (0.079)

Disc rotor

Wear thickness

14.0 (0.051)

Thickness variation (measured at 8 positions)

0.015 (0.0006)

Runout (with it attached to the vehicle)

0.1 (0.04)

MA-28

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

• Check gear housing and boots for looseness, damage and grease

leakage.

• Check connection with steering column for looseness.

STEERING LINKAGE

Check ball joint, dust cover and other component parts for looseness, wear, damage and grease leakage.

AXLE AND SUSPENSION PARTS
AXLE AND SUSPENSION PARTS : Inspection

INFOID:0000000010121542

Check front and rear axle and suspension parts for excessive play,

cracks, wear or other damage.

• Shake each wheel to check for excessive play.

• Check wheel bearings for smooth operation.

• Check axle and suspension nuts and bolts for looseness.

• Check strut (shock absorber) for oil leakage or other damage.

• Check suspension ball joint for grease leakage and ball joint dust

cover for cracks or other damage.

DRIVE SHAFT
DRIVE SHAFT : Inspection

INFOID:0000000010121543

Check boot and drive shaft for cracks, wear, damage and grease

leakage.

JPPIA0013GB

SMA525A

JPPIA0011ZZ

SFA108A
