HEADLINING

INT-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Removal and Installation

INFOID:0000000010119680

CAUTION:

• When removing, always use a suitable tool that is made of plastic to prevent damage to the parts.

• Never damage the body.

REMOVAL

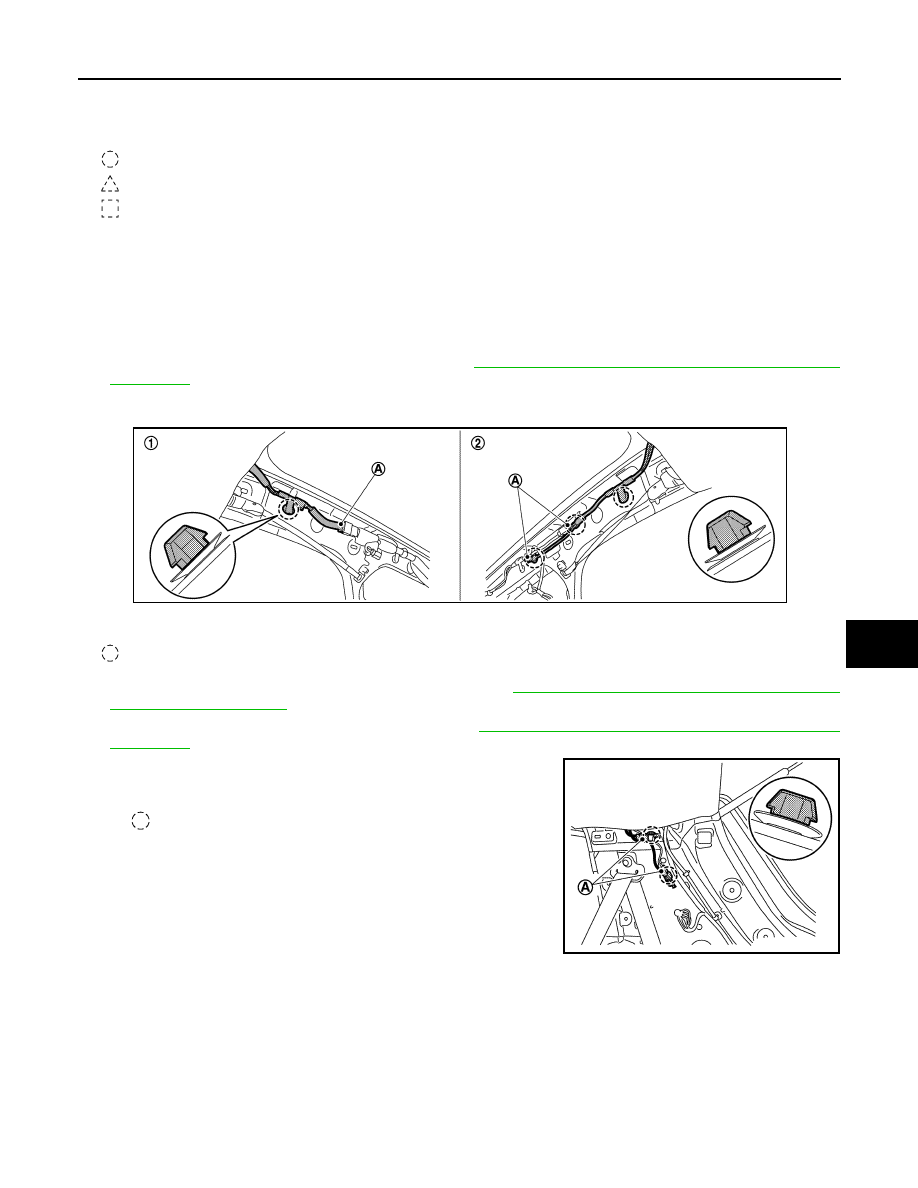

1. Remove front pillar garnish (LH and RH). Refer to

INT-26, "FRONT PILLAR GARNISH : Removal and

Installation"

.

2. Disconnect harness connectors (A) from headlining and harness clips.

3. Remove center pillar upper garnish (LH and RH). Refer to

INT-31, "CENTER PILLAR UPPER GARNISH :

Removal and Installation"

.

4. Remove rear pillar finisher. (LH and RH). Refer to

INT-31, "REAR PILLAR FINISHER : Removal and

Installation"

.

5. Disconnect harness connectors (A) from headlining and harness

clips.

10. Room lamp assembly

11. Rear assist grip LH

12. Headlining clip

13. Metal clip

14. Dual lock fastener

15. Bracket

16. Map lamp plate

17. Map lamp assembly

18. Lens

: Clip

: Pawl

: Metal clip

1.

Left side pillar

2.

Right side pillar

: Clip

JMJIA6618ZZ

: Clip

JMJIA5144ZZ

INT-38

< REMOVAL AND INSTALLATION >

HEADLINING

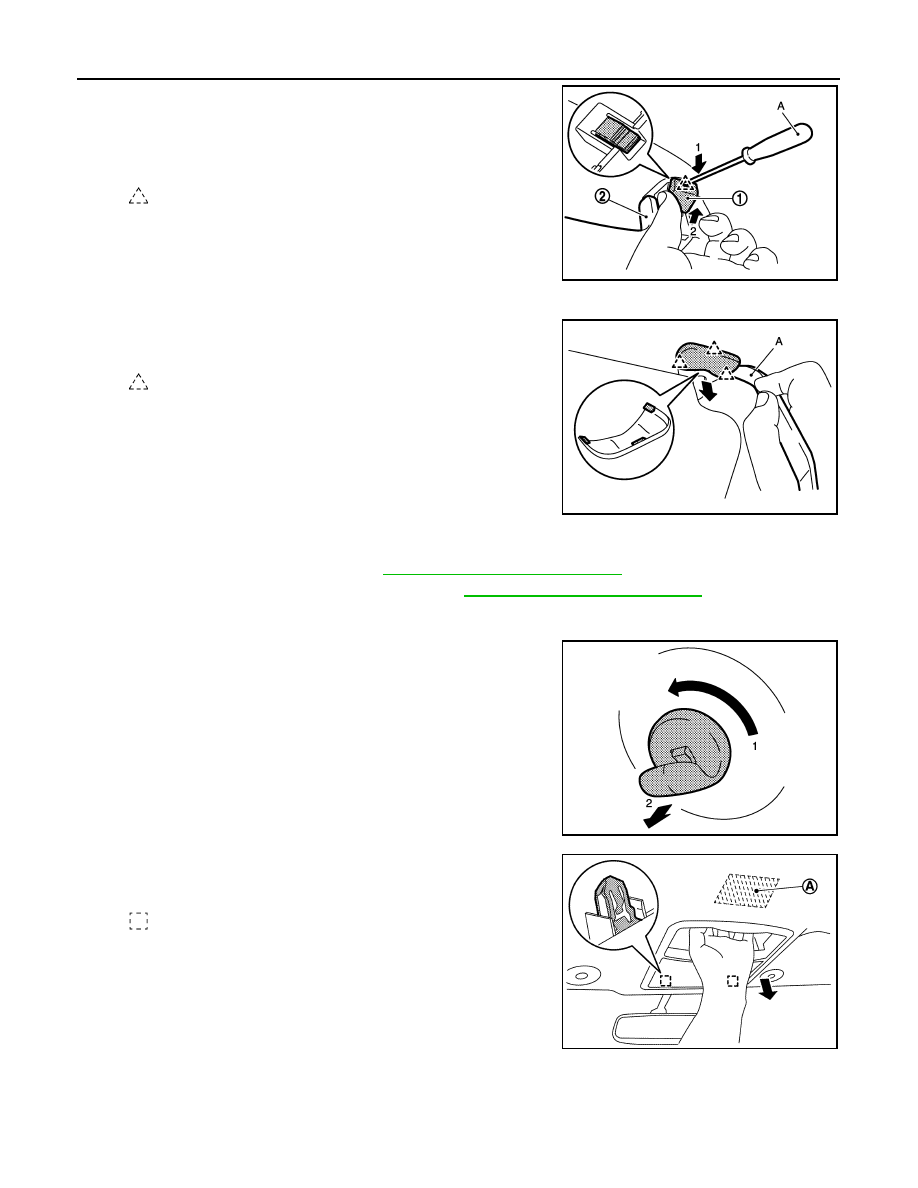

6. Remove all assist grips.
a. Remove assist grip clip
i.

Disengage pawl of assist grip clip (1) using a suitable tool (A)

according to the numerical order 1 as shown in the figure.

ii.

Slide assist grip clip forward according to the numerical order 2

as shown in the figure, and then remove assist grip clip.

b. Slide assist grip (2) forward and remove it.
c.

Remove metal clips.

7. Remove sun visor assembly (LH and RH).
a. Disengage sun visor cover fixing pawls with a suitable tool (A),

and then remove sun visor cover.

b. Remove sun visor assembly screws, and then remove sun visor assembly.

8. Remove room lamp assembly. Refer to

INL-53, "Removal and Installation"

.

9. Remove lamp unit of map lamp assembly. Refer to

INL-52, "Removal and Installation"

.

CAUTION:

The map lamp assembly can only be removed from back side after headlining is removed.

10. Remove sun visor holder (LH and RH).
a. Rotate 90

° according to the numerical order 1 as shown in the

figure.

b. Remove toward vehicle lower according to the numerical order 2

as shown in the figure.

11. Disengage bracket fixing dual lock fastener (A).
12. Disengage map lamp fixing metal clips.

13. Remove headlining clips.

: Pawl

: Pawl

JMJIA4398ZZ

JMJIA4399ZZ

JMJIA4401ZZ

: Metal clip

JMJIA5142ZZ

HEADLINING

INT-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

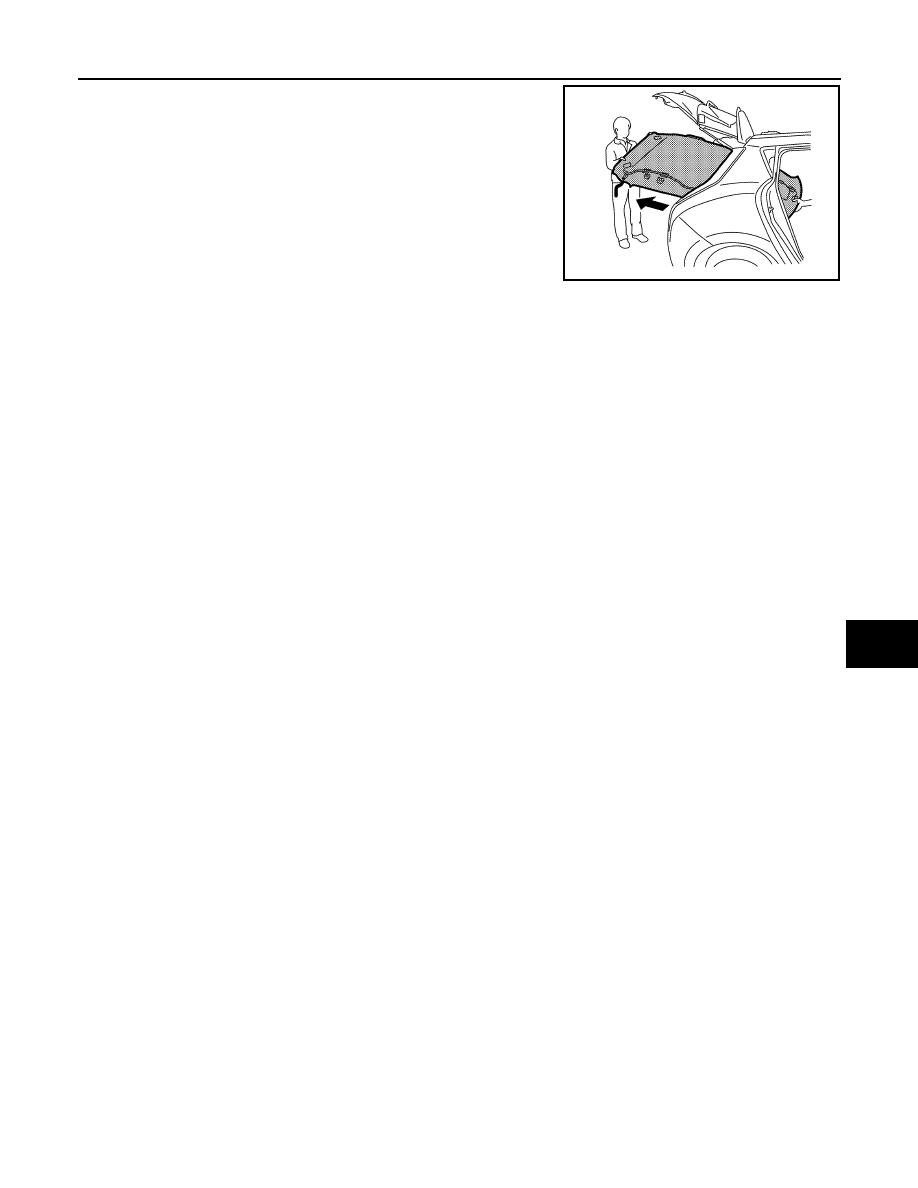

14. Remove headlining assembly through the back door.

CAUTION:

• Two workers are required for removal in order to prevent

damage.

• Apply protective tape to the portion where contact may

occur during work.

• Never bend headlining when removing to prevent damage

to the parts.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• When installing headlining, start by installing both sun visor holders and headlining clips in order to

keep the headlining in position.

• Never bend headlining when installing to prevent damage to the parts.

• Be careful that the surface is not wrinkled when installing.

JMJIA5143ZZ

INT-40

< REMOVAL AND INSTALLATION >

LUGGAGE FLOOR TRIM

LUGGAGE FLOOR TRIM

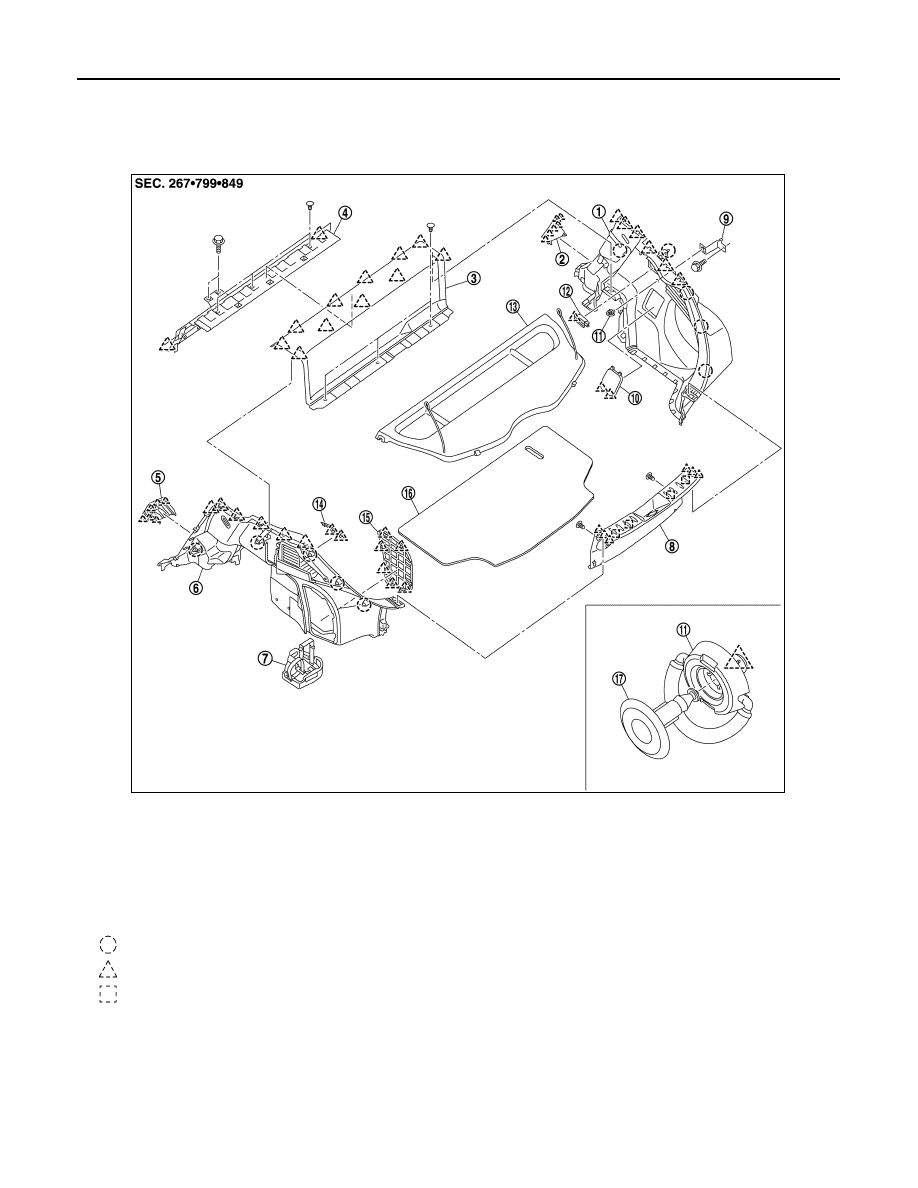

Exploded View

INFOID:0000000010119681

REAR PARCEL SHELF FINISHER
REAR PARCEL SHELF FINISHER : Removal and Installation

INFOID:0000000010119682

REMOVAL

1. Remove strap from back door side finisher hook.

1.

Luggage side lower finisher RH

2.

Luggage finisher mask RH

3.

Luggage floor upper finisher

4.

Luggage floor front finisher

5.

Luggage finisher mask LH

6.

Luggage side lower finisher LH

7.

Luggage side box

8.

Luggage rear plate

9.

Luggage side lower bracket

10. Shock absorber mask RH

11. Luggage hook

12. Luggage room lamp

13. Rear parcel shelf finisher

14. Shock absorber mask LH

15. Tool lid mask

16. Luggage floor board

17. Net hook pin

: Clip

: Pawl

: Metal clip

JMJIA5052ZZ
