FRONT DOOR GLASS

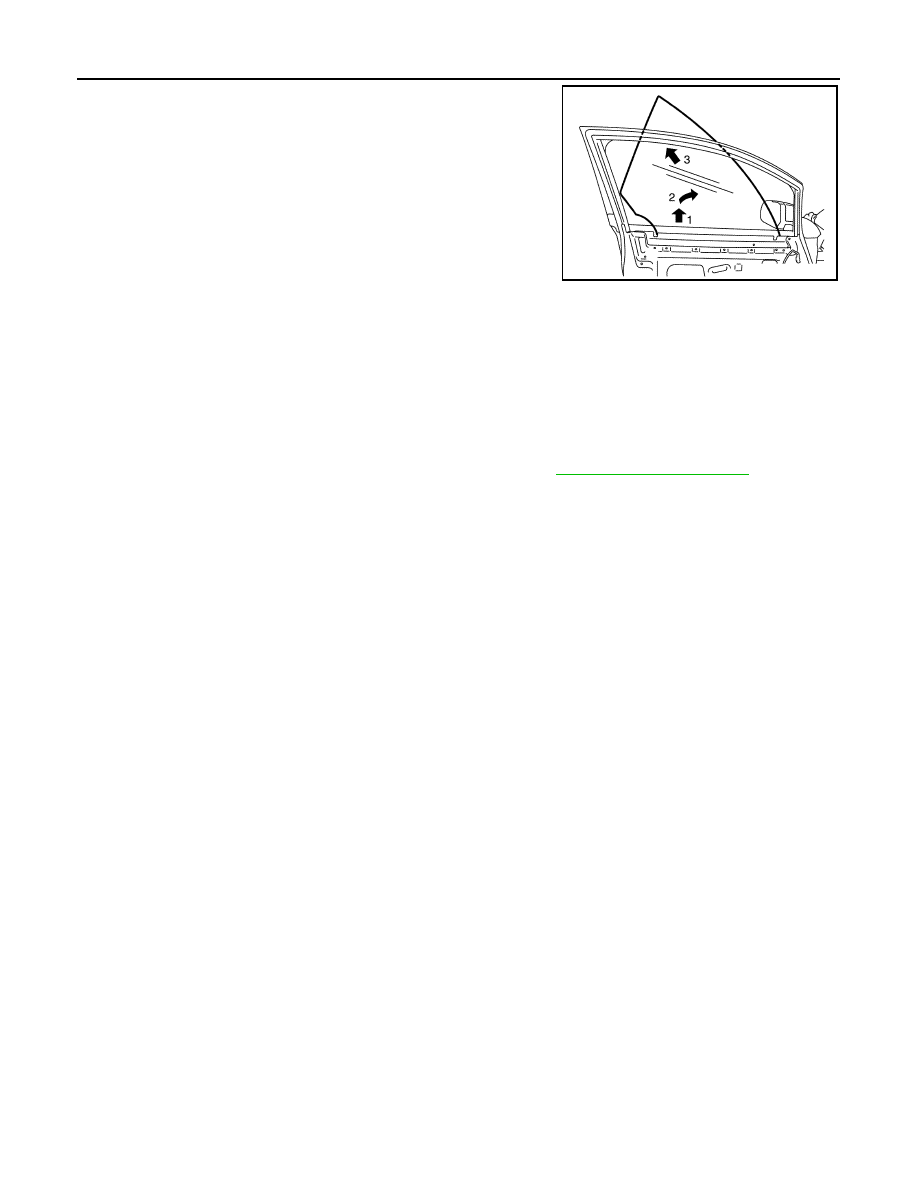

6. Securely hold the front door glass and pull it out of the sash to

remove, as shown in the figure.

7. Remove lower sash.
8. Remove front door glass run.

INSTALLATION

Installation is in the reverse order of removal.

Inspection and Adjustment

INFOID:0000000010119162

SYSTEM INITIALIZATION

Initialize the system if any of the following work is complete. Refer to

PWC-26, "Work Procedure"

.

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.

• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the

sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolts, guide

rail bolts and glass bolts to correct the glass position.

JMKIA6427ZZ

FRONT REGULATOR

GW-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

FRONT REGULATOR

Exploded View

INFOID:0000000010119163

Removal and Installation

INFOID:0000000010119164

REMOVAL

1. Remove the front door glass. Refer to

GW-19, "Removal and Installation"

.

2. Disconnect the power window motor harness connector and harness clip.
3. Remove the front door regulator assembly bolts.
4. Remove the front door regulator assembly from the door panel,

as shown in the figure.

INSTALLATION

Installation is in the reverse order of removal.

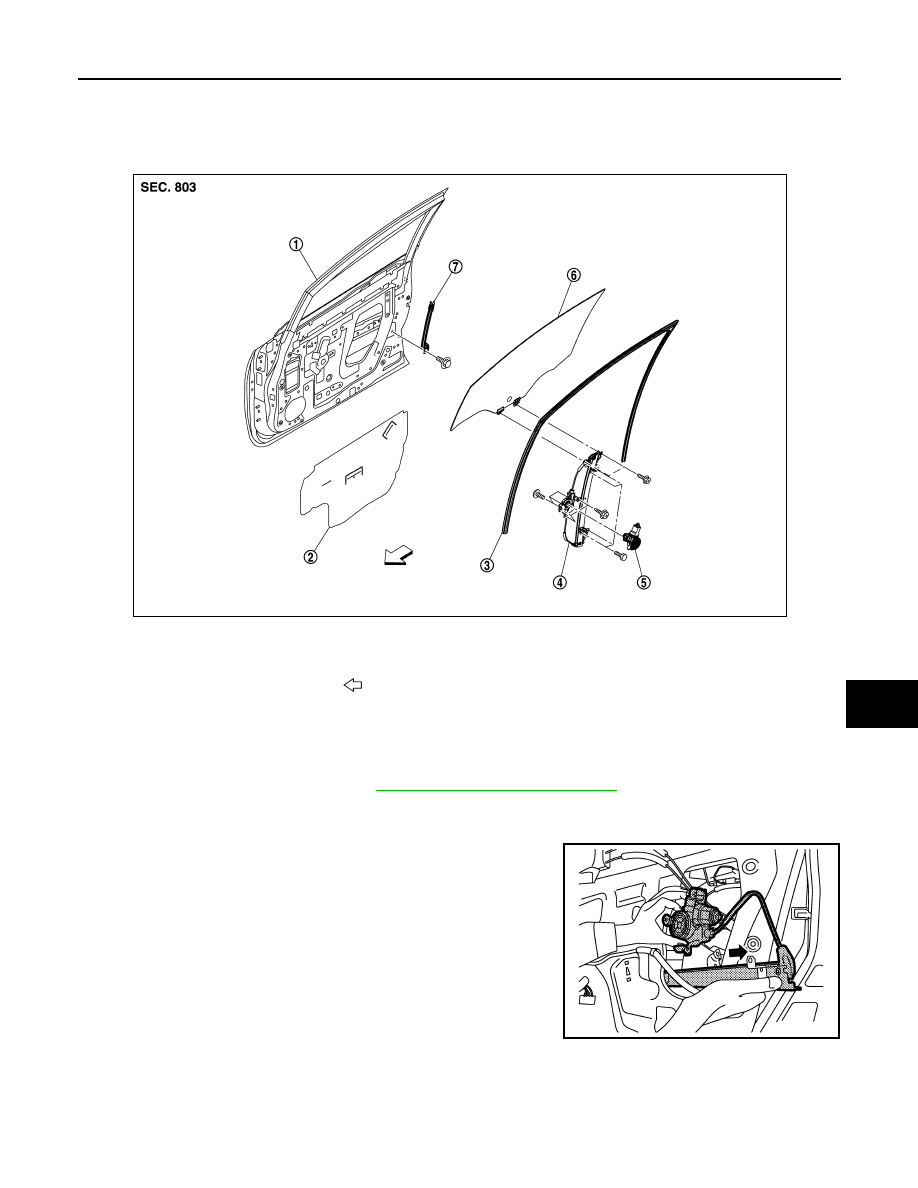

1.    Front door panel

2.

Sealing screen

3.

Front door glass run

4.

Front door regulator

5.

Power window motor

6.

Front door glass

7.

Lower sash

Front

JMKIA6425ZZ

JMKIA5808ZZ

GW-22

< REMOVAL AND INSTALLATION >

FRONT REGULATOR

Disassembly and Assembly

INFOID:0000000010119165

DISASSEMBLY

Remove the power window motor from the front door regulator.

INSPECTION AFTER REMOVAL

Check the front door regulator assembly for the following items. Replace or grease it if a malfunction is

detected.

• Wire wear

• Regulator deformation

ASSEMBLY

Assembly is in the reverse order of disassembly.

Inspection and Adjustment

INFOID:0000000010119166

Inspection after removal

Check the front regulator for the following items. Replace or grease it if a malfunction is detected.

• Wire wear

• Front regulator deformation

• Grease condition for each sliding part

SYSTEM INITIALIZATION

Initialize the system if any of the following work is complete. Refer to

PWC-26, "Work Procedure"

.

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.

• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the

sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolts, guide

rail bolts and glass bolts to correct the glass position.

REAR DOOR GLASS

GW-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

REAR DOOR GLASS

Exploded View

INFOID:0000000010119167

Removal and Installation

INFOID:0000000010119168

REMOVAL

1. Remove rear door finisher. Refer to

INT-22, "Removal and Installation"

.

2. Disconnect rear door speaker and remove the sealing screen.

NOTE:

Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing

screen is reused.

3. Fully open rear door glass.
4. Remove partition sash mounting bolts and screw.
5. Reconnect the power window switch and operate the power window switch to raise the door window until

the rear door glass bolts can be seen.

6. Loosen the rear door glass bolts.

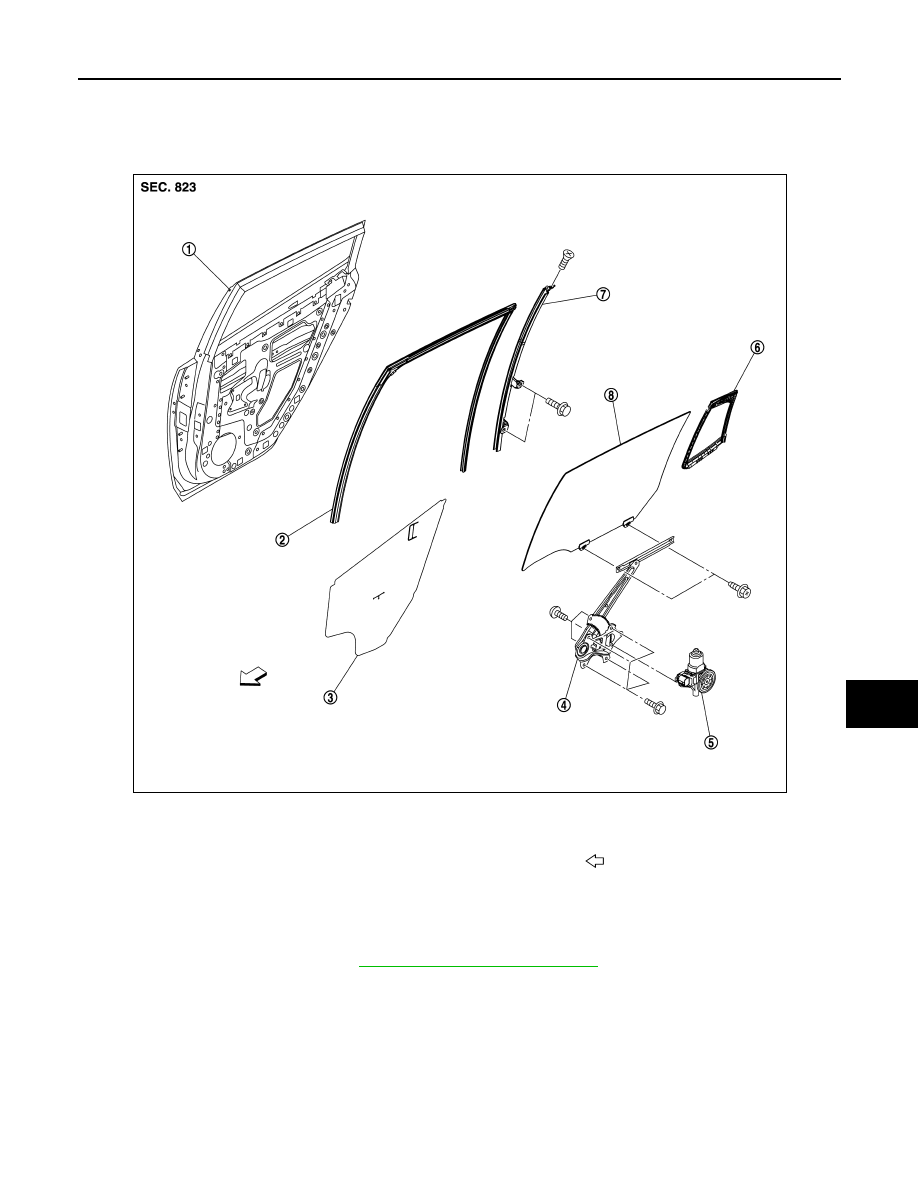

1.

Rear door panel

2.

Rear door glass run

3.

Sealing screen

4.

Rear door regulator

5.

Power window motor

6.

Partition glass

7.

Partition sash

8.

Rear door glass

Front

JMKIA6426ZZ
