REAR SPOILER

EXT-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

REAR SPOILER

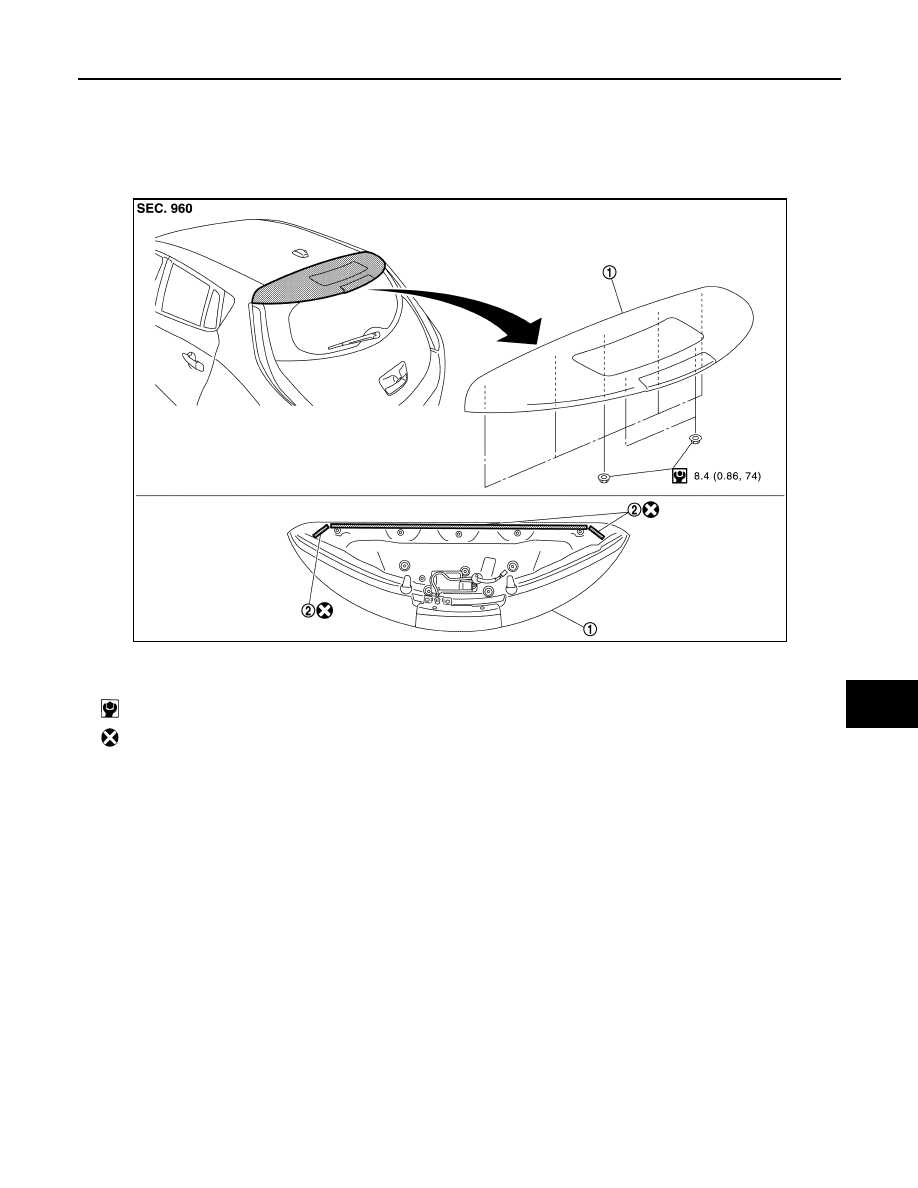

Exploded View

INFOID:0000000010120006

REMOVAL

DISASSEMBLY

1.

Rear spoiler assembly

2.

Double-sided tape
[t: 1.5 mm (0.059 in)]

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

JMKIA6466GB

E

X

T - 3 6

< REMOVAL AND INSTALLATION >

REAR SPOILER

Removal and Installation

INFOID:0000000010120007

REMOVAL

1. Remove back door upper finisher. Refer to

INT-46, "BACK DOOR UPPER FINISHER : Removal and

Installation"

.

2. Remove rear spoiler mounting nuts.
3. Cut rear spoiler fixing double-sided tape with cutter knife.
4. Lift rear spoiler, and then disconnect harness connector and rear washer tube.

CAUTION:

Never lift rear spoiler with excessive force to prevent damage to the parts.

5. Remove rear spoiler.
6. Remove following parts after removing rear spoiler.

• High-mounted stop lamp. Refer to

EXL-145, "Removal and Installation"

.

• Washer nozzle

• Solar cell module (if equipped). Refer to

CHG-15, "Removal and Installation"

.

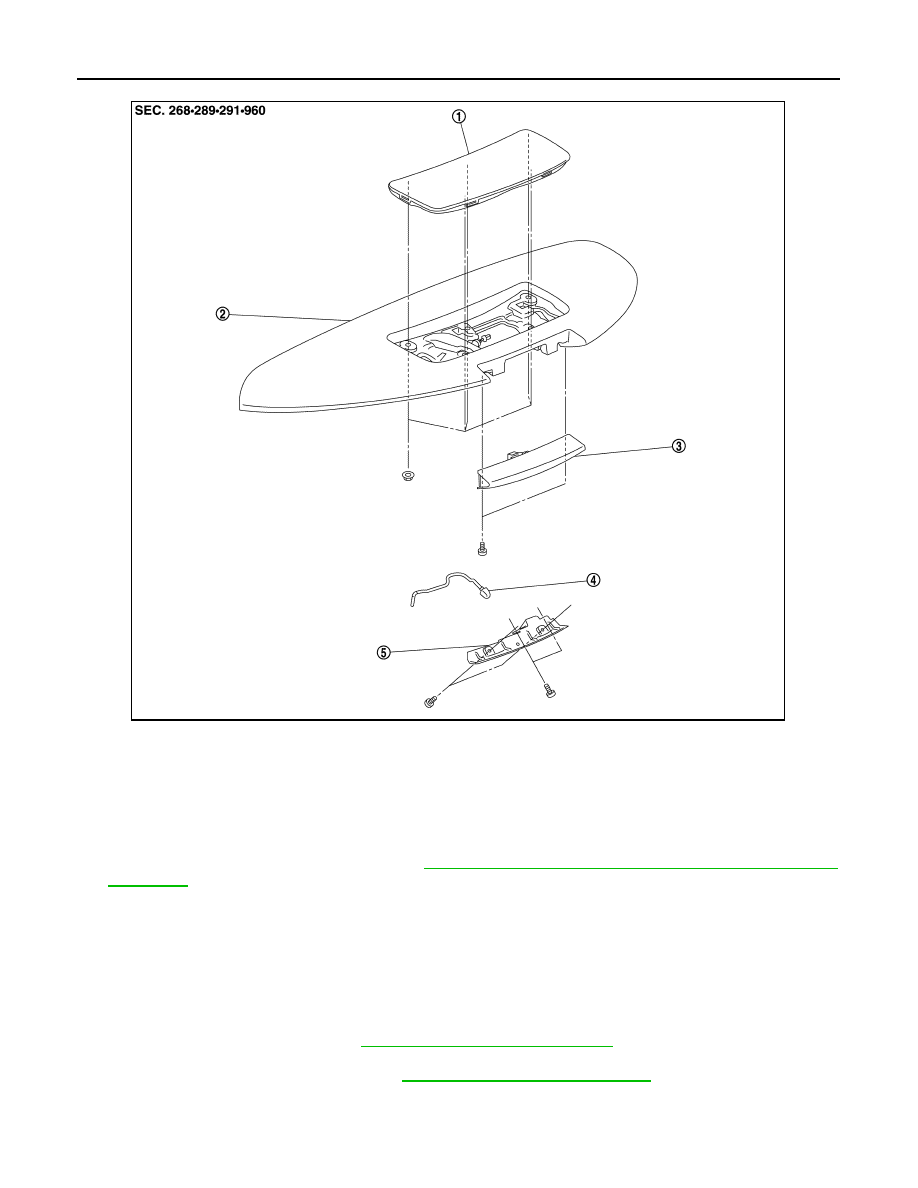

INSTALLATION

Note the following items, and then install in the reverse order of removal.

1.

Solar cell module (if equipped)

2.

Rear spoiler assembly

3.

High-mounted stop lamp

4.

Washer nozzle

5.

High-mounted stop lamp cover

JMKIA6467ZZ

REAR SPOILER

EXT-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

CAUTION:

• Be careful no to damage the back door.

• Always replace double-sided tape with a new one, if rear spoiler is reused.

• Remove double-sided tape remaining on back door panel and back of rear spoiler with a double-

sided tape remover, after removing rear spoiler.

• When installing rear spoiler, check that bolts are securely fitted in back door panel holes to prevent

damage to the parts.

• Never wash the vehicle within 24 hours after installing so as to keep adhesive.

EXT-38

< REMOVAL AND INSTALLATION >

REAR FENDER COVER

REAR FENDER COVER

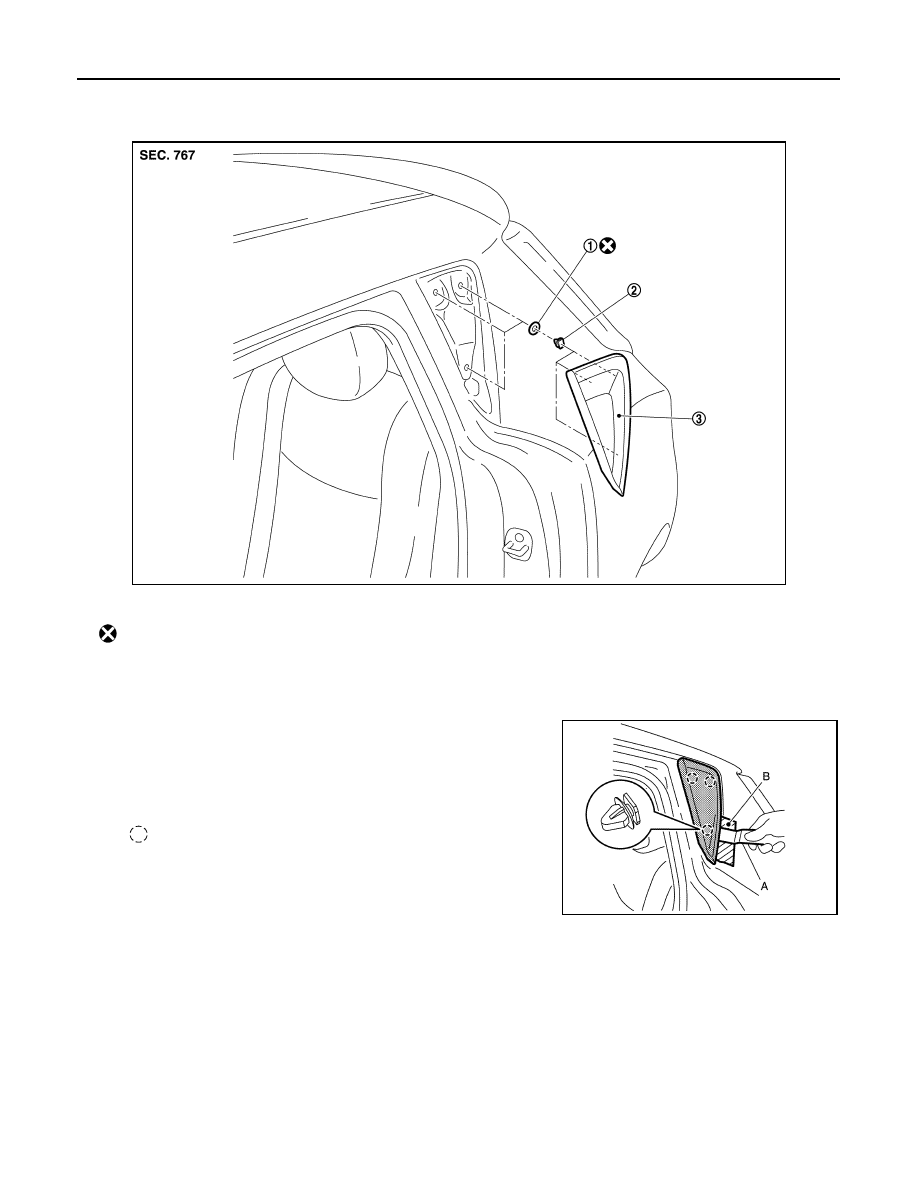

Exploded View

INFOID:0000000010120008

Removal and Installation

INFOID:0000000010120009

REMOVAL

Disengage rear fender cover fixing clips using suitable tool (A), and

then remove rear fender cover.

CAUTION:

Apply protective tape (B) to the body side to protect from dam-

age.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

When installing rear fender cover, check that clips are securely fitted in body panel holes, and then

press them in.

JMKIA6464ZZ

1.

Seal packing

2.

Clip

3.

Rear fender cover

: Always replace after every disassembly.

: Clip

JMKIA6495ZZ
