LIGHTING & TURN SIGNAL SWITCH

EXL-137

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

LIGHTING & TURN SIGNAL SWITCH

Exploded View

INFOID:0000000010121397

The lighting & turn signal switch is integrated in the combination switch. Refer to

BCS-73, "Removal and

Installation"

.

EXL-138

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

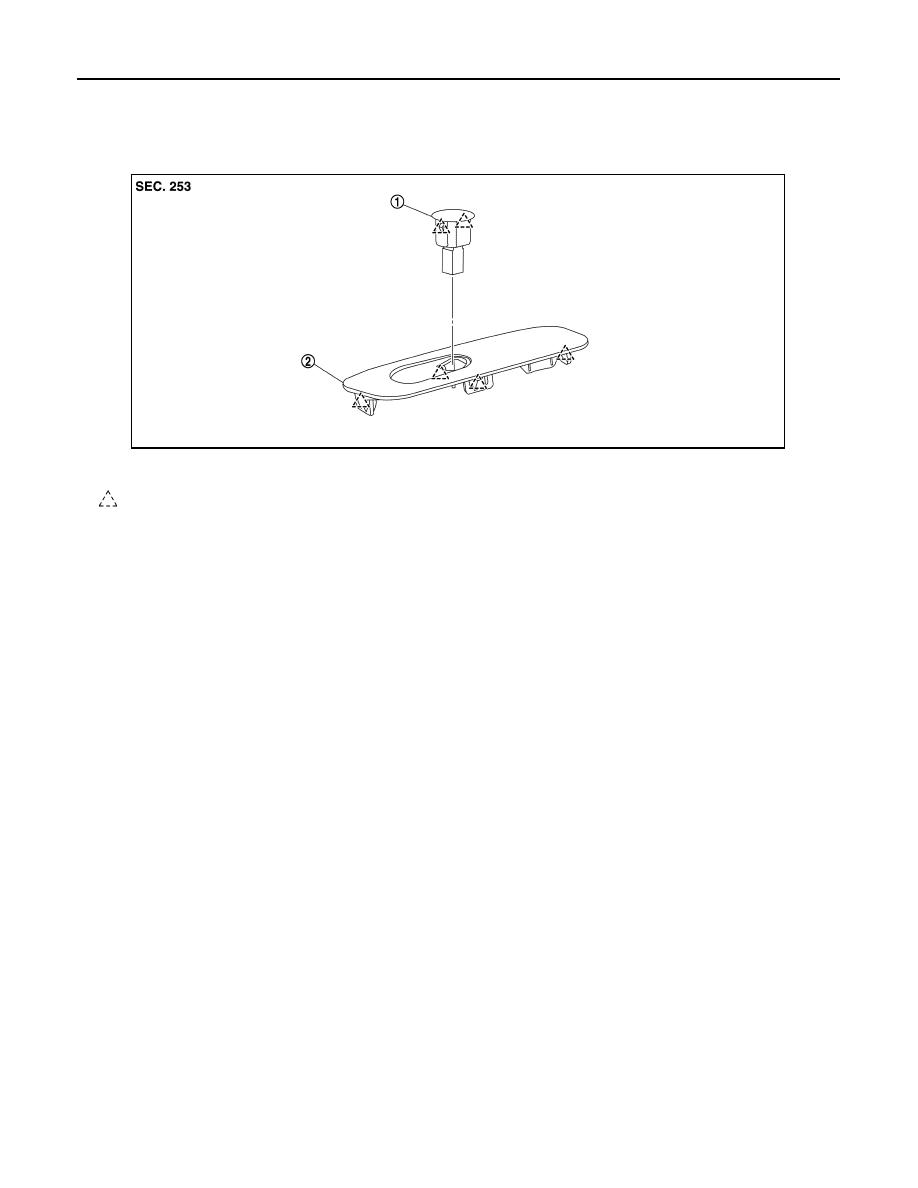

OPTICAL SENSOR

OPTICAL SENSOR

Exploded View

INFOID:0000000010121398

Removal and Installation

INFOID:0000000010121399

REMOVAL

1. Insert suitable tool between the switch panel and the instrument upper panel. Pull out the optical sensor

upward.

2. Disconnect the optical sensor connector.
3. Remove optical sensor from switch panel.

INSTALLATION

Install in the reverse order of removal.

1.

Optical sensor

2.

Switch panel

: Pawl

JMLIA1657ZZ

HAZARD SWITCH

EXL-139

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

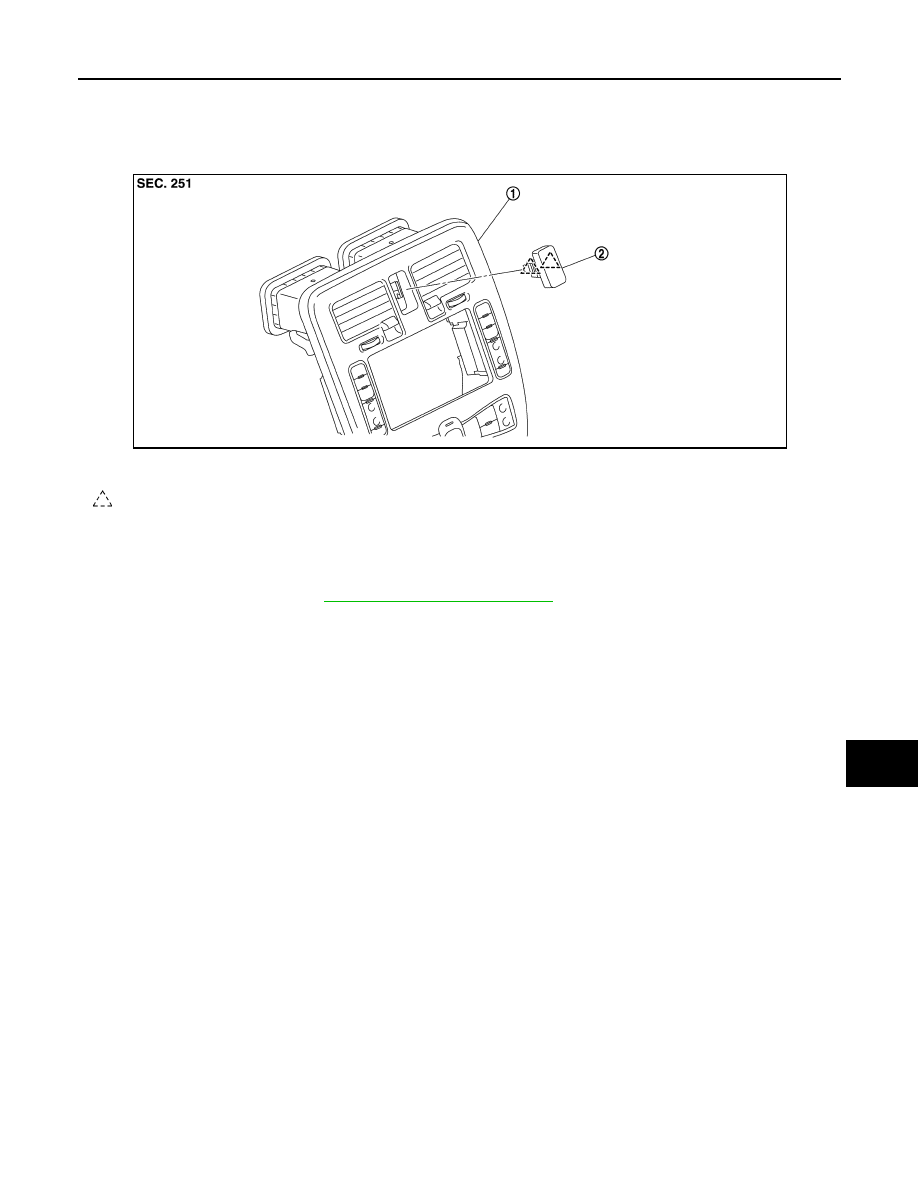

HAZARD SWITCH

Exploded View

INFOID:0000000010121400

Removal and Installation

INFOID:0000000010121401

REMOVAL

1. Remove cluster lid C. Refer to

IP-17, "Removal and Installation"

.

2. Disengage hazard switch fixing pawls, and then remove hazard switch.

INSTALLATION

Install in the reverse order of removal.

1.

Cluster lid C

2.

Hazard switch

: Pawl

JMLIA1658ZZ

EXL-140

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

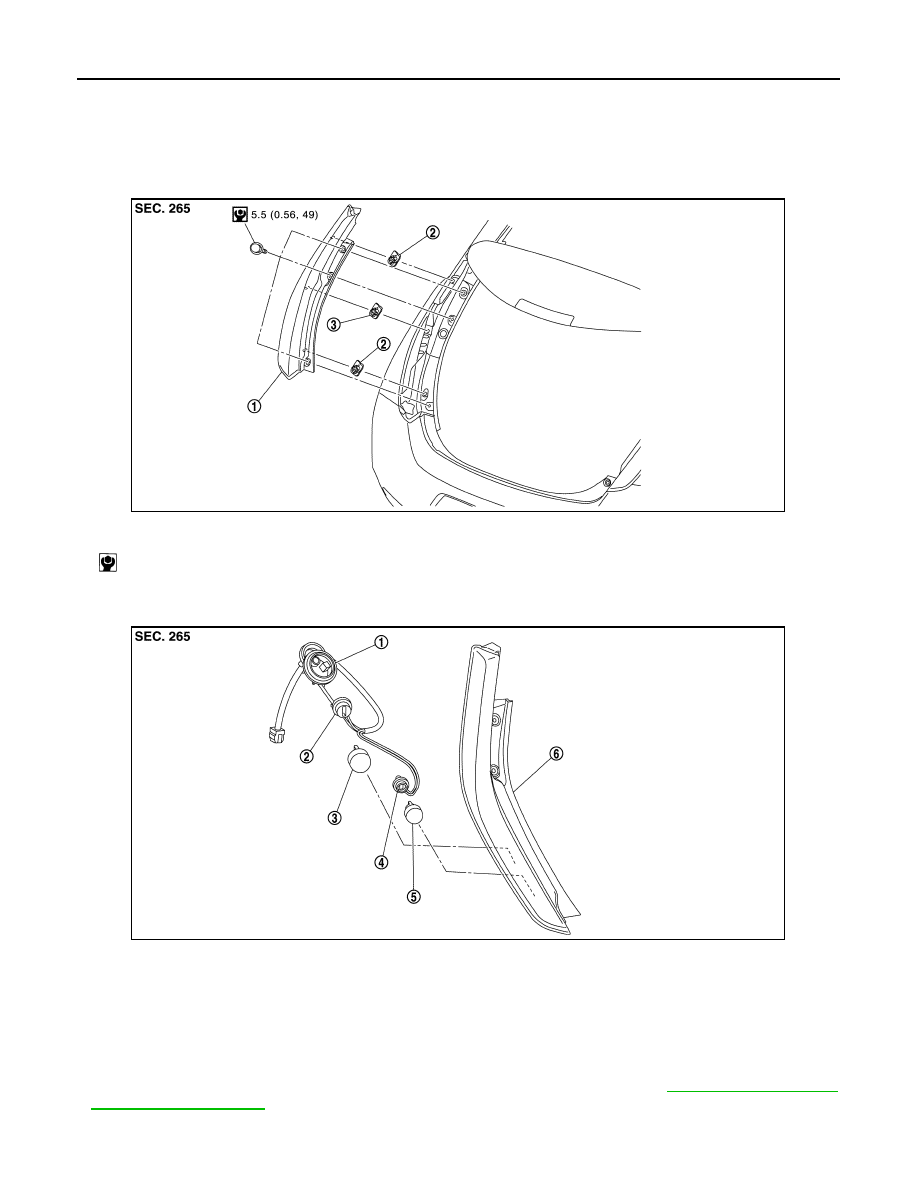

REAR COMBINATION LAMP

REAR COMBINATION LAMP

Exploded View

INFOID:0000000010121402

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000010121403

CAUTION:

• Disconnect the 12V battery negative terminal or remove the fuse. Refer to

EXL-8, "Precaution for

Removing 12V Battery"

.

1.

Rear combination lamp

2.

Grommet A

3.

Grommet B

: N·m (kg-m, in-lb)

JMLIA2083GB

1.

Rear combination lamp harness

2.

Rear turn signal bulb socket

3.

Rear turn signal bulb

4.

Buck-up lamp bulb socket

5.

Buck-up lamp bulb

6.

Rear combination lamp housing as-
sembly

JMLIA1778ZZ
