Nissan Leaf. Manual - part 633





FRONT SIDE MARKER LAMP

EXL-133

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

FRONT SIDE MARKER LAMP

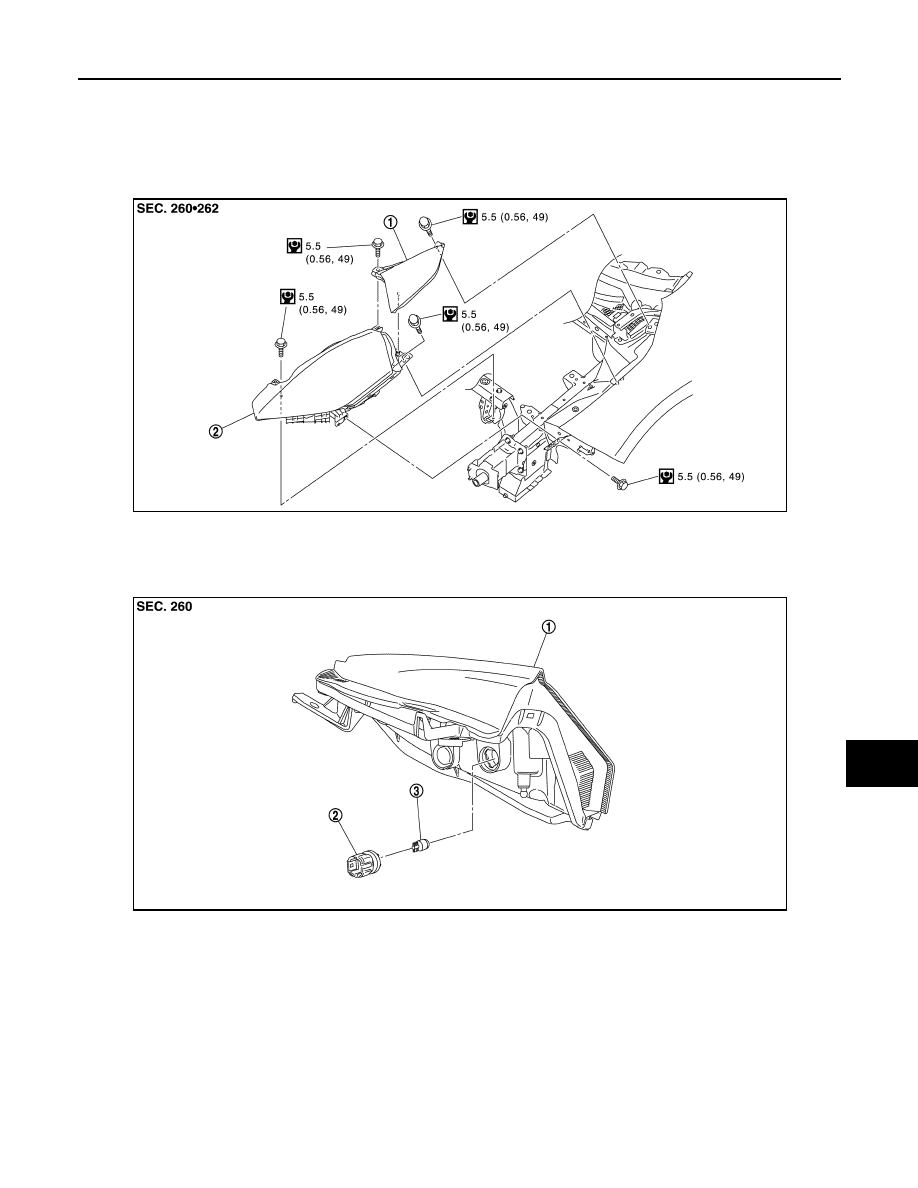

Exploded View

INFOID:0000000010121391

REMOVAL

DISASSEMBLY

REMOVAL

1. Remove front side marker lamp mounting bolts.
2. Pull up front side marker lamp and disconnect the harness connector.
3. Remove front side marker lamp.

Removal and Installation

INFOID:0000000010121392

Bulb Replacement

INFOID:0000000010121393

CAUTION:

1.

Front side marker lamp

2.

Front combination lamp

JMLIA2081GB

1.

Front side marker lamp housing

2.

Front side marker lamp bulb socket

3.

Front side marker lamp bulb

JMLIA2038ZZ

EXL-134

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

FRONT SIDE MARKER LAMP

• After installing the bulb, install the resin cap and the bulb socket securely for watertightness.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it to

prevent damage to the bulb.

• Never touch bulb by hand while it is lit or right after being turned off to prevent a burns.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

FRONT SIDE MARKER LAMP BULB

1. Rotate bulb socket counterclockwise and unlock it.
2. Remove bulb from the bulb socket.

FRONT FOG LAMP

EXL-135

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

FRONT FOG LAMP

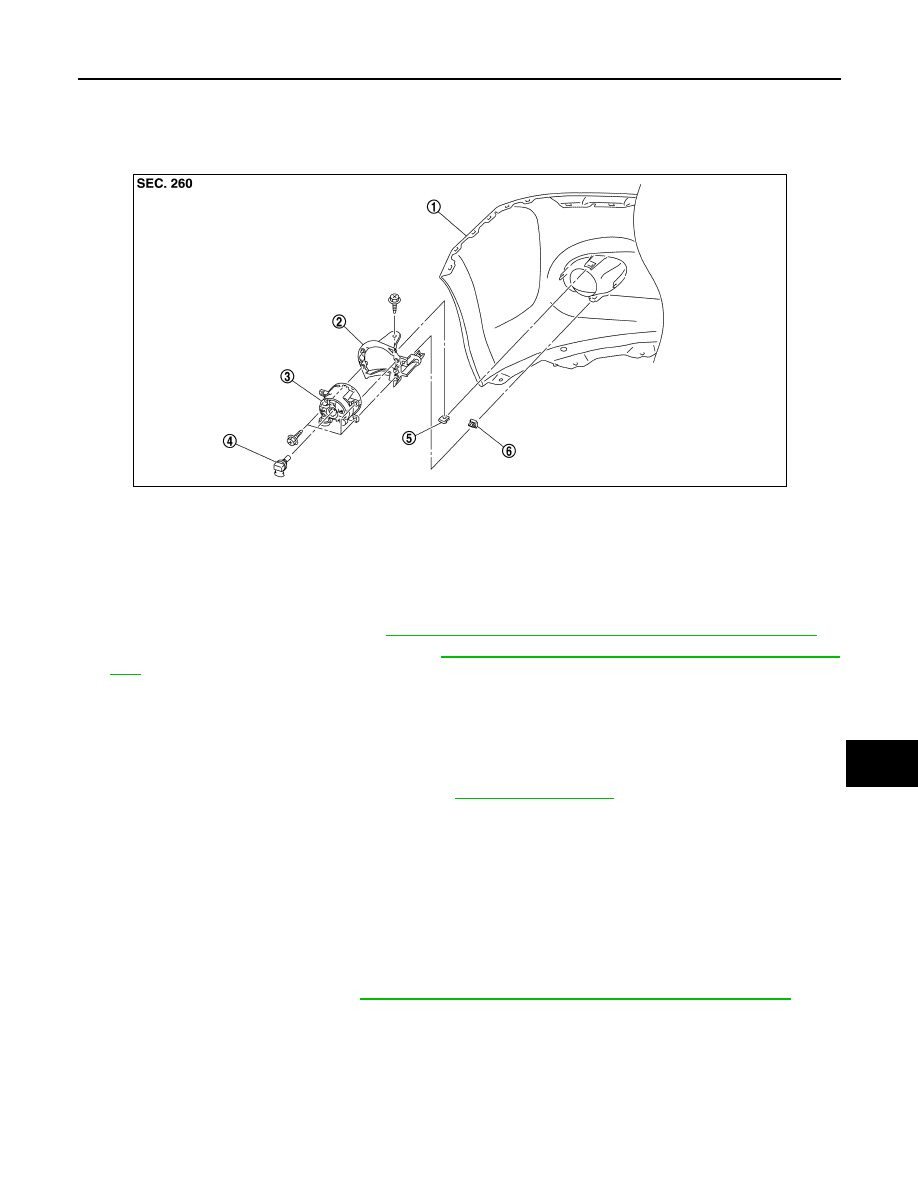

Exploded View

INFOID:0000000010121394

Removal and Installation

INFOID:0000000010121395

REMOVAL

1. Remove the front under cover. Refer to

EXT-23, "FRONT UNDER COVER : Removal and Installation"

.

2. Remove the fender protector (LH/RH). Refer to

EXT-21, "FENDER PROTECTOR : Removal and Installa-

tion"

.

3. Disconnect the front fog lamp harness connector.
4. Remove the front fog lamp fixing screws and remove front fog lamp.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

NOTE:

After installation, perform aiming adjustment. Refer to

EXL-127, "Description"

Replacement

INFOID:0000000010121396

CAUTION:

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it to

prevent damage to the bulb.

• Never touch bulb by hand while it is lit or right after being turned off to prevent a burns.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

FRONT FOG LAMP BULB

1. Remove front under cover. Refer to

EXT-23, "FRONT UNDER COVER : Removal and Installation"

.

1.

Front bumper fascia

2.

Front fog lamp bracket

3.

Front fog lamp

4.

Front fog lamp bulb

5.

J nut

6.

Metal clip

JMLIA2037ZZ

EXL-136

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

FRONT FOG LAMP

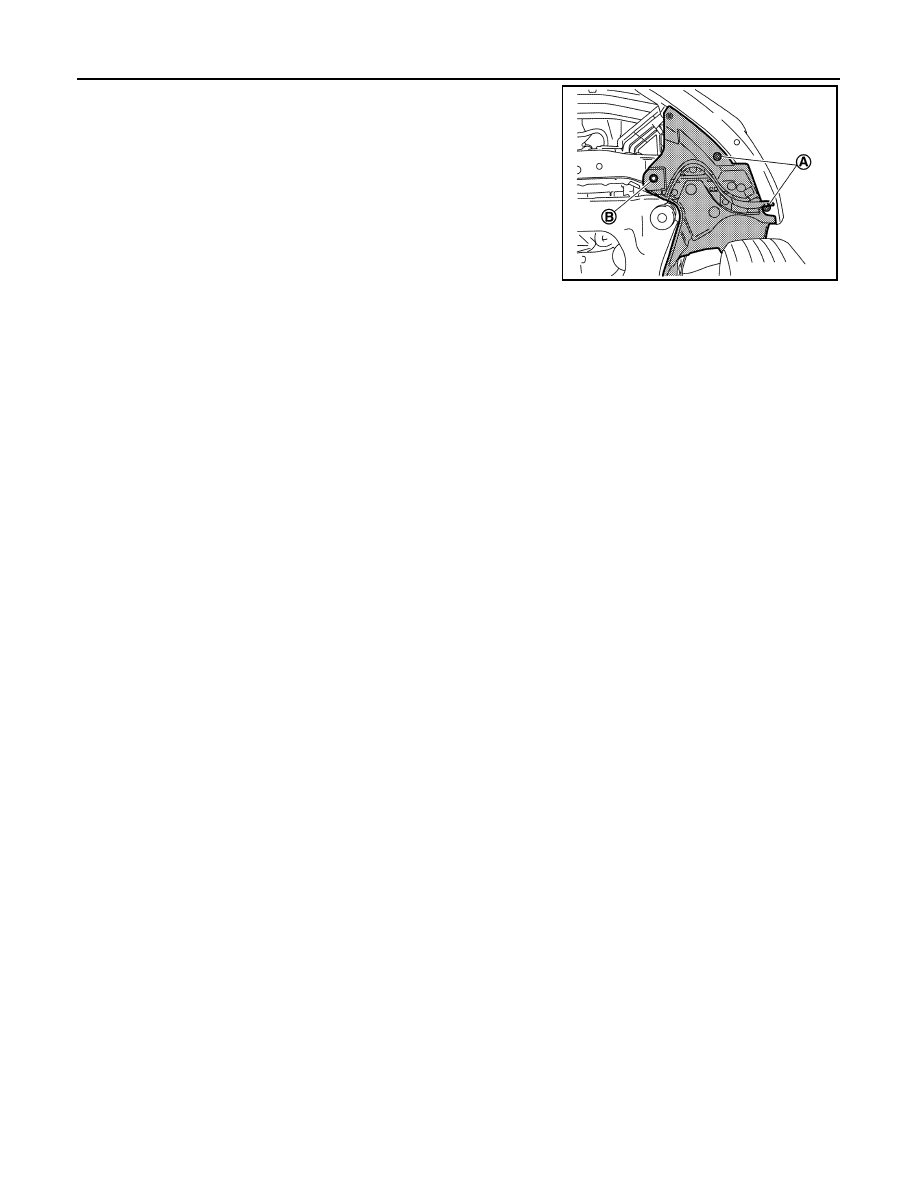

2. Remove front fender protector mounting bolts (A) and clip (B).

3. Remove front fog lamp bulb connector.
4. Rotate bulb counterclockwise and unlock it.

JMLIA1711ZZ
