FRONT COMBINATION LAMP

EXL-129

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

REMOVAL AND INSTALLATION

FRONT COMBINATION LAMP

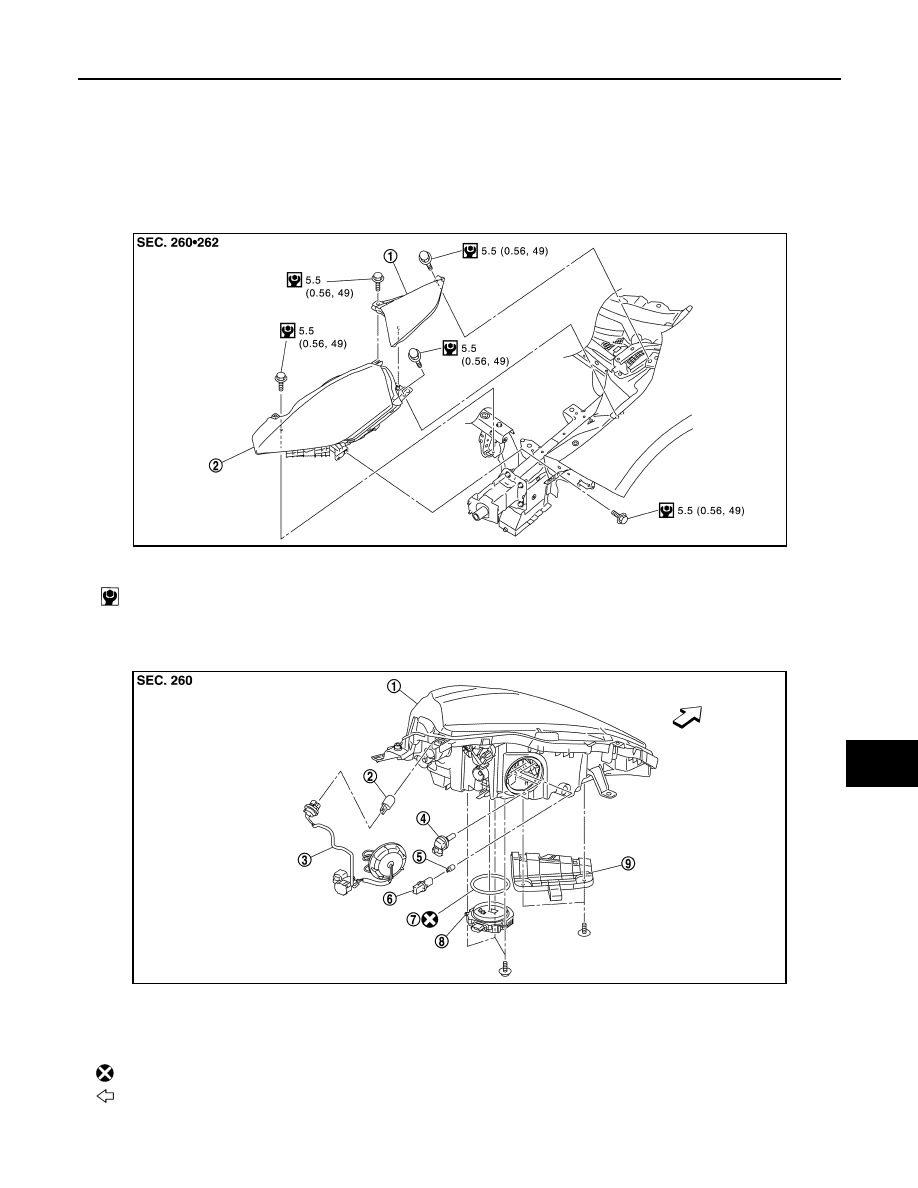

Exploded View

INFOID:0000000010121386

REMOVAL

DISASSEMBLY

Front combination lamp

CAUTION:

1.

Front side marker lamp

2.

Front combination lamp

: N·m (kg-m, in-lb)

JMLIA2081GB

JMLIA1655ZZ

1.

Housing assembly

2.

Front turn signal lamp bulb

3.

Harness

4.

Halogen bulb (HI)

5.

Parking lamp bulb

6.

Parking lamp bulb socket

7.

Seal packing

8.

LED headlamp control module

9.

Bumper bracket

: Always replace after every disassembly.

: Vehicle front

EXL-130

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

FRONT COMBINATION LAMP

• Disconnect the 12V battery negative terminal or remove the fuse to electric leakage. Refer to

EXL-8,

"Precaution for Removing 12V Battery"

.

• Never disassemble LED headlamp (LO) unit assembly.

• Replace front combination lamp, when malfunction LED headlamp unit.

Removal and Installation

INFOID:0000000010121387

REMOVAL

1. Remove front bumper fascia. Refer to

EXT-13, "Removal and Installation"

.

2. Remove front side marker lamp mounting bolts.
3. Pull up front side marker lamp, disconnect front side marker lamp harness connector and remove front

side marker lamp.

4. Remove front combination lamp mounting bolts.
5. Pull out front combination lamp forward the vehicle, and then disconnect the connector before removing

front combination lamp.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

NOTE:

After installation, perform aiming adjustment. Refer to

EXL-125, "Description"

.

Bulb Replacement

INFOID:0000000010121388

CAUTION:

• Disconnect the 12V battery negative terminal or remove the fuse to electric leakage. Refer to

EXL-8,

"Precaution for Removing 12V Battery"

.

• After installing the bulb, install the resin cap and the bulb socket securely for watertightness.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it to

prevent damage to the bulb.

• Never touch bulb by hand while it is lit or right after being turned off to prevent a burns.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

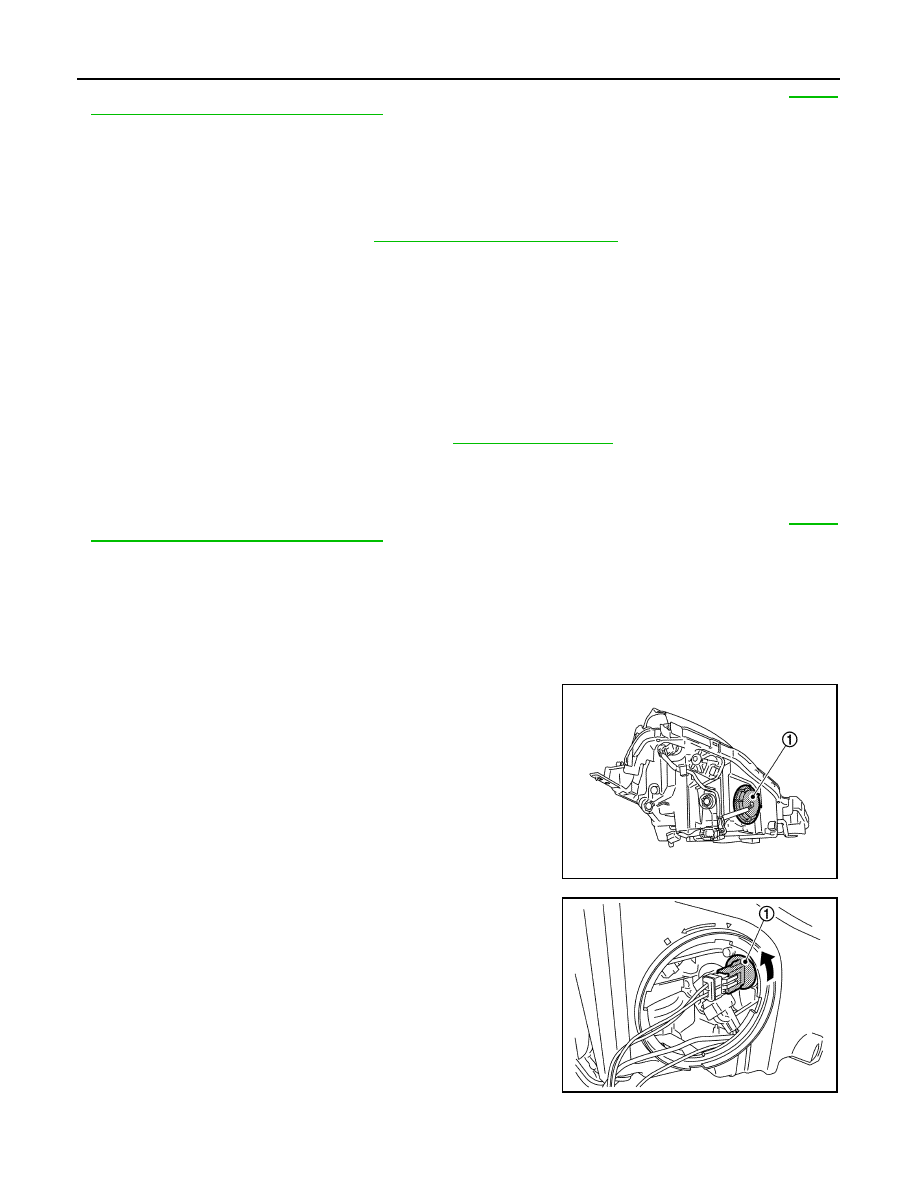

PARKING LAMP BULB

1. Rotate resin cap (1) counterclockwise and unlock it.

2. Rotate parking lamp bulb socket (1) counterclockwise and

unlock it.

3. Remove parking lamp bulb from bulb socket.

JMLIA1701ZZ

JMLIA2082ZZ

FRONT COMBINATION LAMP

EXL-131

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

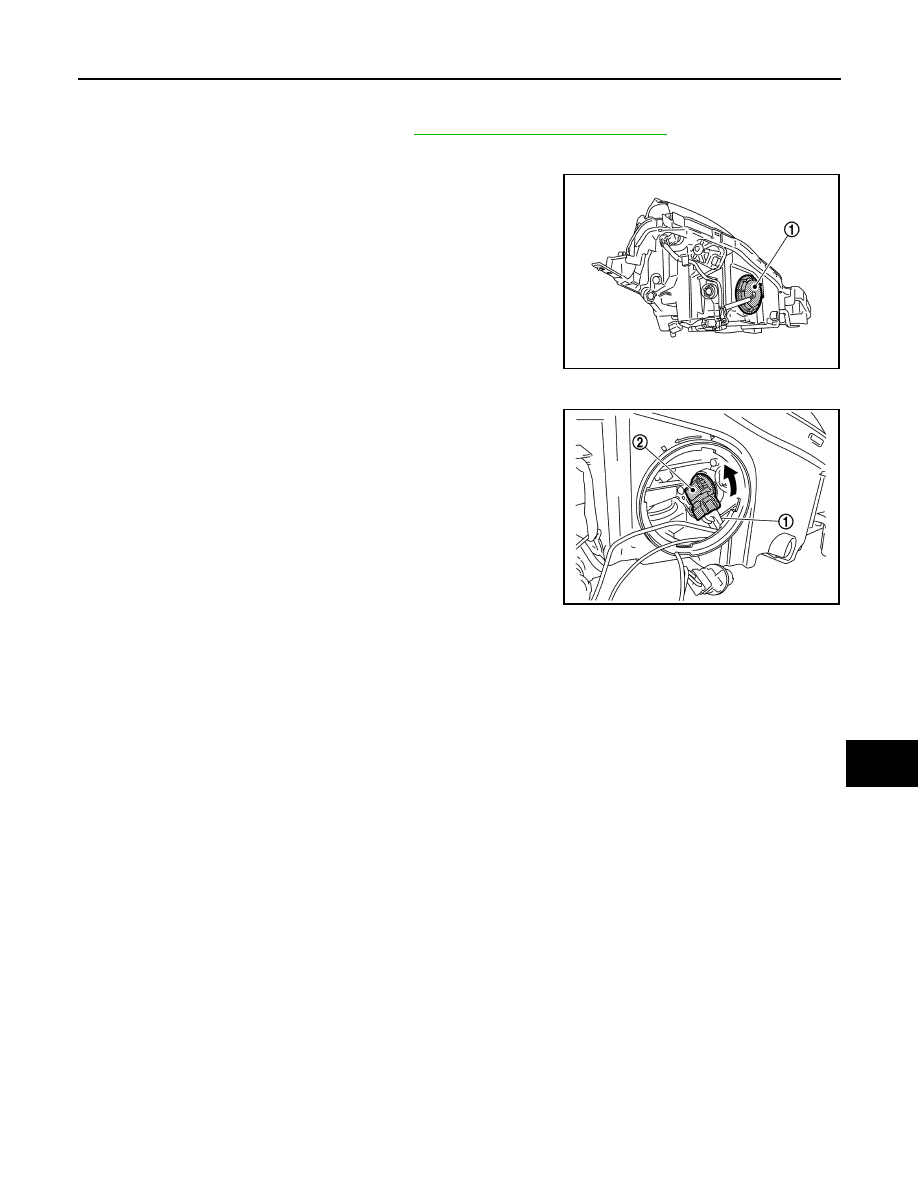

HEADLAMP BULB (LO)

LED is used for headlamp bulb (LO). Always replace front combination lamp assembly as a unit, when bulb is

to be replaced because of malfunction. Refer to

EXL-130, "Removal and Installation"

.

HEADLAMP BULB (HI)

1. Rotate resin cap (1) counterclockwise and unlock it.

2. Remove parking lamp bulb and socket.
3. Rotate headlamp bulb (HI) (2) counterclockwise and unlock it.
4. Disconnect headlamp bulb (HI) harness connector (1).

5. Remove headlamp bulb (HI) from the headlamp housing assembly.

FRONT TURN SIGNAL LAMP BULB

1. Rotate bulb socket counterclockwise and unlock it.
2. Remove bulb from the bulb socket.

Disassembly and Assembly

INFOID:0000000010121389

DISASSEMBLY

1. Rotate resin cap counterclockwise and unlock it.
2. Rotate parking lamp bulb socket counterclockwise and unlock it.
3. Disconnect parking lamp harness connector.
4. Rotate headlamp bulb (HI) counterclockwise and unlock it.
5. Disconnect headlamp bulb (HI) harness connector.
6. Rotate turn signal lamp bulb socket counterclockwise and unlock it.
7. Remove turn signal lamp bulb from bulb socket.
8. Remove LED headlamp control module mounting screws.
9. Disconnect LED headlamp control module harness connector, and then remove LED headlamp control

module.

10. Remove combination lamp harness connector.

ASSEMBLY

Note the following items, and then assemble in the reverse order of disassembly.

CAUTION:

• Install LED headlamp control module securely.

• Always replace seal packing, when remove/replace LED headlamp control module.

• After installing the bulb, install the resin cap and the bulb socket securely for watertightness.

JMLIA1701ZZ

JMLIA1703ZZ

EXL-132

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

FRONT COMBINATION LAMP

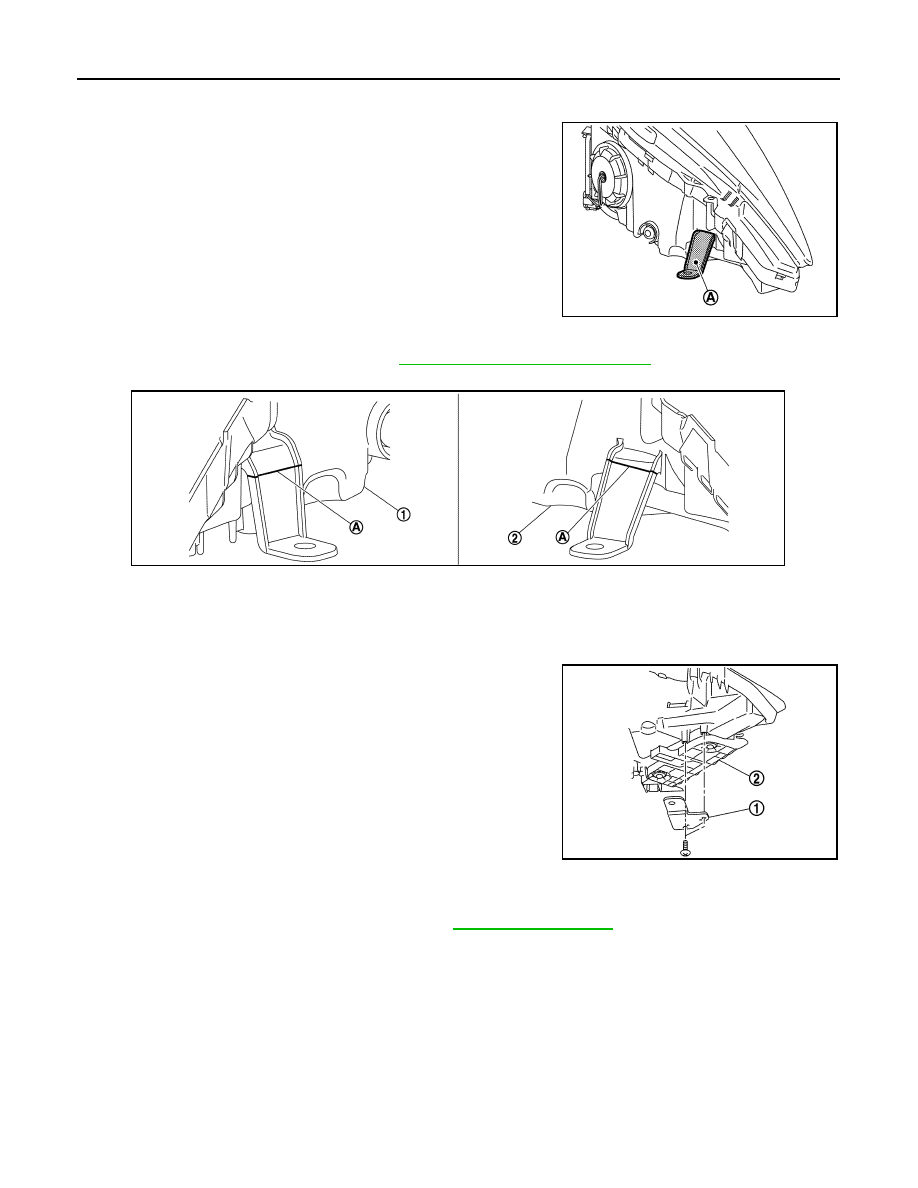

Installing service bracket

INFOID:0000000010121390

If only installation part (A) as shown in the figure is damaged, and

front combination lamp housing itself is not damaged, repair can be

completed easily by installing service brackets.

Removal

1. Remove front combination lamp. Refer to

EXL-130, "Removal and Installation"

.

2. Cut damaged section of installation part, then shape with sandpaper.

Installation

1. Install service bracket (1) to headlamp housing (2) with screws.

2. Install front combination lamp to the vehicle.
NOTE:

After installation, perform aiming adjustment. Refer to

EXL-125, "Description"

.

JMLIA1779ZZ

1.

Front combination lamp RH

2.

Front combination lamp LH

A.

Cut line (R end)

JMLIA1780ZZ

JMLIA1781ZZ
