FRONT FOG LAMP SYSTEM

EXL-57

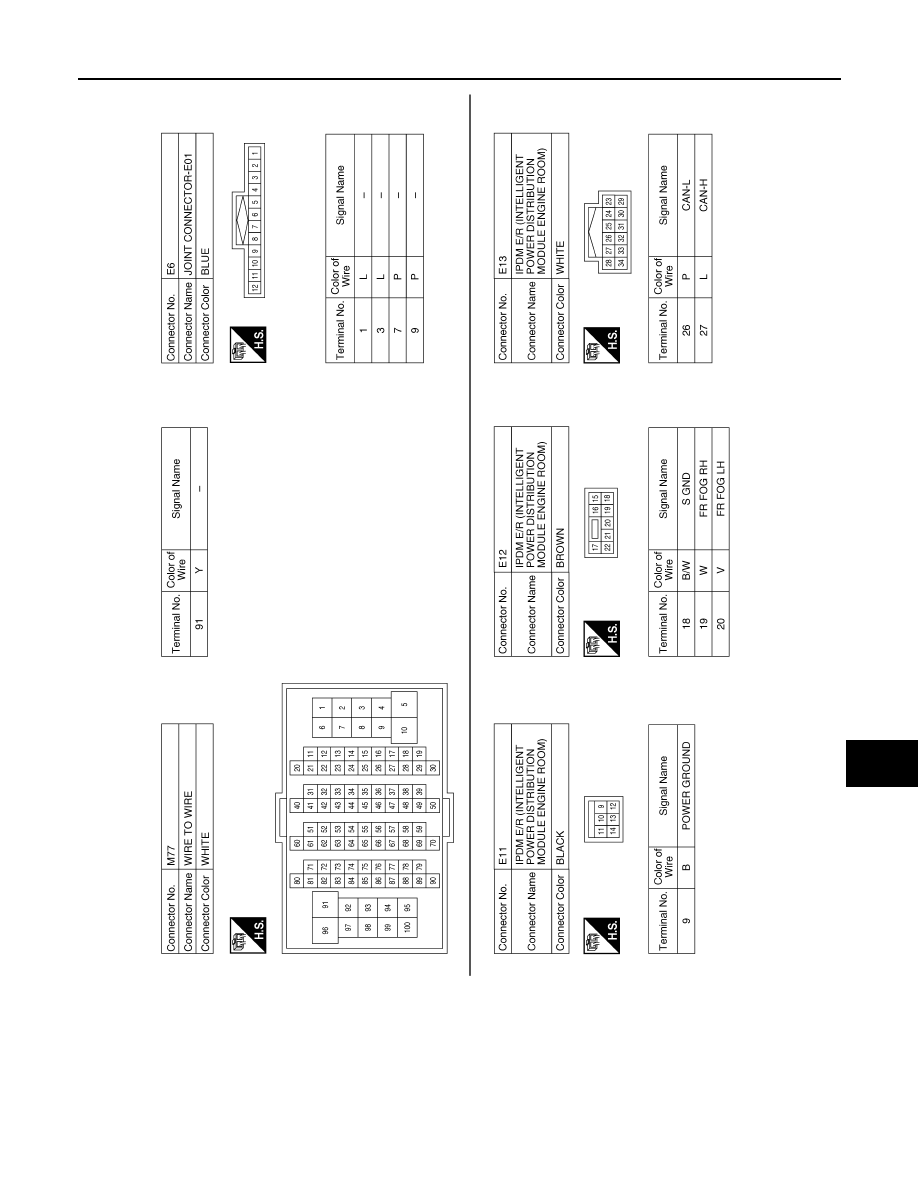

< WIRING DIAGRAM >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

AALIA2496GB

EXL-58

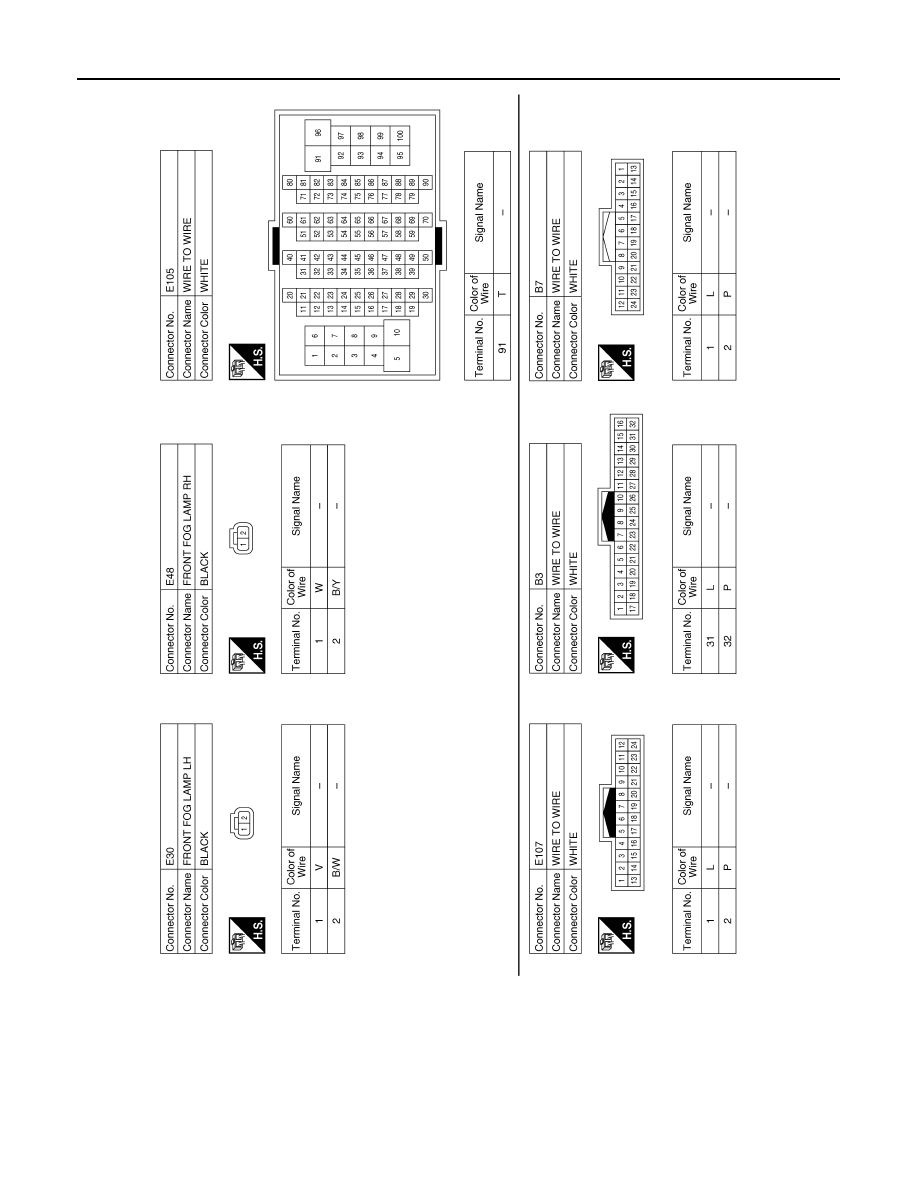

< WIRING DIAGRAM >

[LED HEADLAMP]

FRONT FOG LAMP SYSTEM

AALIA2497GB

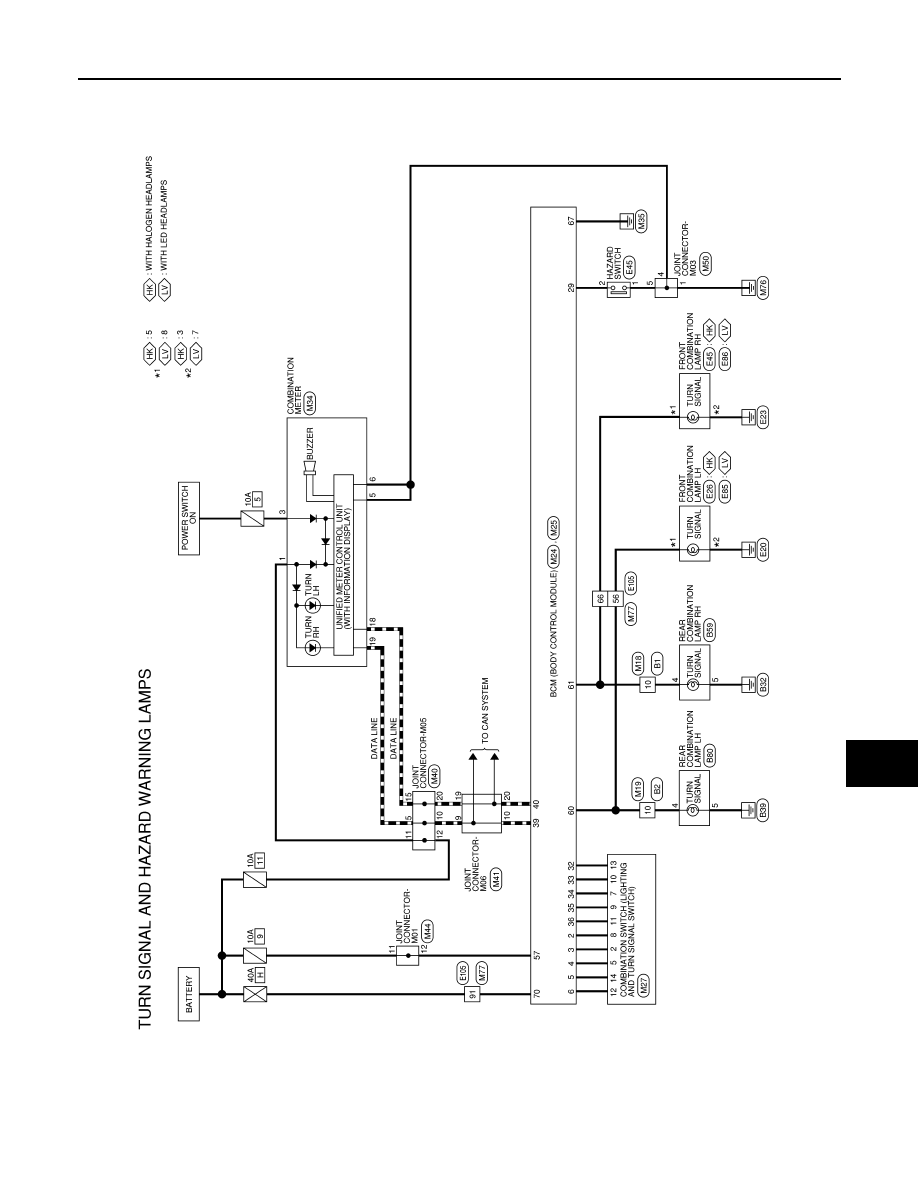

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

EXL-59

< WIRING DIAGRAM >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

Wiring Diagram

INFOID:0000000010546096

AALWA0864GB

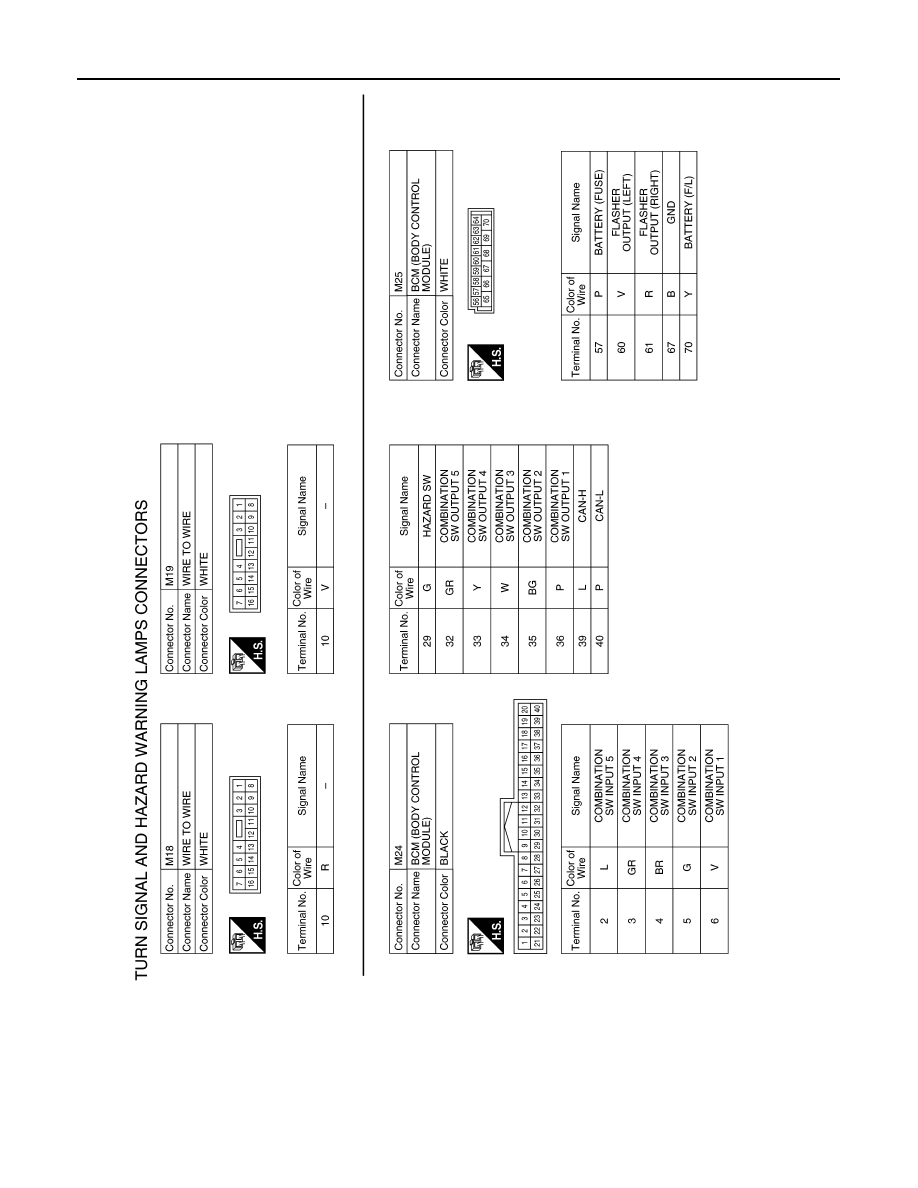

EXL-60

< WIRING DIAGRAM >

[LED HEADLAMP]

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

AALIA2516GB
