Nissan Leaf. Manual - part 613

EXTERIOR LAMP BATTERY SAVER SYSTEM

EXL-53

< WIRING DIAGRAM >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

AALIA2493GB

EXL-54

< WIRING DIAGRAM >

[LED HEADLAMP]

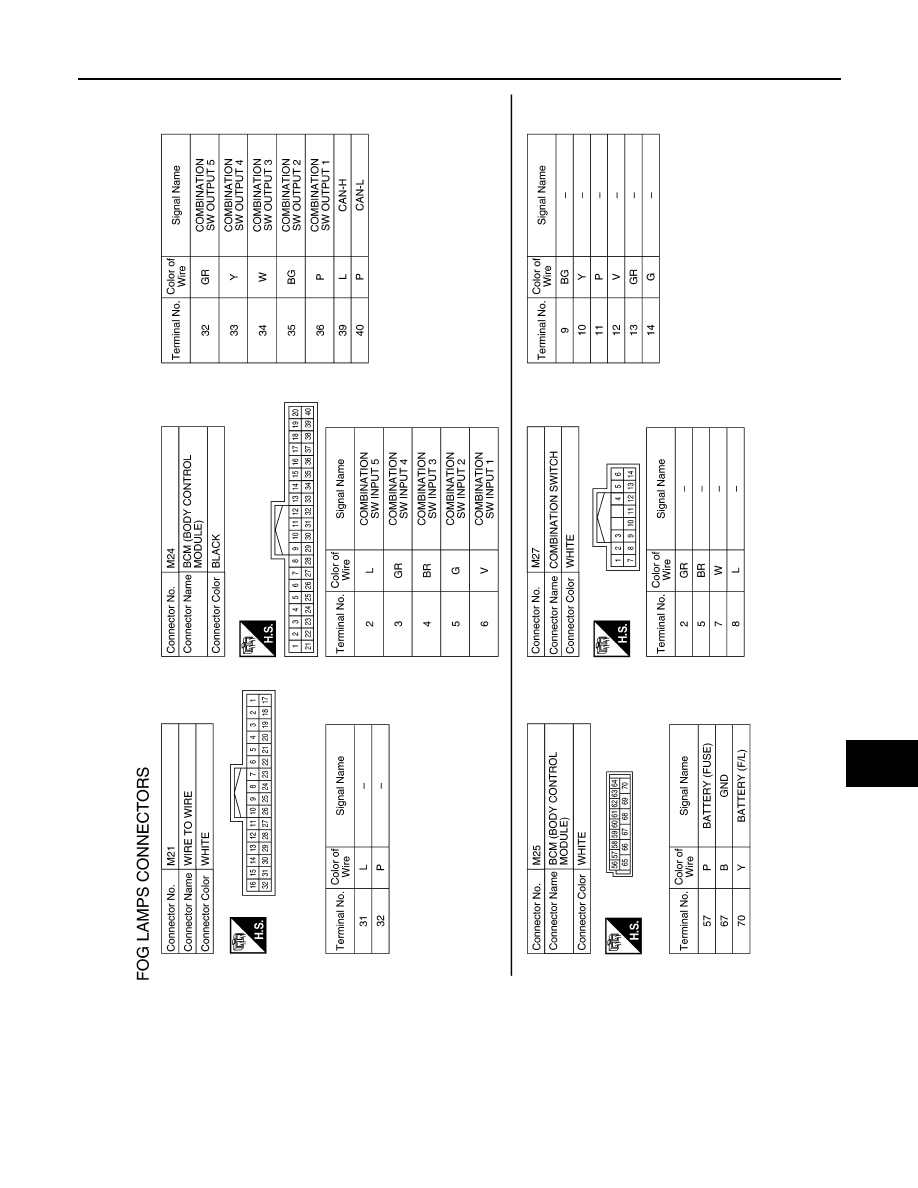

FRONT FOG LAMP SYSTEM

FRONT FOG LAMP SYSTEM

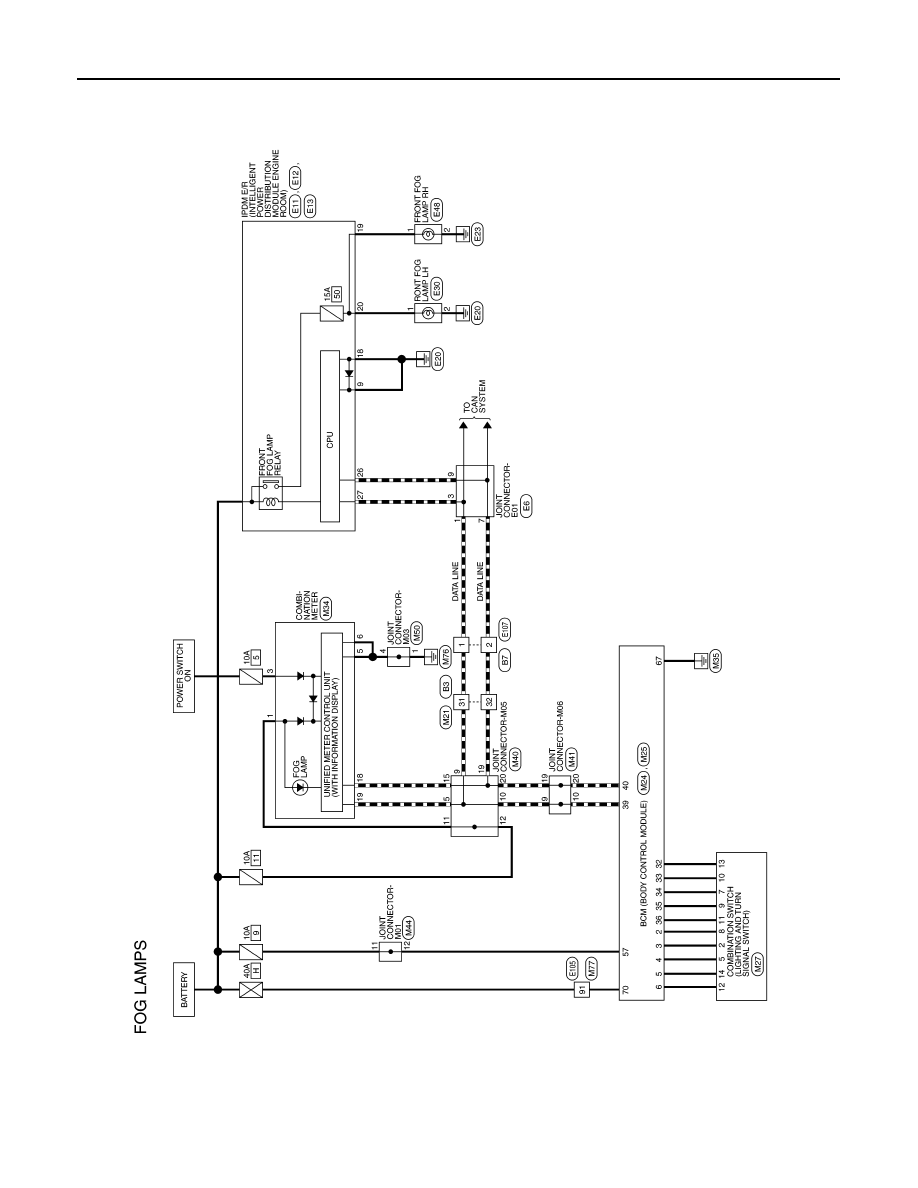

Wiring Diagram

INFOID:0000000010546095

AALWA0858GB

FRONT FOG LAMP SYSTEM

EXL-55

< WIRING DIAGRAM >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

AALIA2494GB

EXL-56

< WIRING DIAGRAM >

[LED HEADLAMP]

FRONT FOG LAMP SYSTEM

AALIA2495GB
